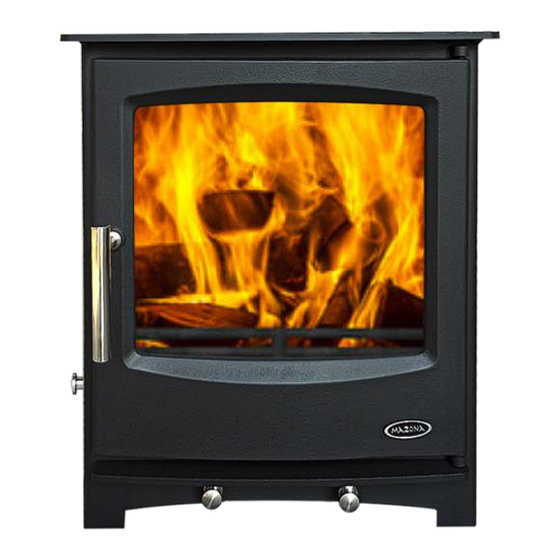

- Page 1 Eco Newport/ Rye Stove Range Eco-design Compliant Operation and Installation Manual Eco Newport 5 – MZEDNPMF5, Eco Rye 5 - MZEDRYMF5 Version 1 – 22/04/2022 PLEASE RETAIN FOR FUTURE REFERENCE...
-
Page 2: The Clean Air Act 1993 And Smoke Control Areas
The Clean Air Act 1993 and Smoke Control Areas Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located in a designated smoke control area. - Page 3 Welcome to Mazona Congratulations on purchasing your very own Mazona stove. We’re sure you can’t wait to get started, but please, read this manual thoroughly. You’ll learn the ins and outs of using your stove and we promise you, you’ll hit the ground running. We’d like to thank you for supporting Mazona, a brand which strives to produce reliable, eco-friendly stoves at an affordable price.
- Page 4 IMPORTANT It is important that this manual is read by the installer before installation. The householder should familiarise themselves with the manual before using the appliance. Incorrect installation of this stove can be dangerous. The installation should be carried out by a trained competent person and in accordance with local and national building regulations.
-
Page 5: Installation Instructions
1) INSTALLATION INSTRUCTIONS APPLIANCE LOCATION The appliance must be located at specific distances from its surroundings. This is to prevent damage to products & furnishings within the vicinity of the appliance. Adequate space should be provided for servicing the appliance. We recommend furnishings be kept 1m away at all times, to avoid heat degradation over time. -
Page 6: Flue / Chimney
the appliance and the fan are in different rooms. If mechanical extraction is unavoidable in the same room as your stove, then seek specialist advice to ensure safe operation of the appliance. A competent installer should be aware of specific ventilation parameters. Building control guidance for heat producing appliance ventilation can be found at: https://www.hetas.co.uk/consumer/regulations/... -
Page 7: Hearth Construction
If using single wall flue, please ensure there is a clearance of at least 3 times the diameter of the flue pipe from any combustible material (e.g. 150mm pipe = 450mm minimum clearance to wooden beam). HEARTH CONSTRUCTION Hearths should be constructed of suitably robust materials and to appropriate dimensions such that, in normal use, they prevent combustion appliances setting fire to the building fabric and furnishings and they limit the risk of people being accidently burnt. -
Page 8: Lighting The Stove
2) OPERATION INSTRUCTIONS Lighting the stove 1. Open the door and ensure the secondary control lever is fully open. It’s the control on the right. 2. On first lighting, we recommend using 2 - 3 firelighters along with wood kindling built in a pyramid above the firelighters to obtain a good fire bed. -
Page 9: Recommended Fuels
Burning coal: • The Air-wash/secondary air lever (The control to the right) – This should be left partially open, to allow the air-wash system to keep the glass clean. • Primary air control lever (The control to the left) - When burning coal, the stove should be mainly controlled using this lever. - Page 10 • Household coal or bituminous coal. • Waste timber that has been painted or treated e.g., outdoor fencing. Refuelling Wood 1. Refuel when a layer of hot embers has been formed in the fire bed. 2. Spread the embers over the fire bed with a poker. 3.
- Page 11 Weather Conditions Weather conditions can affect the performance of the stove. Strong winds combined with close buildings or trees can cause the stove to smoke. Heavy rain may lower the temperature of the flue making it difficult to light or slow to heat up.
-
Page 12: Troubleshooting (Faq)
3) Troubleshooting/ F.A.Q. Problem Probable Cause Recommended Action Fire difficult to light Green/Wet wood Use recommended fuels Insufficient air Open air controls Insufficient draft Check flue is not obstructed, sweep if needed Fuel too large Use kindling / small logs to start fire Fire burns too quickly Too much air... - Page 13 Low heat output Poor quality fuel Use recommended fuels Insufficient Seal Check condition of rope seal around glass Page 13 of 22...
-
Page 14: Important Notice
IMPORTANT NOTICE WARNING: When properly installed and operated this appliance should only emit fumes during fuelling and de-ashing. The stove is designed to be operated only with the doors shut. To prevent fume spillage only open the doors for ignition, refuelling and cleaning. -
Page 15: Maintenance
4) MAINTENANCE De-ashing The appliance should be de-ashed at least once every 24 hours depending on fuel type and heating load. With the door closed, use the riddling knob on the left side to filter the ash through the grate and into the ash pan below for removal. -
Page 16: Flue / Chimney Cleaning
Paintwork If paintwork needs repaired, contact your retailer directly. The paint used on your product is specialised high temperature resistant paint and ordinary paint will not suffice. Never perform any paint repair when unit is hot. Flue / Chimney cleaning Please ensure the flue is swept as instructed. -
Page 17: Technical Information
5) TECHNICAL INFORMATION Appliance Eco Newport/ Rye 5 Fuel type Beech Anthracite Output kW (nominal) Efficiency (%) 78.6 82.2 CO Emissions at 13% O (vol%) 0.07 0.04 Emissions at 13% O (mg/m (OGC) Emissions at 13% O (mg/m Dust (PM) Emissions at 13% O (mg/m Flue gas temp. -
Page 18: Product Drawings
7) PRODUCT DRAWINGS Eco Newport/ Rye 5: Page 18 of 22... -
Page 19: Exploded Diagram
EXPLODED DIAGRAM *See next page for subsequent parts list. Page 19 of 22... -
Page 20: Spare Parts List
8) SPARE PARTS LIST Product Part Part number Quantity Door handle Roller catch & easy burning mechanism Door Door glass Left brick Back bricks Baffle plate Spacer & lower baffle Flue cover Stove body Right brick Direct air kit Slider plate & plate to 13 &... -
Page 21: Warranty
9) WARRANTY 5 Years – Your warranty covers replacement of the stove body if it is found to be defective within 5 years of purchase. Refitting and shipping costs are not covered. 1 Year – Bottom grate, bottom grate support, cast iron air-wash, cast iron door, riddling bar, air control bars, fire bars, ashpan, flue collar &... -
Page 22: Warranty Claim Form
WARRANTY CLAIM FORM PLEASE ENSURE ALL MANDATORY SECTIONS (*) ARE CORRECTLY COMPLETED OR WE WILL NOT BE ABLE TO PROCESS YOUR CLAIM Customer name* Customer Address* Post Code* Date* Contact Number(s)* Retailer Name* Retailer Contact* Date of Purchase Type of fuel used* Problem reported* Comments Date of Installation*...
