Summary of Contents for Pulse-Eight ProAudio1632

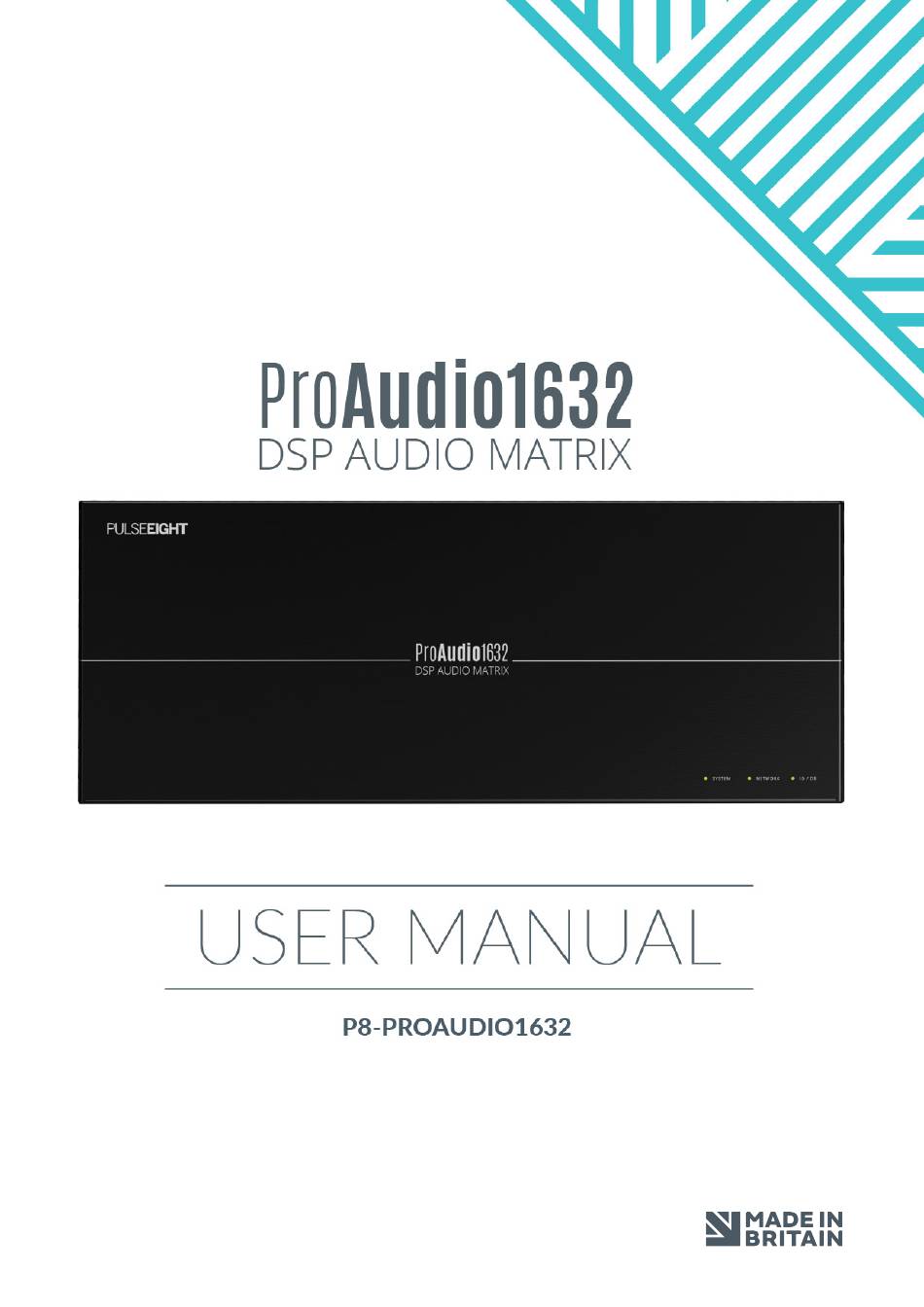

- Page 1 V2.2...
-
Page 2: Table Of Contents
CONTENTS Introduction 3 Features 3 Inside The Box (Kit) 3 Specifications 4... -
Page 3: Introduction

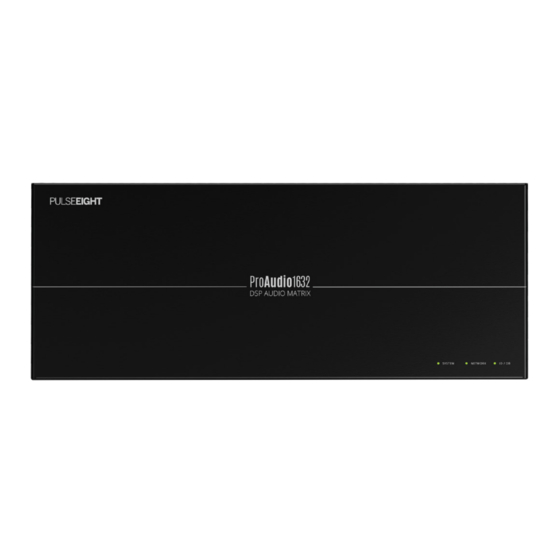

INTRODUCTION The ProAudio1632 DSP Pre-Amp Audio Matrix features 40 audio inputs (16x Stereo L/R, 8x Optical, x 16Digital Coax) alongside 32 zone outputs (32x Stereo L/R and 32x Digital Coax), enabling simultaneous audio distribution to multiple zones Each output zone can be enhanced with built-in features including 5 band equalizer per zone, adjustable volume and gain settings, subwoofer control, serial and TCP/IP control, lip sync delay and much more Pulse-Eight’s ProAudio™... -
Page 4: Specifications
SPECIFICATIONS Inputs 16x Stereo L/R, 8x Optical, 16x Digital Coax Outputs 32x Stereo L/R, 32x Digital Coax 12V Trigger 12x Outputs Doorbell/ Paging 2x Inputs Lip-sync Up to 170ms per zone and/or per input Audio Outputs Settings • Volume Range: +24dB to -995dB, and full mute (-115dB), with 05dB step resolution Individual zone and master (all zones) control •... -
Page 5: Safety Precaution
Because we cannot accurately predict how or when they can affect your device, we highly recommend that you keep Pulse-Eight products not only in a well-ventilated area but also as clean as possible... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS System Health LED indicates ProAudio health - It is powering on or fault found GREEN - The system is healthy Network LED indicates the ProAudio network connection OFF - The network LED is off when it first powers on. It remains off if no Ethernet cable is plugged in. - When an Ethernet cable is plugged in, the light turns red This indicates that a physical connection exists but there is no software connection YELLOW... - Page 7 Analog Inputs Port: Connect analog input source devices Optical Inputs Port: Connect optical SPDIF (Sony/Philips Digital Interface) digital source devices Digital Coax Input Ports: Connect digital coax SPDIF (Sony/Philips Digital Interface) digital source devices RS-232: Port Serial option to connect to third party control systems ID Button: For identification when using Control4 control systems.
-
Page 8: Overview - Audio Routing Capabilities
OVERVIEW - AUDIO ROUTING CAPABILITIES The ProAudio1632 DSP Pre-Amp Audio Matrix features 40 audio inputs (16x Stereo L/R, 8x Optical, 16x Digital Coax) and 32 audio zone outputs (32 Stereo L/R and 32 Digital Coax) Any audio input can be routed to any... -
Page 9: Installation
1 The ProAudio1632 features up to 40 independent audio inputs Connect your audio source devices directly to the inputs accordingly 2 The ProAudio1632 can have between 32 to 64 audio output zones, depending on your configuration. Connect your audio outputs to the relevant AVR or Audio amplifiers. - Page 10 3 Connect either the Serial (RS232) or Ethernet connection to your controller Ethernet Connection (recommended): Connect to the local Ethernet using the ProAudio’s TCP/IP port Serial Connection: Connect a serial cable between the controller and the ProAudio’s RS232 port 4 Connect the power using the included IEC cable The unit will take 15-30 seconds to boot up and get an IP address, if using the Ethernet port Note: After boot up, please check the LEDs on the front of the system, as described on the PANEL DESCRIPTIONS section.
- Page 11 5 Link to third-party control system Access the Pulse-Eight Cloud Monitoring site to download the necessary drivers Follow the installation instructions in the driver documentation for that control system Alternatively, if you do not have a third-party control system (or driver is not available), please refer to the...
-
Page 12: Wiring Diagram
WIRING DIAGRAM Example of ProAudio1632 wiring with a video matrix (e.g. neoX+) and an amplifier (e.g. ProAmp8). -
Page 13: Control Setup
ID button that allows you to configure it directly with Control4. For more information please download the relevant driver and documentation from the Pulse-Eight Cloud Monitoring Alternatively, ProAudio also provides a direct configuration method via Command Line Interface (CLI). To use... - Page 14 To use TCP/IP, you must first search the network for the IP address of the ProAudio. Depending on when the ProAudio was made, the MAC address will be listed under Zektor or Pulse-Eight The MAC address will either begin with 5CD4ABxxxxxx or 00-15-82-xx-xx-xx Once the IP address is known Then follow these steps: 1 Choose ‘Raw’...
- Page 15 Setting Up The Line Control Options 5 Set them to “Force on” this allows you to see what you are typing, and to edit it before sending 6 After the two options are selected, press the “open” button, and the command window should open up Testing The Connection 7 To see if a connection has been established, enter the version command: ^V$ and then press enter The terminal program being used (eg PuTTY), will then send the response showing the model switch that is...
-
Page 16: Paging And Doorbell
PAGING AND DOORBELL The back panel can be wired to accept dry contact closures (for push buttons or relay triggers), or voltage triggers You can mix connection types and setup one connection for dry closures, and the other for voltage triggers To use dry contact closures, add a jumper between the SE and dB connections, and connect the switch to other dB input and the SW input Note that the SW-1 and SW-2 connections are also connected to the chassis ground If you are using a shielded cable to the switch, connect the SW side to the shield If one side of your button is... -
Page 17: Audio Output Zone Settings
AUDIO OUTPUT ZONE SETTINGS The ProAudio1632 offers several parameters that can be individually set for each output port (zone). The following parameters can be adjusted per output port: • Volume: Range from +24dB to -995dB, and full mute (-115dB), in 05dB step resolutions •... -
Page 18: Lock Zone
LOCK ZONE The ProAudio1632 has “Zone Lock” capabilities for all of its audio outputs The Zone Lock feature allows you to: • Make an audio output zone always switch to the same source as a different output zone • Send volume to one output zone and have another zone go to the same volume •... -
Page 19: Setting Up A Subwoofer
SETTING UP A SUBWOOFER Each zone has a crossover filter that can allow only high frequencies, or only low frequencies to pass, or be disabled (and allow all frequencies to pass) Both the crossover type and the crossover frequency has to be set before the crossover filter is enabled. This can be done by selecting the correct “crossover filter”... -
Page 20: Setting Minimum/Maximum Volume
SETTING MINIMUM/MAXIMUM VOLUME The output’s “min volume” and “max volume” settings are the absolute volume levels A volume level of 0 means that the signal level coming into the switch is the same as the signal level going out Each step of one of the settings is a 05dB change So a setting of 1 = +05dB gain, and -1 = -05dB loss So the default values are 24 = 120dB gain, and -120 = -60dB loss The gain command is given in 0.5dB steps and uses an offset of 200 to indicate a gain of 0.0dB. -
Page 21: Troubleshooting
Should you encounter installation difficulties or issues with device communication, the following checklist of common issues and causes should help resolve your issues If you still continue to experience issues, please contact your local representative or Customer Support team (cs@pulse-eightcom) for further assistance No Audio •... -
Page 22: Warranty Procedure
• 1-year advanced replacements Pulse-Eight Current Product—Within the advanced replacement warranty year(s) 1 Contact support via phone or a support ticket Pulse-Eight will try to help troubleshoot and resolve the issue remotely 2 If unable to resolve the fault remotely and the unit needs replacing an advanced replacement will be raised with... -
Page 23: Warranty Terms & Conditions
3. WARRANTY CONDITIONS; HOW TO GET SERVICE IF YOU WANT TO CLAIM UNDER THIS LIMITED WARRANTY Before being able to claim under this Limited Warranty, the owner of the Product must (a) notify Pulse-Eight of the intention to claim by emailing support@pulse-eightcom during the Warranty Period and providing a description of the alleged failure, and (b) comply with Pulse- Eight’s return shipping instructions, and (c) ship the Product at owner’s cost (except where prohibited by applicable law) to Pulse-Eight for... - Page 24 You use all product information, the services, and the product at your own discretion and at risk You will be solely responsible for (and Pulse-Eight disclaims) any and all loss,...
-
Page 25: Notes
NOTES...
