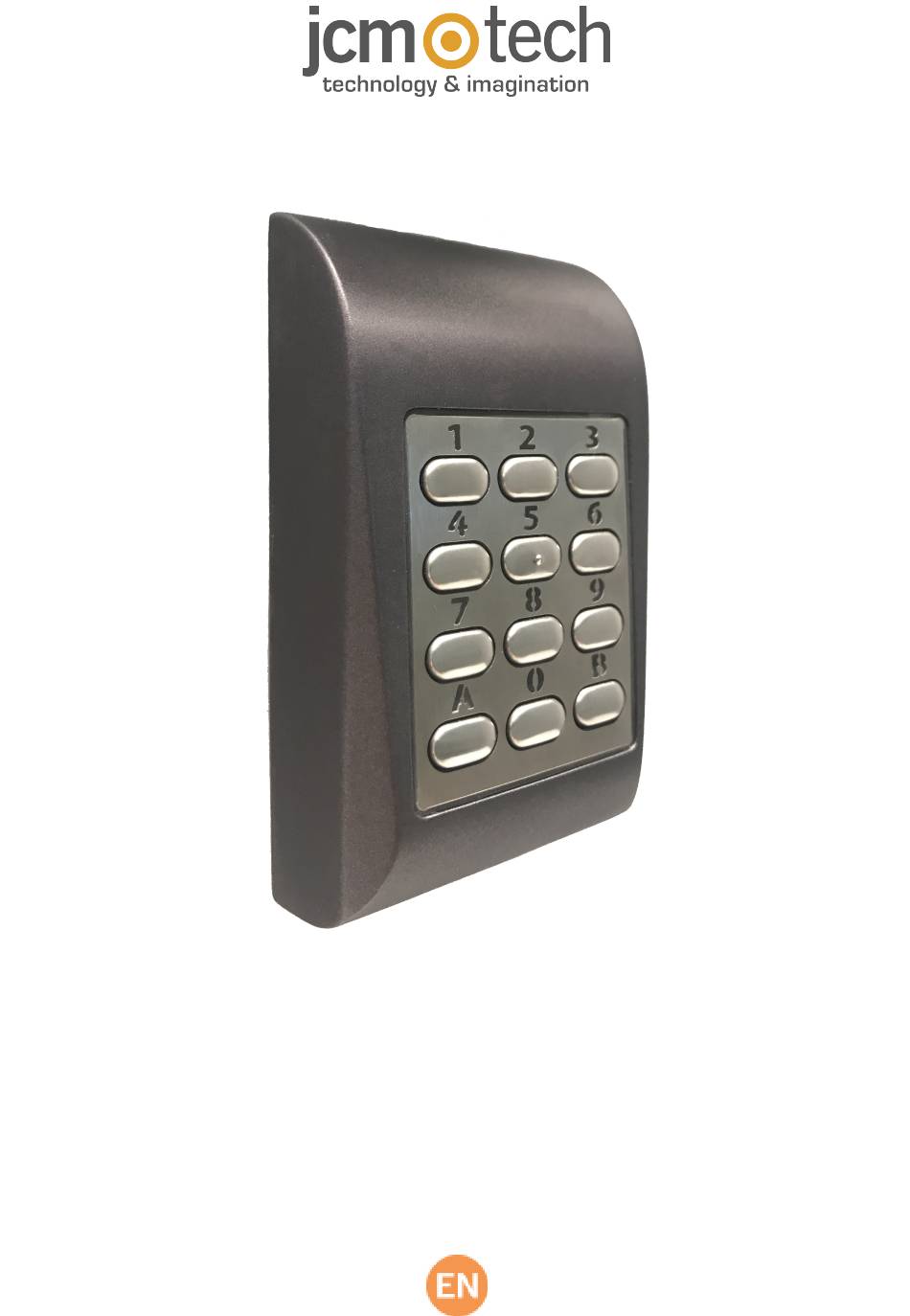

- Page 1 User Manual...
- Page 2 Table of contents Important safety instructions Use of the equipment Description Technical characteristics Assembly Wiring Connection to the HDOOREVO Configuration Wiegand34 selection Change PIN length Change master code Restart the factory master code Options Menu Regulatory Data UKCA Declaration of conformity EU Declaration of conformity jcmtechnologies...
- Page 3 The manufacturer reserves the right to change the specifications of the equipment without prior notice. Description PAD is a multiprotocol Wiegand/clock and amp, Data/Codix keyboard, with a configurable PIN length. The integrity breach (tamper) switch will activate the alarm system if you try to open or remove the unit from the wall.
- Page 4 Assembly Identify a suitable location on a wall or flat sur- Stick on the mounting template and drill the holes face. according to the diagram. Insert the three 5mm screw plugs into the holes. Pass the cables through the back plate. Fasten the back plate firmly to the wall with the Connect the cables and place the housing onto three 30mm screws.
- Page 5 12V DC 9-14V CC Ground Tamper Tamper Switch Tamper Tamper Switch LED Green - Green LED LED Red - Red LED Data 1 Data 0 Connection to the HDOOREVO jcmtechnologies...
- Page 6 Configuration By default, PAD is set with the Wiegand 26 protocol with a 4-digit PIN. Default master code: 000000 Wiegand34 selection •Hold the "B" key down until you hear 3 beeps. •Master code (by default: 000000) → Orange LED activated.
- Page 7 Options Menu jcmtechnologies...
- Page 8 Regulatory Data UKCA Declaration of conformity JCM TECHNOLOGIES, SAU hereby declares that the product PAD complies with the relevant fundamental requirements of the Electromagnetic Compatibility Regulations 2016 whenever its usage is foreseen; and with the RoHS Regulations 2012. EU Declaration of conformity JCM TECHNOLOGIES, SAU hereby declares that the product PAD complies with the relevant fundamental requirements of the Directives 2014/30/EU on electromagnetic compatibility whenever its usage is foreseen;...
