Summary of Contents for Toolots M60
- Page 1 M60 Walk-behind Floor Cleaner OPERATION INSTRUCTION CAUTION! Read this manual carefully before using the device.
-
Page 2: Table Of Contents
Contents Warning ........................2 Operation guide ......................3 Safety instructions ......................4 Operation process ......................5 Complete cleaning ....................... 6 Technical specifications ....................7 Diagram ........................8 Operation ........................9 Function ........................10 Core components ....................... 11 Consumables ......................12 Daily Maintenance ..................... -
Page 3: Warning
WARNING!! 1、Read all the installation instructions carefully before you first use your machine. 2、This ground washing machine is only used as a hard ground cleaning equipment. If it is used for other purposes than the instructions in this manual, our company will not be liable for any losses caused thereby. -
Page 4: Operation Guide
OPERATION GUIDE Machine outer packing Immediately after receiving the machine, check whether the received machine and accessories are consistent with those on the shipping bill, and check whether the machine is damaged during transportation. If the machine is damaged or missing, please contact us, so that we will send you the missing products as well as the damaged products in transit. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS (1) Read the manual before operating the machine. (2) Do not mix different types of cleaners, otherwise harmful gas will be produced. (3) Do not use the machine in an explosive environment. (4) Do not use the machine to transport items. (5) Do not use acidic solutions that will damage the machine (6) Do not spray the machine with water or pressurized water directly, and do not use corrosive substances to clean the machine. -
Page 6: Operation Process
OPERATION PROCESS 1、Check whether the battery wiring contacts are good enough to prevent short circuit faults. 2、 Turn on the machine with a key, and check whether the battery is sufficient, if the battery is too low, don't continue using the machine, turn off the power immediately, and charge the battery. 3、Check that the brush pan or needle holder is properly installed. -
Page 7: Complete Cleaning
4、If any parts of the machine are removed, for whatever reason, they must be restored to their normal state before the machine is put to work; 5、Touch the moving parts of the machine is dangerous and absolutely forbidden.Turn off the power and remove the key. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Model Scrubbing width 21in Squeegee width 34in Brush size 20in Cleaning efficiency 20990sqft/h Cleaning time 3-4h Brush speed 166rpm Brush pressure 66LB Absorbent power 0.67HP Vacuum suction 135mbar Brush motor power 0.67HP Solution tank 14.6 gal Recovery tank 15.9 gal Battery capacity 24V/100AH... -
Page 9: Diagram

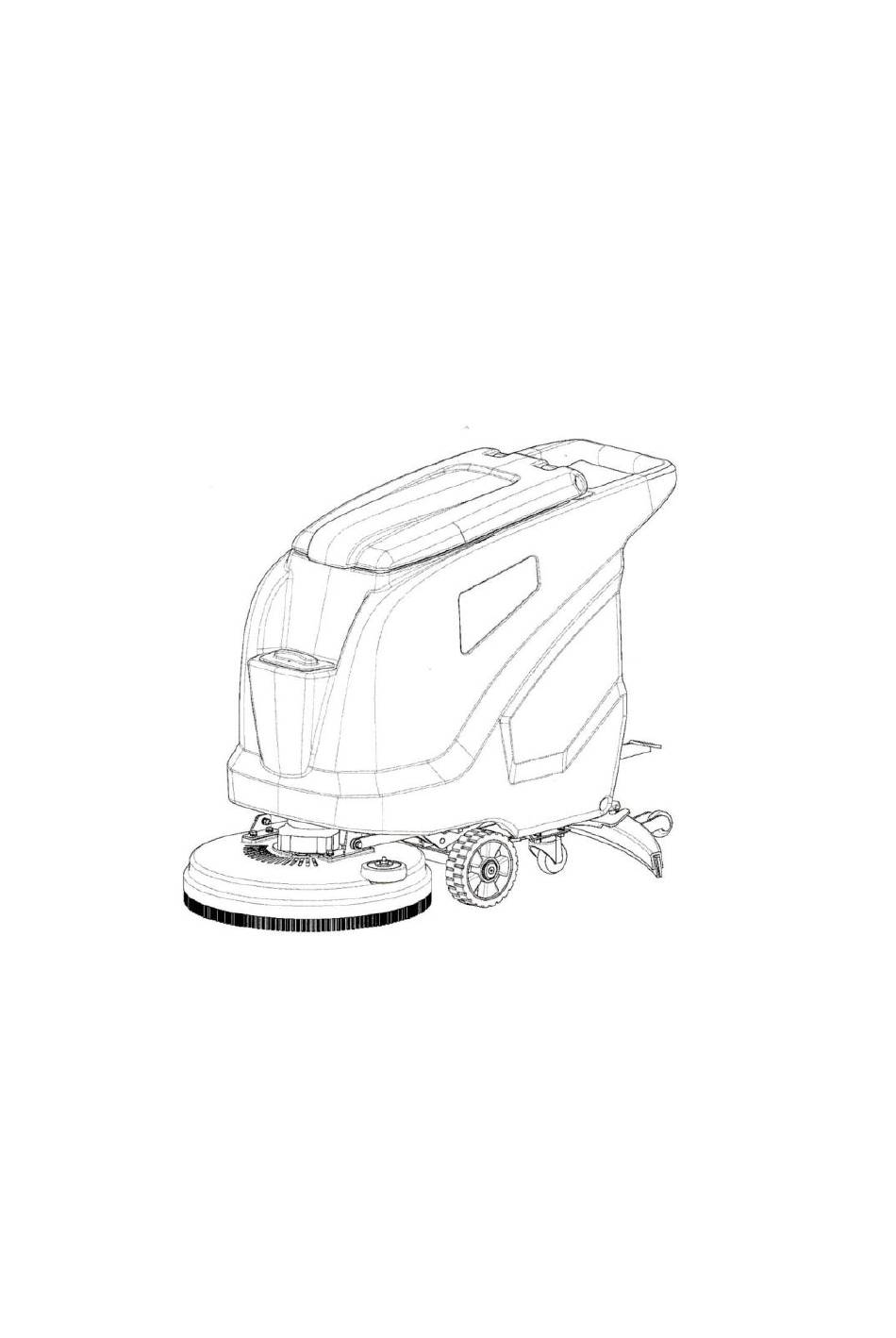

Diagram of the machine Control Panel Key Switch Sewer pipe Water Gage Suction steak Suction box cover Bilge suction box Filling pipe end Solution tank Main wheel Brush plate component... -
Page 10: Operation
Water meter Battery status Brush off/on button Suction off/on button ECO mode Water volume Take down disc adjustment button brush button Operation 1. Turn on the power key switch (located under the console) 2. Turning the key to the right will turn on the power supply of the vehicle, and turning it to the left will disconnect the power supply. -
Page 11: Function
Function Aluminum alloy brush cover Aluminum alloy brush plate cover is mainly linked with the rotation of the brush plate motor to drive the rotation of the ground brush plate, the main role of the brush plate is to scrub the dirt on the ground, decontamination. -
Page 12: Core Components
Core components electric machine 0.67hp/24V All copper wire. Low noise, low temperature, more energy saving Suction motor Suction motor power:0.67hp/24v. Fast speed, strong function. Control panel The control panel has all the operation buttons. Battery 100AH maintenance-free battery, the charging process is generally 3-4 hours, the charger will turn green when fully charged. -
Page 13: Consumables
Consumables Filter screen The rubber strip Disc brush Wheel Suction sewage pipe... -
Page 14: Daily Maintenance
CAUTION! Do not expose the machine to rain, store it indoors. Daily Maintenance When the machine is not working, clean the brush tray to protect the bristles. When the machine is not working, lift the cleaning particles and other stains to protect the rubber strip from deformation. -
Page 15: Battery Maintenance
Battery maintenance 1、Please wear protective gloves to protect your hands when you work. 2、The tip and electrode of the battery shall be treated with anti-corrosion treatment. Wipe repeatedly with a brush dipped in soda water, but do not pour the solution into the battery. 3、Check whether the battery cable is worn and the contact parts are loose. -
Page 16: Trouble Shooting
Trouble shooting Symptom Cause Solution Power cables are not connected. Reconnect the power cord to the machine. The machine cannot Check the power cable and reinstall Oxidation of power line. power on the nut. Check whether the battery is The battery has run down. charged. -
Page 17: Warranty
Warranty The company has a perfect after-sales service system, and customer satisfaction of the sales commitment. 1、 From the date of purchase, except wearing parts and consumables (rubber strip, brush plate, pipe, battery, etc.), the rest of the main parts are guaranteed for one year. 2、When the user sends the product for repair, he/she must hold the valid purchase invoice and the warranty card of the product.
