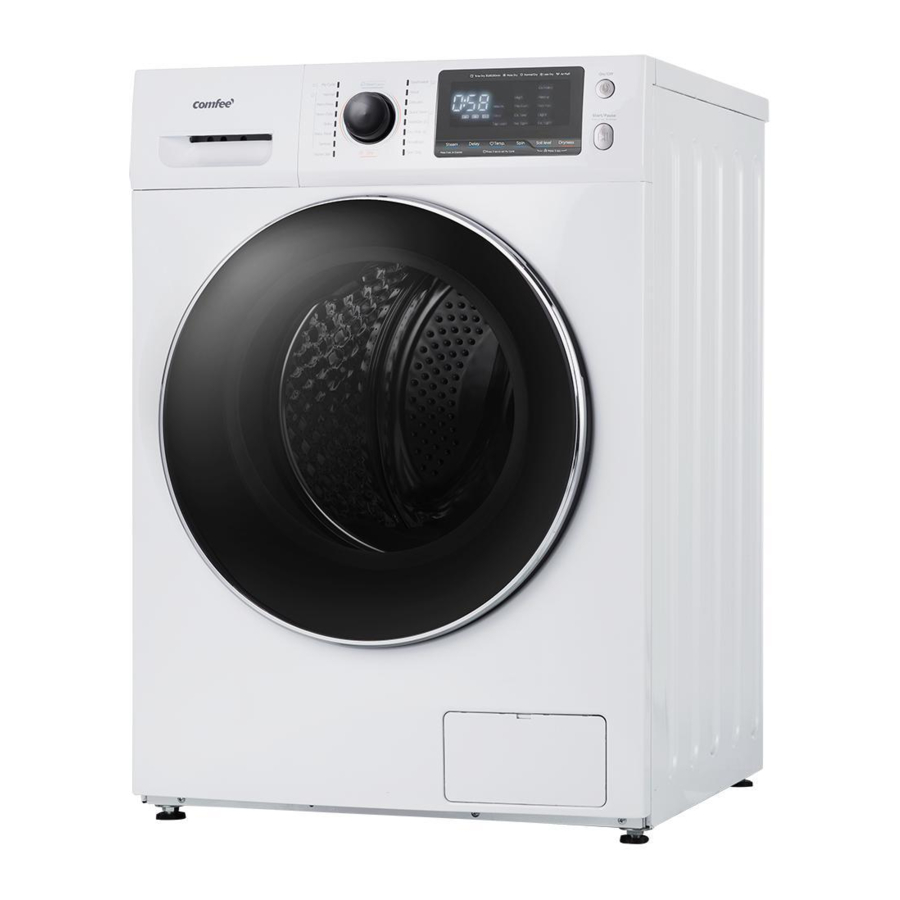

Comfee CLC27N3AWW - 2.7 Cu.Ft. Washer and Dryer Manual

Safety And Precautions

Safety and precautions
This manual contains important information on the installation, use, and care of your appliance. Please read this manual carefully before installation and operation of this machine to prevent injury and property damage.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual DO NOT cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution and care when installing, maintaining and operating your washer.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

This indicates that hazards or unsafe practices may cause serious personal injury or death.
To reduce the risk of fire, explosion, electric shock, or personal injury when using your washer, these basic safety precautions SHOULD be followed.

State of California Proposition 65 Warnings

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the State of California to cause cancer, birth defects, or other reproductive harm, and requires business to warn of potential exposure to such substances.
This product contains a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm. This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde, and carbon monoxide.

Important safety instructions

• To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:
• Read all instructions before using the appliance.
• Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapours that could ignite or explode.
• Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapours that could ignite or explode.
• Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE.If the hot-water system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
• Always unplug the washing machine from the power supply before attempting any service. Disconnect the power cord by grasping the plug, not the cord.
• To reduce the risk of fire, clothes, cleaning rags, mop heads and the like which have traces of any flammable substance, such as vegetable oil, cooking oil, petroleum based oils or distillates, waxes, fats, ect.,must not be placed in the washing machine. These items may contain flammable substances which, even after washing, may smoke or catch fire.
• Never place items in the washer that have been dampened with gasoline or any combustible or explosive substance. Do not wash or dry anything that has been soaked in or spotted with any type of oil (including cooking oils). Doing so can result in fire, explosion, or death.
• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
• Pets and kids may climb into the machine. Check the machine before every operation.
• Glass door or protector may be very hot during the operation. Keep kids and pets far away from the machine during the operation.
• This machine is not intended for use by persons (including kids) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
• Kids should be supervised to ensure that they do not play with the machine.
• When children become old enough to operate the appliance, it is legal responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.

• Do not machine wash fiberglass materials (such as curtains and window coverings that use fiberglass materials.) Small particles may remain in the washing machine and stick to fabrics in subsequent wash loads causing skin irritation.
• Before the appliance is removed from service or discarded, remove the door and cut off the power cord.
• Do not reach into the appliance if the tub or agitator is moving.
• Do not install or store this appliance where it will be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
• Never stop a tumble dryer before the end of the program and spread out so that the heat is dissipated.
• Pull out its plug from the power socket before cleaning or maintenance.
• Make sure that all pockets are emptied.
• Sharp and rigid items such as coin, brooch, nail, screw or stone etc. may cause serious damages to this machine.
• Pull out its plug and cut off water supply after the operation.
• Please check whether the water inside the drum has been drained before opening its door. Please do not open the door if there is any water visible.
• Do not try to repair the machine by yourself. The machine may be damaged or more troublesome repair work may be caused and even dangerous operation may take place if it is repaired by any inexperienced or unqualified staff.
• If the plug (power cord) is damaged, it shall be replaced by the manufacturer or a service agent to avoid any danger.
• Take care that power voltage and frequency shall be identical to those of washing machine.
• Do not use any socket with rated current less than that of washing machine. Never pull out power plug with wet hand.
• To ensure your safety, power cord plug must be inserted into an earthed threepole socket. Check carefully and make sure that your socket is properly and reliably earthed.
• This machine shall be repaired only by an authorized service center and only authentic accessories can be used.
• An appliance shall be clearly and permanently marked with a warning that the appliance is intended for use only with fabrics that have been washed with water as a cleaning agent.
• To reduce the risk of fire, do not dry articles containing foam rubber or similarly textured rubber like materials.

• If connected to a circuit protected by fuses, use time-delay fuses with this appliance.
• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapours that could ignite or explode.
• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
• Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials. The interior of the appliance should be cleaned periodically by qualified service personnel.
• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

Grounding instructions

• This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord that has an equipment
• Gurounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  WARNING-Improper connection of the equipment grounding conductor can result in electric shock. Connect to individual branch Circuit. Check with a qualified electrician or serviceman if you are in doubt as to whether the washer is properly grounded.
  DO NOT modify the plug provided with the appliance if it will not fit the outlet. Please have a proper outlet installed by a proper outlet installed by a qualified electrician.

Before operating this machine

• Packing materials may be dangerous to the kids. Please keep all packing materials (plastic bags, foams etc) far away from the kids.
• Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
• Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.
• Before operating this machine, all packages and transport bolts must be removed. Otherwise, the washing machine may be seriously damaged while washing the clothes.
• Before washing the clothes at first time, the washing machine shall be operated in cotton and hot water procedures without the clothes inside.
• This washing machine is for indoor use only.

Attention shall be paid to protecting the machine

• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the excessive clothes are put in or distributed well.

• Transport bolts shall be reinstalled to the machine by a specialized person.
• The accumulated water shall be drained out of the machine.
• Handle the machine carefully. Never hold each protruded part on the machine while lifting.
  Machine door can not be used as the handle during the conveyance.

• Cold city water shall be used and hot water may be also connected according to the local situations.
• Your washing machine is only for home use and is only designed for the textiles suitable for machine washing.
• Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc. shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for front loading.
• It is forbidden to wash carpets.
• Be careful of burning when washing machine drains hot washing water.
• Never refill the water by hand during washing.
• After the program is completed, please open the door after the bell or disconnect the power supply to the machine.
• Always follow the fabric care instructions recommended by the clothing manufacturer.
• Do not use the washing machine if it has a worn power cord or loose plug. Contact an authorized service agent.
• Do not operate the washing machine if any guards, panels and /or fasteners except transport fixing bolts have been removed. Check the fill hose connections on a regular basis to ensure that they are tight and not leaking.
• Do not operate the washing machine if parts are missing or broken.
• Do not touch the door if washing at high temperatures.

Note:

• The Important Safeguards and Warnings indicated in this manual do not cover all possible conditions which may occur. Common sense, caution and care must be exercised when installing, maintaining or operating the washing machine.
• Always contact your dealer, distribute, service agent or the manufacturer about any problems or conditions that you do not understand.

Installation Requirements

1. This machine must be earthed properly. If there is any short circuit, earthing can reduce the danger of electrical shock. This machine is equipped with power cord, which includes plug, earthing wire at earthing terminal.
2. Washing machine shall be operated in a circuit separate from other electrical appliances. Otherwise, power protector may be tripped or fuse may be burned out.

Risk of Fire
Clothes dryer installation must be performed by a qualified installer. Install the clothes dryer according to the manufacturer's instructions and local codes.
Otherwise, it will obstruct clothes dryer airflow and increase the risk of fire. To reduce the risk of severe injury or death, follow all installation instructions. Save these instructions.

Failure to comply with these warnings could result in serious personal injuries.

Note: Environmental Protection

• If you plan to dispose this machine, please comply with the local waste disposal regulations. Cut off the power cord so that it will not be put into reuse. Remove the door so that kids and animals will not be trapped in the machine.
• Do not use excessive detergents.
• Decontaminant and bleacher can be used to pre-treat the stains on the clothes only when very necessary.

Tools and parts

Gather the required tools and parts before starting installation. The parts in the right supplied are in the washer drum.

1/4 nut driver 3/8 socket with ratchet
3/8' open end wrench
Adjustable wrench or 7/16' socket with ratchet
Adjustable wrench or 9/16' open-end wrench
Channel-lock adjustable pliers
Carpenter's level

Electrical requirements

1. A 120V~.60Hz, AC only, 15-or 20amp, fused electrical supply is required. A time-delay fuse or circuit serving only this appliance be provided.
2. This washer is equipped with a power supply cord having a 3 prong grounding plug.
3. To minimize possible shock hazard, the cord must be plugged into a mating, 3 prong, grounding type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician.
4. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
5. Do not ground to a gas pipe.
6. Check with a qualified electrician if you are not sure the washer is properly grounded.
7. Do not have a fuse in the neutral or ground circuit.

Washer dimensions

The dimensions shown are for the recommended spacing.

Unpacking the washing machine

Unpack your washing machine and check if there is any damage during the transportation. Also make sure that all the items (water hoses and transport hole plug) in the attached bag are received If there is any damage to the washing machine during the transportation, or any item is missing, please contact the local dealer immediately.

Installation Instructions

Dispose the packing materials

The packing materials of this machine may be dangerous to kids. Please dispose them properly and avoid easy access by kids or pets. Please dispose the related packing materials according to the relevant local regulations.

Remove transport bolts and foam

Before using this washing machine, transport bolts must be removed from the backside of this machine. Please take the following steps to remove the bolts:

1. Loosen all bolts with 7/16' socket to remove bolt 13mm.

2. Cover the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with side surface, then remove the small foam from the bottom of the unit manually.

Select the location

Before installing the washing machine, the location characterized as follows shall be selected:

• Rigid, dry, and level surface (if not level, please make it level with reference to the following figure "Adjust Leg")
• Sufficient ventilation
• Room temperature is above 0℃
• Keep far away from the heat sources such as coal or gas.
• Make sure that the washing machine is not on the power cord.
• Do not install the washing machine on the carpet floor.

Connect inlet pipe

Connect the inlet pipe as indicated in the figure. For the model which has hot valve, please connect the hot vale to hot water tap.

Install inlet pipe

1. Connect the elbow to tap and fasten it clockwise.
2. Connect the other end of inlet pipe to the inlet valve at the backside of washing machine and fasten the pipe tightly clockwise.


Note: Please use a standard tap. If there is any leakage after connection, repeat the steps to connect the inlet pipe.

Drain system options

Standpipe drain system -wall or floor (views A &B) The standpipe drain requires a minimum diameter standpipe of 2" (50 mm).

Capacity can be no less than 17 gal.(64 L) per minute. The top of the standpipe must be at least 60cm(23.6") high and no higher than 100cm (39.4") from the bottom of the washer.

Laundry tub drain system (view C) The laundry tub needs a minimum 20 gal. (76 L) capacity. The top of the laundry tub must be at least 60cm(23.6") above the foor.

Floor drain system( view D).The floor drain system requires a siphon break that may be purchased separately. The siphon break must be a minimum of 28"(710 mm) from the bottom of the washer. Additional hoses might be needed.

Level the washer

1. When positioning the washing machine, please first check if the legs are closely attached to the cabinet. If not, please turn them to their original positions with hand or spanner and tighten the nuts with spanner.

2. After positioning the washing machine, press four corners on top cover of washing machine in sequence. If the washing machine is not stable when being pressed, this leg shall be adjusted.
3. Ensure the positioning status of washing machine. Loosen the lock nut with spanner and turn the leg with hand until it closely contacts with the floor. Press the leg with one hand and fasten the nut closely to the cabinet with the other hand.
4. After being locked properly, press four corners again to make sure that they has been adjusted properly. If it is still unstable, repeat Steps 2 and 3

5. Put a solid cylinder (e.g. pop cans) oppositely on the top cover of the washing machine from in the left, right, front and back directions. If the cylinder keeps stable, the washing machine is positioned level. If it rolls, the washing machine is not leveled. The rolling direction is the direction of lower ground surface. Then the two legs in this direction shall be raised at the same time until the washing machine is level. Steps 1~3 are repeated to make the bottom legs closely against the ground and the nuts shall be locked tightly.

Electrical connection

• As the maximum current through the unit is 12A when you are using its heating function, please make sure the power supply system (current, power voltage and wire) at your home can meet the normal loading requirements of the electrical appliances.
• Please connect the power to a socket which is correctly installed and properly grounded.
• Make sure power and voltage at install location is same to that in the machine's rating label.
• Power plug must match the socket and chassis must be properly and effectively grounded.
• Do not use multi-purpose plug or socket as extension cord.
• Do not connect and pull out plug with wet hand.
• When connecting and pulling out the plug, hold the plug tightly and then pull it out. Do not pull power cord forcibly.
• If power cord is damaged or has any sign of being broken, a new power cord must be selected or purchased from its manufacturer or service center for replacement.

Embossed clothes, resin clothes etc. may get distorted when being immersed in water. Among cotton and wool materials, the clothes that get easily distorted are wrinkle-style silk, fur products and fur decorations;
Clothes with decoration, long dress and traditional clothes etc are the products to get decolorized easily.
Please do not wash the clothes without material labels and washing requirements. Never wash the clothes stained with the chemicals such as gasoline, petroleum, benzene, paint thinner or alcohol.

Please pay attention with regard to detergents
"Low bubble" detergent or washing powder or washing powder special for drum washing machine shall be selected according to fiber types (cotton, synthetic fiber, soft products and wool products), colors, washing temperatures, soil level and types. Otherwise, excessive bubbles may be generated and overflowed out of the drawer so that accidents may take place.
Bleach belongs to alkali type and can damage clothes, so it is suggested to use follow manufacturer's recommendations.
Powder detergents can easily leave the residues in the clothes that can generate a bad smell, and needs to be sufficiently rinsed.
Detergent can not easily get dissolved completely if there is too much detergent or water temperature is rather low. It can remain in clothes, pipes and washing machines to pollute the clothes.
Washing shall follow the weight of clothes, soil level, local water hardness as well as the recommendations from the detergent's manufacturer. Please consult the water company if you are not clear of water hardness.
Note:
Keep detergents and additives in safe and dry places out of reach to kids.

Please take out contents of the pockets.
Please check the pockets of the clothes to be washed, empty the rigid items such as decorations and coins, otherwise washing machine may be damaged or have abnormal troubles that may cause damages to the machine.

For the clothes to be washed, they are classified according to the following characteristics:
The symbol types of care labels: the clothes to be washed are classified into cotton, blended fiber, synthetic fiber, silk, wool and artificial fiber.
Color: white and other colors shall be identified. All new colorful articles shall be washed in a separate load.

Size: the articles of different sizes are washed together to increase the washing effects.

Sensitivity: soft articles shall be washed separately. As for new pure wool textiles, curtains and silks, delicate cycle shall be selected. Check the labels in all washing articles.
The clothes shall be sorted before being put into washing machine. As for the curtains with hooks, the hooks shall be removed before being washed.
The decorations on the clothes may damage the washing machine. As for the clothes with buttons or embroideries, they shall be turned over before being washed.

Clean up fasteners:
Zips shall be zipped close and buttons or hooks shall be fixed. The loose band or ribbon shall be bound together.

It is suggested to put bras into the pillow slip with zip or buttons sealed to prevent the steel wire from popping out of bras into the drum and damaging the machine.
Delicate textiles such as laced curtains, straightjackets, small articles (tight socks, handkerchiefs, ties etc.) shall be put into string bag for washing.

When washing a single big and heavy dress such as jeans, wadded jackets, weight jackets etc., it may easily cause out of balance and give alarm. Therefore it is suggested to add one or washed together so that draining can be done smoothly.

Clean away dusts, stains and pet hairs from the clothes.
The clothes may be damaged and disturb washing effects during the friction between dusts, stains and clothes.

To protect baby skin
Baby articles (baby clothes and towels) including napkins shall be washed separately. Rinsing times shall be increased to ensure the thorough rinsing and cleaning without the detergent residues.
It is suggested that the parts that are easily stained such as white socks, collars and sleeves etc. shall be hand washed before being put into washing machine to achieve ideal washing effects.
Please use powder or liquid detergents. The residues of the soap could remain in the gaps of the clothes if soap is used.

The clothes which easily get pill shall be turned over for washing
The clothes which easily get pill shall be washed separately; otherwise the other articles can be stained with dust and thread residue etc. Preferably, black clothes and cotton clothes shall be washed separately because they can easily get stained with the of other colors when being washed together. Please check before washing.

Washing machine shall not wash water-proof materials (ski suits, outside napkin pads, curtains).
As for the fiber products that water can not get soaked easily into such as water-proof cushions, and clothes, it is better not to wash. Otherwise there will be water bursting out or abnormal vibration to cause danger while rinsing and draining so that the clothes also may be damaged. (Such as outside napkin pads, raincoats, umbrella, ski suits, car covers, sleeping sacks etc.)

Cautions during Draining
Draining of water-proof clothes and fiber products: In the normal washing and draining status, moistures of water-proof clothes and fiber products may not be drained while water is gathered in one direction so that the eccentricity of washing machine is too great and vibration or moving is caused.

View of control panel

Notes:

1. The Control panel line chart is for reference only, Please refer to real product as standard.
2. The Control panel could be changed without written notice. Please visit the website of Washing Machine or call up the service line for consultation.

List of programs / wash cycles

• Normal
  Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
• Heavy Duty
  This program is intended for washing heavy clothing like towels.
• Bulky
  This program is intended for washing large clothing.
• Sports Wear
  Washing the activewear.
• Spin Only
  Extra spin with adjustable spin speed.
• Rinse & Spin
  Extra rinse with spin.
• Washer Clean
  This program is specially set in this machine to clean the drum and tube. It applies high temperature sterilization to make the clothes washing more green. When this procedure is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent is put in, the cleaning effect will be improved. The customer can use this procedure regularly to clean as needed.
• Quick Wash
  Extra short program approx, suitable for lightly soiled washing as a small amounts of laundry.
• Delicates
  For delicate, washable textiles, e.g. made of silk, satin, synthetic fibres or blended fabrics.
• Sanitary
  Give full play to its active enzyme washing powder, with Ex. hot wash and Ex. heavy soil level, suitable for difficult to wash the clothes.
• Wool
  You can select this procedure to wash wool textiles labeled with "Machine Wash". Please select the proper washing temperature according to the label on the articles to be washed. Furthermore, the proper detergent shall be selected for wool textiles.
• Perm Press
  Moderate strength of washing. This function can be used to reduce the wrinkles of clothes.
• Baby Wear
  Washing the baby's clothes, it can make the baby's wear cleaner and make the rinse performance better to protect the baby skin.
• Dry Only
  Select it to dry clothes, the temperature is different. The drying time according to the load.
• My Cycle
  Press Temp. 3sec. to set My Cycle to memory the program.
• Wash&Dry
  Select it to wash and dry clothes. For hard-wearing textiles, heat-resistant textiles made of cotton or linen.

The Special function

• Child Lock
  To avoid children operating the unit, the child lock feature can be turned on. To turn on the child lock feature: press the soil level and dry buttons together for three seconds. The other buttons except On/Off button can not work, at this state, the machine power off when press the key on/off. Press Function and Select together 3 seconds during the running procedure, the buzzer will beep, Start/Pause button as well as the rotary switch are locked. Press the two buttons for 3 seconds together and buzzer will beep to release to locking. But cut off the power supply, the kid's protection is also release to locking. The kid's protection will not be cancelled after all procedures are completed.
• Delay
  Delay function can be set with this button, the delaying time is 0-24H. Set the delay function:

1. Select a program;
2. Press the Delay button to choose the time;
3. Press Start/Pause to commence the Delay operation.
   Cancel the Delay function:
   Press the Delay button until the display will be 0H. It should be pressed before starting the program. If the program already started, should press the On/Off button.
   Notes: If there is any break in the power supply while the machine is operating, a special memory stores the selected program and when the power is restarted, press the Start/Pause button the left time is continues.

• Reload
  This operation can be executed during the washing procedure. When the drum of the washer (dryer) machine is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press "Start/Pause"for 3 sec. to reload, and start the clothes adding in the midway function. Please follow the steps as bellow:

1. Wait until the drum stops rotation.
2. The door lock is unlocked.
3. Close the door when the clothes needs are loaded and repress the"Start/Pause"button.
   Notes: Don't use the Reload function when the water surface over the edge of the inner tub and the temperature is higher.

• Express
  Press Steam 3 seconds to select Express function. This option reduces the overall washer cycle time by optimizing the wash, rinse and spin actions and/or gently raising the wash temperature to get clothes cleaned faster. Option is available on Normal, Perm press, Heavy Duty, Bulky, Sports wear cycles. Total wash time will vary based on cycle chosen and options selected.
• Dry
  Press the Dry button continuously to choose the dry level: Time Dry 30,60,90min /More Dry / Normal Dry/ Less Dry/ Air Fluff.
  Time Dry 30,60,90min: Drying your laundry and finish within given time. (30/60/90 minutes)
  More Dry: This level leaves the cloths completely dry and ready to use.
  Normal Dry: This level leaves the cloths ready to fold and store in the wardrobe.
  Less Dry: This level leaves the cloths with some humidity. Perfect for ironing.
  Air Fluff: To prevent wrinkles. Drum will rotate every half hour and stop half hour, shaking up the clothes to avoid laundry left in washing machine. The fan will also circulate air through the washer to prevent odors and keep clothes scent fresh. This function lasts for up to 8 hours.

Note!

• Drying hints
  • Thoroughly spin you laundry before drying.
  • To ensure proper drying, please sort your laundry according to the fabric type and drying temperature.
  • Synthstic should be set the proper drying time.
• Clothes not suitable for drying
  • Particularly delicate items such as synthetic curtains, woolen and silk, clothes with metal inserts, nylon stockings, bulky clothes, such as jackets, bedcovers, quilts, sleeping bags and duvets must not be dried.
  • Clothes padded with foam-rubber or materials similar to foam-rubber must not be machine dried.
  • Fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours.

• My Cycle
  To save a favorite cycle, set the desired setting for wash cycle, soil level, spin speed and wash temp settings and hold down the My Cycle button for 3 seconds, A beep will sound to indicate the cycle has been saved. To use your custom cycle, press the My Cycle button before washing a load. To change the saved cycle, set the desired setting and hold down the My cycle button for 3 seconds.
  NOTE:
  When using My cycle, wash options cannot be modified after the cycle has been started.
  NOTE:
  If you change wash options with My Cycle before starting the cycle, the My Cycle light will turn off and you will be returned to the base cycle.
• Steam
  SteamCare is the function added before main wash, which will generate warm steam to to sterilize and give performance especially for cold wash.
• Soil level
  It is suitable for different level of soil (from Ex. light to Ex. heavy). The default level is different for the program , choose the soil level according to needs.
• Temp.
  When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps: Tap Cold - Cold - Warm - Hot - Ex. hot.
• Spin
  Press the button to change the spinspeed.

Washing clothes at first time

Before washing clothes at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows:

1. Connect power source and water.
2. Put a little detergent into the box and close it.
3. Press the button "On/off".
4. Press the button "Start/Pause".

The drawer is separated as follows:

I/: II Detergent or washing powder, softener bleaching or decontaminating products.
: washing additive, such as fabric softener.

Put detergent into washing machine.

1. Pull out the drawer.
2. Fill detergent into Case I/II.
3. Fill softener into Case(when necessary).

Notes:

• As for the powder detergent or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.
• Please choose suitable type of detergent for the various washing temperature to get the best washing effect with less water and energy consumption.

Start up washing machine
Connect the power. Check if water pipes are connected properly. Open the tap completely. Put in the clothes to be washed and fill in the detergent and tackifier. Then press the button "Power", Select the proper procedures and functions and press the button "Start/Pause".

Select the procedure

The proper washing procedures shall be selected according to the types, quantities, and soil level of the clothes to be washed in combination with the following washing temperature table.

Tap Cold	Cold water with no warm water added.
Cold	Brightly colored, very lightly soiled items.
Warm	Normal soil level articles (including synthetic and wool)
Hot	Moderate soil level, colorful flax, cotton and synthetic articles with certain discolored degree (for example: shirts, night pajamas; slight soil level, pure white flax (for example: underwear)
Ex.hot	High soil level, pure white cotton or flax (for example: coffee table cloths, canteen table cloths, towels, bed sheets)

Energy test program: Normal.

"Normal " is the standard washing programs to which the information in the label and the fiche relates, and they are suitable to clean normally soiled cotton laundry and that they are the most efficient program in terms of combined energy and water consumptions for washing that type of cotton laundry, that the actual water temperature may differ from the declared cycle temperature.

Note!

• The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.
• The program with can be choose dry function.

Care and cleaning

Before performing maintenance on the unit, disconnect power and turn off the water.

• Solvents are forbidden to avoid that the washing machine is damaged, and toxic gases are generated or exploded.
• Do not spray the machine with water.
• It is forbidden that the detergents containing PCMX are used to clean the washing machine.
• Service Personnel- Do not contact the following parts while the appliance is energized incase of electric shock: Electrical value, Drain Pump, Door Lock, Dry Heater (Combo), Fan Motor (Combo).

Cleaning and Maintenance of Washing Machine
Cabinet Proper maintenance on the washing machine can extend the life of the unit. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. Notes: formic acid and its diluted solvents or equivalent are forbidden.

Clean Internal Drum
The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents. Never use steel wool.

Dispose a Frozen Washing Machine
When the temperature drops below zero and your washing machine gets frozen, you may:

1. Disconnect the power supply for the washing machine.
2. Wash the tap with warm water to loosen inlet pipe.
3. Take down inlet pipe and immerse it in warm water.
4. Pour warm water into washing drum and wait for 10 minutes.
5. Reconnect inlet pipe to the tap and check whether inlet and outlet are working normally.
   Notes: when the washing machine is reused, make sure the ambient temperature is above 0 ℃

Winterizing the unit
If your washing machine is located in the room where it can get frozen easily, please drain the remaining water inside drain pipe and inlet pipe thoroughly.
Remove the remaining water in inlet pipe:

1. Close the tap.
2. Screw off the inlet pipe from tap and put its end into the container.
3. Start up any procedure except single Wash or Drain procedure. Water will be drained out of inlet pipe if any for about 40 seconds.
4. Reconnect the inlet pipe to tap.

Remove the remaining water in drain pump


To avoid burning, it shall be done after the hot water inside the machine cools down.

Clean detergent drawer and grooves

1. Press down the arrow location on softener cover inside the drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water.
3. Restore the softener cover and push the drawer into position.

Clean inlet filter

Inlet filter shall must be cleaned if there is not any or insufficient water in when the tap is opened.

Clean the tap filter:

1. Close the tap.
2. Select any procedure except "Wash" or "Drain" procedure.
3. Press the button "Start/Pause" and keep the procedure running for about 40 seconds.
4. Remove the inlet pipe from the tap.
5. Use water to wash the filter.
6. Reconnect the inlet pipe.

Washing the filter in washing machine:

1. Screw off the inlet pipe from the backside of the machine.
2. Pull out the filter with long nose pliers and reinstall it back after being washed.
3. Reconnect the inlet pipe.
4. Open the tap and make sure there is no water leakage.
5. Close the tap.

Pull out the power plug to avoid electrical shock before washing. After using the washing machine, pull out the power cord and close the door tightly to avoid pinching the kids.

Remove foreign matters
Drain Pump Filter:
Drain pump filter can filter the yarns and small foreign matters from the washings.
Clean the filter periodically to ensure the normal operation of washing machine

According to the soil level within the cycles and the frequency of the cycles, you have to inspect and clean the filter regularly. The pump should be inspected if the machine does not empty and/or spin; The machine makes an unusual noise during draining due to objects such as safety pins, coins etc. blocking the pump.
The Service panel proceed as follows:

1. Open the cover filter use a flat blade screwdrive

2. Rotate 90° and pull out the emergency drain hose, and take off the hose cap

3. After water runs out, reset the drain hose

4. Open the filter by turning to the counter clockwise

5. Remove extraneous matter

6. Close the lower cover cap


When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely retight end so.

Emergency Door Release
In case of power failure or other circumstances and door cannot be opened. If it is necessary to open the door under this circumstances, please pull down the pull cord inside emergency door and restore the pull cord after opening the door.

1. Open filter door

2. Emergency pull cord


The machine is not allowed to use the emergency switch pull cord during washing. If need to run machine urgently, it is recommended to open door after water is cooled, to avoid getting burn caused by high temperature residual water outflow from the machine tub.

Troubleshooting tips

Troubles	Reason	Solution
Washing machine cannot start up		Check if the door is closed tightly. Check if power plug is inserted well. Check if water supply tap is opened. Check if button "On/Off" is pressed. Check if button "Start/Pause" is pressed.
Door cannot be opened	Machine's safety protection design is working.	Disconnect the power.
Heating fault	Heating element defective.	Can normally wash the clothes. Only cannot wash with heating. Shall contact the service center promptly.
Water leakage	The connection between inlet pipe or outlet hose and tap or washing machine is not tight. Drain pipe in the room is blocked.	Check and fasten water pipes. Clean up outlet hose and ask a specialized person to repair it when necessary.
Water is overflowed from the bottom of the machine	The inlet pipe is not connected firmly. Outlet hose has water leakage.	Fix the inlet pipe. Replace the drain hose.
Indicator or display does not light.	Power is disconnected. PC board has problems. Harness has connection problem.	Check if the power is shut down and power plug is connected correctly. If not, please call up service line.
Detergent residues in the box	Washing powder is dampened and agglomerated.	Clean and wipe the box. Use liquid detergents or the detergents special for drum.
Washing effects are not good	The clothes are too dirty. Insufficient detergent quantity.	Select a proper procedure. Add the proper detergent quantity according to the instructions in detergent package.
Abnormal noise Great vibration		Check if the transportation bolts has been removed. If cabinet is installed on the solid and level floor. Check if there are any barrettes or metal articles inside. Check if the legs in the washing machine are adjusted level.

Remove the problems

The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre.

Description	Reason	Solution
Washing machine cannot start up	Door is not closed properly	Restart after the door is closed Check if the clothes is stuck
Door can't be opened	Washer's safety protection design is working	Disconnect the power, restart the product
Water leakage	The connection between inlet pipe or outlet hose is not tight	Check and fasten water pipes Clean up outlet hose
Detergent residues in the box	Detergent is dampened or agglomerated	Clean and wipe the detergent box
Indicator or display does not light	Disconnect the power PC board or harness has connection problem	Check if the power is shut down and the power plug is connected correctly
Abnormal noise		Check if the fixing (bolts) have been removed Check it's installed on a solid and level floor
	Door is not closed properly	Restart after the door is closed Check if the clothes is stuck
	Water injecting problem while washing	Check if the water pressure is too low Straighten the water pipe Check if the inlet valve filter is blocked
	Overtime water draining	Check if the drain hose is blocked
	Water overflow	Restart the washer
	Others	Please try again first, call up service line if there are still troubles

Note!

• After the check, activate the appliance. If the problem occurs or the display shows other alarm codes again, contact the service.

Care Lable

To avoid fire, electrical shock and other accidents, please remember the following reminding:

• Only the voltage indicated in power label can be used. If you are not clear of the voltage at home, please contact the local power bureau.
• When you are using the heating function, the maximum current through the washin machine will reach 12A. Therefore, please make sure the power supply units (current, voltage and cable) can meet the normal load requirements for the machine.
• Protect the power cord properly. Power cord shall be fixed well so that it will not trip the people or other things and be damaged. Special attention shall be paid to the socket. It shall be plugged into the sockets easily and attention shall be paid to the plug location.
• Do not make the wall-mounted socket overloaded or cable extended. Overloading of the wiring may cause fire or electrical shock. Do not pull out power plug with wet hand.
• To ensure your safety, power plug shall be inserted into an earthed three-pole socket. Carefully check and ensure that your socket is properly and reliably earthed.

Technical specifications

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Comfee CLC27N3AWW - 2.7 Cu.Ft. Washer and Dryer Manual
