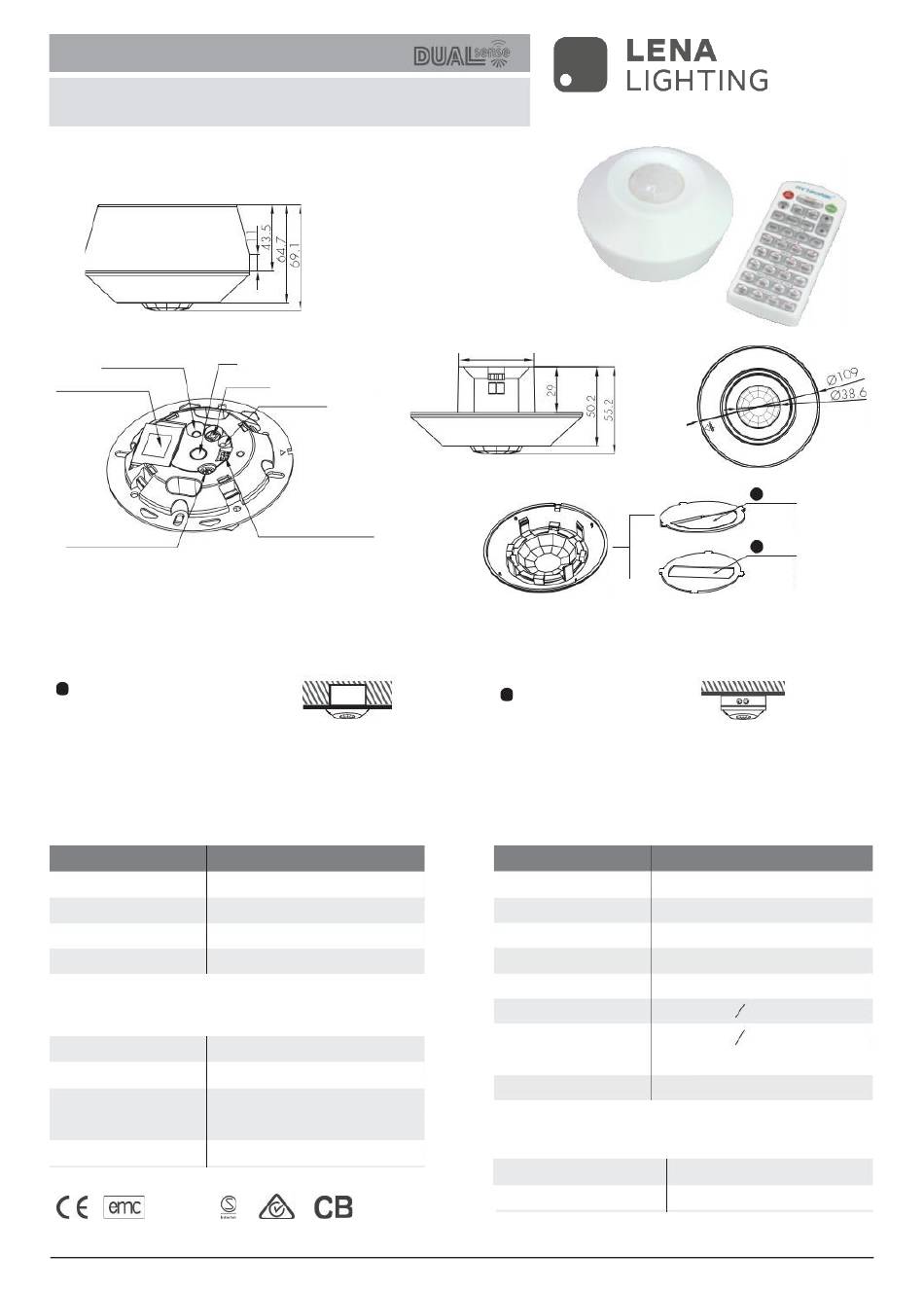

Stand-alone Dual Sense Motion Sensor
WSED414 (HIM14)
HF and PIR, Daylight harvest Control for lndependent DALI
Mechanical Structure
C - Surface box
B - Facia Cover
PIR
Infrared receiver
HF Sensor module
Rotary switch preset
A - Control Board
Installation:
For more details, please refer to user manual.
Direct junction "J" box mounting
1
Note:We recommend the mounting distance between sensor to sensor should be more than 2m to prevent sensors
from false-triggering.
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Switched power
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certiꢀ cation
RED
Subject to change without notice.
Photocell
LED indicator
Sensor mode selection
HIM14
120~277VAC 50/60Hz
<1W
Max. 20pcs devices, 40mA
30s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489-1,
EN62479
Semko, CB, CE , EMC, RED, RCM
IP20
TM
56
Note: the blinds are optional, they may be inserted
behind the lens for focussing the detection range.
Surface mount assembly
2
Sensor Data
Model No.
High Frequency (microwave), PIR
Sensor principle
Operation frequency
Transmission power
Sensor mode
4 modes: PIR, HF, PIR+HF, PIR/HF
Detection range
HIM14
HIM54 (2 lens)
Max. (L x W x H) 16m x 6m x 12m
Detection angle
Environment
Operation temperature
IP rating
Edition: 26 Feb. 2020
Blind
A
Blind
B
HIM14
5.8GHz +/- 75MHz (HF)
<0.2mW (HF)
Max. (O x H) 12m x 6m
Max. (O x H) 16m x 12m
360
°
Ta: -20°C ~ +55
C
°
IP20
Ver. A0
Page 1/6
