Creasing, Perforating and Punching
Machine GPM 450 verSA
This document including its appendices is the exclusive intellectual property of Cyklos Choltice, Producer
Cooperative. Any other use (copying, distribution or sale) is possible only with the approval of the chairman
of the cooperative.
Operating Instructions
Attention
Valid from serial number:
201929297
Issue no.
1
Sheets
21
Advertisement
Table of Contents
Summary of Contents for Cyklos GPM 450 verSA
- Page 1 Creasing, Perforating and Punching Machine GPM 450 verSA Attention This document including its appendices is the exclusive intellectual property of Cyklos Choltice, Producer Cooperative. Any other use (copying, distribution or sale) is possible only with the approval of the chairman of the cooperative.
-
Page 2: Table Of Contents
Operating Instructions | GPM 450 verSA Content Introduction ............................. 3 Safety Risks ............................3 Warning ........................... 3 General Work Safety and Health Protection ................3 Warnings and Recommendations ....................4 Technical Parameters ........................5 Machine Description ........................6 Introduction ..........................6 Exchangeable tools ........................ -
Page 3: Introduction
2. SAFETY RISKS Warning When using the GPM 450 verSA, all safety rules and procedures, as well as all warnings regarding work safety and health protection listed in this document, must be observed. Otherwise, considering the bellow listed factors, a serious injury or death of a person, damage or destruction of the machine, its parts or accessories could occur. -
Page 4: Warnings And Recommendations
Operating Instructions | GPM 450 verSA If the GPM 450 verSA is used correctly, it is a very safe machine. However, if used incorrectly, it can be dangerous. When operating the machine, the operator is responsible for their own personal safety. -
Page 5: Technical Parameters
Operating Instructions | GPM 450 verSA e) It is forbidden to use the machine when the electric cord is damaged. f) It is forbidden to use the machine if it makes strange sounds. g) It is forbidden to connect the machine to voltage different from that indicated on the manufacturer’s identification plate. -
Page 6: Machine Description

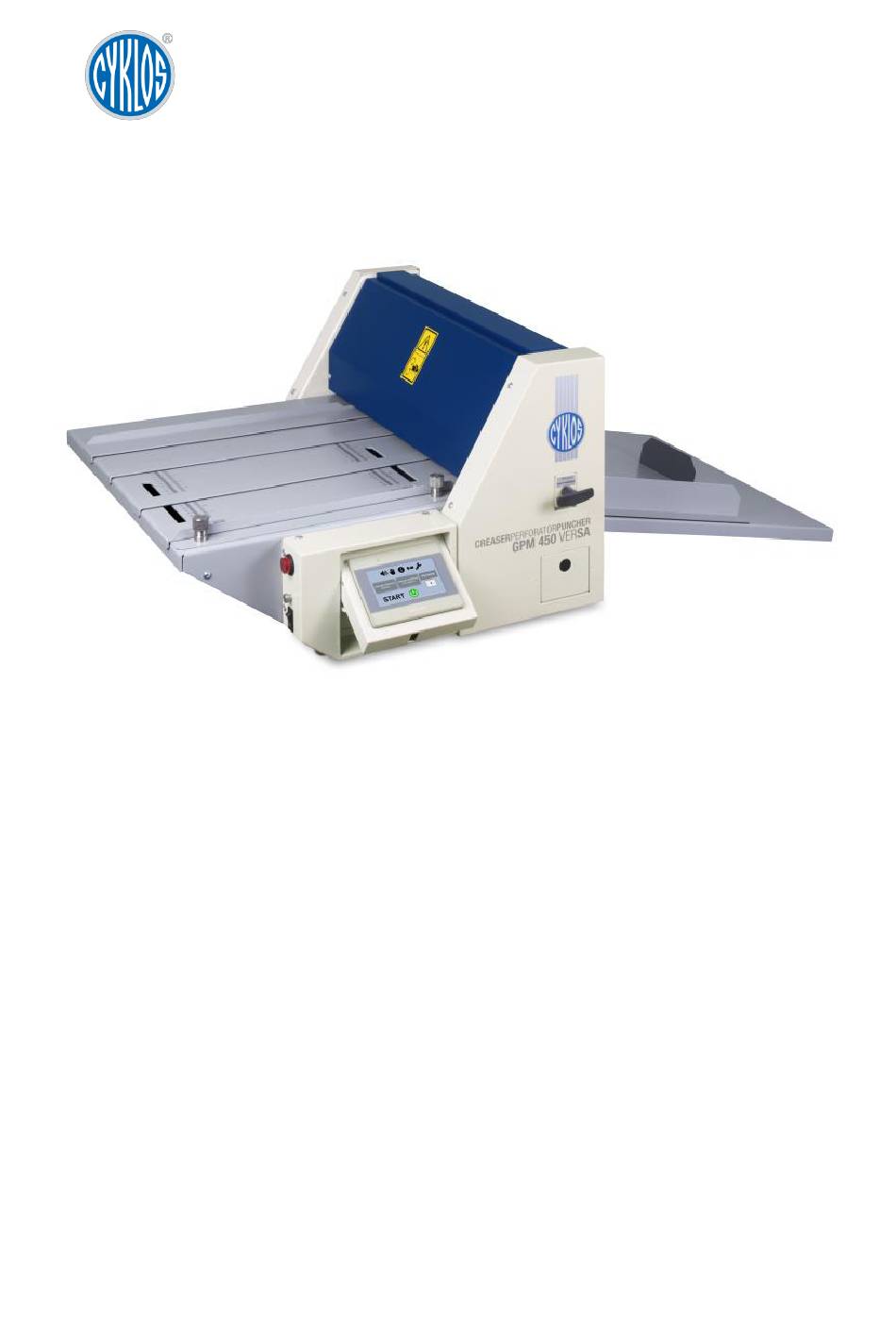

5. MACHINE DESCRIPTION Introduction The GPM 450 verSA is a creasing, perforating and punching machine where the parameters of individual operations are entered on the touch screen. Loading the sheet of paper is manual, but the feed of each paper is already done by a stepper motor. The creasing allows for easy folding of the paper, whereas waste-free perforation allows you to tear off the paper easily. -
Page 7: Exchangeable Tools
Operating Instructions | GPM 450 verSA Position Name Position Name Right Cover Front Right Guide Left Cover Side Guide Lock Front Table STOP Button Waste Drawer Tilt Display Button Exchangeable Tool Main Switch Delivery Table Display (Touch Screen) Rear Side Guide... -
Page 8: Adjustment Of Top Bar Stroke
Operating Instructions | GPM 450 verSA Fig. 4: Creasing tool – iron channel 1.9 mm for heavy grammage (570 40 466) Fig. 5: Perforating tool 2:1- 9 TPI (571 40 465a) – standard equipment. Micro perforating tool (571 40 464) as optional accessory. -
Page 9: Setting The Machine Using Touch Screen
Operating Instructions | GPM 450 verSA 7. SETTING THE MACHINE USING TOUCH SCREEN When the machine is switched on with the Main Switch (18), the Home Screen appears on the display. Fig. 6: Home Screen Overview of Touch Screen Function Icons 7.1.1... -
Page 10: Info
Operating Instructions | GPM 450 verSA Fig. 7: “MANUAL CONTROL” Screen 7.1.3 Info Press to display the information screen. The data are approximate. Press OK to go back to the Home Screen. Fig. 8: Information Screen... -
Page 11: Language Selection
Operating Instructions | GPM 450 verSA 7.1.4 Language Selection Press to display the language selection pop-up menu and choose the language. Fig. 9: “LANGUAGES” Screen 7.1.5 Speed of Processing To adjust the speed of processing press on the Home Screen (Fig. 6). Change speed of rollers rotation using + and –... -
Page 12: Setting The Number And Position Of Creases/Perforations
Operating Instructions | GPM 450 verSA Fig. 11a: “SERVICE MENU” Screen – Password Fig. 11b: “SERVICE MENU” Screen Note: Description of service screen is not part of this manual because this screen is not accessible to end user. Setting the Number and Position of Creases/Perforations 7.2.1 Crease Positon –... -
Page 13: Crease Position - Automatic Setting
Operating Instructions | GPM 450 verSA Press the numeric icon next to the NO. OF CREASES field on the touch screen to display the numeric keypad. By pressing the relevant digit, the number of crease/perforation/punch lines (segments) is set. You can set as many as 1 – 15 segments. The selection of the number of segments is ended by pressing the ENTER key. -
Page 14: Program Saving And Loading
Operating Instructions | GPM 450 verSA Note: One of the predefined fold types is BOOK COVER. It is defined by 4 creases in the middle of the sheet. After pressing this icon pop-up menu appears allowing you to set the width of the hinge and width of the edge of the book cover. -
Page 15: The Most Common Faults (Troubleshooting)
Operating Instructions | GPM 450 verSA 8. THE MOST COMMON FAULTS (TROUBLESHOOTING) a) Upper Tool blocked: If the upper tool gets stuck when adjusting and testing the stroke depth, first loosen the lock nuts and then turn the adjusting screws clockwise up to 2 turns (the upper tool moves upwards). When the stroke cycle is interrupted, the LED lights up red. -
Page 16: Appendix 1: Accesories
40 467) and Creasing Tool – “Iron Channel” 1.9 mm (571 40 466) are kept in the waste drawer (4). Note: The tools for GPM 450 verSA, GPM 450 SPEED and AirSpeed 450 are identical. Only AirSpeed 450 is wider, a small metal-sheet extension needs to be fitted on this tool; the extension is kept in the... - Page 17 Operating Instructions | GPM 450 verSA 574 46 978 DELIVERY TABLE (6) 574 59 577 BACK STOP (8) 574 59 563 REAR SIDE GUIDE (7)
- Page 18 Operating Instructions | GPM 450 verSA 574 59 490 FRONT LEFT GUIDE (12) 574 59 496 LEVELLING STRIP (13) 413 00 008/0 ALLEN KEY NO. 5...
-
Page 19: Appendix 2: Optional Accessories
Operating Instructions | GPM 450 verSA 345 00 226/0 POWER CABLE APPENDIX 2: OPTIONAL ACCESSORIES Punching tool for wire binding – square 4 x 4 mm, 3:1 (571 40 462) Punching tool for wire binding – square 5 x 5 mm, 2:1 (571 40 529) - Page 20 Operating Instructions | GPM 450 verSA Punching tool for wire binding – round, diameter 4 mm, 3:1 (571 40 475) Punching tool with calendar semi-circle – square 4 x 4, 3:1 (571 40 463) Punching tool with calendar semi-circle – round, diameter 4 mm, 3:1 (571 40 476) Punching tool for coil binding –...
- Page 21 Operating Instructions | GPM 450 verSA Removing punching tool pins All the punching tools specified above, have removable pins. To remove the pins, loosen the 10 screws on the upper edge of the tool and remove the bar under the screws. After you have removed the bar, use pliers to take each pin out.
