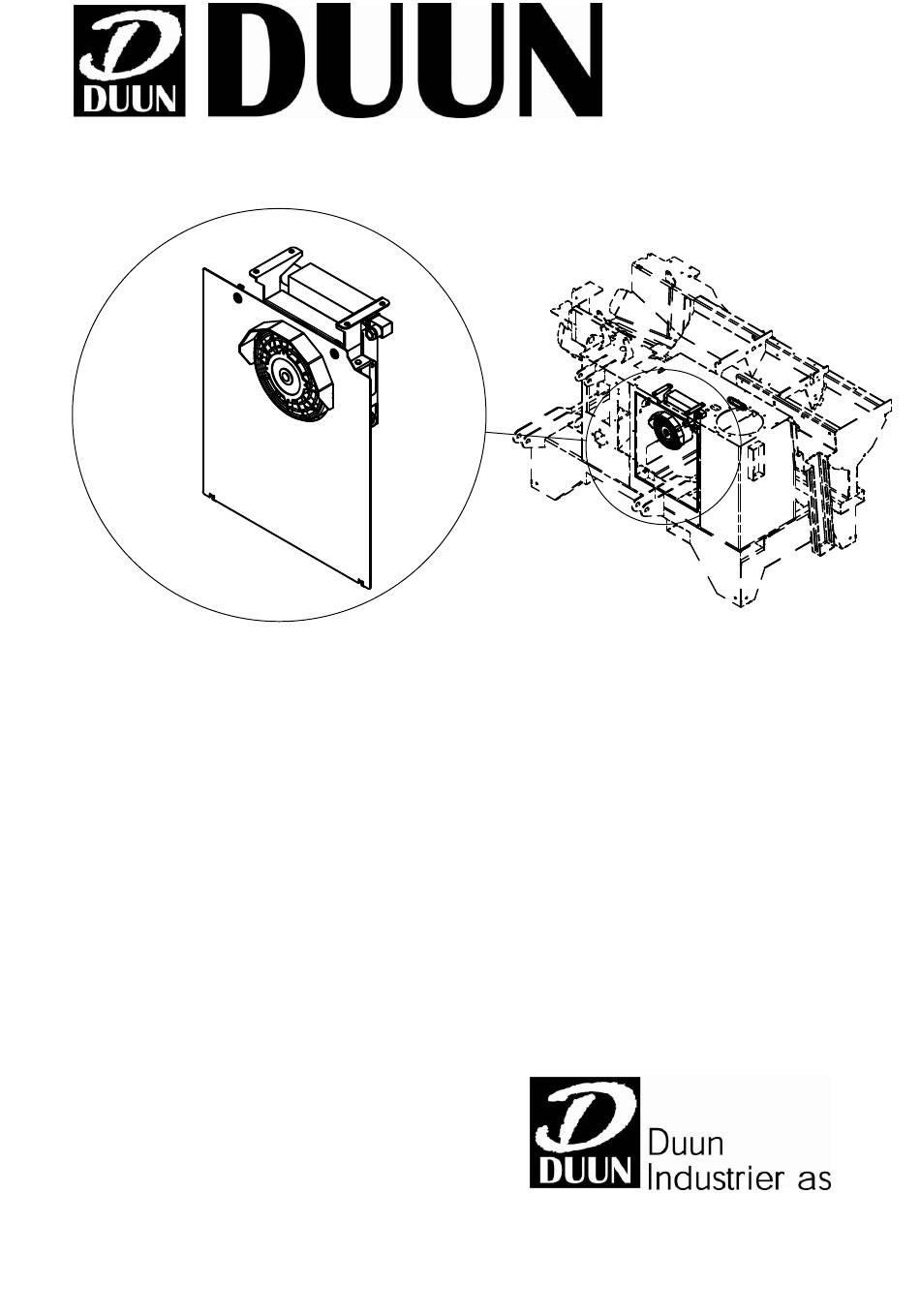

- Page 1 VM370 Oil cooler Art.nr. 141319020 Figur 1 Assembly instructions 7630 Åsen, Norway Tlf: +47 74 01 59 00 Fax: +47 74 01 59 10 Foretaksnr: NO 980.400.212.mva www.duun.no...
- Page 2 Pos Ant Artikkelnr Beskrivelse 2958518 Hydraulic hose 1/2" L560 2958517 Hydraulic hose 1/2" L390 1 14131175 Cover for oil cooler 2931024 Camlock Euro 2957780 Hydraulic fitting GEK BSP 1" L15 ED 2957775 Hydraulic fitting EVTK 15L 4253052 Oil cooler 2957513 Hydraulic fitting L15-L12 2957750 Hydraulic fitting GEK BSP 3/8"...
- Page 3 Figure 3 Without cooler Figure 4 Cooler...
- Page 4 Figure 5 h cooler 1. Remove cover and mount the cooler with 4 screws as shown in Figure 1. 2. Connect the A and B in Figure 3, unscrew hydraulic fitting B from tank. On coupling B is a small washer inside the connector to be included when installing the connector in the cooler. 3.
