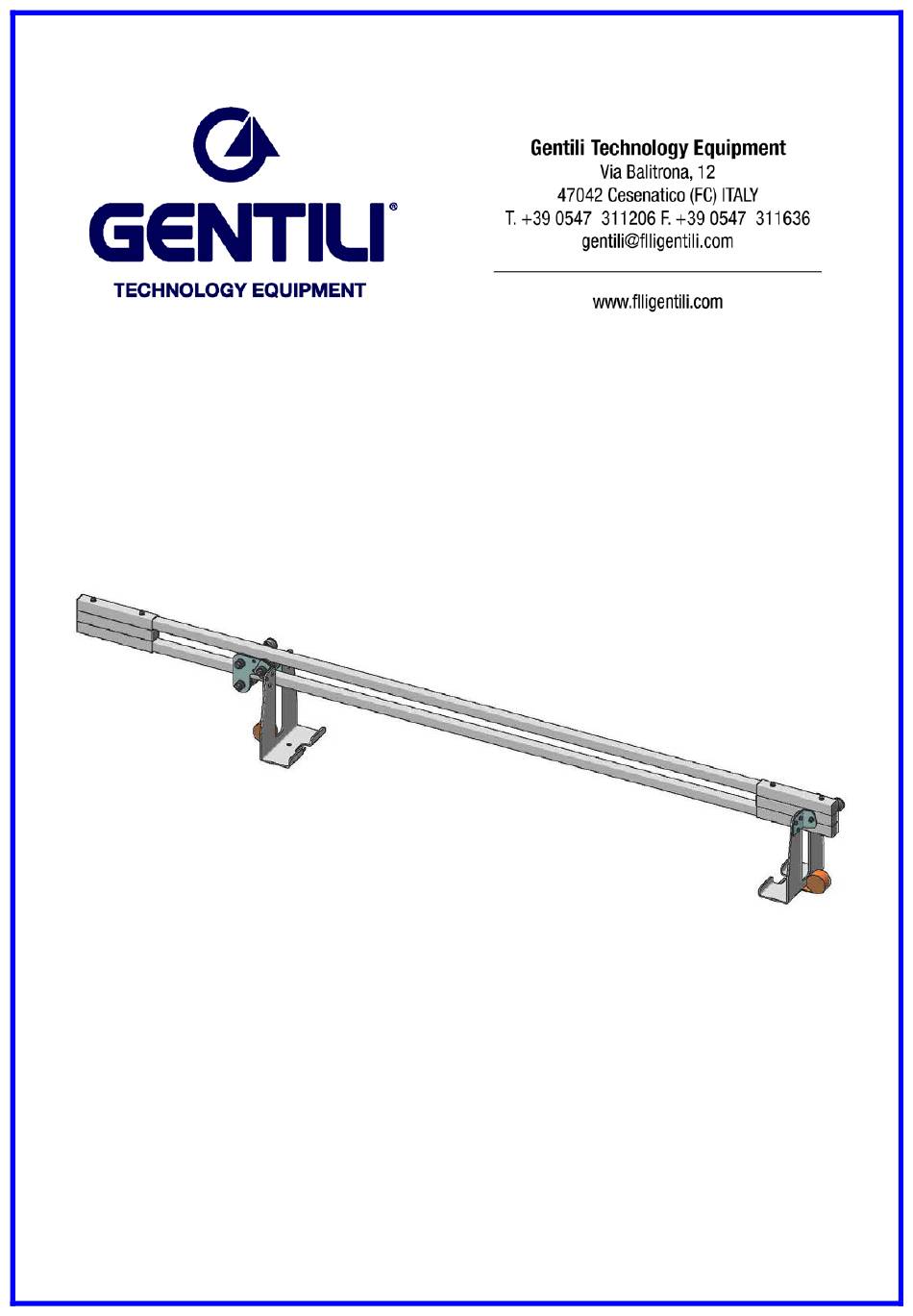

- Page 1 USER MANUAL PSI - Internal Ladder holder Edition 01-07-2023...
-
Page 2: Guarantee Terms
All PSI ladder holder undergo full quality inspection before being put into the market. The manufacturer guarantees the PSI, and all its parts and components for a period of 3 years from the date of delivery. We do however advise installation partners or end users to fully check the systems upon receipt of delivery. -
Page 3: Table Of Contents
CONTENTS Guarantee terms ……..……………. page Introduction ………………………………. ‘’ Installation…………………………………. ‘’ 1.1 Mounting……………………………… ‘’ 1.2 Anchorage ………………………….. ‘’ Operating instructions…………………... ‘’ 2.1 General……………………………… ‘’ 2.2 Setting instructions…………………… ‘’ 2.3 Loading ………………………………. ‘’ 2.4 Securing ………………………..…… ‘’ 2.5 Unloading ……………………………. ‘’ Technical data …………….……………… ‘’... -
Page 4: Introduction
• The PSI must be used only for the purpose for which it has been designed, hence for the loading, unloading and transportation of small ladders/steps. Different uses are considered inappropriate, hence they are forbidden. -
Page 5: Installation
INSTALLATION 1.1 Mounting Mount the system to the internal ribs in the vehicle roof using the 2 brackets supplied and the Ø 5mm x 20mm rivets (see pictures 1,2 and 3). WARNING: make sure the vehicle roof has at least two suitable ribs, appropriately spaced, otherwise you will not be able to install the system. - Page 6 If necessary, for straight and level mounting, use spacers with the brackets to ensure smooth operation. Picture 3...
-
Page 7: Anchorage
1.2 Securing the system Position the system by sliding it forward and backward inside the brackets, to the desired location. Once in place, secure the system to the brackets with M6x40mm screws (see pictures 4, and 5). Picture 4 Picture 5... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS 2.1 General Information The PSI will allow you to securely carry any small ladder/step up to 15 Kg in weight. 2.2 Setting instructions Set the retaining plates in a vertical position by using the unlocking catch (see picture 6). -
Page 9: Loading
2.3 Loading the ladder/step Hook the ladder/step onto the front retaining plate (the one closest to the vehicle bulkhead). Push the ladder/step forward until the last rung of your ladder/step can be hooked onto the back retaining plate (see picture 7-8 and 9) Picture 7 Picture 8... -
Page 10: Securing
Picture 9 2.4 Securing the ladder/step Secure ladder/step to the retaining plates by using the straps provided (see pictures 10 and 11). Picture 10... -
Page 11: Unloading
Picture 11 2.5 Unloading the ladder/step To unload, reverse loading instructions. TECHNICAL DATA System weight Kg 7,00 Max. carrying load Kg 15,00...
