Summary of Contents for V-TUF AEROMAX500

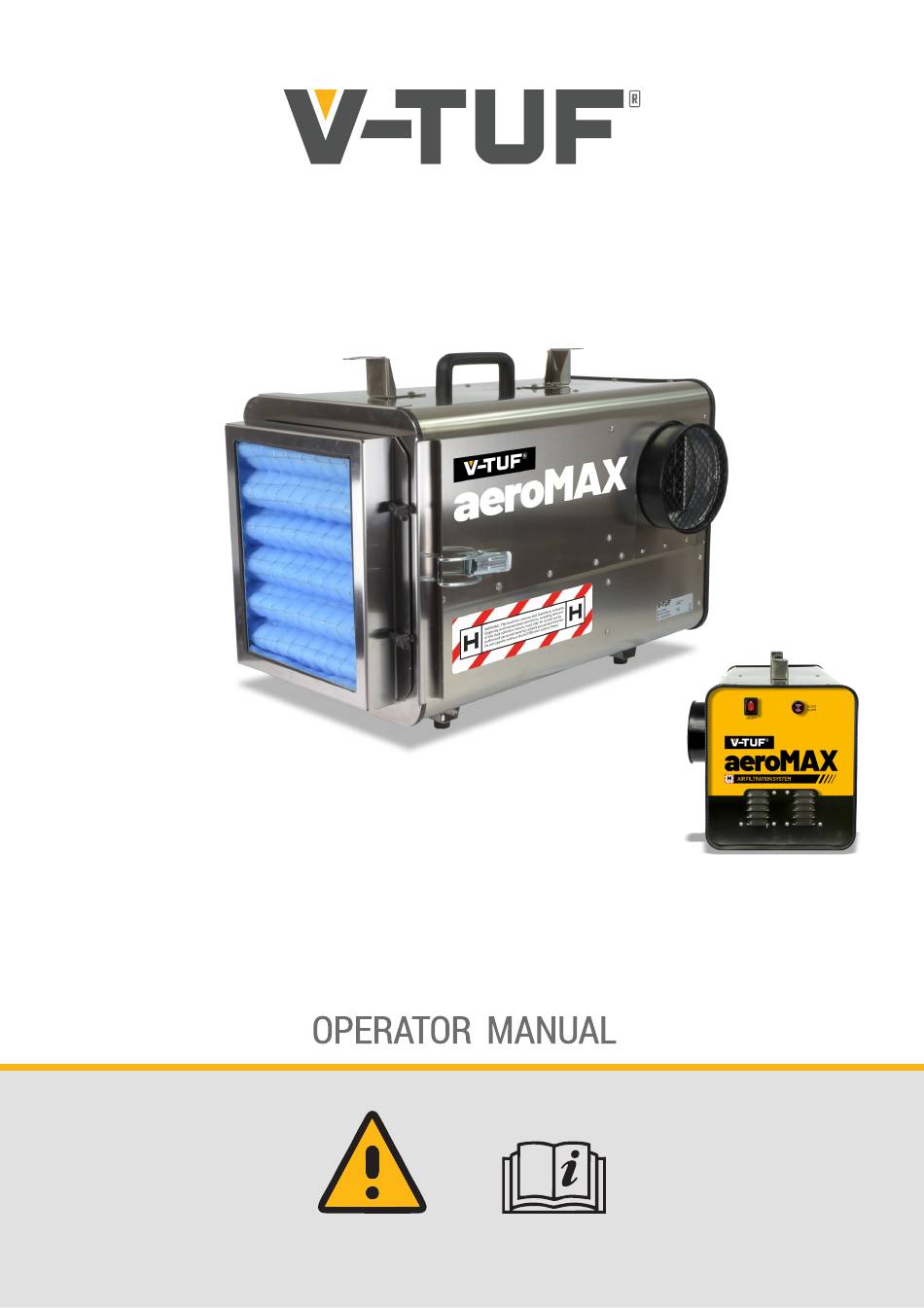

- Page 1 AEROMAX500 Please read this manual before using the AEROMAX500...
-
Page 2: Table Of Contents
INDEX INDEX....................................INTRODUCTION ..............................4 PRECAUTIONS ..............................5 USE ..................................6 MAINTENANCE AND CLEANING ........................10 TROUBLESHOOTING............................11 DECOMMISSIONING............................12 DECLARATION OF CONFORMITY ......................13... - Page 3 TECHNICAL SPECIFICATION MODEL AEROMAX 500-110 & Aeromax500- 240 VOLT [V-Hz] 110/230 V - 50/60 Hz BLOWER POWER [W] AIR FLOW [m3 / h] PREVALENCE [Pa] PREFILTER CLASS PREFILTER SURFACE [m2] FILTER CLASS EN1822-1-HEPA13 / EN60335-2-69 -H FILTER SURFACE [m2] INLET –OUTLET [mm]...
-
Page 4: Introduction
NOTE: This manual should be considered an integral part of AEROMAX500 and should remain with it for the duration of the product life.This manual is an integral part of AEROMAX500 in the sense that its reading and understanding are priority needs and are a necessity for the proper use and safety of the product. -
Page 5: Precautions
2. PRECAUTIONS The Fenco Group disclaims any liability or warranty in case of changes and tampering, even minimal, by any person with respect to the purchased product to obtain various benefits, or do different jobs for which the machine was designed. All materials and components used for its construction meet the CE safety standards and at the Fenco Group They have deposited their respective data sheets and certifications. -
Page 6: Use
Do not use any defective devices or device parts. 3. USE The AEROMAX500 air cleaner is designed for clearing the air in a workplace. The machine is used as a complement to spot extraction. The air is circulated through a pre-filter and HEPA filter. The HEPA filter has an extremely high deegree of separation and in practice separates all airborn dust... - Page 7 3.1. DEVICE DESCRIPTION A . Power on-off Switch. B. UV lamp switch (optional). C. Clogged filter alarm. D. Handle. E. Power cord hook. F. Filter Vane clamps. G. Power cord socket. H. Inlet. I. Outlet. 3.2 OPERATION Check that the electrical connetion correspond to the specifications in the tecnical data chapter. Insert the power cord into the socket (G) on the side of the machine.
- Page 8 3.3. PRE-FILTER REPLACEMENT Unlock the two wing nuts (N) that retain the swivelling pre-filter support (L). Open the pre-filter support and replace the filtering cell (M). 3.4. MAIN FILTER REPLACEMENT Disengage the two clamping hook (F) that retain the whole pre-filter support (O) and remove the latter.
- Page 9 3.5. INLET HOOD (OPTIONAL) An optional inlet hood is avaible to use the device in ventilation mode (evacuating a room by negative pressure) when the device must be positioned outside the space that need to be cleaned. The hood (R) can be mounted directly on the pre-filter support by means of four screw (S). The screws are included in the hood kit.
-
Page 10: Maintenance And Cleaning
IMPORTANT: The ordinary and extraordinary maintenance must be performed by qualified staff, always with sectioned electrical system. VTM702 Cartridge Filter For AEROMAX500 VTM703 PRE FILTER For AEROMAX500 VTM706 Hood Adapter For AEROMAX500 ts to Air Ducting... -
Page 11: Troubleshooting
5. TROUBLESHOOTING... -
Page 12: Decommissioning
6. DECOMMISSIONING DIRECTIVE 2011/65 / CE ON THE TREATMENT, COLLECTION, RECYCLING AND DISPOSAL OF ELECTRIC AND ELECTRONIC DEVICES AND THEIR COMPONENTS INFORMATION 1. FOR COUNTRIES IN THE EUROPEAN UNION (EU) The disposal of electrical and electronic devices as solid urban waste is strictly prohibited: it must be collected separately.
