INOX Smart ISK-B300 Installation Manual & Users Manual

Smart all-inclusive access control unit

Advertisement

Quick Links

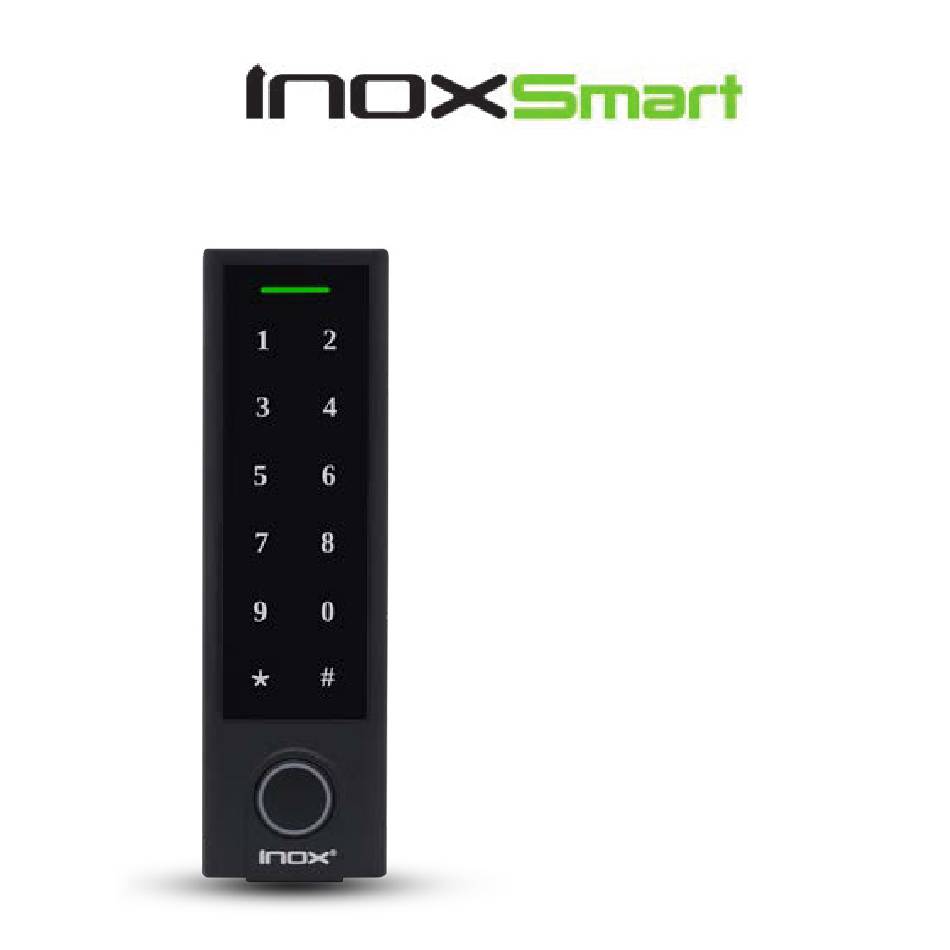

ISK-B300
Installation Manual
& User Guide
Smart All-Inclusive
Access Control Unit
PM-ISK-UM
V08082023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart ISK-B300 and is the answer not in the manual?

Questions and answers

Summary of Contents for INOX Smart ISK-B300

  • Page 1 ISK-B300 Installation Manual & User Guide Smart All-Inclusive Access Control Unit PM-ISK-UM V08082023...
  • Page 2: Table Of Contents

    Wiegand Reader Mode � � � � � � � � � � � � � � � � � � � � � 29 Downloading and Setting Up the INOX Smart App � � � � � � � � � 30 Adding a Property to the App �...
  • Page 3: Introduction

    Introduction The ISK-B300 is a Smart All-Inclusive Access Control Device that supports multiple credential technologies including high-frequency RFIDs, secured cloud-generated passcodes and mobile user credentials� • Integrates with cloud-connected wireless communication technology • Provides intuitive and convenient smartphone access management •...
  • Page 4: Features

    Features • All-inclusive device: Reader, Controller, Keypad, and Monitor • Multi-credential support: Passcodes, RFID FOB/Card/Wristband, and Smart Phone • Remote Access and Management via Wi-Fi and Low Energy Bluetooth • Cloud-based APP with a simple yet robust hierarchy of user roles •...
  • Page 5: Template For Isk-B300 Smart Keypad

    6mm is the size recommended if the anchors are being installed� 3mm is the size recommended if its being installed into wood (without anchors)
  • Page 6 This page intentionally left blank for removal with ISK-B300 Installation Template...
  • Page 7: Dimensions

    Dimensions 7/8” 1-3/4” (22mm) (44�5mm)
  • Page 8: Installation Instructions

    STEP Installation Instructions Prep the mounting location by drilling holes as shown in the template�...
  • Page 9 STEP Installation Instructions Wall anchors are only needed for concrete installations� Install anchors� Pull Molex wires through the center hole and connect according to wiring diagram� Keep any unused wires isolated and protected�...
  • Page 10 STEP Installation Instructions Install screws to mount the sub-plate�...
  • Page 11 STEP Installation Instructions Connect the Molex from the ISK-B300 with the Molex from the locking device�...
  • Page 12 STEP Installation Instructions Use the tool provided to fix the smart controller to the sub-plate by installing the tamper resistant screw into the bottom of the unit�...
  • Page 13: Colored Wire And Function Chart

    Colored Wire and Function Chart Wire Color Function Notes Basic Standalone Wiring 12-24VDC Power Input Black Negative Pole of DC Power Input Normally Open Relay Output (install Blue Relay NO diode provided) Relay White Common Connection for Relay Output Common Normally Closed Relay Output (install Brown Relay NC...
  • Page 14: Device Category 1: Description And Wiring Diagram

    Device Category 1: Description and Wiring Diagram The ISK-B300 Smart Access Controller can be connected to Electromagnetic locking devices as EL (Fail Safe) or EU (Fail Secure). These include but are not limited to: • Electrified Mortise Locks • Electrified Cylindrical Locks •...
  • Page 15 Category 1 Wiring DPS Output Alarm Input...
  • Page 16 Category 1 Wiring (Cont�) Power Input REX/open Input DPS Input DBM Input Wiegand Interface Alarm Output...
  • Page 17 Category 1 Wiring (Cont�) ISK-B300 Reader Controller Keypad...
  • Page 18: Device Category 2: Description And Wiring Diagram

    Device Category 2: Description and Wiring Diagram Motor-driven Mortise Lock, i.e. INOX PD9700 Category 2 Wiring Black Black Power Input Black White REX/Open Blue Output Orange Yellow DPS Output Purple Purple DBM Input Green Grey Alarm Output Grey Alarm Input...
  • Page 19 Category 2 Wiring (Cont�) Power Input REX/open Input DPS Input DBM Input Wiegand Interface Alarm Output...
  • Page 20 Category 2 Wiring (Cont�) ISK-B300 Reader Controller Keypad...
  • Page 21: Operational Details

    Operational Details Operating Voltage 12~24VDC Working Current ≤150mA Idle Current ≤60mA Proximity Card Reader EM / EM + Mifare Radio Technology 125KHz / 125KHz + 13�56MHz Read Range 1” Maximum PIN Length 4-8 Digits Relay Output, Exit Button, Alarm, Door Contact, Wiegand Wiring Connections Input, Weigand Output Relay...
  • Page 22: Basic Programming

    2� Update Master Code 0 (New Master Code) # (Repeat New Master Code) # (Master Code is any 6 digits) 3� Exit Program Mode Adding passcodes through the INOX Smart App will not be available until Master Code is changed from Factory Default�...
  • Page 23: Simplified Local Programming

    ID’s and PIN Numbers should be documented as they cannot be accessed through the INOX Smart App� Programming Through App: Credentials are saved & securely stored on the cloud� User’s information is accessible through the INOX Smart App and actions will recorded on the Audit Log within the App. Simplified Instruction...
  • Page 24 Set Access Mode For multi-user Access Mode, each entry cannot exceed five seconds, or the device will exit to Standby Mode automatically� Programming Step Keystroke Combination 1� Enter Program Mode * (Master Code) # 2� Card Access 4 0 # 2�...
  • Page 25 Set Strike-out Alarm The strike-out alarm will engage after 10 failed entry attempts (factory setting is OFF)� It can be set to deny access for 10 minutes after engaging, or disengage only after entering a valid card/PIN or Master Code / card� The Strike-Out Alarm will engage after 10 failed entry attempts (Factory Default Setting is OFF)�...
  • Page 26 Unpair the Device with the INOX Smart App Once the ISK-B300 is paired with an opening on the INOX Smart App, it cannot be paired with a different opening unless it is unpaired first. To unpair on the local device:...
  • Page 27: Smart Initialization For Dps And Dbm Sensors

    DBM paddle in the Electric Strike� When this occurs, the INOX Smart App will detect that the latchbolt or deadbolt is not engaged inside the strike� The App will then send a “locking failed”...
  • Page 28 Smart Initialization for DPS and DBM Sensors (Cont�) Programming Step Keystroke Combination 1� Enter Program Mode * (Master Code) # 2� Disable DPS Detection 6 3 # (factory default) 2� Enable DPS Detection 6 4 # 2� Disable DBM Detection 6 5 # (factory default) 2�...
  • Page 29: Wiegand Reader Mode

    Wiegand Reader Mode The device can work as a Standard Wiegand Reader connected to a third-party controller ( 7 8 # )� Connection Diagram Black Green/Black White/Black Yellow Orange Notes: When set to Wiegand Reader Mode, most settings in Controller Mode are inactive, and the Yellow and Orange wires are redefined as below: •...
  • Page 30: Downloading And Setting Up The Inox Smart App

    Downloading and Setting Up the INOX Smart App Downloading and Setting Up the INOX Smart App Use the QR code below for From the Apple or Google Play Store, additional support, or visit download the app “INOX Smart.” InoxSmart�com...
  • Page 31 Downloading and Setting Up the Downloading and Setting Up the INOX Smart App INOX Smart App Open the App on your Smart device. At the first screen, tap “No Account? Sign up.”...
  • Page 32 Downloading and Setting Up the Downloading and Setting Up the INOX Smart App INOX Smart App Fill in Name, Email, and Password Locate the email that contains your fields, and accept the Terms of Service, registration verification code. Legal Statement and Privacy Policy by activating the toggle.
  • Page 33 Downloading and Setting Up the Downloading and Setting Up the INOX Smart App INOX Smart App Enter this code on the next screen and If enabled, your Smart device may ask if slide the green button to the right to you want to use Face ID or Touch ID as verify.
  • Page 34: Adding A Property To The App

    App Use the QR code below for These instructions cover the procedures additional support, or visit for creating a new property in the INOX InoxSmart�com Smart App. For instructions on how to join an existing property, see the FAQs at InoxSmart.com.
  • Page 35 Adding a Property Adding a Property to the App to the App To create a new property, select the Fill in the property information, including Create button at the bottom of the Set address and number of buildings. To Up a Property screen. edit the number of buildings, slide the Buildings option to the left.
  • Page 36 Adding a Property Adding a Property to the App to the App The INOX Smart App requires a photo Tap the Camera icon to access your for each property. Tap on Edit Photo to camera or photo gallery. access the photo screen.
  • Page 37: Adding A Door To The App

    Adding a Door to the App Adding a Door to the App Use the QR code below for Doors are added to specific properties. additional support, or visit Tap on the property to select. InoxSmart�com...
  • Page 38 Fill in identifying information about the To add a door, tap the “ ” icon in the door. The INOX Smart App requires a lower right corner of the Doors screen. photo for each door. Tap on the Edit Photo box to access the photo screen.
  • Page 39 Adding a Door Adding a Door to the App to the App Tap the Camera icon to access your The photo will be added to the door camera or photo gallery. You may also information. choose a stock photo provided by the App.
  • Page 40: Pairing An Isk Access Control Keypad With The Inox Smart App

    Pairing an ISK Access Control Keypad with the INOX Smart App Pairing an ISK Access Control Keypad with the INOX Smart App Use the QR code below for From the Lock Screen, tap the Devices additional support, or visit button in the bottom right corner InoxSmart�com...
  • Page 41 Pairing an ISK Access Control Keypad Pairing an ISK Access Control Keypad with the INOX Smart App with the INOX Smart App To add a device, tap the “+” icon in the Choose “Auto Detect” to search for bottom right corner of the screen.
  • Page 42 Pairing an ISK Access Control Keypad Pairing an ISK Access Control Keypad with the INOX Smart App with the INOX Smart App The screen will automatically populate Tap the device that you would like to with all available access control and pair with the App.
  • Page 43 Pairing an ISK Access Control Keypad Pairing an ISK Access Control Keypad with the INOX Smart App with the INOX Smart App When the device is paired On the Add Device screen, rename the with the App, the Congratulations device by tapping on the name.
  • Page 44 Pairing an ISK Access Control Keypad Pairing an ISK Access Control Keypad with the INOX Smart App with the INOX Smart App The Access Control unit will appear in To control the lock, return to the lock the list of devices that are paired with screen.
  • Page 45: Pairing An Isk Access Control Keypad With A Wi-Fi / Poe Gateway

    Pairing an ISK Access Control Keypad with a Wi-Fi / POE Gateway Pairing an ISK Access Control Keypad with a Wi-Fi / POE Gateway Use the QR code below for From the Lock Screen, tap the Settings additional support, or visit icon in the bottom right corner InoxSmart�com of the screen.
  • Page 46 Pairing an ISK Access Control Keypad Pairing an ISK Access Control Keypad with a Wi-Fi / POE Gateway with a Wi-Fi / POE Gateway To add a gateway, tap the “+” icon in the Choose “Auto Detect” to search for bottom right corner of the screen.
  • Page 47 Pairing an ISK Access Control Keypad Pairing an ISK Access Control Keypad with a Wi-Fi / POE Gateway with a Wi-Fi / POE Gateway The screen will automatically populate Tap the gateway that you would like to with all available devices that are within pair with the access control device.
  • Page 48 Pairing an ISK Access Control Keypad Pairing an ISK Access Control Keypad with a Wi-Fi / POE Gateway with a Wi-Fi / POE Gateway Connecting by Wi-Fi: If the password field is left blank Select a 2.4Ghz network. Enter the when connecting to an iOS device, an network password and tap Confirm.
  • Page 49 Pairing an ISK Access Control Keypad Pairing an ISK Access Control Keypad with a Wi-Fi / POE Gateway with a Wi-Fi / POE Gateway Enter a name for the gateway in the The gateway will appear in the list of Device Name field.
  • Page 50 Access Management (IAM) Lock/Unlock via smartphone, RFID, or passcodes, both onsite and remotely Scalable without expensive servers, encoders, or monitoring panels Real-time DPS/LBM/DBM Monitoring and Notifications Fully integrated with the INOX Smart App Unique Passage and Privacy modes with automated scheduling...
  • Page 51 Smart ISK-B300 Keypad Reader / Controller Connects directly to any hardwired electrified locking device Fully integrated with the INOX Smart App Designed for access management at entries, exits, gates, pools, and many other environments Communicates in near proximity with Bluetooth Low Energy and remotely through...
  • Page 52 Smart.com INOX® 6 Wayne Court, Sacramento, CA 95829, USA Tel: +1 916.388.1888 Fax: +1 916.388.8322 Email: sales@unisonhardware.com...
