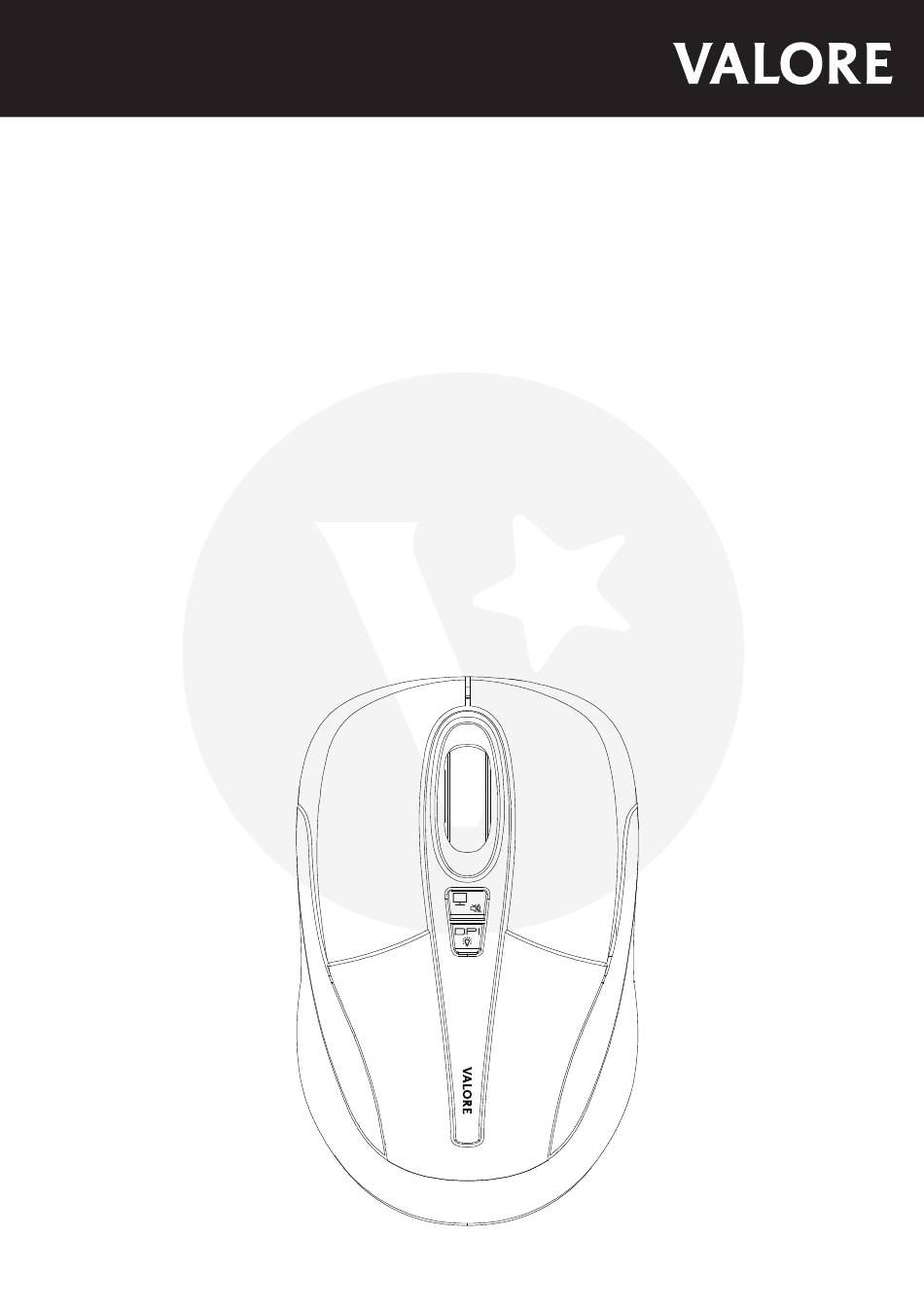

Valore
Dual Mode Wireless Mouse
Thank you for purchasing the Valore Dual Mode Wireless Mouse (AC189).
Important: Please read the user manual thoroughly before using the product.
Features:
• Quick desktop switch & privacy protection
• Colorful rainbow breathing light display
• Flexible dual-mode wireless connectivity options
Specifications:
• Battery capacity: 400mAh
• System support: Windows XP and above/Android/MacOS
• Transmission distance: Up to 10m
• Resolution: 800/1200/1600DPI
• Material: ABS
• Dimensions (L × W × H): 98 × 60 × 39mm
• Weight: 66.5g
Package Contents:
• Dual-mode
wireless
• USB dongle x1
• USB-C charging cable x 1
mouse x1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Valore AC189
Summary of Contents for Valore AC189
- Page 1 Valore Dual Mode Wireless Mouse Thank you for purchasing the Valore Dual Mode Wireless Mouse (AC189). Important: Please read the user manual thoroughly before using the product. Features: • Quick desktop switch & privacy protection • Colorful rainbow breathing light display •...

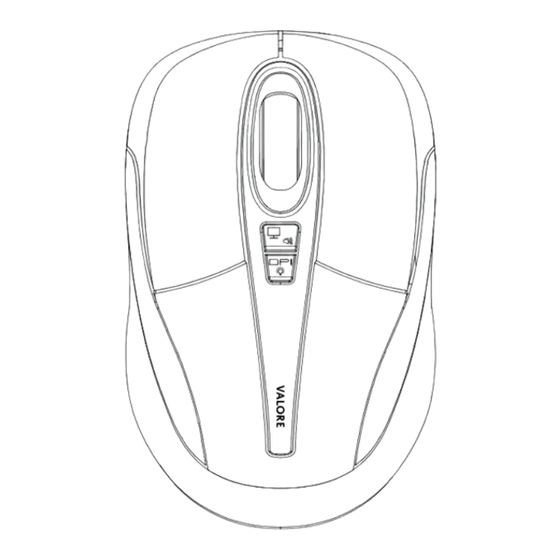

- Page 2 PRODUCT FUNCTION DIAGRAM Left Button Right Button Scroll Wheel Red light under the wheel: charging indicator, red light Back to desktop off when fully charged Mute Button LED on/off Type-C Charging Port ON/OFF 2.4G USB Receiver Slot BT Switch...
-
Page 3: Product Instruction
PRODUCT INSTRUCTION USB Connection Step 1: Plug the receiver into the USB port of your computer. Step 2: Push the power switch at the bottom of the mouse to the position of "NO", ----------and push the dual-mode switch to 2.4GHz mode, the mouse tail light is green and flashing. -
Page 4: Charging Mode
CHARGING MODE It is recommended to charge the mouse using the USB interface of your computer. During charging, the red light on the scroll wheel will turn off once the mouse is fully charged. It typically takes approximately 1 to 2 hours to fully charge the mouse. Here are some guidelines for troubleshooting common issues: If the mouse cursor moves slowly, check the battery level. - Page 5 EASY- MANUAL PULL USB Receive 2.4G www. Click Long press 1 second Click Long press 1 second Turn on/off volume Back to desktop 800/1200/1600 Turn on/off volume...
-
Page 6: Led Instruction
LED INSTRUCTION Green light Blue light Succeeded Red light Light on: charging Light flash: battery low warning Light off : charging complete... -
Page 7: Battery Warning
BATTERY WARNING： • Improperly replaced batteries may pose a risk of leakage, explosion, and personal injury. • Mistreated rechargeable batteries may also present a risk of fire or chemical burn. • Do not disassemble the product or expose it to conducting materials, moisture, liquid, or temperatures above 54°C (130°F). - Page 8 GENERAL PRODUCT WARNING: Read the manual before using the product: • Do not open or modify the product except for battery removal and replacement. • Avoid directing the infrared/laser beam at anyone's eye or reflective objects. • Keep the product away from liquids, heat, or moisture. •...
- Page 9 All information, trademarks, logos, graphics, and images (“Materials”) provided on this user manual are copyrighted or trademarked and are the property of Valore Lifestyle Pte Ltd. Any unauthorized use of any material contained on the instruction manual may violate copyright laws, trademark laws, laws of privacy and communications statutes.
