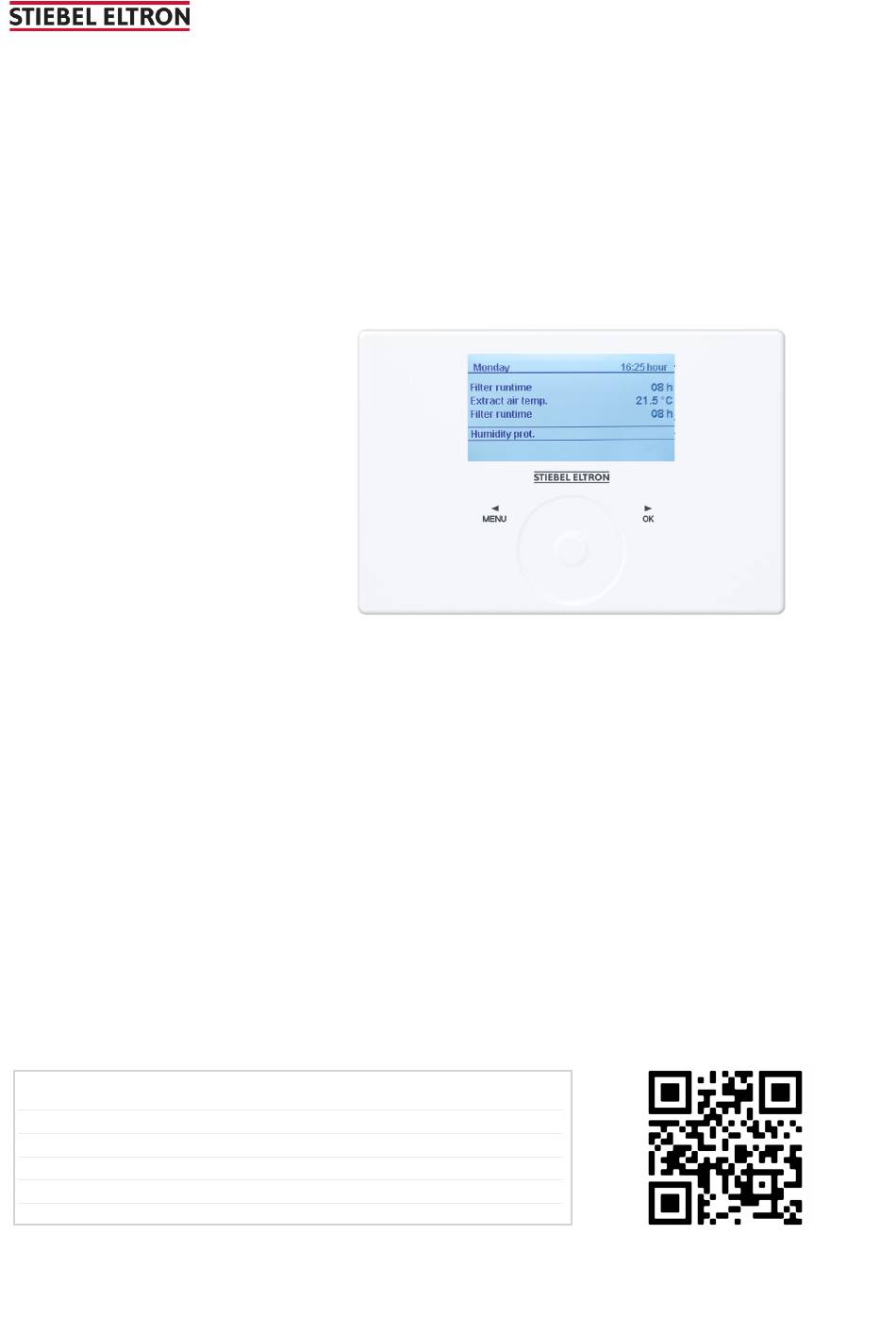

STIEBEL ELTRON LWZ 180 Initial Setup Manual

Initial Setup Guide
STIEBEL ELTRON Ventilation System
This guide is in addition to the main installation & instruction manual and provides the key settings for
initial setup and commissioning for the following systems.
›
LWZ 180
›
LWZ 280
›
LWZ 130

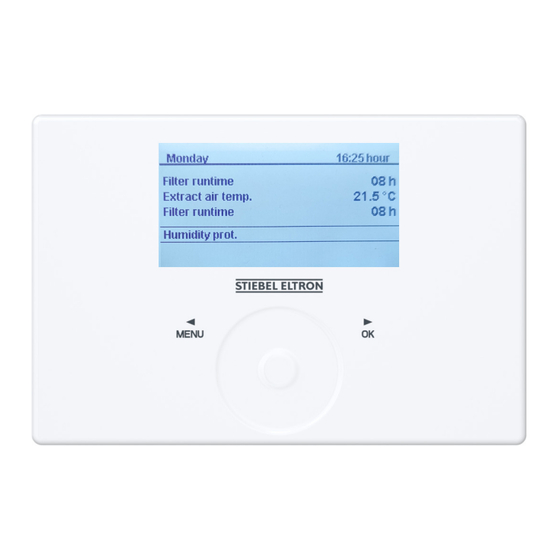

Settings
Fan On
1. Menu
2. Enable Fan
3. On
4. Back
Day & Time
1. Menu
2. Settings
3. General
4. Time & Date
5. Back
Favourites (main screen display info)
1. Menu
2. Settings
3. Favourites
4. Extract Air Humidity
5. Highlight all three boxes
6. Back
Air Flow Rates
7. Menu
8. Settings
9. Air Flow Rate
10. Enter Code 1000
11. Flow Rate Stage 0 – Ventilation for moisture protection
12. Flow Rate Stage 1 – Reduced Ventilation
13. Flow Rate Stage 2 – Nominal Ventilation
14. Flow Rate Stage 3 – Intensive Ventilation
15. Back
Enter corresponding settings from ventilation planning document, example below
Total air flow and fan speeds
Recommendation of fan stages on the ventilation unit
Ventilation for moisture protection
Reduced ventilation
Nominal ventilation
Intensive ventilation
Refer to the Quick Start Guide and Main Installation and Instruction manual for
further settings and info if required.
Please refer to the reverse of this page for
use of the FEB 2.0 controller.
35 m³/h
125 m³/h
180 m³/h
235 m³/h
Scan the QR code to watch a
video on these settings
