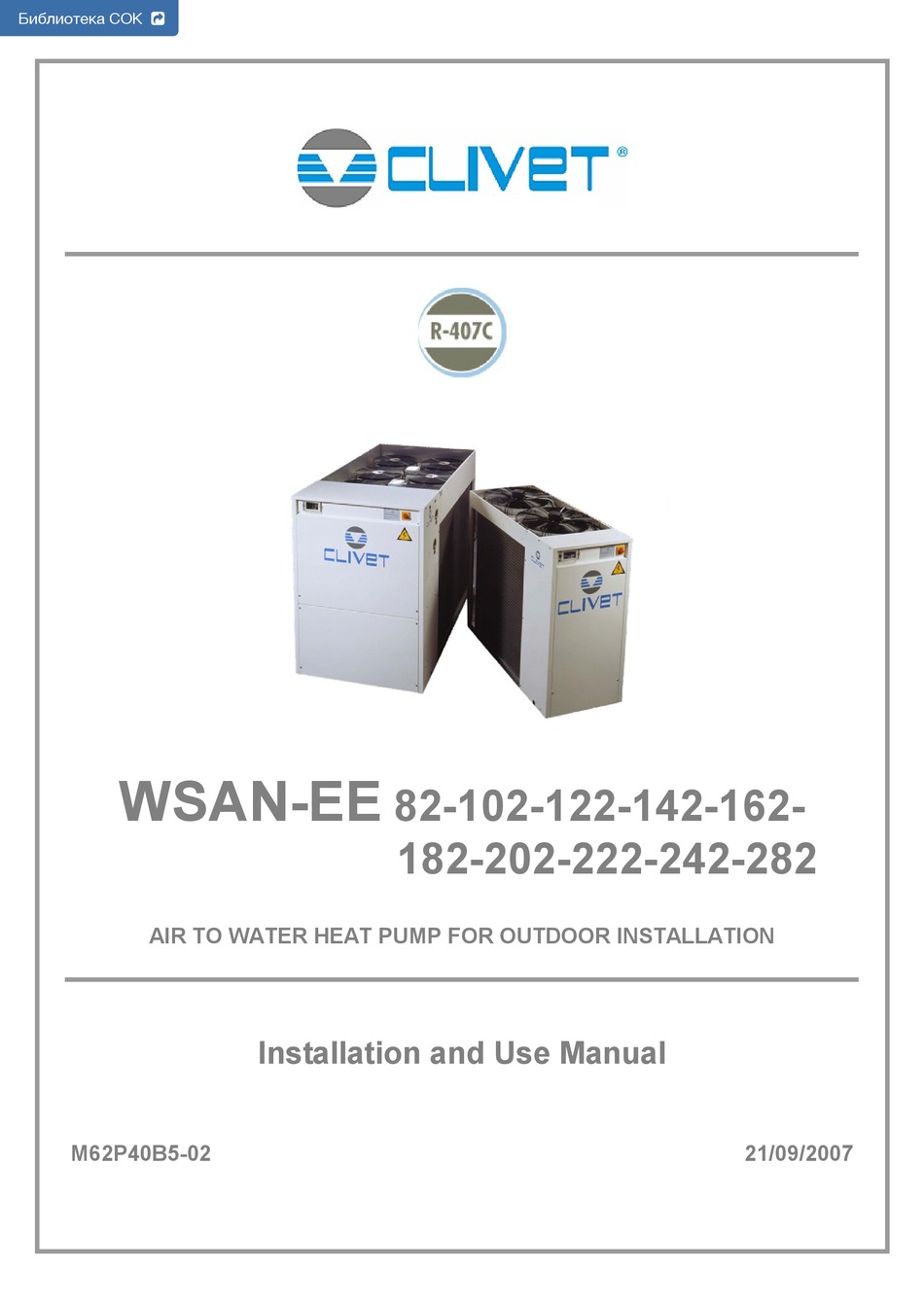

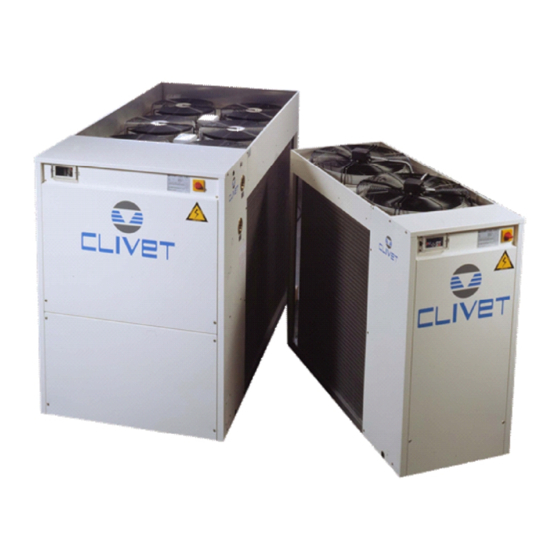

- Page 1 Библиотека СОК WSAN-EE 82-102-122-142-162- 182-202-222-242-282 AIR TO WATER HEAT PUMP FOR OUTDOOR INSTALLATION Installation and Use Manual M62P40B5-02 21/09/2007...
- Page 2 UNIT IDENTIFICATION SERIAL NUMBER LABEL The units are identified by the serial number label shown here. The label lists the type of unit (series and size), serial number, year of manufacture, number of electrical diagram, main technical data, logo and address of the manufacturer. The label is placed on the unit, generally near the electrical panel and also on the external panelling.
- Page 3 CE MARK regulations in force. PERIODICAL INSPECTIONS Clivet products bear the CE mark, in compliance with the Perform periodical inspections to locate possible loosened requirements of the following EC directives, including the or broken parts. If the repairs are not performed, there will...
- Page 4 223.3 power supply 400/3/50 (+ NEUTRAL) +/- 6% Maximum Phase Unbalance: 2% for non standard voltage please contact Clivet technical office CONNECTION TO THE MAINS 1. Make sure that the sectioning device at the beginning of 6. Protect the cables, using the fairlead of an adequate the unit’s power line is opened, locked and equipped...
- Page 5 TECHNICAL DATA SIZE COOLING Cooling capacity 1 kW 22,2 25,6 38,2 41,4 48,2 54,9 58,2 Compressor power input 1 kW 10,9 12,5 14,8 16,7 18,1 21,2 23,2 26,2 Total power input 2 kW 11,5 13,9 16,1 17,9 19,5 22,5 24,5 28,8 2,64 2,56...
- Page 6 OPERATING LIMITS (COOLING) SIZE EXTERNAL EXCHANGER Max air intake temperature °C 46.5 44.5 46.5 43.5 43.5 44.5 Max air intake temperature °C 50.5 49.5 49.5 Min. air intake temperature °C INTERNAL EXCHANGER Max water return temperature °C Min. water supply temperature °C OPERATING LIMITS (HEATING) SIZE...
