VORAGO BT SPEAKER 300V3 BSP-300-V3 - Portable Speaker Manual

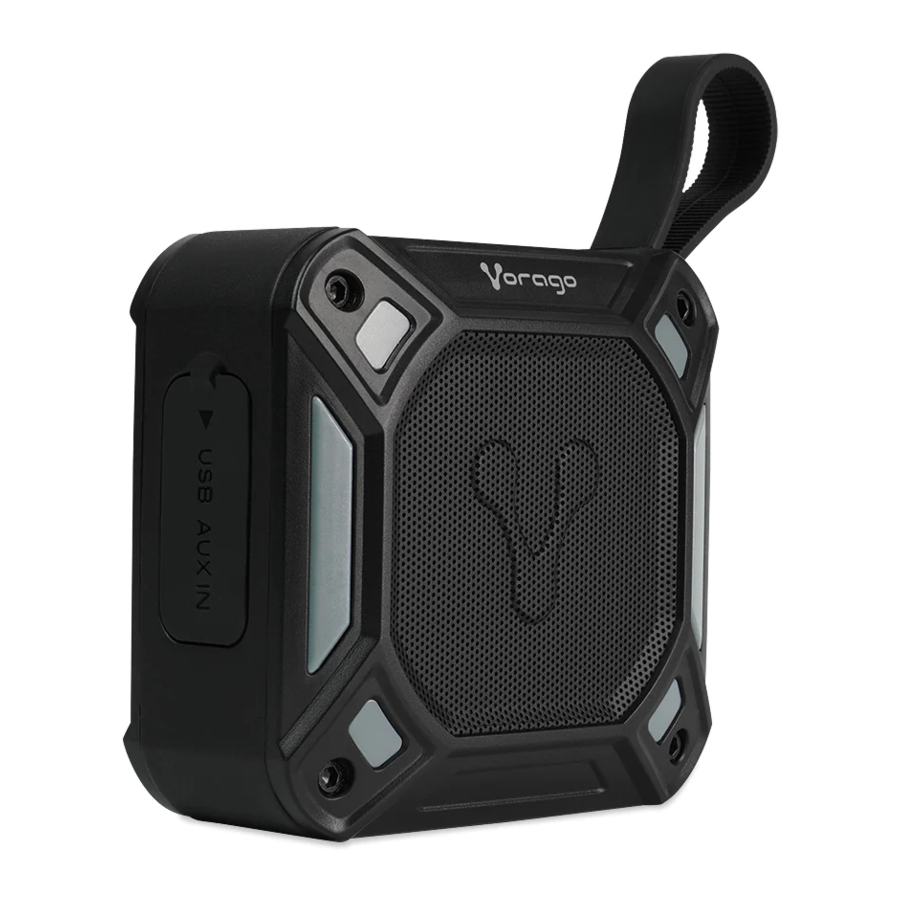

KNOW YOUR SPEAKER

1. Volume + / Next song
2. Volume - / Previous song
3. Auxiliary port 3.5 mm
4. USB type C charging port
5. On and off button
6. Play / Pause / End call button

CHARGE YOUR SPEAKER

1. Please charge your speaker before using it.
2. Plug the included Type-C cable into the port on your speaker (3) into an available port on a computer or wall adapter.

Battery status (LED)

The speaker will beep every 30 seconds when the battery power is less than 10%.

The battery LED will illuminate red when charging is required.

When the LED doesn't light and the speaker neither make any sound, it indicates that the speaker has no battery.

Note: When the battery drops below 3%, the speaker will turn off automatically.

TURN ON YOUR SPEAKER

Press the button (5) until you hear a tone and you will see that the indicator LED lights up.

TURN OFF YOUR SPEAKER

Press the button (5) until you hear a tone and you will see that the indicator LED will turn off.

BT CONNECTION

Make sure you are less than 10 meters away from the speaker.

When the horn is off, you must press the button (5) until you hear a tone and the indicator LED will begin to flash blue.

Within your device to be linked in the BT devices section, look for the BSP-300-V3 model from the list and select it.

Once linked, the indicator LED will change to a solid blue tone.

Note: When you press the power button, the speaker will remember the last paired device and can store up to 8 devices. If any of these 8 devices are not found, the speaker will go into pairing mode.

MUSIC CONTROL

Play / Pause: Click

Volume +: Click

Volume -: Click

Next song: Press and hold

Previous song: Press and hold

BT / Auxiliary mode change: Click

CALL FUNCTION

Answer call: Click

Reject call: Press and hold

End call: Click

Redial number: Press and hold

DELETE A BT DEVICE

Press the "", "" buttons at the same time until you hear a tone and the LED light turns blue in intervals, this indicates that your speaker is ready to pair a new device.

USING THE 3.5 MM AUXILIARY PORT

Turn on your speaker
Use the included 3.5mm cable and plug it into your speaker's 3.5mm port (3) automatically your speaker's LED light will turn green.

Note: In 3.5 mm mode the music control buttons will not be available.

CAN'T CONNECT YOUR SPEAKER?

Check that your device supports A2DP
That your speaker is less than 10 m
Your speaker is in pairing mode
