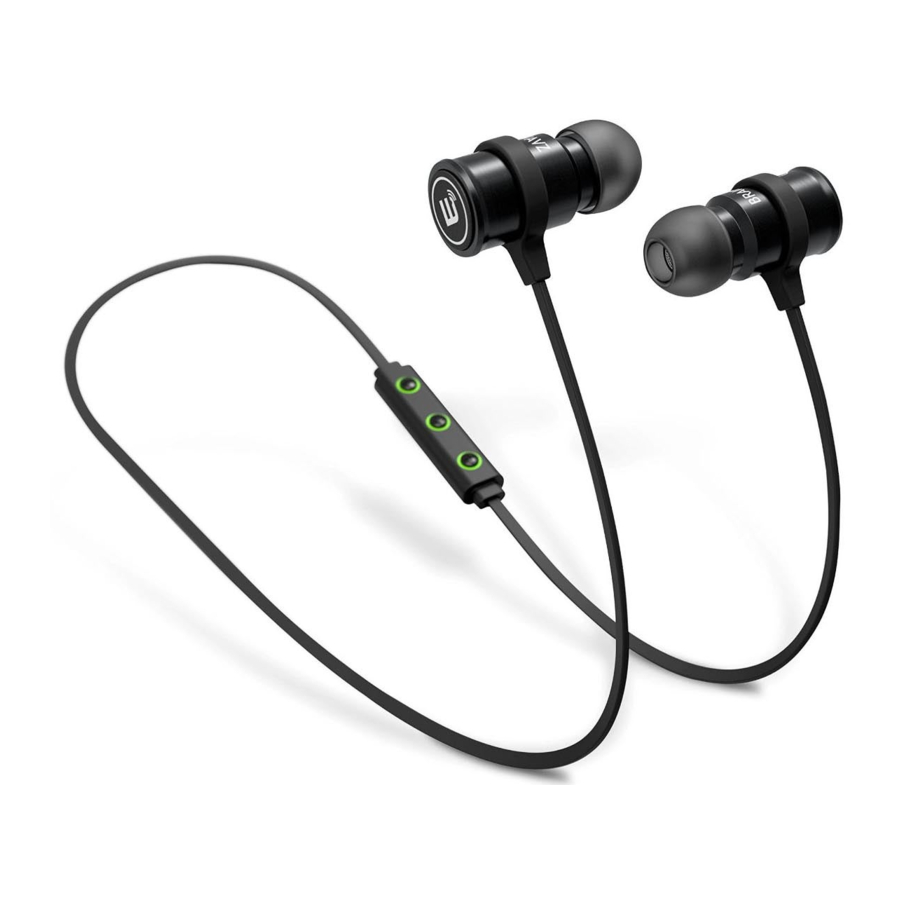

Brainwavz BLU-100 - Wireless Headphones Manual

Controls

1. White Indication Light
2. Button #2 "+"
3. Button #1
4. Button #3 "-"

Power ON/ OFF

1. To turn on your BLU-100 Headset Press & Hold "Button #1" for 3 sec.
   The White Indication Light of your headset will be flashing for 1 sec. and you will hear a voice say "Power ON".
   Your BLU-100 Headset is now turned on.
2. To turn off your BLU-100 Headset Press & Hold "Button #1" for 2 sec.
   The White Indication Light of your headset will turn off f and you will hear a voice say "Power OFF". Your BLU-100 Headset is now turned off f.

Charging

When you hear A voice say "Battery Low", please charge your headset with the provided Micro USB Charging Cable.

1. Open the USB Back Cover on the RIGHT Earphone Head of your BLU-100 Earphones and connect the Micro USB plug of your charging cable.
2. Connect the USB plug on other end of your charging cable to a computer or a USB power socket.

When charging your headset, the White Indication Light on your remote control will turn on. Once your BLU-100 headset is fully charged, the
White Indication Light will turn off.

Pairing

Before using your BLU-100 headset for the first time, you need to pair it with your Bluetooth enabled phone.

1. Turn OFF your BLU-100. Press & Hold "Button #1" for ~5 sec. until the White Indication Light starts flashing. You will hear a voice say "Pairing". Your headset is now under pairing mode.
2. Activate your mobile phone's Bluetooth mode to find your headset.
3. Your phone will detect "BLU-100". By pressing "BLU-100" on your phone a voice will say "Connecting". Your headset and mobile phone are now connected.

If prompted for a password, please enter "0000".

If the pairing can't be completed within 90 sec. while the pairing mode is activated, the pairing was unsuccessful. Please start over and follow step 1 - 3 under "Pairing" again.

Pairing with 2 Devices (Multipoint Connection)

Your Brainwavz BLU-100 headset supports a Multipoint Function to allow simultaneous pairing with two mobile phones.

1. Follow Step 1 to 3 under "Pairing" to pair your BLU-100 with your 1st mobile phone.
2. Turn OFF your BLU-100 headset.
3. Follow Step 1 to 3 under "Pairing" to pair your BLU-100 headset with your 2nd mobile phone.

Volume Control

To increase the volume press "Button #2". To decrease volume press "Button #3".

Play & Pause

To play your music press "Button #1" once. To pause your music press "Button #1" once again.

Next Song

Press & Hold "Button #2" for 3 sec. to fast for ward to the next song.

Previous Song

Press & Hold "Button #3" for 3 sec. to go back to the previous song.

Voice Dialing

Please ensure your mobile phone supports voice dialing function and has the voice tag assigned for this feature.

1. Press & Hold "Button #2" or "Button #3" for 3 sec. to activate voice dialing.
2. Press & Hold "Button #2" or "Button #3" for 3 sec. again to deactivate voice dialing.

Note: Depending on your mobile phone model, this operation may vary.

Answering Phone Calls

Connected to 1 Phone
To answer a phone call press "Button #1" once.

Connected to 2 Phones

1. Press "Button #1" once to receive the second phone call and keep the first call connected on the first mobile phone when there is another call coming to the second mobile phone.
2. Press "Button #1" twice to transfer the two phone calls.

Ending Phone Calls

To end a phone call press "Button #1" once.

Rejecting Incoming Phone Calls

To reject a call press & hold "Button #1" for 2 sec.

Last Number Redialing

Connected to 1 Phone
To redial the last dialed phone number press "Button #1" twice.

Connected to 2 Phones
To redial the last dialed phone number press "Button #1" twice.
If the BLU-100 headset is connected to multiple phones, this feature will only work on the phone, which was paired with the BLU-100 first.
Note: Depending on your mobile phone model, this operation may vary.

iPhone Battery Indication

The battery level of the headset will be displayed on the upper right corner of an iPhone.

Product Specifications

Bluetooth Version 4.0
CSRBC8645 Chipset
APTX
Micro USB Charging Port
Support HFP, HSP and A2DP
Connectable to 2 Bluetooth devices at the same time
Operating Range: Up to 30 feet (10 meters)
60mAh rechargeable Battery
Talk Time: 4 hours
Music Play Time: 4 hours
Standby Time: 100 hours
Charging Time: ~2 hours
iPhone Battery Indication
CVC Echo & Noise Cancellation
Supports Voice Prompting for MMI:
Power on, Paring, Connecting, Battery low & Power off
