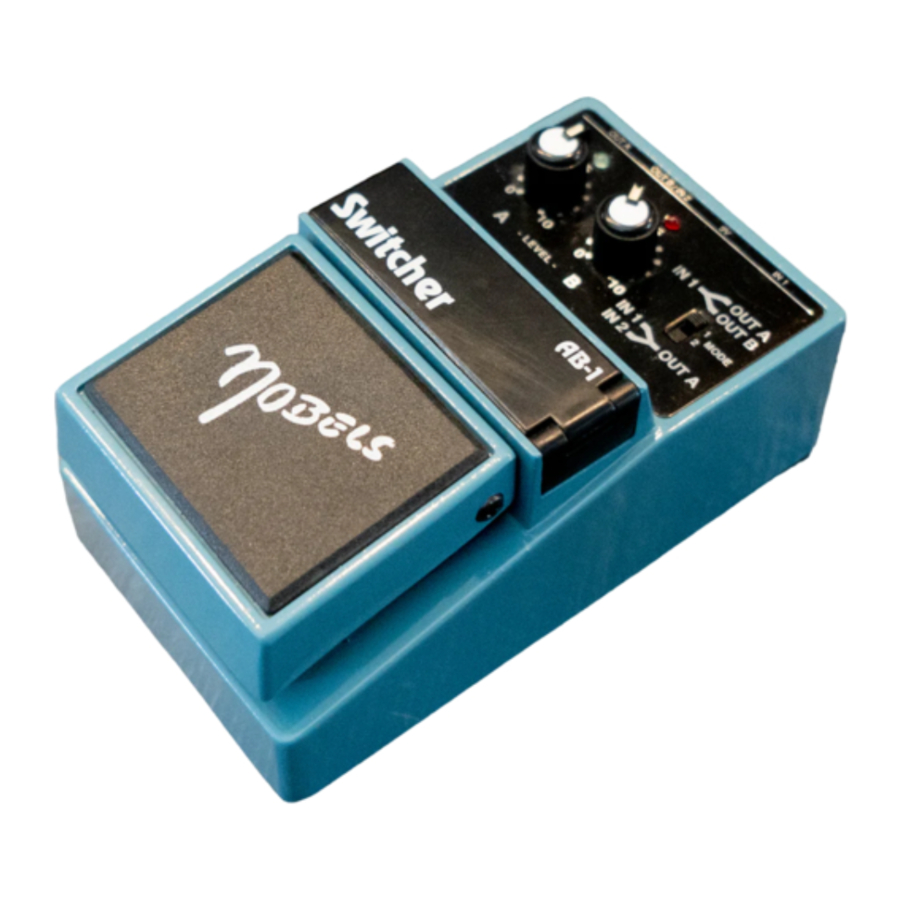

Nobels AB-1 - Switch Manual

Specifications

Power 9V dry battery / AC adaptor
Consumption max. 11mA
Jacks IN 1, OUT B / IN 2, OUT A, REMOTE, DC
Controls Level A, Level B (MODE 1 only!)
Switch MODE 1, 2
Remote momentary switch
Display 1x green, 1x red LED indicator
Dimensions 74mmx126mmx58mm
Weight 430g (without Battery)

Specifications are subject to change without notice!

Operation

Overview

Insert a 9V battery (2) or connect a regulated 9V power supply adaptor to the DC jack (4).
Connecting a cable to the jack (3) will automatically switch the unit on.
Pressing the pedal (1) switches the unit on or off.
Instead of using this unit on the frontstage, you can place it with your equipment and control it with a standard momentary footswitch connected to the remote jack (7).
Before changing the battery (2) always unplug the jack (3) to switch the unit off.
We suggest to use a regulated 9V power supply adaptor to keep our environment clean.
Power supply specifications: see imprint on bottom of unit.
- Thank you.

Avoid using this unit in extreme humidity, heat or dust environment.
When the unit is not in use for longer periods, remove the battery (2) to prevent damages by battery leakage.
Also unplug the jack (3) to prevent wasting battery life when the unit is not in use.

Function

IN 1 jack: Inserting a plug switches the unit on.
9V DC jack: Connect a regulated 9V power supply unit.
OUT B / IN 2 jack: Input or output; depending on MODE setting. MODE 1: OUT B MODE 2: IN 2
OUT A jack: Output, Switched when LED A is on. Adjustable with control "A" (9).
REMOTE jack: The ON / OFF-function can be remote controlled by a momentary switch, connected to the REMOTE jack (5). Intelligent switching devices (like the Nobels MF-2 or MS-4) also can remote control the unit.
LED's: The LEDs shows the state of the connection.
Controls A-LEVEL-B: Adjust output level of "A" and "B". Attention: control "B" adjust the level for OUT B and therefore can be used in MODE 1 only!
MODE Switch:
1. IN 1 connected to OUT A (green LED on) or to OUT B (red LED on).
2. OUT A connected to IN 1 (green LED on) or to IN 2 (red LED on).

Example:
MODE Switch Example

Applications

You can use this switcher to switch guitar A or B to an amplifier or to select between two amplifiers.
Also you can switch the outputs of two preamps to an external power amplifier, etc.
