Mindman MP23C Series Manual

For your safety, please read the following before using.

Do not use corrosive or flammable gas or liquid with this product.
1
Please use within the operating pressure range. Do not apply pressure beyond recommended maximum pressure, permanent damage to the pressure
2
sensor may occur.
Do not drop, hit or allow excessive shock. Even if switch body appears undamaged, internal components may be broken and can cause malfunction.
3
Turn power off before connecting wiring. Wrong wiring or short circuit will damage and / or cause malfunction.
4
Do not use in environment containing steam or oil vapor.
5
This product is not explosion-proof rated. Do not use in atmosphere containing flammable or explosive gases.
6
Wiring for pressure sensor should avoid power source line and high voltage line. If use in the same circuit, noise may cause malfunction.
7

SPECIFICATIONS

Display pressure range
Withstand pressure
Fluid
k Pa
M Pa
k gf/cm
2
b ar
Set pressure
resolution
p si
inH g
mm H g
mmH O
2
Power supply voltage
Current consumption
Display
Indicator accuracy
Enclosure
Ambient temp. range
Ambient humidity range
Environment Withstand voltage
Insulation resistance
Vibration
Shock
Temperature characteristic
Port size
Lead wire
Weight

ORDERING INFORMATION

M P 2 3 C - F 1 -
Pressure Range
C：Compound
(-100.0~100.0 kPa)
P：Positive
(-0.100~1.000 MPa)
Pressure Port
F1：Rc1/8"
F2：NPT1/8"
F3：G1/8"(BSPP)

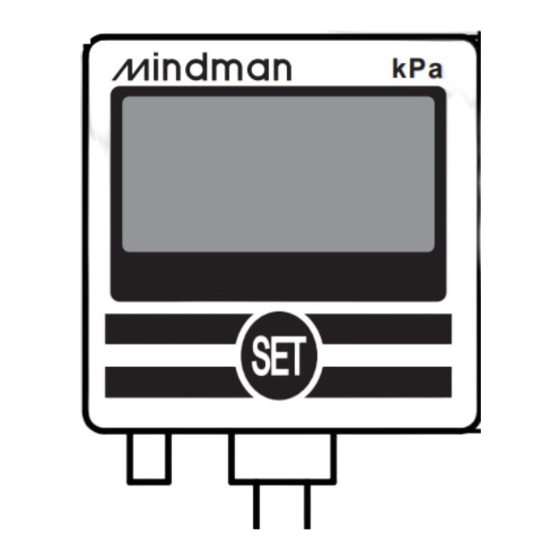

PANEL DESCRIPTION / DIMENSIONS
3 ½ digit LED display
Display the measured
pressure value. each
setting mode and error
kPa
code.
Setting Button
Zero & Unit setting button
PR-0064D 2021/10 Printing We reserve the right to change the specification without prior notice.
MINDMAN INDUSTRIAL CO., LTD.
MP23C-
-100.0 ~ 100.0 kPa
Operation: 0 ~ 50°C, Storage: -20 ~ 60°C (No condensation or freezing)
Total amplitude 1.5mm, 10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X, Y and Z
Approx. 102g (with 2 meter lead wire), Approx. 68g (with M8, 4Pin male connector)
Cable Length/Connector
Blank：With 2 meter cable
QD：With M8, 4Pin male connector
Optional Parts
MP-A1：Mounting bracket (BT-1)
MP-A2：Mounting bracket (BT-2)
MP-B1：Panel adapter (PA-A)
MP-C1：Panel adapter + Front protective lid (PA-B)
MP-D1：WIth M8, 4Pin female connector (M84R-W0085-2M)
kPa
300
-
(Compound)
300 kPa
Filtered a ir, Non-corrosive/ Non-Flammable gas
0.1
-
0.001
0.001
0 .01
0.1
1
0.1
12 to 24V DC ±10%, Ripple (P-P) 10% or less
≦ 55mA
3 ½ digit LED display (Red) (Sampling rate: 5 times/sec.)
±2% F.S. ±1 digit (ambient temperature: 25 ±3°C)
IP 40
Operation/Storage: 35 ~ 85% RH (No condensation)
1000V AC in 1-min (between case and lead wire)
50MΩ (at 500V DC, between case and lead wire)
980m/s (100G), 3 times each in direction of X, Y and Z
2
±2% F.S. of detected pressure (25°C) at temp. Range of 0~50°C
F1:Rc1/8"; F2:NPT1/8"; F3: G1/8"(BSPP)
Ø4 Oil-resistance cable ( PVC ) - 26 AWG ( 0.15 mm
QD PINOUT
2 4
(1) Brown (+)
(2) Not used
(3) Blue (–)
(4) Not used
1 3
MP23
MP23P- -
(Positive)
-0.100 ~ 1.000 MPa
1.5 MPa
-
0.001
0 .01
0 .01
0.1
-
-
-
) - 2 cores
2

CIRCUIT WIRING DIAGRAM

*Pressure display only, no switch output function.

INSTALLATION

1. This product has two inlet pressure ports, select
the one most convenient for installation.
Please plug the unused inlet port with supplied
2.
port plug. Use seal tape to prevent pressure leak.
www.mindman.com.tw
DC(+)
(Brown)
DC DC
12-24V
DC(-)
(Blue)
Bolt(screw)
Unit:mm
