This manual contains important information including safety and installation instructions of the appliances.
Please read it carefully before use and follow all safety information &instructions. It is recommended to keep
this manual for easy reference so that you can be familiar with the operation of the appliance.

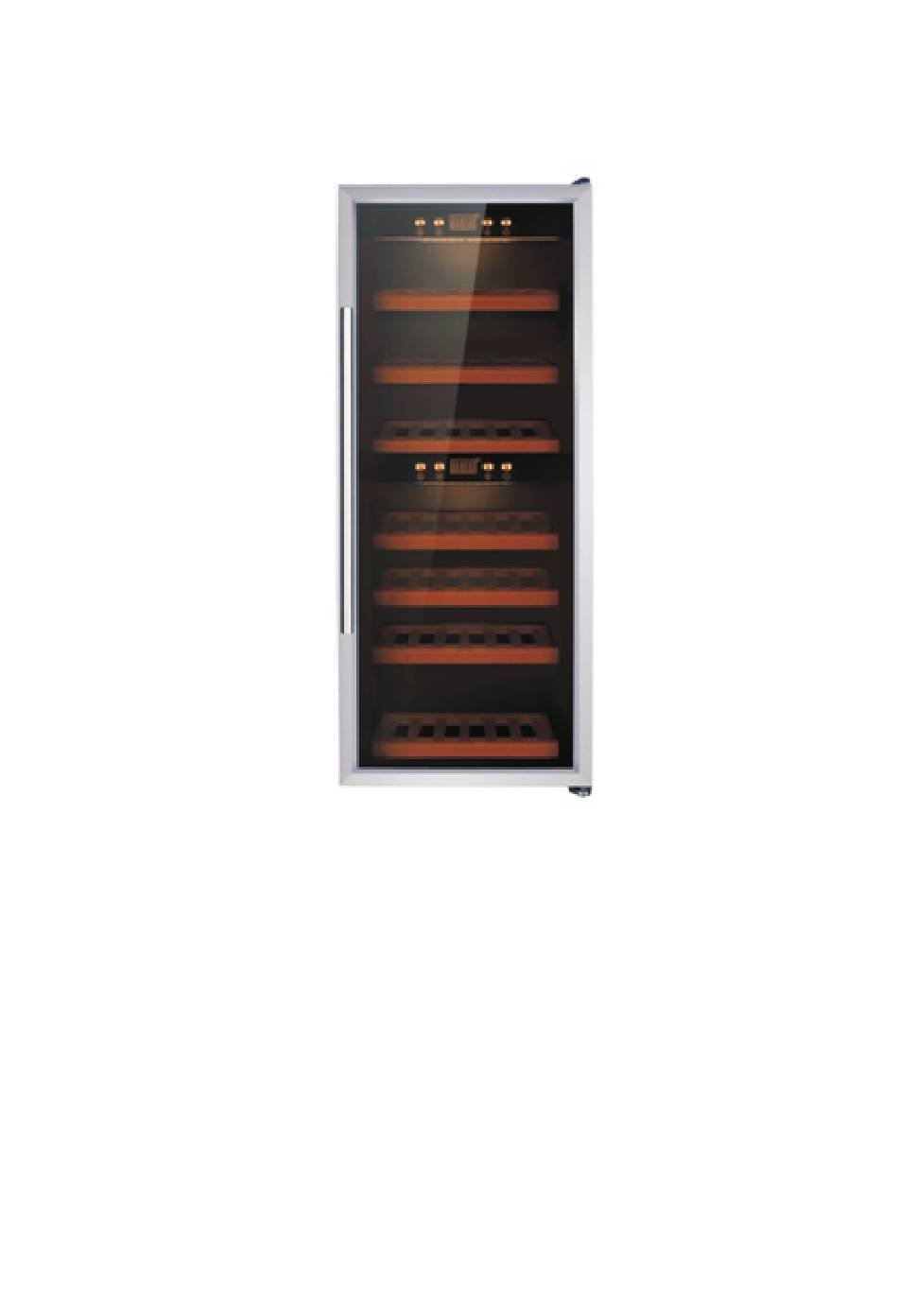

Owner's Manual
SW-12
SW-15
SW-28
SW-38
SW-51
SW-66
SW-137
SW-180
SW-215
SW-242
SW-75
SW-24
SW-43
SW-40
SW-122
SW-126
SW-120
SW-152
SW-192
SW-54
１
Advertisement
Table of Contents
Related Manuals for Adexa SW-12
Summary of Contents for Adexa SW-12
- Page 1 Owner's Manual SW-12 SW-15 SW-75 SW-24 SW-28 SW-38 SW-43 SW-40 SW-51 SW-66 SW-122 SW-126 SW-137 SW-180 SW-120 SW-152 SW-215 SW-242 SW-192 SW-54 This manual contains important information including safety and installation instructions of the appliances. Please read it carefully before use and follow all safety information &instructions. It is recommended to keep this manual for easy reference so that you can be familiar with the operation of the appliance.
-
Page 2: Table Of Contents
Table of Contents Explanation ..........3 Electrical Requirement . -
Page 3: Explanation
EXPLANATION This Instruction Manual is the universal-purpose version for the models of wine cabinet manufactured by our Co. The appearance of the units that you purchase might be slightly different from the Manual, but it does not affect your proper operations and usage. -
Page 4: Wine Cabinet Installation
Wine cabinet Installation: When you receive the cabinet, please unpack the unit and Ÿ make sure there is no flaws in its external appearance (from shocks, deformation, ect.) Open the door and check all interior fittings and supplied Ÿ items if are all complete (shelves, instruction, control panel, etc.) Please install it according to the following points if the shelves or shelf brackets fall off during transit. -
Page 5: Important Safety Instructions
Shelving Ÿ (Type and number of shelves will vary per model) Remove packing materials from shelves once unit is stable Ÿ and ready for storage. Disperse the bottles evenly to avoid concentrating weight in Ÿ one place. Bottles must not touch either the back of the cabinet or the step at the bottom. -
Page 6: Operating Your Wine Cellar
Children should be supervised to ensure that they do not Ÿ play with the appliance. Do not allow children to climb on, sit on or stand on the wine cabinet, nor hang from its shelves. They could damage the cabinet. Do not use an extension cord. -
Page 7: Installing Your Handle
2. Installing Your Handle (If it has handle) 1. Pull back the door seal behind handle location 2. Insert screws into pre-drilled screw holes. 3. Attach gasket 4. Attach handle 5. Tighten screws and press door seal back into place. 3. - Page 8 4.1.2 Control Panel for dual zone Upper Control Panel ON/OFF of the whole system ON/OFF of inside cabinet LED light Temperature Up setting Temperature Down setting Down Control Panel ON/OFF of the whole system ON/OFF of inside cabinet LED light Temperature Up setting Temperature Down setting 4.1.3 Pushing the temperature key up and down for 5 seconds,...
- Page 9 4.2 The temperature setting of SW-24 1. Temperature UP, the upper zone's temperature increases 1℃ each time the butt on is pressed 2. Temperature DOWN, the upper zone's temperature decreases 1℃ each time the button is pressed 3. Upper Zone Temperature Display 4.
- Page 10 4.3 The temperature setting of SW-54 (1) Hinge (2) Door Gasket (3) Door Frame (4) Door Handle (5) Door Hinge (6) Foot (7) Rack (8) Fan (9) Casing (10) Control Panel 4.3.1 Two temperature zones are controlled separately, left control panel controls left zone, right control panel controls right zone.
- Page 11 refrigerate for 5minutes, the cycle repeats until the set temperature is reached. . It is normal that the key is flashing after turn off the power, but the plug is connected. Please refer to the manual for detailed operation steps. 4.4 The temperature setting of SW-122 1.
- Page 12 display screen are off. Press the power button to turn on the corresponding temperature zone and long press the power button for 3 seconds to close the corresponding temperature zone. - Unlock the control panel When the control is not operate for 10 seconds, the panel Ÿ...
- Page 13 - Toggle Key Toggle the LED display between Celsius or Fahrenheit Ÿ readings When you press the toggle key, the display for both of zone Ÿ will toggle together. - LED light button Press the LED light button to turn the LED light ON & OFF Ÿ...
-
Page 14: Loading And Storage Of Wine Bottle
5. Loading and Storage of Wine Bottle: 5.1 Bottle Loading Method: Wooden shelf capacity: 3,4,5,9 or 11 bottles / shelf Ÿ Bottom shelf capacity: 3,5, 8 or 12 bottles / shelf Ÿ Maintain a minimum 20mm between bottle and back plate Ÿ... - Page 15 Bottom shelf capacity: 5 bottles / shelf Ÿ Maintain a minimum 20mm between bottle and back plate Ÿ Ensure storage Bottle dimension is Dia.84mm & Height Ÿ 300mm or Dia.76mm & Height 330mm. And the can dimension is Dia.66mm &...
-
Page 16: Maintenance
6. Maintenance In order to ensure best performance & long-last reliable working item, pls follow the simple maintenance and cleaning operations as below: - Make sure the power cord is unplugged before cleaning the back of your cabinet, or before moving it. - Clean the inside of your cabinet thoroughly once a year, after unplugging and unloading it (uses water and a mild cleaning item, then rinse carefully). - Page 17 Note: normal operation for following phenomenon: A) Compressor not start: Compressor will not start if room temperature is lower than desired temperature, but item is still working with heater inside till desired temperature achieved. B) Compressor re-start: Compressor will stop working when cooling system in the cabinet reaches presetting temperature, and re-start working until the desired temperature is achieved.
-
Page 18: Matters Need Attention
F) Heat function on bottom zone: Heat function on bottom zone will automatically be on as below reason. 1) When setting temp. is upper than Room Temp. 2) When inside bottom Temperature is lower than setting temp. G) Indicator light: When temperature inside cabinet is out of range of setting temperature, both up and down indicator light will be on. -
Page 19: Warning
Waste cold wine cabinet still has many valuable raw Ÿ materials and shall be treated separately in residential area not adopting garbage classification. Waste cold wine cabinet shall be scraped timely; take off Ÿ plug, and remove power soft cable. Destroy lock to prevent such situation that a kid is locked by him/herself when playing the lock. - Page 20 This product does not contain any spare parts, please do not Ÿ disassemble. The refrigerant used in this product is combustible, non-professional maintenance personnel shall not repair the machine, improper repair may be the risk of fire or explosion. If the machine is faulty, please contact the service personnel.
- Page 21 DANGER: Risk of child entrapment. Before you throw away Ÿ your old refrigerator or freezer: * Take off the doors * Leave the shelves in place so that children may not easily climb inside. This appliance is intended to be used in household and Ÿ...
