ARC Technology ALMST-1405 Manual

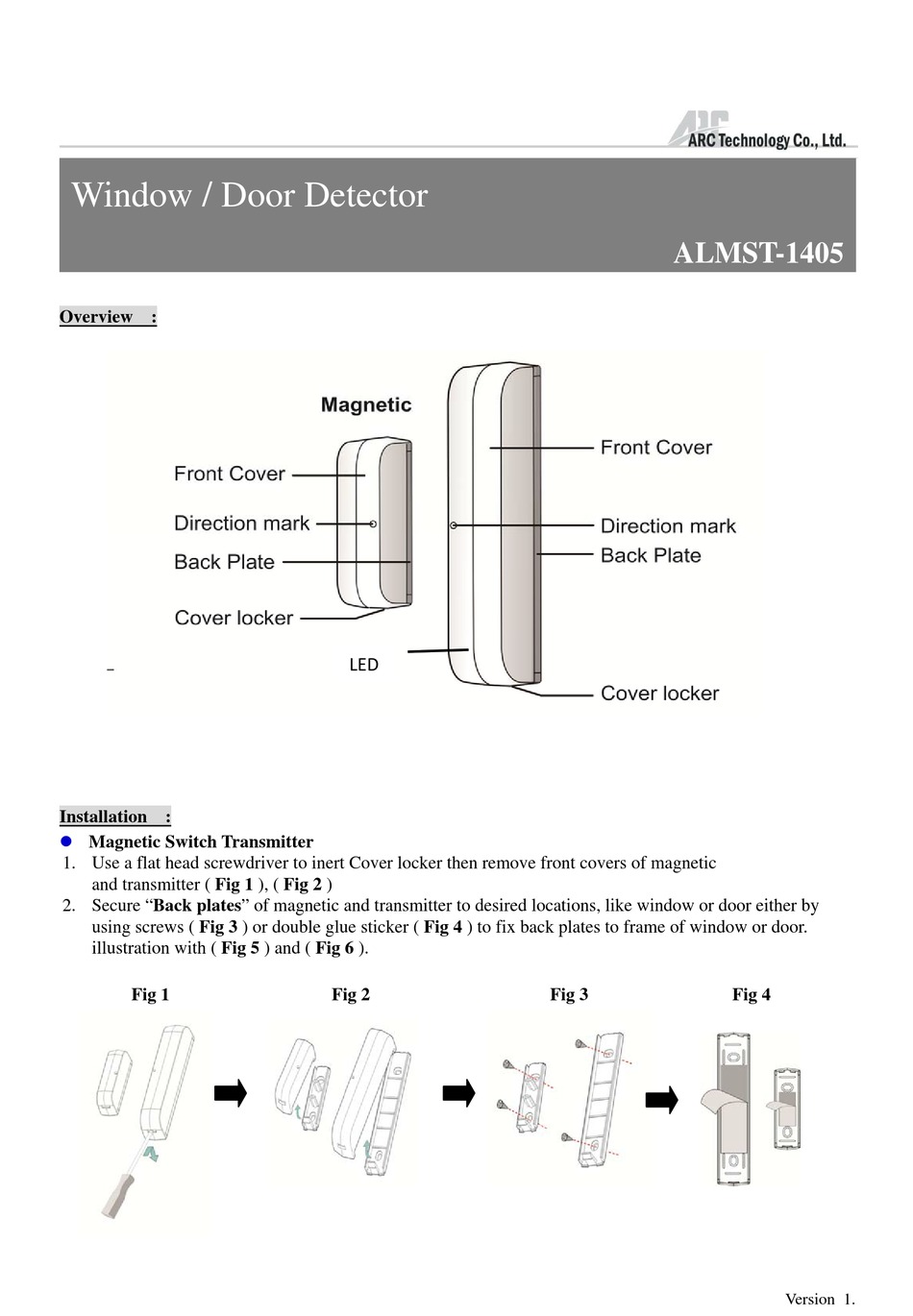

Window / Door Detector
Overview :
Installation :

Magnetic Switch Transmitter
1. Use a flat head screwdriver to inert Cover locker then remove front covers of magnetic
and transmitter ( Fig 1 ), ( Fig 2 )
2. Secure "Back plates" of magnetic and transmitter to desired locations, like window or door either by
using screws ( Fig 3 ) or double glue sticker ( Fig 4 ) to fix back plates to frame of window or door.
illustration with ( Fig 5 ) and ( Fig 6 ).
Fig 1
LED
Fig 2
ALMST-1405
Fig 3 Fig 4
Version 1.
