HP 4339B High Resistance Meter

User's Guide

HP Part No. 04339-90041

Printed in JAPAN July 1999

Third Edition

Table of Contents

Need help?

Do you have a question about the 4339B and is the answer not in the manual?

Questions and answers

Summary of Contents for Helwett Packard 4339B

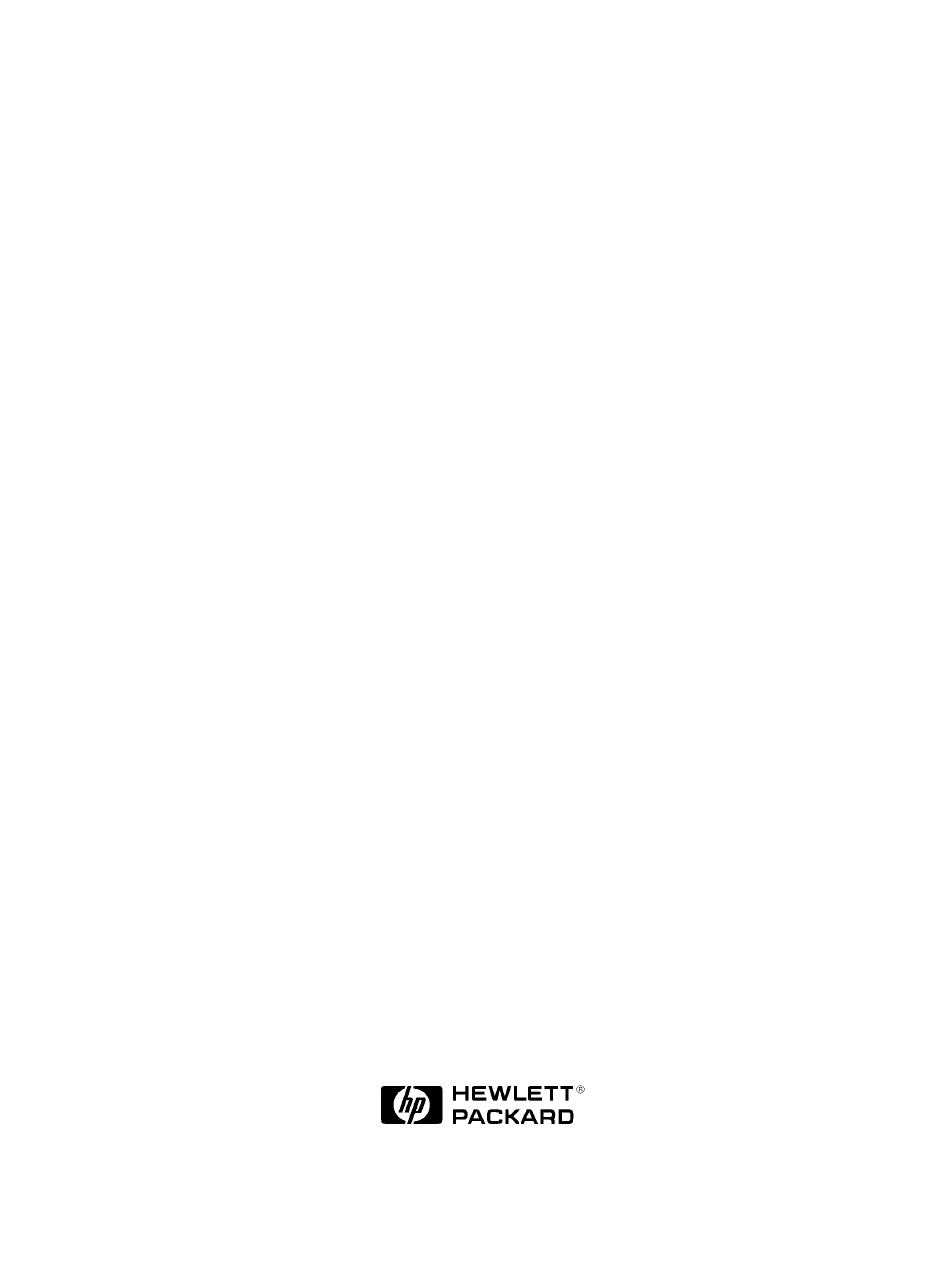

Page 1 HP 4339B High Resistance Meter User's Guide HP Part No. 04339-90041 Printed in JAPAN July 1999 Third Edition...
Page 2 Notice The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of the Hewlett-Packard Company.
Page 3 HP 4339B Manual Printing History March 1996 First Edition : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : :...
Page 4 The Hewlett-Packard Company assumes no liability for the customer's failure to comply with these requirements. HP 4339B is designed for use in INSTALLATION CATEGORY II according to IEC Note 61010-1 and POLLUTION DEGREE 1 according to IEC 61010-1 and IEC 60664-1.
Page 5 HP 4339B Dangerous Procedure Warnings Warnings , such as the example below, precede potentially dangerous procedures throughout this manual. Instructions contained in the warnings must be followed. Dangerous voltages, capable of causing death, are present in this Warning instrument. Use extreme caution when handling, testing, and adjusting...
Page 6 HP 4339B Certication Hewlett-Packard Company certies that this product met its published specications at the time of shipment from the factory. Hewlett-Packard further certies that its calibration measurements are traceable to the United States National Institute of Standards and Technology, to the extent allowed by the Institution's calibration facility, or to the calibration facilities of other International Standards Organization members.
Page 7 HP 4339B Exclusive Remedies The remedies provided herein are buyer's sole and exclusive remedies. HP shall not be liable for any direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any other legal theory. Assistance Product maintenance agreements and other customer assistance agreements are available for Hewlett-Packard products.
Page 8 HP 4339B Safety Symbols General denitions of safety symbols used on equipment or in manuals are listed below. Instruction manual symbol: the product is marked with this symbol when it is necessary for the user to refer to the instruction manual.
Page 9 HP 4339B HP 4339B High Resistance Meter at a Glance. touch the UNKNOWN terminals or the electrodes of the accessory, Warning when the High Voltage indicator is ON.
Page 10 HP 4339B In User's Guide Chapter 1, Preparation for Use For initial turn on of the HP 4339B Chapter 2, Operating the HP 4339B Basic measurement operation Getting acquainted with the HP 4339B|for beginners Handy reference for common measurement tasks|for all users...
Page 11: Table Of Contents
In This Chapter ....... To Reset HP 4339B to its Default Settings ....
Page 12 Printing ........2-14 Disabling Printing ......2-14 To Use Measurement Sequence Function |Controlling charge-measurement in a sequence .
Page 13 Figures 2-1. Printer Output ....... 2-14 Tables 1-1. Power Voltage Selector Setting ..... . . Contents-3...
Page 15: Preparation For Use
Preparation for Use In This Chapter Before turning the HP 4339B ON, you must rst set the HP 4339B to match the available power LINE voltage. If the HP 4339B's power LINE voltage and frequency are properly set and ready to use, you can skip this chapter.
Page 16: To Set Power Line Frequency
1. Connect the power cable to the power cord receptacle on the rear panel. 2. Push the LINE switch in. The HP 4339B will emit a beep and perform the self test. (If any message is displayed, see \Error Messages" back of .) The...
Page 17: Operating The Hp 4339B
Operating the HP 4339B In This Chapter Basic measurement operations of the HP 4339B and references are explained. Operating the HP 4339B...
Page 18: To Reset Hp 4339B To Its Default Settings
UNKNOWN terminals or the electrodes of the accessory, Warning when the High Voltage indicator is ON, the HP 4339B outputs dangerous voltage of up to 1000 Vdc. Before handling the HP 4339B or the accessory, turn OFF the test voltage pressing and conrm that the High Voltage indicator is OFF.
Page 19: Hp 16117B Low Noise Test Lead
Three type modules are available. For detail see \Accessories Available" later in this chapter. * Measuring a high capacitance DUT keeping good S/N ratio, change the short bar to an appropriate resistor. For detail, see page 3-6 of HP 16339A Component Test Fixture Operation and Service Manual Operating the HP 4339B...
Page 20: To Perform Calibration|Canceling Internal Measurement Errors
ExecCal calibration. After the calibration is completed with the message , the Calibration Complete HP 4339B will return to the measurement display. To Set Test Voltage 1. Press . The voltage setting menu will be displayed. 2. Enter the value using the numeric ENTRY keys (for example, to set 100 V, press...
Page 21: To Perform Open Correction |Canceling The Stray Admittance In Parallel With The Dut
. A source voltage is applied to the test xture, and the V Output indicator will turn ON. Pressing may cause the HP 4339B to output dangerous voltage, up to Warning 1000 Vdc. Do touch the UNKNOWN terminals or the electrodes of the accessory when the V Output indicator is ON.
Page 22: To Connect Dut
2. Select the desired parameter using and press :Resistance, :Current, :Volume resistivity :Surface resistivity If the HP 16008B resistivity cell is connected to the HP 4339B, to change Note volume and surface resistivity, switch the volume/surface selector on the resistivity cell. Operating the HP 4339B...
Page 23: Setting The Parameters For Resistivity Measurement
ResCell 2. Select the electrode size that you want to use ( , or ) using , and 26mm 50mm 76mm press 3. Press 4. Select and press to exit the menu. Exit Operating the HP 4339B...
Page 24: To Select Measurement Range
. The measurement range setup menu is displayed. 2. Press until the desired range is displayed. Or, input the current value to be measured using the numeric ENTRY keys, and the HP 4339B will select the optimum measurement range setting. 3. Press .
Page 25: To Set Averaging Rate|Stabilizing The Measurement Result
2. Enter the desired trigger delay time using the numeric ENTRY keys. (For example, to set 0.5 s, press .) You can set the trigger delay time from 0 s to 9.999 s. 3. Press to set the value and to exit. Operating the HP 4339B...
Page 26: To Use Deviation Measurement Function
4. Press to enter the value. Selecting the Deviation Mode 5. Select using and press ModeSet 6. Select the desired mode using and press mode: Measured value Reference 1ABS % mode: (Measured value Reference)/Reference 100 % 2-10 Operating the HP 4339B...
Page 27: To Use Comparator Function
The HP 4339B shows the comparison results using the display, beeper, printer, and HP 16064B LED Display/Trigger Box. (To use the HP 16064B, see \Accessories Available" later in this chapter.) For result output to the display, see \To Select Display Mode"...
Page 28: To Select Display Mode
Each display mode shows the result as follows: The Measurement Display mode shows the measurement data: mode Exponent mode Prefix The Comparison Display mode shows the comparison results: The Display OFF mode ( ) does not show any measurement result. DISP OFF 2-12 Operating the HP 4339B...
Page 29: To Select Beeper Mode
Exit 5. The Cont Chk annunciator( ) turns ON if the contact check function is on. When contact check failed, the HP 4339B displays (No-Contact). The limit value for the N.C. contact check function is changable. Refer to Operation Manual The OPEN correction function must be performed correctly for a valid contact check.
Page 30: To Print Measurement Data
2. Connect the printer to the HP 4339B's HP-IB port on the rear panel. 3. Turn the printer ON. Printing Set the HP 4339B to talk only mode (Set the HP 4339B's HP-IB address to 31). 1. Press 2. Press .
Page 31: To Use Measurement Sequence Function |Controlling Charge-Measurement In A Sequence
Intvl b. Enter the interval time using the numeric ENTRY keys, and press c. Enter the number of measurement points (equivalent to Memory size), and press 4. Select and press to exit. Exit Operating the HP 4339B 2-15...
Page 32: Starting Measurement Sequence
(For details, see the HP 4339B Operation Manual Note that the HP 4339B must be set to the external trigger mode to be triggered from an external handler or from the HP 16064B LED Display/Trigger Box. To Turn OFF Voltage Output Press and conrm the V Output indicator and the High Voltage indicator is turn OFF.
Page 33: Reference
: OFF Measurement range : Auto OPEN correction data is cleared Accessories Available Test Fixtures and Test Leads Following test xtures and test leads are available for the HP 4339B for various forms of DUTs. Operating the HP 4339B 2-17...
Page 34 HP 4339B HP 16008B HP 16339A HP 16117B 2-18 Operating the HP 4339B...
Page 35: Hp 16064B Led Display/Trigger Box
The HP 16064B LED Display/Trigger Box triggers a measurement when its trigger key is pressed, and displays the comparison results using LEDs. It allows you to manually operate the comparator function of the HP 4339B. Operating the HP 4339B 2-19...
Page 36: Other Topics
) turns OFF and the front-panel keys are unlocked. Check that the HP 16064B LED display/trigger box is connected to the HP 4339B and it is set to lock out the keys. If so, unlock the keys from the HP 16064B.
Page 37: Measurement Examples
Measurement Examples In This Chapter The HP 4339B's features are discussed, which you can investigate by trying the typical measurement examples described in this chapter. touch the UNKNOWN terminals or the electrodes of the accessory, Warning when the High Voltage indicator is ON, the HP 4339B outputs dangerous voltage of up to 1000 Vdc.
Page 38: Measuring Insulation Resistance Of Capacitor
Measurement Parameter : R Measurement Range : Auto range mode Test Voltage : 100 V Use the measurement sequence single mode (measure after charged for 1 minute.) Measurement Procedure 1. Reset the HP 4339B. a. Press b. Select using and press 2.
Page 39 HP 4339B Select using and press . After a while, the calibration will be ExecCal completed with the message \ ". Calibration Complete 4. Set the test voltage. a. Press b. Press to set the test voltage to 100 V.
Page 40 HP 4339B h. Press i. Select using and press OpenMeas After a while, the OPEN correction will be completed with the message \ Correction ". (If is displayed, see \ To Perform OPEN Correction Complete Out Of Limit |Canceling the stray admittance in parallel with the DUT" in Chapter 2.) j.
Page 41: For More Information
HP 4339B e. Press f. Select using and press Single 10. Press . After charging 1 minute, the measuremen result will be displayed. The following gure shows the typical measurement result display. For More Information To print out the measurement result | See \To Print Measurement Data" in Chapter 2 To select measurement level | See \To Set Test Voltage"...
Page 42: Measuring Resistivity Of Insulation Material
Measurement parameter : Rv( Measurement Range : Auto range mode Test Voltage : 500 V Use the measurement sequence single mode (measure after charged for 1 minute.) Measurement Procedure 1. Reset the HP 4339B. a. Press b. Select using and press 2.
Page 43 HP 4339B 3. Perform calibration. a. Press b. Select using and press ExecCal After a while, the calibration is completed with the message \ ". Calibration Complete 4. Set the test voltage. a. Press b. Press to set the test voltage to 500 V.
Page 44 HP 4339B d. Select using and press to select the current measurement mode. e. Press . The Meas Time annunciator( ) will indicates Long . f. Press . The V Output indicator will turn ON. g. Wait until the value has stabilized within 0.5 pA.
Page 45: For More Information
HP 4339B 8. Set the measurement sequence charging time to 1 minute. a. Press b. Select and press Chrg c. Press d. Select and press to exit. Exit e. Press f. Select using and press Single 9. Press . After charging 1 minute, the measurement result will be displayed. The following gure shows the typical measurement result display.
