Sony DPP-SV55 Operating Instructions

Print ing
Print ing " M em ory St ick" or
PC card im ages
Print ing t he select ed im age
You can select an image recorded on the "Memory Stick" or PC card and print it in full-size
( standard print ).
4
3
2
1
5
Borderless standard print
6
1
Insert a "M emory Stick" or PC card on w hich you recorded
images into the "M emory Stick" or PC card insertion slot.
2
Turn on the printer and television and set the input selector of
the television to "VIDEO."
The POWER indicator lights in green.
3
Press INPUT SELECT to light "M EM ORY STICK" or PC CARD
indicator.
Yellow frame (cursor)
The printer accesses the "Memory Stick" or PC
card, and the recorded images are displayed as
thumbnails on the screen.
MEMORY PC INPUT
STICK CARD PC SELECT
Note
Make sure that ALL and DPOF indicators of the
AUTO PRINT are off. If it is lit, press CANCEL to
turn it off.
4
Press the arrow ( B/b/V/v ) button to move the yellow frame
(cursor) to the image you w ant to print, then press ENTER.
The image is selected and the area beneath
the image turns orange.
ENTER
PRINT QTY
To display another page
When multiple pages exist, you can switch
pages. To display the next page, move the
Selected image (orange)
yellow frame to the bottom line of the image list
and press v. To display to the previous page,
move the yellow frame to the top line and press
V.
To cancel the selection
Move the yellow frame to the image you want
to cancel and press CANCEL. The orange area
turns gray and the selection is canceled.
The selection is canceled.
To display a preview image
Move the yellow frame to the desired image,
then press PICTURE. The preview of the
selected image is displayed.
To display the preview of the next image, press
b. To display the preview of the previous
image, press B.
To display the image list again, press PICTURE.
Downloaded from: https://www.usersmanualguide.com/
5
Press ENTER to set the print quantity.
Each time you press ENTER, the print quantity
increases. To reset to the previous quantity,
press CANCEL.
To print multiple images at a time
Repeat steps 4 and 5 to select other images and
set print quantity for each of them.
The number increases.
6
Press PRINT.
Printing starts. During printing, the PRINT indicator lights and the printing process bar is
displayed on the screen.
PRINT
To stop printing
Press CANCEL. Printing from the next print will be canceled.
When you press PRINT w hile the preview image is displayed
An dialog box to ask whether you want to print the image being displayed or all the
selected images. Select either of the two options to start printing.
7
When printing ends and the print paper automatically emerges
from the paper outlet, remove the paper from the printer.
•Depending on the type of digital still camera, it
Notes
may take some time for the thumbnail list to be
•Avoid getting liquids on the "Memory Stick" or PC
displayed.
card or using them in areas subject to high
•The printer can handle and display up to 999
humidity. Otherwise, data may be rendered
image files. If there are more than 999 images
unreadable.
stored in the "Memory Stick" or PC card, use the
•When the "MEMORY STICK"/PC CARD indicator
computer to display and handle the remaining
is lit, do not eject the "Memory Stick" or PC card.
images.
Otherwise, they may crash.
•While printing, never move or turn off the printer; •Depending on the type of digital still camera, the
the print cartridge or paper may become stuck. If aspect ratio of a recorded image differs, so the
this happens, turn the printer off and on, and
image may not be printed in the entire printable
resume printing from the beginning.
area.
•While printing, the print paper is partially ejected
•Depending on the type of digital still camera,
from the paper outlet several times. Never pull
preview images may be displayed along with the
out the paper forcibly until the PRINT indicator
turns off and the print paper emerges primary images in the thumbnail list. The printed
automatically. quality of the preview images will not be as good
•Avoid storing the paper with the printed faces as the primary images. Note that if you delete the
touching each other or in contact with rubber or
preview images, the data for the primary images
plastic products including vinyl chloride or
may be damaged.
plasticizer for an extended period of time; the
•Depending on the type of digital still camera, an
color change or deterioration may occur.
image may be stretched vertically if it has been
•An image which is damaged or has some kind of
rotated or processed with your digital still camera.
trouble does not appear in the image list. The file
error message appears on the display. If there are This is not because of trouble with the printer, but
no images stored in the "Memory Stick" or PC
because the image was rewritten with your digital
card, the no file message appears on the display.
still camera.
•Depending on the file type and size of an image, it
may take 5 to 60 seconds to display a full-size
image on the monitor.
Print ing all t he im ages or preset im ages
at one t im e
You can print all the images stored in a "Memory Stick" or PC card at one time. You can also
print images preset by your digital still camera (DPOF) at one time.
What is "DPOF"? Notes
The "DPOF" is a format to record the information •For details on the preset print settings, refer to the
necessary for automatically printing images shot operating instructions of the digital still camera
with a digital still camera at a printing shop or with you are using.
a home-use printer. The printer can automatically •Depending on the type of digital still camera and
print the preset number of copies of the images others, the preset printing function supported by
preset for printing with DPOF (Digital Print Order the printer, or sometimes the function itself, is not
Format). available.
1
Insert a "M emory Stick" or PC card on w hich you recorded
images into the "M emory Stick" or PC card insertion slot.
2
Turn on the printer.
The POWER indicator lights in green.
To display the images on the screen
You can display and check the images to be printed on the screen. Connect the printer and
the television and turn on the television. Then set the input selector of the television to
"VIDEO."
3
Press INPUT SELECT to light "M EM ORY STICK" or PC CARD
indicator.
The printer accesses the "Memory Stick" or PC card. When you connect your printer to the
television, the images are displayed as thumbnails on the screen.
4
Press AUTO PRINT to light ALL indicator for all the images or
DPOF indicator for the preset images.
AUTO
ALL DPOF PRINT
When you connect your printer to
the television
When you select All, all the images in the
thumbnail list are displayed with the orange
area beneath the image. When you select DPOF,
the preset images are displayed with the orange
area beneath the image.
5
Press PRINT.
Printing starts. When you select All, all the images on a "Memory Stick" or PC card are
printed in the order of their image numbers. When you select DPOF, the preset images are
printed in the order they have been preset.
To stop printing
Press CANCEL. Printing from the next print will be canceled.
To return to the usual printing mode
Press CANCEL to turn off the ALL and DPOF indicators.
Print ing f rom your com put er
When you connect a computer that is
powered on to the USB connector of the
printer, the PC indicator lights and the
MEMORY PC INPUT
printer enters the PC mode.
STICK CARD PC SELECT
Otherwise, you cannot switch to the PC
mode manually by pressing the INPUT
SELECT button.
For how to install and operate the software,
refer to the supplied "Operating Instructions
– Software Guide/Additional Information."
For the customers in the U.S.A. If you have any questions about this product, you may
call:
WARNING Sony's Business Information Center (BIC) at 1-800-686-
SONY (7669)
This equipment has been tested and found to
comply with the limits for a Class B digital device, or Write to: Sony Customer Information Services Center
6900-29 Daniels Parkway, PMB 330
pursuant to Part 15 of the FCC Rules.
Fort Myerts, Florida 33912
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates, Declaration of Conformity
uses, and can radiate radio frequency energy and, if
Trade Name: SONY
not installed and used in accordance with the
Model No.: DPP-SV55
instructions, may cause harmful interference to
Responsible Party: Sony Electronics Inc.
radio communications. However, there is no
Address: 1 Sony Drive, Park Ridge,
guarantee that interference will not occur in a
NJ 07656 U.S.A.
particular installation. If this equipment does cause
Telephone No.: 201-930-6972
harmful interference to radio or television reception,
which can be determined by turning the equipment This device complies with part 15 of the FCC
off and on, the user is encouraged to try to correct Rules. Operation is subject to the following two
the interference by one or more of the following conditions:
measures: (1) this device may not cause harmful
– Reorient or relocate the receiving antenna. interference, and (2) this device must accept any
– Increase the separation between the equipment interference received, including interference that
and receiver. may cause undesired operation.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
You are cautioned that any changes or modifications
connected.
not expressly approved in this manual could void
– Consult the dealer or an experienced radio/TV
your authority to operate this equipment.
technician for help.
The shielded interface cable recommended in this
manual must be used with this equipment in order
to comply with the limits for a digital device
pursuant to Subpart B of Part 15 of FCC Rules.
Ow ner's Record
The model and serial numbers are located on
the bottom. Record the serial number in the
space provided below. Refer to this number
whenever you call upon your Sony dealer
regarding this product.
Model No. DPP-SV55
Serial No.
CAUTION
To prevent electric shock, match wide blade of plug
to wide slot, fully insert.
CAUTION
The nameplate is located on the bottom enclosure.

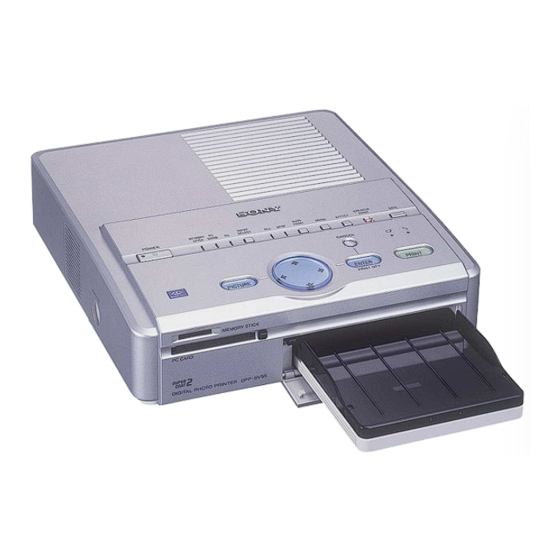

Digital Photo Printer
Operat ing Inst ruct ions – Basic Operat ions
Before operating this printer, please read this manual thoroughly
and retain it for future reference.
This manual explains necessary preparations and basic operations
for the printer. For advanced operations, refer to "Operating
Instructions – Advanced Operations." For using the supplied
software and for additional infromation, refer to "Operating
Instructions – Software Guide/Additional Information."
DPP-SV55
© 2000 Sony Corporation
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
ATTENTION:
Pictures and/or Sound distortion may occur if this
product is positioned in close proximity to
equipment emitting electromagnetic radiation.
Attention
Sony shall assume no responsibility for any
accidental or consequential damages or loss of the
recording contents which may be caused by use or
malfunction of the printer, "Memory Stick" or PC
card.
• Microsoft, MS, MS-DOS and Windows
registered trademarks of Microsoft Corporation
in the United States and other countries.
• Apple, Macintosh, Power Macintosh, and Mac
OS are registered trademarks of Apple
Computer, Inc.
• Pentium is a registered trademark of Intel
Corporation.
• "Memory Stick," "MagicGate Memory Stick"
and their logo marks are the trademarks of
Sony Corporation.
• All other companies and product names
mentioned herein may be the trademarks or
registered trademarks of their respective
companies. Furthermore, "™" and "
mentioned in each case in this manual.
Printed in Japan
3-205-183-11(1)
® are
® " are not
