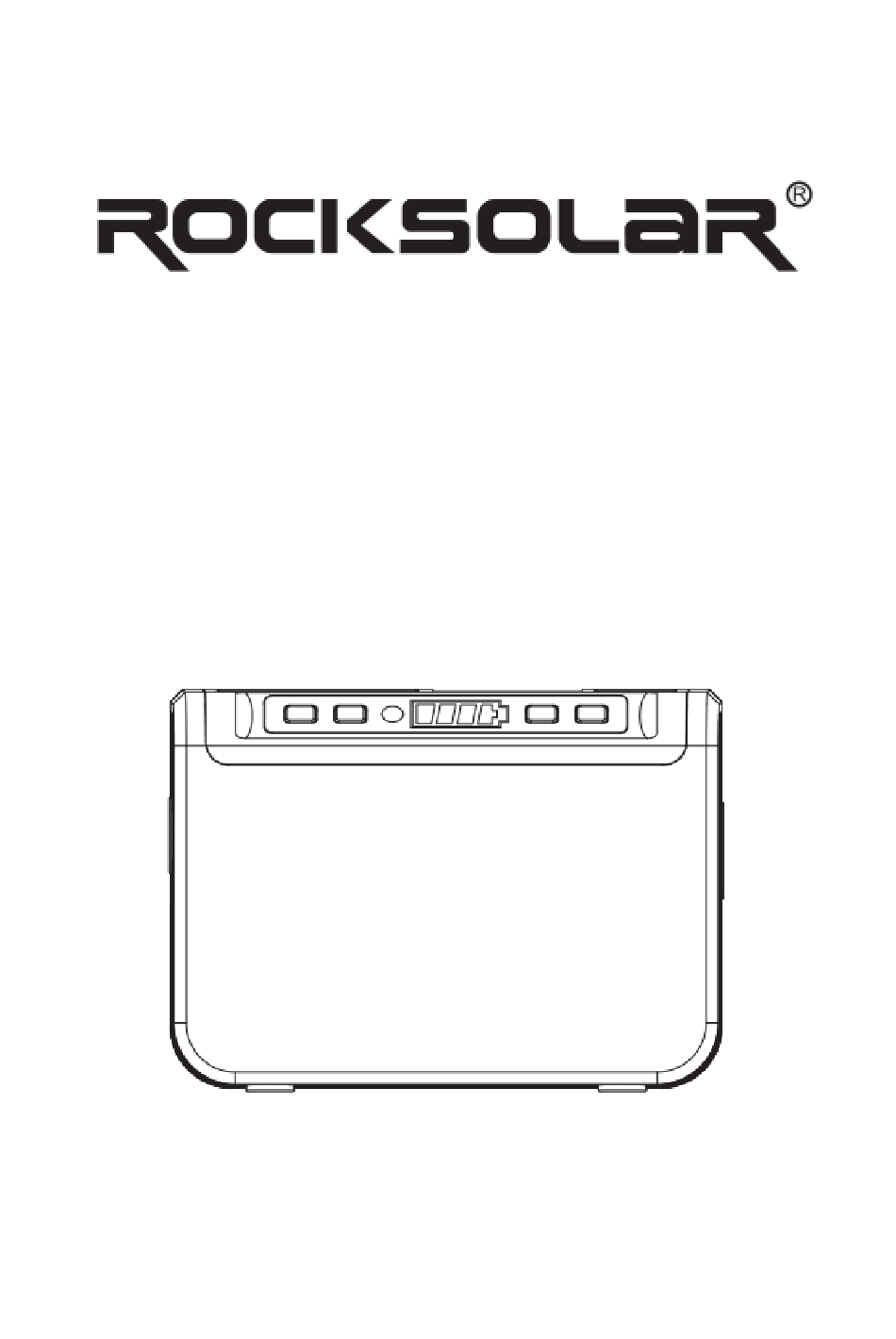

- Page 1 PORTABLE POWER STATION User Instruction Manual RS81 MAX...
-
Page 2: About The Unit
ABOUT THE UNIT Thank you for applying our multi-function portable power station. In case of power failure or you need to charge on a travel, you can temporarily charge your electrical or digital devices with this unit. This unit can provide USB, DC and AC output. You can keep laptops, appliances, lights and more going for hours longer. -
Page 3: Product Description
AC Output 110V/60Hz AC Power AC Continuous Output: 80W/120W Max Bulb Type 1 x Ultra bright LED Flashlight 1 x LED Light Panel Power Indicator LED Indicators Operation temperature -10℃-40℃ Lifecycle >500 times Package include 1 x Portable Power Station 1 x power adapter 1 x Cigarette Lighter 1 x User Manual ※... -
Page 4: Product Instruction
【LEFT】 【RIGHT】 Ultra Bight LED Flashlight Cooling vents 3.5MM/1.35mm DC Input Quick Recharging 【III】PRODUCT INSTRUCTION 1) How to provide power for DC12V appliances (such as head lamp, fan) with this product? Plug your appliances to the DC output port and press power switch button to gain power. - Page 5 Protection Mode: Short-circuit/Overpower Protection: If the DC output is short-circuited or over powered(Load(s) power>150W), the unit will shutdown to protect itself. Please clear the problem and recharge the unit to recover from protection mode. 2) How to provide power for AC appliances with this product? Connect the power cable plug of the electrical appliance to the AC outlet of the product, switch on the power button and the unit will start providing power to your appliances.
- Page 6 Quick Charge Output: This product supports Qualcomm QuickCharge 3.0 and USB C PD(Power Delivery)2.0 Output, support: 5V/3A,9V/2A,12V / 1.5A 18W max output for smartdevices which also support Qualcomm QuickCharge 3.0 or USB PD2.0 Protocol. The actual output voltage and current depends on the actual smartdevices, it can be obtained by consulting the smartdevice manufacturer.
- Page 7 b. Charge from Solar panel 1. Place your solar panel where it will get as much direct sunlight as possible. 2. Plug the output of the solar panel into the input of the unit to start charging. You will know the unit is charging when the blue LED Battery Indicator lights up and blinks.
-
Page 8: Battery Information
m) Please deal with scrap products in accordance with the regulations, do not treat the built-in battery as a household garbage, so as not to cause the explosion and pollution. n) The product is only used for emergency situations, it cannot replace the standard DC or AC power of household appliances or digital products. -
Page 9: Limited Warranty
Rocksolar LLC. provides a non-transferable warranty to the purchaser of Rocksolar product purchased from an authorized Rocksolar reseller. Rocksolar LLC. warrants to the original consumer purchaser that the Rocksolar product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period identified in the ‘Warranty Period’... - Page 10 Warrantor necessary to repair, replace and transport the Rocksolar product(s). Rocksolar’s warranty does not apply to the battery cell unless the battery cell is fully charged by you within seven days after you purchase the product and at least every 3 months thereafter.
