Page 5
1. Precautions 1. Precautions 1-1. Safety Precautions Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock. 1-1-1. Warnings For continued safety, do not attempt to modify the circuit board. Disconnect the AC power and DC power jack before servicing.
Page 6
1. Precautions 1-1-4. Product Safety Notices Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc.
Page 7
1. Precautions 1-2. Servicing Precautions An electrolytic capacitor installed with the wrong polarity might explode. WARNING Before servicing units covered by this service manual, read and follow the Safety Precautions section of this manual. CAUTION If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions.
Page 8
1. Precautions 1-3. Static Electricity Precautions Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The following techniques will reduce the incidence of component damage caused by static electricity. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground.
Page 9
1. Precautions 1-4. Installation Precautions For safety reasons, more than a people are required for carrying the product. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.
ANNEX. Exploded View & Part List 2-1. Electrical Parts List Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE) Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark UN40JU6500FXZA (TD01) BN90-06530A ASSY W/I;LED_J6000 BN81-08159Z PART SET-ELEC W/I;UF**,UH**,UG**,ELEC BN81-09501V A/S PART SET-MECH W/I;UJ6P,U40JP* S001A BN90-06543A...
ANNEX. Exploded View & Part List ANNEX. Exploded View & Part List [UN65JU6500FXZA TD01] 1-1. Exploded View 1-1-1. Parts List Code No. Description & Specification Q’ty SA/SNA Remark BN95-01998A PRODUCT LCD-SDC; CY-GJ065HGLV1V,JU6400,Ba BN96-35598A ASSY CHASSIS TOP P; Y15_JU6.4K_65,PC+ABS BN96-35006C ASSY SPEAKER P; 6ohm,4pin,10W,JU6400 65" BN94-08215H ASSY PCB MAIN;...
Page 22
ANNEX. Exploded View & Part List 2-1. Electrical Parts List Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE) Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark UN65JU6500FXZA (TD01) BN90-06530D ASSY W/I;LED_J6K BN81-08159Z PART SET-ELEC W/I;UF**,UH**,UG**,ELEC BN81-11260A A/S PART SET-MECH W/I;UJ6P,U65JP* S001A BN90-06689A...
ANNEX. Exploded View & Part List ANNEX. Exploded View & Part List [UN60JU6500FXZA HD01] 1-1. Exploded View 1-1-1. Parts List Code No. Description & Specification Q’ty SA/SNA Remark BN95-01997A PRODUCT LCD-SHARP; CY-GJ060HGSV1V,JU6400 BN96-35597A ASSY CHASSIS TOP P; Y15_JU6.4K_60,PC+ABS BN96-35006B ASSY SPEAKER P; 6ohm,4pin,10W,JU7000 60" BN94-08215T ASSY PCB MAIN;...
Page 34
ANNEX. Exploded View & Part List 2-1. Electrical Parts List Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE) Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark UN60JU6500FXZA (HD01) BN90-06530J ASSY W/I;LED_J6K BN81-08159Z PART SET-ELEC W/I;UF**,UH**,UG**,ELEC BN81-09501Z A/S PART SET-MECH W/I;UJ6P,U60JP* S001A BN90-06697A...
ANNEX. Exploded View & Part List ANNEX. Exploded View & Part List [UN55JU6500FXZA TH01] 1-1. Exploded View 1-1-1. Parts List Code No. Description & Specification Q’ty SA/SNA Remark BN95-01995A PRODUCT LCD-SDC; CY-GJ055HGLV1V,JU6400,Ba BN96-35596A ASSY CHASSIS TOP P; Y15_JU6.4K_55,PC+ABS BN96-35006E ASSY SPEAKER P; 6ohm,4pin,10W,JU6400 55" BN94-08215G ASSY PCB MAIN;...
Page 46
ANNEX. Exploded View & Part List 2-1. Electrical Parts List Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE) Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark UN55JU6500FXZA (TH01) BN90-06530C ASSY W/I;LED_J6000 BN81-08159Z PART SET-ELEC W/I;UF**,UH**,UG**,ELEC BN81-09501Y A/S PART SET-MECH W/I;UJ6P,U55JP* S001A BN90-06546A...
ANNEX. Exploded View & Part List ANNEX. Exploded View & Part List [UN75JU6500FXZA TD01] 1-1. Exploded View 1-1-1. Parts List Code No. Description & Specification Q’ty SA/SNA Remark BN95-02001A PRODUCT LCD-SDC; CY-GJ075HGLV1V,JU6400,Ba BN96-35599A ASSY CHASSIS TOP P; Y15_JU6.4K_75,PC+ABS BN96-35006D ASSY SPEAKER P; 6ohm,4pin,10W,JU6400 65" BN94-08614A ASSY PCB MAIN;...
Page 57
ANNEX. Exploded View & Part List 2-1. Electrical Parts List Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE) Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark UN75JU6500FXZA (TD01) BN90-06530E ASSY W/I;LED_J6K BN81-08159Z PART SET-ELEC W/I;UF**,UH**,UG**,ELEC BN81-11261A A/S PART SET-MECH W/I;UJ6P,U75JP* S001A BN90-06690A...
ANNEX. Exploded View & Part List ANNEX. Exploded View & Part List [UN48JU6500FXZA TH01] 1-1. Exploded View 1-1-1. Parts List Code No. Description & Specification Q’ty SA/SNA Remark BN95-01993A PRODUCT LCD-AMLCD; CY-GJ048HGLV1V,JU6400 BN96-35594A ASSY CHASSIS TOP P; Y15_JU6.4K_48,PC+ABS BN96-35007A ASSY SPEAKER P-JU7K 40INCH; 6ohm,4pin,10W BN94-08215E ASSY PCB MAIN;...
Page 67
ANNEX. Exploded View & Part List 2-1. Electrical Parts List Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE) Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark UN48JU6500FXZA (TH01) BN90-06530F ASSY W/I;LED_J6K BN81-08159Z PART SET-ELEC W/I;UF**,UH**,UG**,ELEC BN81-09501W A/S PART SET-MECH W/I;UJ6P,U48JP* S001A BN90-06696A...
Page 68
ANNEX. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ...4 BN61-11749A LGP-DIFFUSESR PLATE;48inch Flat, Diffuse ...4 BN63-13499A SHEET-DBEF;DLF250,PET,0.25,1064.7,604.4, ...4 BN63-13500A SHEET-PRISM;G200,PET,0.295,1064.7,607.60 ...4 BN63-13501A SHEET-REFLECTOR;SY95S,PET,0.188,1045.6,5 ...4 BN96-34793A ASSY LED BAR P-LED BAR;48" UHD_L_SDC,5ea ...4 BN96-34794A ASSY LED BAR P-LED BAR;48"...
ANNEX. Exploded View & Part List ANNEX. Exploded View & Part List [UN50JU6500FXZA IH01] 1-1. Exploded View 1-1-1. Parts List Code No. Description & Specification Q’ty SA/SNA Remark BN95-01994A PRODUCT LCD-INX; CY-GJ050HGNV1V,JU6400,Ba BN96-35595A ASSY CHASSIS TOP P; Y15_JU6.4K_50,PC+ABS BN96-35007B ASSY SPEAKER P; 6ohm,4pin,10W,JU6400 JU70 BN94-08215F ASSY PCB MAIN;...
Page 78
ANNEX. Exploded View & Part List 2-1. Electrical Parts List Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE) Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark UN50JU6500FXZA (IH01) BN90-06530B ASSY W/I;LED_J6000 BN81-08159Z PART SET-ELEC W/I;UF**,UH**,UG**,ELEC BN81-09501X A/S PART SET-MECH W/I;UJ6P,U50JP* S001A BN90-06545A...
Page 85

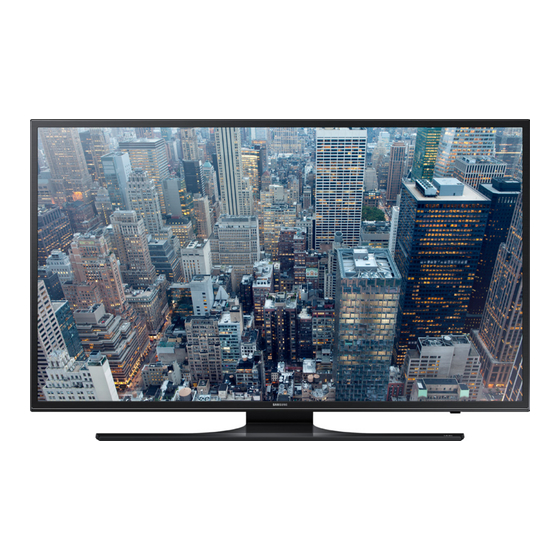

2. Product specifications 2. Product Specifications 2-1. Product information Model UN**JU6500F Front View * W : Width H : High D : Depth Detail View Front Color Black Body 917.7 X 535.7 X 62.6 mm 40" With stand 917.7 X 582.2 X 241.6 mm Body 1087.1 X 630.9 X 63.3 mm 48"...
Page 86
2. Product specifications Model UN**JU6500F Body 7.7 Kg 40" With stand 9.4 Kg Body 11.4 Kg 48" With stand 13.6 Kg Body 12.2 Kg 50" With stand 14.4 Kg Body 15.0 Kg Weight 55" With stand 17.3 Kg Body 20.9 Kg 60"...
Page 89
DTS Codec DTS Premium Sound 5.1 3D Sound Sound Customizer Sound Output (RMS) 20W(L:10W, R:10W) Speaker Type 2CH(Down Firing + Bass Reflex) Woofer HD Audio Wallmount Sound Mode Multiroom Link Smart TV Samsung SMART TV Apps Game Multi-Link Screen ACR (Advertisement)
Page 90
Voice Control Face recognition Ready Motion control Ready Smart Convergence TV to Mobile - Mirroring Mobile to TV - Mirroring, DLNA Samsung SMART View Wireless TV On - WOL Notification - BLE Briefing On TV WiDi WiFi Direct Tuner/Broadcasting Digital Broadcasting...
Page 91
Bezel Type Slim Type Slim Front Color Black Light Effect (Deco) Stand Type Plate T-Shape Swivel (Left/Right) Additional Feature Samsung 3D 3D Converter Instant On Camera Built-in Wireless Copy Processor Quad-Core PX Ready 21:9 Immersive Picture Mode SCSA Support Accessibility...
Page 92
Eco Sensor Accessory 3D Active Glasses (Included) Remote Controller Model TM1260C Batteries (for Remote Control) Samsung Smart Touch Control (Included) PX (Included) Ultra Slim Wall Mount Supported Mini Wall Mount Supported Vesa Wall Mount Supported Floor Stand Support TV Camera (Included)
Page 93
2. Product specifications 2-3. Accessories NOTE • The items’ colors and shapes may vary depending on the model. • Cables not included in the package contents can be purchased separately. • The part code for some accessories may differ depending on your region. Product Code.
Page 94
2. Product specifications 2-4. Viewing the Functions The Remote Control Displays and selects the available video sources. Turns on the backlight for the buttons. Turns the TV on or off. When on, the buttons become illuminated for a moment when SPORTS: Enables/Disables Sports pressed.
Page 95
2. Product specifications 2-5. NEW Key Features 2-5-1. 15" New UI SMART HUB START After Smart HUB setup <Videos contents> <My Apps> <Web browser> <My contents> 2-11...
Page 96
Certain TV features and apps may not be supported by Multi-Link Screen. If this is the case, exit from Multi-Link Screen and than use the feature. Selecting a Feature Press the Samsung Smart Control's M.SCREEN button while Multi-Link Screen is running. The Options menu appears. Select a feature from the Options menu. This initializes the selected feature.
Page 97
2. Product specifications 2-5-3. Instant On Enabling the TV to Boot Faster MENU > System > General > Samsung Instant On Set Fast Boot on to have the TV boot up faster. <Cold Boot> Detachable power <Instant On> Remocon on...
Page 98
2. Product specifications 2-6. HDMI 60P Mode HDMI UHD 60P MODE If an external UHD player is connected to the TV, follow these steps to convert the TV's HDMI connector optimized to the UHD signals. NOTE Each HDMI connector can be individually optimized for HDMI UHD 60P MODE. Turn off the external UHD player that is connected to the TV.
Page 100
2. Product specifications Supported Video Code File Frame rate Bit rate Container Video Codecs Resolution Audio Codec Formats (fps) (Mbps) H.264 BP/MP/HP UHD: MAX 30 FHD: MAX 30 Motion JPEG 4096x2160 HD : MAX 60 UHD: 60 HEVC(H.265) *.avi DivX 3.11/4/5/6 *.mkv *.asf...
Page 101
3. Disassembly and Reassemble 3. Disassembly and Reassembly This section of the service manual describes the disassembly and reassembly procedures for the LED TV. This LED TV contains electrostatically sensitive devices. Use caution when handling these components. WARNING 3-1. Disassembly and Reassembly Disconnect the LED TV from the power source before disassembly.
Page 102
3. Disassembly and Reassemble Description Picture Description Screws Remove the screws of ASSY COVER Torque : P-REAR. 7~ 8Kgf.cm. • 40": 14 EA 6001-002755 In this step, two types of screws are Torque : used. 9~ 10Kgf.cm. • 48": 17 EA/1 EA •...
Page 103
3. Disassembly and Reassemble Description Picture Description Screws Remove the Power Cables and Speaker Cables. Power Cable Power Cable Speaker Cable Remove the LVDS Cable, Panel Wire Cable and ASSY BOARD P-FUNCTION LVDS Cable ASSY Cable. Panel Wire Cable LVDS Cable ASSY BOARD P-FUNCTION ASSYCable Remove the NETWORK (BT/WIFI...
Page 104
3. Disassembly and Reassemble Description Picture Description Screws Remove the ASSY SPEAKER (L/R). ASSY SPEAKER (L/R) Remove the cables and 4 screws from Torque : the ASSY T CON. 7~ 8Kgf.cm. Finally carefully remove the ASSY T CON. 6001-003075 Cables Remove the NETWORK (BT/WIFI COMBO).
Page 105
3. Disassembly and Reassemble Description Picture Description Screws Completed disassembly. • Panel NOTE Reassembly procedures are in the reverse order of disassembly procedures.
Page 106
4. Troubleshooting 4. Troubleshooting 4-1. Troubleshooting 4-1-1. Previous Check Check list for initial operation Bluetooth/WIFI Combo Module Main Board Power Board Power Cable Panel Connectors LVDS Cable T-CON Board Jog Function Speaker IR Sensor...
Page 107
4. Troubleshooting 4-2. How to Check Fault Symptom 4-2-1. Video Customer Picture Test Main Board Pre FRC Post FRC Problem Pass Pass Pass Check Signal Source and other inputs Fail Pass Pass Main Board or LVDS Cable Fail Fail Pass T-Con or Board Fail...
Page 108
4. Troubleshooting Troubleshooting Video Test Power TV ON. Verify initial Start Up Screens with Power On. Press Mute 147 Mute to view Test Pattern from the MAIN Board. Press Mute 369 Mute to view Test Pattern from T-CON Board. Start Up Screens Mute 147 Mute Mute 369 Mute MAIN Board...
Page 109
4. Troubleshooting 4-2-2. Bluetooth / WIFI Module Bluetooth Module Troubleshooting Check Bluetooth Address at Contact Samsung. BT Address Check BT Version at Factory Mode screen. Might require upgrade. Check GSPN. T-HKMAKUC-XXXX.XX T-HKMAKUS-XXXX BT Version BT Version : BLUETOOTH-VER-00XX E-MANUAL : HMUATSCJ-X.XXX...
Page 110
4. Troubleshooting WIFI Module Troubleshooting Check Wired MAC Address and Wireless MAC Address at Contact Samsung. Wired MAC Address Wireless MAC Address Check Wired MAC and Wireless MAC at Factory Mode screen. (Success/Failure) Wired MAC errors : Main Board is defective.
Page 111
4. Troubleshooting BT/WIFI Combo Pin Map BT modul Wi-Fi modul Pin # Signal Description BT_Reset BT Block Reset Power DET Power detect(Active Low) BT_Wake up BT Wake up USB DM BT USB interface USB DP BT USB interface Ground 3D_sync_in 3D sync input 3D_sync_out...
Page 112
4. Troubleshooting 15' BT / WIFI Combo • Waveforms of combo Module Pins (3.3V except VCC 5V) Stand by On state BT nReset BT Power_det BT wake up High BT USB DP & DM Don't care 60HZ signal swing (3D mode only) 3D sync in &...
Page 113
4. Troubleshooting 4-2-3. Apps / Photos, Videos & Music Read Before Playing Photo, Video, or Music Files Limitations on use of photo, video, and music files • The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for mass storage devices. Types of MSC devices include external hard drives, flash card readers, and digital cameras. (USB hubs are not supported.) These kinds of devices must be connected directly to the TV’s USB port.
Page 114
4. Troubleshooting 4-3. Factory Mode Adjustments 4-3-1. Detail Factory Option NOTE If you replace the main board with new one, please change the factory option as well. The options you must change are "Type". UN**JU6500FXZA Inches 40" 48" 50" 55"...
Page 116
4. Troubleshooting 4-3-2. Entering Factory Mode To enter ‘Service Mode’ Press the remote -control keys in this sequence : • If you do not have Factory remote control Power OFF INFO MENU MUTE Power On • If you have Factory remote control INFO Factory •...
Page 117
4. Troubleshooting 4-3-3. Factory Data Option Factory Menu Name Data Range Factory Reset Type 40A6AU0VJ 48A6AU0VJ 50A6AU0VJ 55A6AU0VJ 60A6AU0VJ 65A6AU0VJ 75A6AU0VJ Local Set SW Model UJU6400 BOM Model 6500 TUNER S_TC Ch Table NONE MRT Option Engineer Option Control ...
Page 118
4. Troubleshooting Factory Menu Name Data Range Info Link Server Type development Info Link Country None TTX Group User OSD Visual Test Disable OPTION_SWU OPTION_NUM RF Remocon Support CDD mode … DPMS Support Num of CI T-CON Device Status OK LMN 1ST THRESHOLD LMN 2ND THRESHOLD LMN 3RD THRESHOLD...
Page 119
4. Troubleshooting Factory Menu Name Data Range Shop Option Exhibition Mode 3D CUBE Peak Mode Asia Option Unbalance AF Level adjust TX Power Level Mono Last Memory H Shaking SOUND High Devi Carrier_Mute * If the broadcast signal is not good, TV will complement the characteristics of the signal (most use when weak signal comes from the growing area countries)
Page 120
4. Troubleshooting Factory Menu Name Data Range SRS Tuning Parm SPDIF PCM Gain AudioDock BT Delay Mic Scale India Sound Speaker Delay Normal NTV CU Delay Lipsync lnx Lipsync CheckSum 0x5581 Lipsync USB Test Ready Lipsync BT CheckSum 0x0000 TP VOLUME 0xc9h TP Scale 0x64h...
Page 121
4. Troubleshooting Factory Menu Name Data Range RM_BIST_CABLE SerDES Check EU_CIS Stress Mode Log Analyzer Error Popup On/Off Deadlock KILL CES Mode ON/Off NONE CES Option CES Convergence Option TCON Demura Bypass Factory Menu Name Data Range Self Test(for HW) Info Upgrade T-CON Usb Download...
Page 122
4. Troubleshooting Factory Menu Name Data Range IR Blaster Upgrade Failure IR Blaster delay time NTV Cu Update Failure UD LDC PROFILE UPGRADE Failure Pic Data USB Update VER:0x0032 Audio Data USB Update Eco Data USB Update VER:0x0043 CI CPLD Upgrade Failure SC ADK Upgrade Failure...
Page 123
4. Troubleshooting Factory Menu Name Data Range 2nd_B_L 2nd_R_H 2nd_G_H 2nd_B_H White Balance R-Offset G-Offset B-Offset R-Gain G-Gain B-Gain WB-W2_R_Offset WB_W2_B_Offset WB_W2_R_Gain WB_W2_B_Gain WB_N_R_Offset WB_N_B_Offset WB_N_R_Gain WB_N_B_Gain MGA On/Off R1_Gain G1_Gain B1_Gain R2_Gain G2_Gain B2_Gain R3_Gain G3_Gain B3_Gain R4_Gain G4_Gain B4_Gain R5_Gain G5_Gain...
Page 124
4. Troubleshooting Factory Menu Name Data Range G6_Gain B6_Gain R7_Gain G7_Gain B7_Gain R8_Gain G8_Gain B8_Gain R9_Gain G9_Gain B9_Gain R10_Gain G10_Gain B10_Gain SPI White Balance SPI MGA WB Data to SPI Advanced 4-19...
Page 125
4. Troubleshooting 4-4. White Balance 4-4-1. Calibration Into the Factory Mode. Select ADC/WB menu. Select menu. AV Calibration Option Comp Calibration Control PC Calibration Debug HDMI Calibration ADC/WB Advanced 4-4-2. Service Adjustment You must perform Calibration in the Lattice Pattern before adjusting the White Balance. Color Calibration ...
Page 126
4. Troubleshooting Method of Color Calibration (AV) Apply the NTSC Lattice (N0. 3) pattern signal to the AV IN 1 port. Press the Source key to switch to “AV1” mode. Enter Service mode. Select the “ADC” menu. Select the “AV Calibration” menu. In “AV Calibration Off” status, press the “► ” key to perform Calibration.
Page 127
4. Troubleshooting 4-4-3. Adjustment Into the Factory Mode. Select ADC/WB menu. White Balance Select menu. Option Control Debug (Low Light) (Hight Light) Sub Brightness Sub Contrast White Balance ADC/WB R offset R gain Advanced G offset G gain B offset B gain 4-22...
Page 128
4. Troubleshooting 4-5. RS-232C • RS232C Control Port : COM#(Serial) Baud rate : 9600 Data Bit : 8 bit Parity : None Stop Bits : 1 Flow Control : None • Description of RS232C Pin# Name Full Name Pin# Name Full Name Pin# Name Full Name...
Page 129
4. Troubleshooting 4-6. AV Control Tabe Control Item Cmd1 Cmd2 Cmd3 Value General Power Power 0x00 0x00 0x00 0x00 0x01 0x02 Volume Direct 0x01 0x00 0x00 (0~100) 0x01 0x00 Down 0x02 0x00 Mute 0x02 0x00 0x00 0x00 Direct 0x04 Continuous 0x01 0x00 0x03...
Page 130
4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value PICTURE Mode Natural 0x03 CAL-NIGHT 0x04 CAL-DAY 0x05 BD Wise 0x06 Relax New function of 12" 0x07 (only PDP TV) BackLight 0~20 0x01 0x00 (0~20) (CellLight) Contrast 0~100 0x02 0x00 (0~100) Brightness 0~100 0x03 0x00...
Page 131
4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value PICTURE Advanced Edge Enhancement 0x0f 0x00 Settings 0x01 xvYCC 0x10 0x00 0x01 Motion Lighting 0x11 0x00 0x01 Color Space Custom 0x12 0x00 Color Green 0x01 Blue 0x02 Only for active Color Space Custom Yellow 0x03 Cyan...
Page 132
4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value PICTURE Picture HDMI Black Level Normal 0x04 0x00 Option 0x01 Film Mode 0x05 0x00 Auto1 0x01 Auto2 0x02 Cinema New function of 12" 0x03 Smooth (only PDP TV) Auto Motion Plus 0x06 0x00 Clear 0x01...
Page 133
4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value PICTURE 3D View Point 0x02 (-5~5) Depth 0x03 (1~10) 3D Auto View 0x05 0x00 Message 0x01 Notice 0x02 Control Item Cmd1 Cmd2 Cmd3 Value Sound Sound Mode Standard 0x0c 0x00 0x00 0x00 Music 0x01 Movie...
Page 134
4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value Sound Auto Volume Night 0x02 Speaker TV Speaker 0x07 0x00 0x00 Select External Speaker 0x01 Sound Main 0x08 0x00 0x00 Select 0x01 Sound Sound Reset 0x09 0x00 0x00 Reset 3D Audio 0x0a 0x00 0x00 0x01...
Page 135
4. Troubleshooting 4-7. Updating the TV’s Software • MENU/123 MENU Support Software Update You can view your TV’s software version and update it if necessary. Updating the TV’s software to the latest version MENU/123 MENU Support Software Update Update now •...
Page 136
5. Wiring Diagram 5. Wiring Diagram 5-1. Wiring Diagram WIFI / BT CN1101 BL LED CNL802 CN201 CNM803 TV Board SMPS CN2201 CN2001 CN1102 CN501 Function CN801S CN501 SPEAKER SPEAKER T-Con IR receiver...
