QUATRA 4000c Installation and User Guide M/N: Q44-1M34NCU Table of Contents 01. Introduction to QUATRA 4000c 02. Regulatory // Model Number: Cel-Fi QUATRA 4000c 03. System Overview 04. Hardware Components 05. The WAVE Portal 06. Installation 07. LEDs 08. Diagnostics and Testing 09.
Page 2: Introduction To Quatra 4000C
The remotes are powered via Power over Ethernet (PoE), delivering an un-attenuated signal throughout the building. Cel-Fi QUATRA can be installed in just days (compared to months typical of other solutions), and at a price point that meets the middleprise budget.
Page 3  Cel-Fi QUATRA 4000c Model Number Q44-1M34NCU The QUATRA 4000c is FCC Part 20 certified for the following bands: 2, 4, 5, 12, 13 and 25 A Solution Anyone Can Confidently Deploy Cel-Fi QUATRA is designed to improve indoor signal coverage without any risk of interference on the mobile network.
Page 4: Regulatory // Model Number: Cel-Fi Quatra 4000C

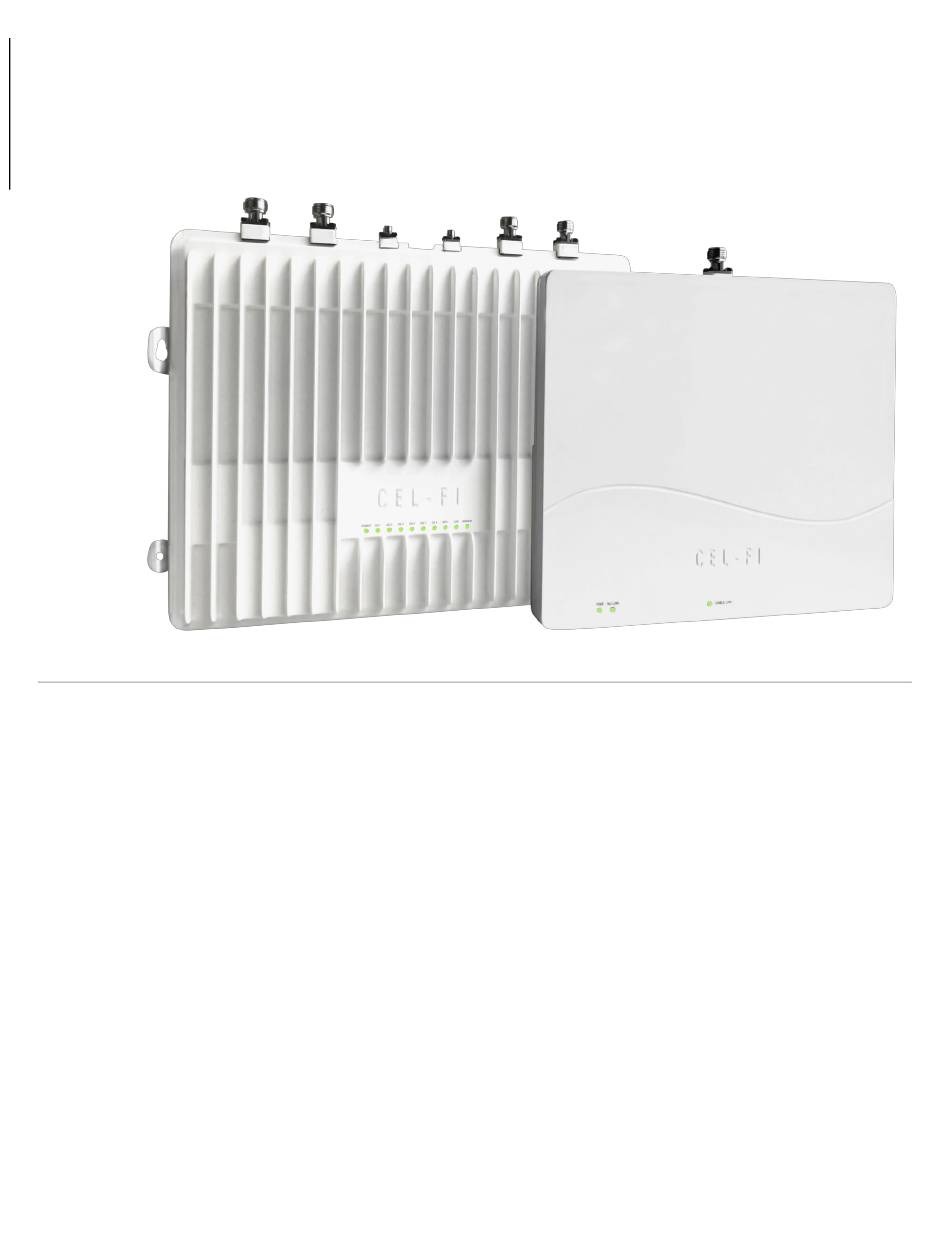

03. System Overview How Does It Work? Cel-Fi QUATRA 4000c is a powerful cellular signal distribution solution. Cel-Fi QUATRA 4000c is fundamentally comprised of a Network Unit (NU) and up to six (6) Coverage Units (per NU). The Network Unit takes the donor input from up to four (4) carrier donor signal sources. The signal source can be off-air (over-the-air (OTA)) from the macro network or delivered via a small cell or PVT (Private CBRS network).
Page 5 The system may also be used with one QUATRA 4000 FIBER HUB, which functions much like an NU with up to six (6) additional CUs. The HUB is connected to the NU with up to 2km of optical fiber cable and SFP+ Modules (sold separately), and it uses donor signals from the connected NU.
Page 6 This building did not have adequate donor signals for the carriers, so small cells were chosen as the signal sources. The system is comprised of four (4) QUATRA 4000c systems served with one small cell from each service operator. The small cell signals are split and input to each QUATRA 4000c NU. From the QUATRA 4000c NU the signals are distributed to CUs on each floor and then horizontally to a DAS field, providing coverage to the building.
Page 7 CBRS 3. Hybrid Install, Off-Air + Small Cell In this example, the building site has excellent (exterior) network service for two cellular carriers, but the other carrier outside signals are very poor. The System Integrator has decided to use a hybrid approach, taking off-air signals from the two carriers with good service and implementing a small cell for the remaining carrier plus a PVT CBRS signal source.
Page 8 CBRS Cel-Fi QUATRA 4000c Key Features  Carrier Grade, FCC-certified Smart Signal Booster  Support for AT&T, Verizon, T-Mobile and CBRS  Relays two (2) bands per operator, and one (1) CBRS channel  Independent donor ports for each operator allows for independent antenna optimization ...
Page 9: Hardware Components
Agreement. 04. Hardware Components Cel-Fi QUATRA 4000c is a modular solution with two (2) foundational components: the Network Unit (NU) and the Coverage Unit (CU). In traditional DAS terminology, these could be known as the Head End (NU) and the Remote Unit (CU).
Page 10 Network Unit (NU) The Network Unit, referred to as the NU, is the head end for the QUATRA 4000c system. The signal sources (one for each port/carrier) are connected to the NU. Then they are digitized and distributed over two Category “Ethernet”...
Page 11 Note: Only cellular signals may be connected to the donor ports. Other types of radio signals will not work, and may damage the system. The NU has four (4) N-type RF ports on the top. Each RF port is assigned, and marked, to a specific carrier. There are two (2) SMA-female ports on the top of the NU.
Page 12 QUATRA 4000c Coverage Unit Accessories QUATRA 4000 FIBER HUB Model Number: Q40-1234FNU The HUB functions much like an NU, except it does not have donor antenna ports. It connects to an NU over optical fiber cable (up to 2km) using SFP+ modules, and it adds up to six more CUs to an NU (twelve CUs total).
Page 13 QUATRA 4000 Range Extender and Fiber Range Extender The QUATRA Range Extender (QRE) unit is a device that extends the standard 100 meter Ethernet cable length from NU to CU up to 200 meters with Cat5e, or up to 300m if CAT6/7, 23AWG cable is used. It is inserted in-line between the NU and CU, and requires no external power.
Page 14 NU. A variety of donor antennas are available from Nextivity. The right donor antenna choice can make the difference between a good outcome and a great outcome. Please refer to other antenna-specific documents for choosing the right donor antenna. Cel-Fi LPDA-R Antenna Model Number: A62-V44-201 Cel-Fi LPDA-R Antenna...
Page 15: The Wave Portal
Nextivity recommends its LPDA-R antenna for use as a great donor antenna for most situations. Learn more about our Antenna options. Server Antenna The server antenna connects to the RF port on the CU. Server Antenna port A variety of Server antennas are available from Nextivity. Visit the Antenna Product page for details and updates.
Page 16 Login to the WAVE Portal The portal constantly monitors your systems and tells you how to resolve alarms or improve performance with explicit guidance, all from your smartphone or computer browser. See Cel-Fi training modules for easy to understand video and slide tutorials.
Page 17 If you do not see your NU on the portal (New Systems page or Systems page), then you need to register it with your portal login account. Click on the portal Access tab (lower left portal screen), and select the Request Access option under the upper right screen Options menu.
Page 18 Cel-Fi systems support a variety of standard alarm conditions. Policies are your own account lists of alarms, alarm severities, and whether you want them displayed on the portal (console), or emailed or texted to individuals or groups. Each new user (company) is given a “Default Policy” with the basic alarms already in it.
Page 19: Installation
Installing the NU Mounting The Cel-Fi QUATRA NU is designed for simple wall mounting, typically in an IT room with coaxial cable access to donor antennas that are installed on the roof, or any other exterior location with a quality donor signal from each cellular operator.
Page 20 Make sure the area behind any surface is free of electrical wires or other dangerous elements prior to drilling. The QUATRA 4000c NU has four (4) secure mounting tabs, two on each side. The two topmost tabs have been keyholed.
Page 21 4. Hammer in the anchors. 5. Partially screw in the top two screws. 6. Hang the unit from the top two screws, through the eyeholes. Adjust the unit to level and then tighten the screws. 7. Screw in the bottom two screws. 8.
Page 22 Connecting Donor Sources The QUATRA 4000c has four independent RF ports for connecting the donor signals. Each port:  Is an N-type Female connector  Is specific to the supported carrier  Is designed to support a variety of band configurations Cellular Donor Antenna Input The three carrier RF ports can be fed by a donor signal consisting of either a small cell or an antenna.
Page 23 Private Network (PVT) CBRS LTE Donor Input QUATRA 4000c is also capable of providing service for an in-building Private LTE network. CBRS is more secure with better mobility, latency stability and quality than Wi-Fi. It is designed to spur innovation in connectivity and IoT applications.
Page 24 Connecting your 4000c to the WAVE Portal (cloud NMS) There are two ways to connect the NU to the cloud. With either method, you should see your system on the portal by its NU serial number once it is connected using either method below, and powered on. LAN Connection Method: The first method is by connecting a LAN Ethernet cable to the LAN port on the NU, and setting the LAN firewall settings as described in the settings guide (see the link below).
Page 25 CELL modem port to one of the donor antenna feeds using an RF coupler. Power The QUATRA 4000c system is powered from the Network Unit (NU). The NU comes with a power cord that plugs in to the back of the unit. The Coverage Units (CU) are Powered-over-Ethernet (PoE) and therefore do not have independent power supplies that need to be plugged in.
Page 26 Installing CUs Wall Mounting The Coverage Unit (CU) comes with a wall mounting bracket in the box. To mount the QUATRA 4000c CU simply follow these steps: 1. Determine the mounting location.  Note: Whenever mounting any Cel-Fi gear on a wall or ceiling make sure the area is free of any dangerous electrical wires, other safety hazards, or any other objects that could be damaged or effect the quality or stability of the mounted unit.
Page 27 5. Hammer in the anchors. 6. Attach the bracket to the wall with the included screws. 7. Once the bracket is firmly attached to the wall, the CU can be attached to the bracket. 8. With the bracket in place, attach the CU. 9.
Page 28 Connecting Server Antenna(s) The CU has an N-type connector on the top of the unit for attaching an antenna. An Omni-directional antenna may be used, or a coaxial cable can be connected with a series of passive antennas attached. Connecting Server Antenna or Cable Connecting NU and CUs Each CU connects to the NU using two category cables (Cat5e or better).
Page 29 CU port assignment on the NU Follow general category cable routing practices as follows. The system constantly monitors all CU cables and a red LED means that the NU cannot communicate with a CU properly. General CU Cabling Rules:  QUATRA uses category cables, commonly used as Ethernet cable. However, QUATRA cables are NOT ETHERNET/LAN COMPATIBLE! ...
Page 30 If even longer CU cables are required, use the QUATRA Fiber QRE for up to an additional 2km of cable length. Note: Only the QUATRA 4000 RANGE EXTENDER (QRE-4K) may be used. The QUATRA 1000 and QUATRA 2000 QRE is not compatible with the QUATRA 4000c.
Page 31: Leds
LEDs The QUATRA 4000c NU has ten (10) LEDs on the front of the unit, used as status indicators, during setup and normal operation. The LEDs are labeled. NU LEDs The LEDs on the front of the QUATRA 4000c function as follows:...
Page 32 Modem is attempting to connect FLASHING RED-GREEN Modem is functioning properly Each QUATRA 4000c CU has three (3) LEDs on the front of the unit, used as status indicators, during setup and normal operation. The LEDs are labeled. CU LEDs The meaning for each LED on the CU is shown in the table below.
Page 33 The purpose of the portal is to save you time and money, and to help you realize maximum performance from each system you install. If you do not already have portal access, you may request it on our Support page: https://www.cel-fi.com/support/...
Page 34: Diagnostics And Testing
Diagnostics and Testing WAVE PRO and COMPASS XR COMPASS XR is a hand-held battery operated device specifically designed to simplify the installation of NEXTIVITY systems, The WAVE PRO app connects to and controls COMPASS over Bluetooth. COMPASS and the WAVE PRO App COMPASS XR and the WAVE PRO app have many useful features, including: ...
Page 35: Antenna Kitting
Model Number: A62-V44-201 The Cel-Fi LPDA-R Antenna offers a powerful 12 to 14 dBi gain (depending on carrier frequency) over 617– 4000 MHz and is designed to reduce out of band noise, to improve SiNR and overall signal quality. Mounting is made simple with included U-Bolts.
Page 36 Cellular Boosters; with 10 dB gain in the low bands and 11 dB gain in the high bands. The weather resistant housing is built with UV stabilized ABS plastic casing. Optimized for Cel-Fi products, the Cel-Fi Wideband Directional Antenna works great with the Cel-Fi WAVE Antenna positioning app. The unit includes standard brackets for mounting, and can also be used with the Cel-Fi Pole Mount.
Page 37: Advanced Information - Antennas And Quatra 4000C
-101 part number includes an N-type connector 2. (Low-Profile) LP SISO Indoor Omni Antenna Model Number: A11-H43-201 Nextivity’s Cel-Fi LP SISO Indoor Omni Antenna provides a 360-degree horizontal coverage pattern in an ultra-modern, low-profile, high performance industrial design.  Indoor use ...
Page 38 1. RSRP. Reference Signal Receive Power. It is the power of the LTE Reference Signals spread over the full bandwidth and narrowband. A minimum of -20 dB SINR (of the S-Synch channel) is needed to detect RSRP/RSRQ. In the context of Cel-Fi QUATRA 4000c, the following stratification of quality is recognized:...
Page 39 SINR. 3. How strong is the serving signal? Although Cel-Fi QUATRA 4000c has the highest gain of any system in its class, if the serving signal is extremely weak, then a high-gain antenna may be required to connect the uplink calls and to get the optimal DL power on the serving side.
Page 40 Mounting (Coverage Unit) Drop Ceiling The QUATRA 4000c Coverage Unit is fitted with two ¼”-20 inserts in the center of the bottom side of the unit. This is designed to mate perfectly with standard drop-ceiling infrastructure components. The mounting bracket also has four (4) ¼”-20 threaded inserts which can be similarly used.
Page 41: Specifications
For details, please refer to the Cel-Fi QUATRA 4000c Data Sheet Trademarks Cel-Fi, IntelliBoost, and Nextivity logo are trademarks of Nextivity, Inc. Warranty & Limitation of Liability Nextivity Inc., provides a limited warranty for its products. For details, please refer to cel-fi.com/warranty.
Page 42: Glossary
Antenna used to capture the exterior macro cellular network signal, and provide such Donor Antenna signal to the system. Server Antenna Antenna used internally to provide the coverage benefit from Cel-Fi QUATRA 4000c. Troubleshooting Alarm Error Description Power cycle the Network Unit (NU) and check for software updates. If Network Unit Hardware Error problem persists, return NU for service.
Page 43 Make sure the Coverage Unit (CU) air vents are not blocked, or move the CU Coverage Unit is Overheating to a cooler location. One of your Coverage Units (CU) is too close to your Network Unit (NU). Try Too Close moving the units farther apart (or move units so more signal blocking structures isolate them from each other).
