- Page 1 INSTRUCTIONS FOR USE Portable mesh nebulizer YM-3R9 Doc No: YMDK/RD-CE-YM3RX-01-18 Rev. No: V1.0 Issue date: 24.06.2020 Software version No: V1.0 Modification date: 24.06.2020...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ......................1 Chapter 1 Safety instructions and symbols ............. 1 1.1 General comments about safety ..............1 1.2 Warning......................2 1.3 Symbols ......................4 Chapter 2 Product information ................. 5 2.1 Components ....................5 2.2 Intended use/user ..................6 2.3 Contraindications for use: ................ -
Page 3: Introduction
It is advisable to carry out such a check before each use. Observe the WARNINGS and CAUTIONS to avoid possible injury. Portable mesh nebulizer YM-3R9... -
Page 4: Warning
Notes: 1. Read these instructions carefully before use and operate the device in accordance with them. 2. Keep these instructions in a safe place for future reference. 3. For hygienic reasons, the nebulizer and its accessories are in- tended for use by one patient. However, the device is intended for use by more than one patient. - Page 5 CAUTION: Use distilled water to clean the device. CAUTION: Do not immerse the device or its power supply in water. CAUTION: Do not drop the nebulizer. Portable mesh nebulizer YM-3R9...
-
Page 6: Symbols
CAUTION: If there is liquid in the medicine cup, do not tilt it to prevent liquid spillage. CAUTION: After use, do not leave the device in a place accessible to children or the mentally ill. CAUTION: Children and the mentally ill should use the device under adult supervision. -
Page 7: Chapter 2 Product Information

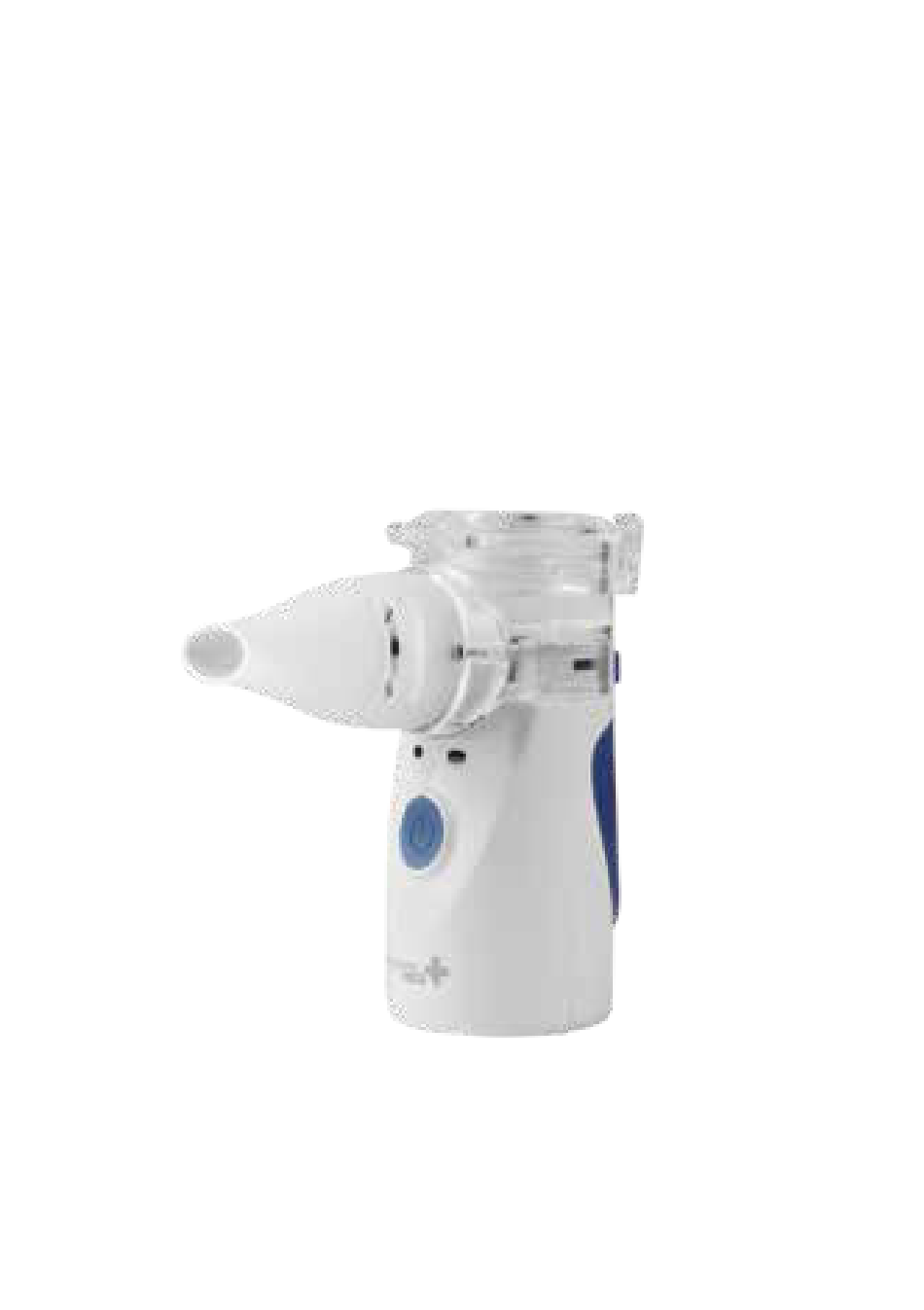

Chapter 2 Product information 2.1 Components Portable mesh nebulizer kits consist of a main unit, medicine cup, children’s mask, adult mask, mouthpiece, mask connecting tube and head cover. Main unit Medicine cup Children’s mask Adult mask (spraying head) Portable mesh nebulizer YM-3R9... -
Page 8: Intended Use/User
Mouthpiece Mask connecting Head cover Batteries: two AA tube (1,5 V) alkaline batteries Accessories Accessories for the device are listed in the table below. Name Model/specification Quantity Micro USB cable USB-DC3.5-1.5M Portable mesh nebulizer kit F224R*E001 Batteries The portable mesh nebulizer kit contains the following components: Part name Material Part No... -
Page 9: Contraindications For Use
2.4 Component names and functions Rear view 1. Medicine cup lid 2. Medicine cup 3. PUSH – Release button. Press to remove the medicine cup. 4. DC input: connect suitable DC jack (DC 5 V) Portable mesh nebulizer YM-3R9... - Page 10 Front view 5. Close the battery cover after inserting the battery. 6. When inserting the batteries, observe the +/- markings (bat- teries included). ON/OFF button: Press the ON/OFF button to turn the device on. 8. Power indicator: • The green light is on: Ongoing operation •...
-
Page 11: Chapter 3 Nebulizer Installation
• Press down on the medicine cup while pressing the button so as not to damage the nebulizer. • Do not touch the spray mesh with your fingers or other objects during disassembly to avoid damaging it. Portable mesh nebulizer YM-3R9... -
Page 12: Inserting The Battery Or Connecting To The Power Adapter
3.3 Inserting the battery or connecting to the power adapter CAUTION: It is not possible to use the battery and the power adapter at the same time! 3.3.1. Battery power supply 1. Open the 2. Insert the two 3. Close the battery cover. -
Page 13: Component Assembly
3.4 Component assembly: 3.4.1. Attach the mask: 3.4.2. Attach the mouthpiece (installation directly onto the medicine cup connecting tube) Portable mesh nebulizer YM-3R9... -
Page 14: Chapter 4 Filling With Medication
Chapter 4 Filling with medication 4.1 Pour the medication into the medicine cup: • Open the medicine cup cover. • Fill the medicine cup with the medicine prescribed by your doctor. • The nebulizer has been tested with medicines such as Ventolin and Pulmicort. -
Page 15: Chapter 5 Operating The Nebulizer
– press the ON/OFF button once, faster – press the ON/OFF button twice. Press the ON/OFF button a third time to switch off the inhaler. When you have finished inhaling, remove the batteries from the main unit to avoid discharging them. Portable mesh nebulizer YM-3R9... -
Page 16: Chapter 6 Replacing The Medicine Cup
Chapter 6 Replacing the medicine cup 1. Remove the medicine cup from the nebulizer: press the button PUSH on the main device and push the medi- cine cup towards the front of the main device. 2. Insert the new medicine cup into the nebulizer. -
Page 17: Operation Using A Mains Adapter
1.3 Press the ON/OFF button, the device will switch on and nebulize with distilled water for 1–2 minutes. 1.4 Rinse the medicine cup, nozzle attachment and mesh with distilled water. Gently wipe off excess water with a soft, clean cloth. Portable mesh nebulizer YM-3R9... -
Page 18: Chapter 9 Technical Specification
• Do not rinse or immerse the main device in any liquid. Chapter 9 Technical specification Device name Portable mesh nebulizer Model YM-3R9 Dimensions approx. 45×45×100 mm (L)×(W)×(H) Weight (g) approx. 100 g (without batteries) INSTRUCTIONS FOR USE... - Page 19 Air pressure: 800–1060 hPa The manufacturer reserves the right to change technical parameters without notice. Warning: The optional mains adapter is compliant with the requirements of IEC 60601-1:2005. For more information, please contact your nearest point of sale. Portable mesh nebulizer YM-3R9...
- Page 20 Test with Pulmicort at normal temperature of 24 ±2°C, relative hu- midity: 45–75% and pressure: 86 kPa to 106 kPa, – for details: chart 1: Medicines used for testing: 1. For particle size determination - Budesonide (Pulmicort) solution 0.025 % (M/V). 2.
- Page 21 1. For particle size determination - Salbutamol (Ventolin) solution 0.02% (M/V) 2. For determination of aerosol initial velocity and aerosol efficiency – Salbutamol (Ventolin) solution 0.2% (M/V) individual test mean value Aerodynamic mean (µm) Chart 2 Portable mesh nebulizer YM-3R9...
-
Page 22: Chapter 10 Product Characteristics
Chapter 10 Product characteristics Classification by type of electric Internal power supply shock Classification by degree of pro- tection against electric shock Power supply Batteries: two AA alkaline batteries (batteries included) Power supply: voltage 3 V, current: 1 A Mains adapter: voltage 5 V, current: 1 A (not included) IEC60529 dustproof and water- IP22... -
Page 23: Chapter 11 Troubleshooting
The contact electrode Clean the electrode accord- on the nebulizer and ing to these instructions cup is dirty. and restart the unit. Portable mesh nebulizer YM-3R9... - Page 24 Problem Possible causes Solutions The batteries are not Insert the batteries inserted correctly. correctly according to the positive and negative pole markings. Battery level is low. Replace the batteries with new ones according to these instructions. The mains adapter Connect them correctly The power light (ON/ and nebulizer are not according to these instruc-...
-
Page 25: Chapter 12 Emc Declaration
Chapter 12 EMC Declaration 1. The YM-3R9 portable mesh nebulizer is suitable for home and hospital use, except in areas with active high-frequency surgical equipment and RF shielded rooms of an ME system for magnetic resonance... - Page 26 4. Technical description 4.1 All necessary instructions to maintain the BASIC LEVEL OF SAFETY and ESSENTIAL PERFORMANCE with regard to electromagnetic dis- turbances during the exempted period of use. 4.2 Manufacturer’s guidelines and declaration – electromagnetic emis- sion and immunity. Table 1 Manufacturer’s guidelines and declaration –...
- Page 27 GSM 1900; DECT; 217 Hz 1845 LTE Band 1,3,4, 25; UMTS 1970 2450 2400-2750 Bluetooth, Pulse WLAN, 802.11 modulation b/g/n, RFID 2450, 217 Hz LTE Band 7 5240 5100-5800 WLAN 802.11a/n Pulse modulation 5500 217 Hz 5785 Portable mesh nebulizer YM-3R9...
-
Page 28: Warranty Card
2 years on the spray head with medicine cup (excluding accessories) • 2 years for the YM-3R9 portable mesh nebulizer Any defects detected during the warranty period will be repaired free of charge within 21 days. The period starts from the date of delivery to the service centre. - Page 29 • equipment received will be repaired and returned to the same address within 21 days. NOTES ON INSPECTIONS AND REPAIRS Pos. Notifica- Repair Warranty Description of activities Contractor’s stamp and tion date date extended to signature Portable mesh nebulizer YM-3R9...
