Summary of Contents for KT SOLAR KT70704
- Page 1 DC POWER LINK 30A 12-24V Model No. KT70704 USER MANUAL IS570 Issue 1 06.09.2023...

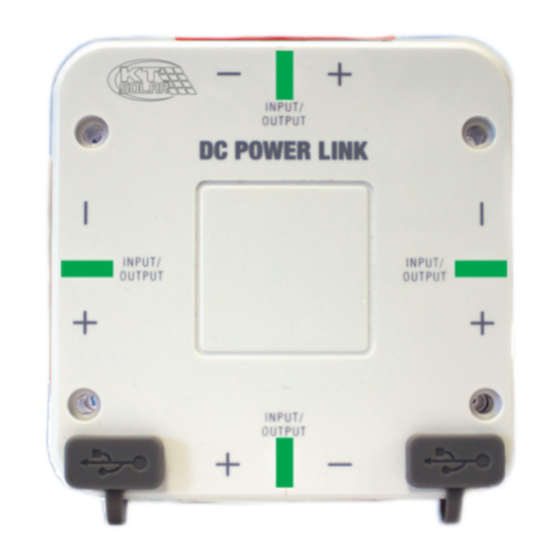

- Page 2 USER MANUAL Please refer to this user manual before using or installing this product. FEATURES 1. Dustproof Cover 2. 50A Heavy Duty Connector Input/Output 3. Mounting Holes 4. USB Outputs Suitable for use with 50A Heavy Duty Connectors (Grey/Black/Red/Blue) SPECIFICATIONS •...
- Page 3 USER MANUAL DC POWER LINK OPERATION INSTRUCTIONS • Remove the dustproof cover from desired ‘Input / Output’ socket and connect device via 50A Heavy Duty Connector. (15A Max per Output, 30A Total). • Once ‘input’ is connected, DC Power Link is ’live’. LEDs will indicate ‘live’ power to circuits. •...
- Page 4 USER MANUAL CONFIGURATION 1 1x 12/24V Battery Source (Input) 12/24V 3x 12/24V Devices (Output) DEVICE 12/24V BATTERY SOURCE Power In Power Out 12/24V DEVICE Important Information: Please ensure that either 12V OR 24V devices are connected to the DC Power Link. Using a combination of 12V &...
- Page 5 USER MANUAL CONFIGURATION 3 3x 12/24V Battery Source (Input) 12/24V 1x 12/24V Devices (Output) BATTERY SOURCE 12/24V BATTERY SOURCE Power In Power Out 12/24V DEVICE Important Information: We recommend suitable fuses are placed on the positive cable to devices chosen and also between Solar Panel Positive to the Solar Controller selected.
- Page 6 USER MANUAL CONFIGURATION 5 3x Solar Source (Input) 1x Solar Regulator to Battery (Output) UNREGULATED POWER/SOLAR Regulated Power Unregulated Power UNREGULATED UNREGULATED POWER/SOLAR POWER/SOLAR Unregulated Unregulated Power In Power In SOLAR CHARGE CONTROLLER BATTERY SOURCE Tip: As you are fitting 3 panels in parallel configuration, the Amperages are therefore tripled. If fitting 2 panels, the Amperages are doubled.
- Page 7 USER MANUAL CONFIGURATION 6 1x 12V Battery Source (Input) 1x Unregulated Power Source converted to regulated power using a Solar Regulator which is then fed UNREGULATED into the DC Power Link (Input) POWER/SOLAR 2x 12V Devices (Output) Regulated Power Unregulated Power SOLAR CHARGE CONTROLLER BATTERY...
- Page 8 USER MANUAL WARRANTY STATEMENT Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic. telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue (save and except for all bulbs and lenses whether made of glass or some other substance) will under normal use and service be free of failures in material and workmanship for a period of one (1) year (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the consumer as marked...
