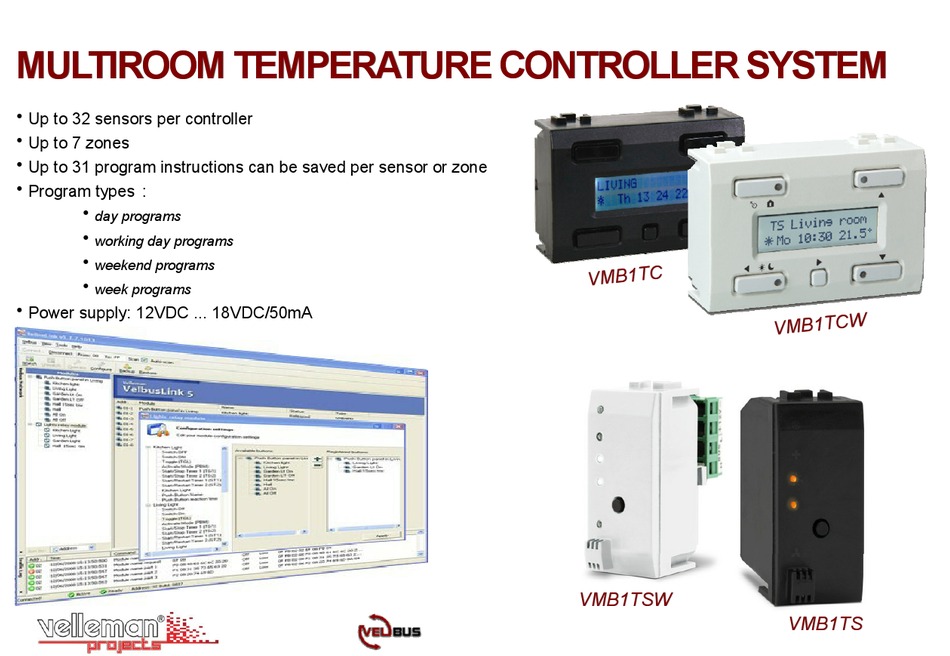

MULTIROOM TEMPERATURE CONTROLLER SYSTEM
MULTIROOM TEMPERATURE CONTROLLER SYSTEM
MULTIROOM TEMPERATURE CONTROLLER SYSTEM

Up to 32 sensors per controller

Up to 7 zones

Up to 31 program instructions can be saved per sensor or zone

Program types :

day programs

working day programs

weekend programs

week programs

Power supply: 12VDC ... 18VDC/50mA
VMB1TSW
VMB1TSW
VMB1TSW
VMB1TS
VMB1TS
VMB1TS

Advertisement

loading
Need help?

Need help?

Do you have a question about the VELBUS VMB1TSW and is the answer not in the manual?

Questions and answers

Summary of Contents for Velleman VELBUS VMB1TSW

  • Page 1 MULTIROOM TEMPERATURE CONTROLLER SYSTEM MULTIROOM TEMPERATURE CONTROLLER SYSTEM MULTIROOM TEMPERATURE CONTROLLER SYSTEM  Up to 32 sensors per controller  Up to 7 zones  Up to 31 program instructions can be saved per sensor or zone  Program types : ...
  • Page 2 There are several manuals available for this temperature control system: 1. Getting started manual, This guide can be found in the sensor package, and provides an overview of the system. Read this first! 2. This manual, use it together with the getting started manual for standard system set-up.
  • Page 3: Table Of Contents

    In this manual: 1. How to connect the temperature controller 2. How to connect the temperature sensor 3. Setting the address for sensor and controller 4. Assign a relay channel to a temperature sensor function 5. Set the menu language on the controller 6.
  • Page 4 ENGLISH Temperature controller 'VMB1TC' connection Connection Battery backup To avoid losing the clock when a power failure occurs, a backup battery (3V Lithium CR2032) can be installed in the battery holder at the back of the module. To avoid premature depletion of the battery, only install it when permanent power is supplied to the Velbus system.
  • Page 5 ENGLISH 2. Temperature sensor 'VMB1TS' connection and button+indicators overview LED indication Settings Cooling mode Address setting* Comfort mode Terminator Day mode Night mode Wiring Heating or air-conditioning on power supply 12 to 18Vdc Velbus Sensor Temperature sensor Controls Mode pushbutton 7+11 Assign high temperature alarm* 7+12...
  • Page 6 ENGLISH 3. Address selection In order to identify each module in your system it is necessary to set an unique address for each module. This address will also be used by the PC software to scan all the addresses and to identify the modules. VMB1TSW / VMB1TCW Adress setting trough Velbuslink©...
  • Page 7: Assign A Relay Channel To A Temperature Sensor Function

    ENGLISH 4. Assign a relay channel to a temperature sensor function (can also be performed using PC, advised) Only available for VMB1TS On the sensor module: Set the sensor module in anti-freeze mode by pressing the push button on the front panel repeatedly until all LED’s are off. On the relay module: First remember the address of the Set the MODE and TIME1 rotary switches of the...
  • Page 8: Set The Menu Language On The Controller

    ENGLISH 5. Set the menu language on the controller ↑ ↑ When applying power to the controller for the first time, only the time is shown on the display. Press and HOLD the ‘Menu’ button to open the extended menu. Scroll to “Configuration” menu using the ↑...
  • Page 9 ENGLISH 6. Setting the clock It is important to set the correct time for the internal clock. Setting the time on this module will synchronise all clocks in your Velbus system. ↑ ↑ When applying power to the controller for the first time, only the time is shown on the display.
  • Page 10 ENGLISH 7. Sensors setup Searching for temperature sensors Before the controller can work with the temperature sensors it must first scan the network for all connected sensors. If temperature sensors are installed or removed afterwards, the search process must be repeated to update the list of sensors to the new situation.
  • Page 11 ENGLISH Assign sensor names (can also be done using PC, advised) Each sensor can have a specific label or name (Default all the temperature sensors will have the same name ‘Temp sensor’ & address) ↑ ↑ ↑ 1. Press and HOLD the ‘Menu’ button until the extended menu appears. 2.
  • Page 12: Operating The Temperature Controller

    ENGLISH 8. operating the temperature controller Select room or zone Recall and change the desired temperature To set up a heating system for different rooms, each At any time the desired temperature for a room can be shown and/ room will need a temperature sensor. Multiple rooms or changed.
  • Page 13 ENGLISH Setting the comfort, day and night temperature presets The temperature sensor VMB1TS can be used in 4 modes (comfort , day , night or standby - ). Every mode has its own preset for the desired temperature. 1. Press the ‘Location’ button repeatedly until the desired room or zone for which one wants to set the preferred comfort, day and/ or night temperature is displayed.
  • Page 14 ENGLISH Start sleep timer or switch between preset modes The heating or (air-conditioning) can be forced temporary (sleep timer) into a certain mode. During this time period, all program instructions will be ignored. When the sleep timer ends, normal program execution is resumed. This could be useful e.g.
  • Page 15 ENGLISH Setting the sleep time (temporary mode) Once the heating (or air-conditioning) is in temporary mode, the duration of the sleep timer can be increased or decreased. This could be useful e.g. to leave the heating in comfort mode a few hours/days or manual. 1.
  • Page 16: Programming The Temperature Controller

    ENGLISH 9. Programming the controller This controller has two ways to program heating or cooling periods 1- Normal week timer programming (see next pages) 2- Wake-up and goto-bed alarm timer feature This unique alarm feature makes programming heating or cooling periods very easy. It is even possible to link this timer to other modules in your Velbus system (eg.
  • Page 17 ENGLISH Program step overview ↑...
  • Page 18 ENGLISH Entering / changing a program instruction 1. Press the ‘Location’ button repeatedly until the room or zone ↑ ↑ of which a program instruction needs to be added is displayed 2. Press and hold the ‘Menu’ button until the extended menu appears.
  • Page 19 ENGLISH 7. Use the ↑ or ↓ button to set the time reference. ↑ Possibilities on which the instruction needs to be executed are: - Exact time , - Relative to the Wake-up alarm time - Relative to the Go-to-bed alarm time Confirm using the →...
  • Page 20 ENGLISH Deleting a program instruction 1. Press the ‘Location’ button repeatedly until the room or ↑ ↑ zone of which the program instruction needs to be changed is displayed. 2. Press and hold the ‘Menu’ button until the extended menu appears. ↑...
  • Page 21: Screen & Led Indicators

    ENGLISH 10. Screen & LED indicators ↑ ↑ Location Change room or zone. Push and hold to switch between rooms and zones. Exit the menu. Changes made in a data entry screen (flashing item) are  discarded. Switch between anti-freeze, night, day, comfort mode and start the sleep Mode Mode timer.
  • Page 22: Controller Menu Overview

    ENGLISH 11. Controller menu overview Exit the menu Short menu Extended menu ↑ Select an item Navigate through Clear the setting the menu confirm a setting Short press : calling the short menu Attention : The program, settings and statistic menu Long press : calling the extended will not be accesable when menu.
  • Page 24 VELLEMAN NV Legen Heirweg 33 9890 Gavere Belgium - Europe www.velbus.be www.velbus.be www.velbus.be Modifications and typographical errors reserved - © Velleman nv. - HVMB1TC-UK - 2012 (rev.1) 5 4 1 0 3 2 9 4 0 9 9 0 6...
