Summary of Contents for MAKFRY HD-2

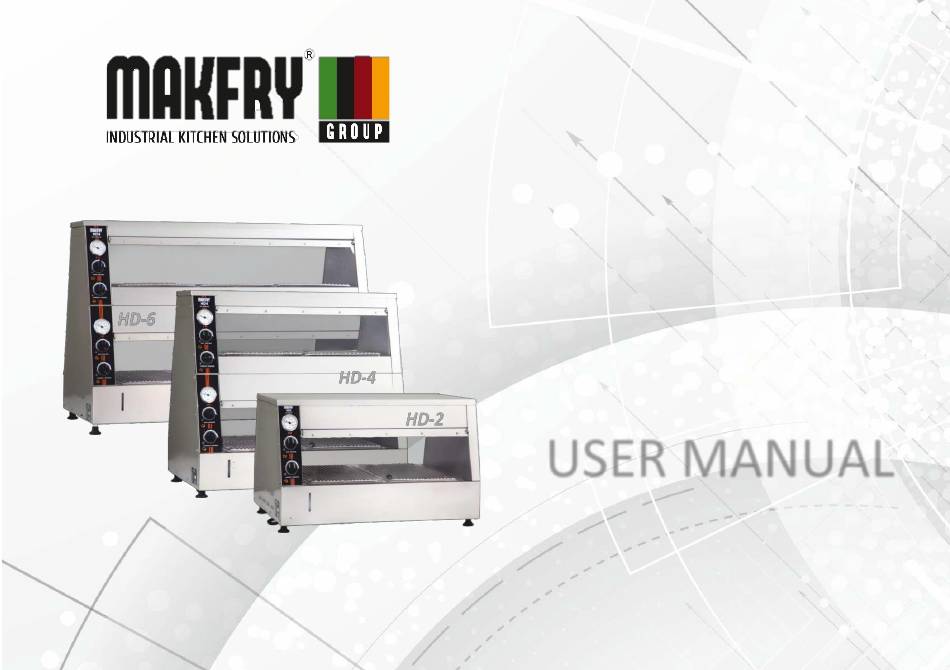

- Page 1 HD-2 / HD-4 / HD-6 HOT DISPLAY UNIT USER MANUAL WWW.MAKFRY.COM...
-
Page 2: Table Of Contents
6- UNPACKING THE PACKAGE 7- PRE-INSTALLATION INFORMATION 8- INSTALLATION AND USAGE 8.1-ADDING WATER 8.2-TEMPERATURE CONTROL 8.3-PANEL USAGE 8.4-CHANGING HALOGEN BULBS 9- SPARE PART LIST 10- HD-2 ELECTRICAL DIAGRAM 11- HD-4 ELECTRICAL DIAGRAM 12- HD-6 ELECTRICAL DIAGRAM 13- WARRANTY CERTIFICATE AND TERMS... - Page 3 DEAR USER, AS MAKFRY FAMILY, WE THANK YOU FOR CHOOSING OUR DEVICE AND FOR YOUR TRUST IN OUR COMPANY. WE IMPORTANTLY REMEMBER YOU TO READ THE INSTRUCTIONS AND INFORMATION IN THE USER MANUAL CAREFULLY AND HAVE YOUR USERS READ IT IN ORDER TO GET THE PRODUCT SUITABLE FOR YOUR EXPECTATIONS AND TO USE IT FOR A LONG-TERM.
-
Page 4: 1- General Information
1- GENERAL INFORMATION THIS USER'S MANUAL CONTAINS INFORMATION ABOUT MAKFRY HD-2 / HD-4 / HD-6 INSTRUCTIONS FOR USE, REQUIREMENTS AND COVERAGE OF WARRANTY. CAREFULLY READ ALL INSTRUCTIONS AND WARNINGS IN THE USER'S MANUAL. THIS USER'S MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE SAFE INSTALLATION, USE AND MAINTENANCE OF YOUR PRODUCT. -
Page 5: 2- Product Introduction
2- PRODUCT INTRODUCTION MAKFRY HD-2 / HD-4 / HD-6 HOT DISPLAY UNITS ARE DESIGNED TO BE USED IN INDUSTRIAL KITCHENS AND IT IS RECOMMENDED FOR USE BY PROFESSIONAL USERS. 3- TECHNICAL SPECIFICATIONS HD-4 HD-6 MODEL HD-2 WIDTH:860 MM WIDTH:840 MM... -
Page 6: 4- Product Image/Diagram
4- PRODUCT IMAGE/DIAGRAM... -
Page 7: 5- Transportation And Storage Conditions
5- TRANSPORTATION AND STORAGE CONDITIONS THE PRODUCT IS SPECIALLY PACKED AND SHIPPED IN A FORM. CARRY THE PRODUCT WITH THE FORKLIFT FEET INSTALLED UNDER THE PALLET. IF THE TRANSPORT DISTANCE IS FAR, IT MUST BE MOVED SLOWLY AND SUPPORTED BY AN ADDITIONAL PERSON TO AVOID LOSS OF BALANCE. DO NOT KNOW OR DROP THE PRODUCT WHEN CARRYING IT. -
Page 8: 7- Pre-Installation Information
7- PRE-INSTALLATION INFORMATION INSTALLATION MUST BE DONE BY AN AUTHORIZED TECHNICIAN ACCORDING TO THE INSTRUCTIONS AND REGULATIONS. OUR COMPANY CANNOT BE LIABLE FOR ANY DAMAGES DUE TO INCORRECT INSTALLATION. IF THE PRODUCT FAILS, TURN OFF THE PRODUCT. ONLY A SERVICE AUTHORIZED BY THE MANUFACTURER MUST PROVIDE THE PRODUCT. -
Page 9: 8- Installation And Usage
8- INSTALLATION AND USAGE 8.1- ADDING WATER BEFORE CONNECTING YOUR HOT DISPLAY UNIT TO ELECTRICITY, MAKE SURE YOU HAVE A PROPER INSTALLATION ACCORDING TO THE POWER VALUES WRITTEN ON THE MACHINE BY A LICENSED ELECTRICIAN. AFTER PLACING YOUR MACHINE ON THE COUNTER/FLOOR WHERE IT WILL OPERATE, WATER SHOULD BE ADDED TO THE WATER TANK(S) / TANK (DEPENDING ON WHETHER THE MACHINE IS SINGLE OR DOUBLE DECK) FOR IT TO BE ABLE TO CONTROL HUMIDITY. -
Page 10: Temperature Control
AFTER PLUGGING IN YOUR MACHINE TO AN APPROPRIATE ELECTRICAL OUTLET ACCORDING TO ITS TECHNICAL SPECIFICATIONS AND FILLING THE WATER TRAYS/DRAWER AS DESCRIBED ABOVE, YOUR MACHINE IS READY TO OPERATE. 8.2- TEMPERATURE CONTROL: THE IDEAL HOLDING TEMPERATURE FOR COOKED PRODUCTS IS +65 °C. AT THIS TEMPERATURE, YOUR PRODUCTS CAN MAINTAIN THEIR FRESHNESS AND HEAT FOR APPROXIMATELY 2 HOURS. -
Page 11: Panel Usage
HUMIDITY YOU SET WITH THIS KNOB, THE LESS WATER YOU WILL NEED TO USE. THIS MEANS THAT THE FREQUENCY AT WHICH YOU NEED TO CHECK AND REFILL THE WATER LEVEL WILL DECREASE ACCORDINGLY. THE YELLOW SIGNAL LIGHT NEXT TO THIS KNOB INDICATES THAT THE HEATING ELEMENT RESPONSIBLE FOR CONTROLLING THE HUMIDITY IS ON. - Page 12 8.4 - HALOGEN BULB REPLACEMENT: In case of a malfunction of the halogen lamp, please contact our technical support team for halogen lamp replacement or procurement...
-
Page 14: 9- Spare Part List
9- SPARE PART LIST TERMOSTAT 30-90 SIGNAL LAMP HALOGEN LAMP SOCKET TERMOMETER 0-120 °C GASTRONOM CONTAINER 1-1X20 GASTRONOM CONTAINER GRILL 1-1X20 POLYCARBON GLASS HD2 – HD4 POLYCARBON GLASS HD6 RESISTANCE (DRY TYPE) 10 RESISTANCE (WET TYPE) 11 M10 BORING FEET AYAK 12 POWER SWITCH 13 HALOGEN LAMP 100 W... -
Page 15: 10- Hd-2 Electrical Diagram
10- HD-2 ELECTRICAL DIAGRAM... -
Page 16: 11- Hd-4 Electrical Diagram
11- HD-4 ELECTRICAL DIAGRAM... -
Page 17: 12- Hd-6 Electrical Diagram
12- HD-6 ELECTRICAL DIAGRAM... -
Page 18: 13- Warranty Certificate And Terms
13- WARRANTY CERTIFICATE AND TERMS AS MAKFRY FAMILY, THANK YOU FOR CHOOSING OUR PRODUCTS. WARRANTY DOCUMENT MUST BE KEPT DURING THE WARRANTY PROCESS. IF THE DOCUMENT IS LOST, A SECOND DOCUMENT WILL NOT BE GIVEN TO THE CUSTOMER AND THIS DOCUMENT MUST BE SHOWED WHEN THE CUSTOMER REQUIRES WARRANTY REPAIR. - Page 19 ELECTRICAL COMPONENTS ARISING FROM OPERATION OF THE DEVICE IN ACIDIC OR HUMID ENVIRONMENTS. • IN TSE OR CE CERTIFIED PRODUCTS USED, EXCEPT MAKFRY SPECIAL PRODUCTION ON THE GOODS. 6- TRANSPORTATION COSTS OF MAKFRY AUTHORIZED SERVICE PERSONNEL IN THE REPAIR PROCESS TO BE DONE WHERE THE GOODS ARE AVAILABLE, WITH ON-SITE SERVICE.
- Page 20 MODEL SERIAL NUMBER WARRANTY PERIOD WARRANTY PROCESS START STAMP - SIGNATURE ADDRESS: GÖKDERE CADDESİ NO:27/A 35040 - GÖKDERE / BORNOVA/ İZMİR CONTACT: +90 232 207 21 51 E-MAIL: INFO@MAKFRY.COM...
