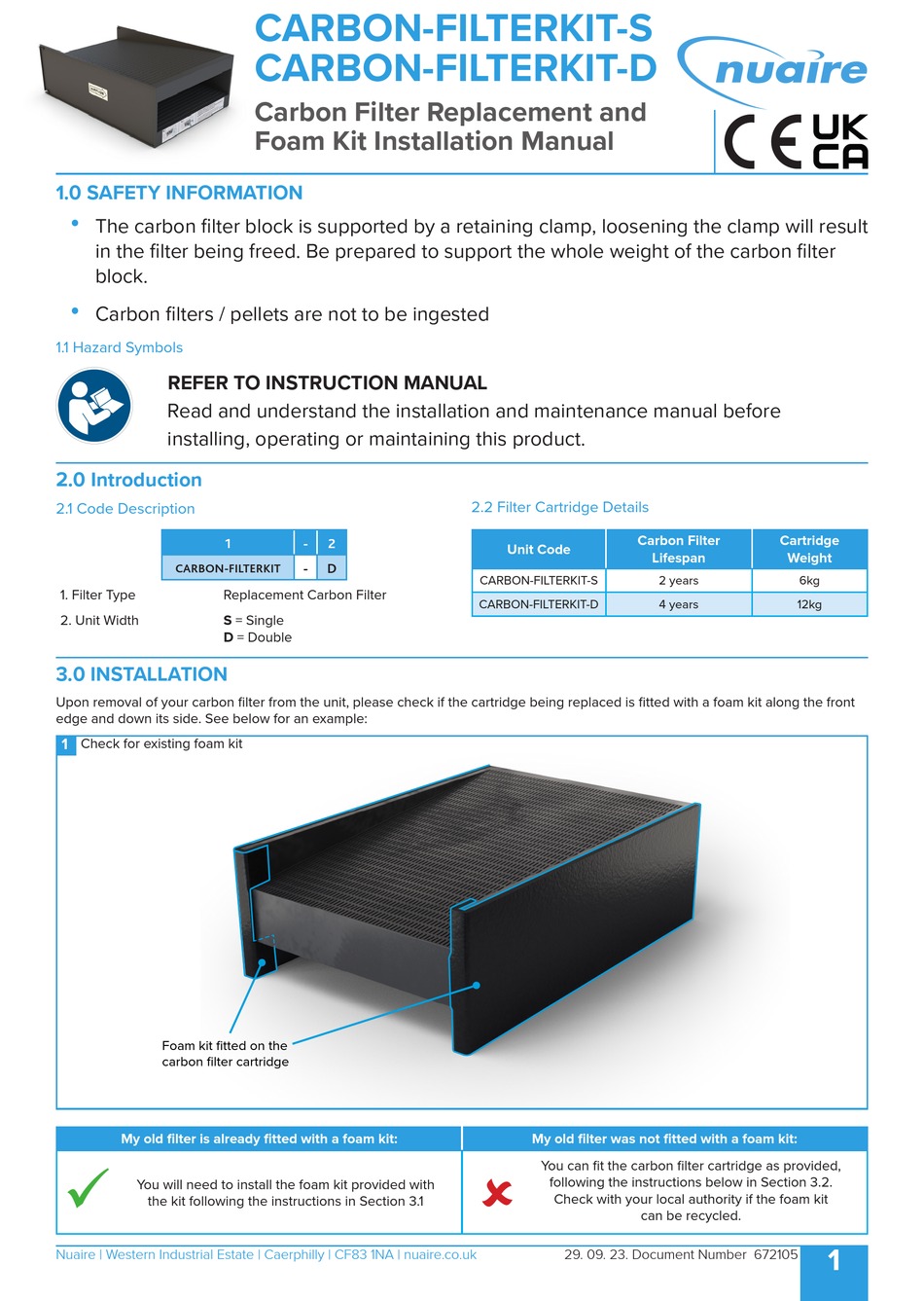

NuAire CARBON-FILTERKIT-S Installation Manual

1.0 SAFETY INFORMATION
•
The carbon filter block is supported by a retaining clamp, loosening the clamp will result
in the filter being freed. Be prepared to support the whole weight of the carbon filter
block.
•
Carbon filters / pellets are not to be ingested
1.1 Hazard Symbols
REFER TO INSTRUCTION MANUAL
Read and understand the installation and maintenance manual before
installing, operating or maintaining this product.
2.0 Introduction
2.1 Code Description
1
CARBON-FILTERKIT
1. Filter Type Replacement Carbon Filter
2. Unit Width S = Single
D = Double
3.0 INSTALLATION
Upon removal of your carbon filter from the unit, please check if the cartridge being replaced is fitted with a foam kit along the front
edge and down its side. See below for an example:
1
Check for existing foam kit
Foam kit fitted on the
carbon filter cartridge
My old filter is already fitted with a foam kit:
ü
You will need to install the foam kit provided with
the kit following the instructions in Section 3.1
Nuaire | Western Industrial Estate | Caerphilly | CF83 1NA | nuaire.co.uk
CARBON-FILTERKIT-S
CARBON-FILTERKIT-D
Carbon Filter Replacement and
Foam Kit Installation Manual
- 2
- D
2.2 Filter Cartridge Details
Carbon Filter
Unit Code
CARBON-FILTERKIT-S
CARBON-FILTERKIT-D
My old filter was not fitted with a foam kit:
You can fit the carbon filter cartridge as provided,
û
following the instructions below in Section 3.2.
Check with your local authority if the foam kit
can be recycled.
29. 09. 23. Document Number 672105
Cartridge
Lifespan Weight
2 years 6kg
4 years 12kg
