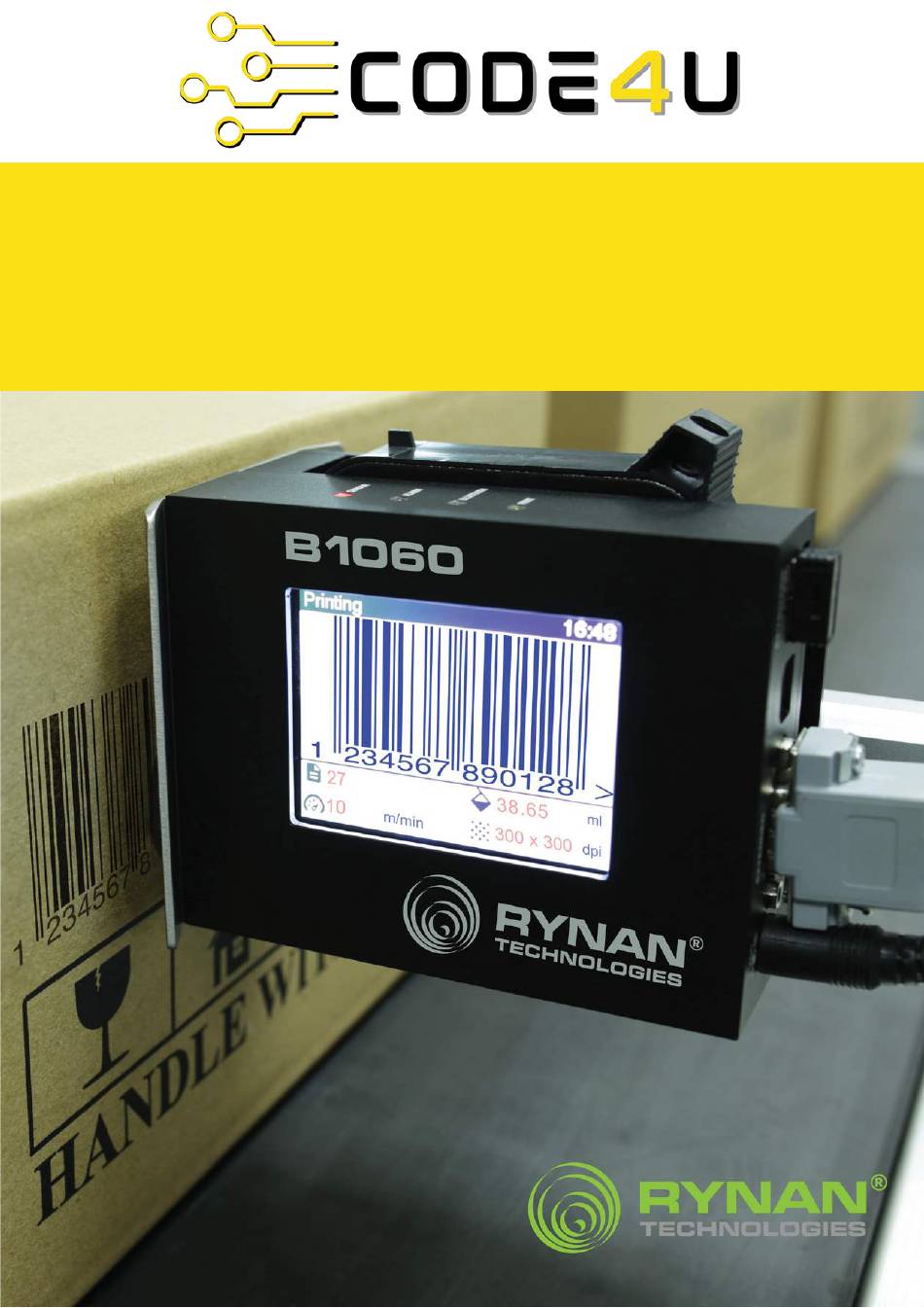

Page 1 B1060 BIGGER AND BETTER RYNAN's One Inch Print Head...
Page 2 USER MANUAL Revise Logs Version Update Information Staff Date Updated V2.0 User Manual Tinh Vo March 20, 2019 Remove PC and Mobile feature V2.1 Anh Phu August 26, 2019 Footer adding Remove reset counter in Input / V2.2 Anh Phu August 29, 2019 Output Add power adaptor warning...
Page 3: Table Of Contents
SAFETY INFORMATION ................................4 EMERGENCY CASE ................................... 5 ENVIRONMENTAL PROTECTION ............................5 PRODUCT WARRANTY ................................5 ABOUT MACHINE ..................................6 TECHNICAL SPECIFICATIONS ..............................7 Machine details ..................................7 K eyboard ....................................7 MACHINE OVERVIEW ................................. 8 Indicator LED ..................................... 8 Connecting Ports ..................................
Page 4 Machine default ..................................35 1st Floor, Unit 12 & 13 Mountain View Office Park 28 Bella Rosa Street Rosenpark, Durbanville, 7550 CK2001/081877/23 Website: www.code4u.co.za Email: info@code4u.co.za Tel: 0861-725-278 VAT: 429 0205 964...
Page 5: Safety Information
SAFETY INFORMATION Ensure the printer is set to STOP before installing or removing a cartridge. Avoid using printer with high voltage and/or non-compatible power supplies or external electronic accessories. Ensure printer is installed and stored in a manner to prevent any strong impacts from any external objects.
Page 6: Emergency Case
EMERGENCY CASE FOR EMERGENCY SITUATIONS, E.G. SMOKE COMING OUT OF PRINTER, UNCONTROLLABLE CONTINUOUS PRINTING, FIRE, EXPLOSIVE SOUNDS, ETC., PLEASE REMOVE THE POWER SUPPLY IMMEDIATELY! ENVIRONMENTAL PROTECTION DON'T THROW PRINTER OR INK CARTRIDGES INTO REGULAR GARBAGE OR RECYCLING BINS. ENSURE PROPER DISPOSAL (E.G.
Page 7: About Machine
ABOUT MACHINE Thank you for purchasing the B1060 Thermal Inkjet Printer, a product of RYNAN TECHNOLOGIES (SINGAPORE). This printer is designed for packaging printing applications powered by Thermal Inkjet (TIJ) Technology. The B1060 produces crisp text, logos, variable data and barcodes on porous and non-porous media by automatically recognizes aqueous and solvent inks and applies the appropriate printing parameters.
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Machine details DESCRIPTION SPECIFICATIONS Model B1060 Display LCD 2.8” automatic rotation Dimensions (LxWxH) 107.5 x 74.5 x 83mm Weight 526.6g Power supply 12V DC - 5A Maximum power consumption Maximum printing resolution 300x300 dpi Print speed 76m/min @ 300x300 dpi Optical density 5 levels Operation selection...
Page 9: Machine Overview
MACHINE OVERVIEW Indicator LED ITEMS DETAIL Internal sensor: Red light [1] SENSORS External sensor: Green light Sensor is activated when receives signals [2] ALARM Is ON when indicating an error. Remains ON when connected. [3] BLUETOOTH/PC Remains ON when it’s on printing mode [4] PRINT Connecting Ports 1st Floor, Unit 12 &...
Page 10: Keyboard
PORT PURPOSE [1] USB FLASH USB 2.0 flash for updating firmware, fonts and logo [2] USB KEYBOARD For USB 2.0 wireless keyboard receiver [3] USB PC For PC connection with USB 2.0 cable A-B [4] DB15 EXTENDED Extended port for external sensor, encoder, alarm, etc… [5] 12VDC Power supply Keyboard...
Page 11 Message Operation MENU DESCRIPTION Start or Stop printing job. Combine and press CTRL + Start / Stop SHIFT + ENTER on keyboard to fast Start / Stop print. All the nozzles on cartridge will push out ink. After purge Purge you will see 2 lines of ink on substrate.
Page 12 1st Floor, Unit 12 & 13 Mountain View Office Park 28 Bella Rosa Street Rosenpark, Durbanville, 7550 CK2001/081877/23 Website: www.code4u.co.za Email: info@code4u.co.za Tel: 0861-725-278 VAT: 429 0205 964...
Page 13: Installation Procedures
INSTALLATION PROCEDURES See at QUICK GUIDE. GETTING STARTED Install the machine on your conveyor according to the installation instructions. See the Quick Guide for more information. Set print direction and appropriate throw distance to obtain best print quality (1-3 mm). Insert ink cartridge.
Page 14: Encoder
ENCODER An encoder is recommended to ensure the best print quality regardless the inconsistent speed of conveyor. Based on the resolution (R) of the encoder, you can calculate the diameter (D) of the wheel you should use based on the following formula: D = R / ( π...
Page 15: Combining An External Sensor And
COMBINING AN EXTERNAL SENSOR AND ENCODER The printer only comes with one external port. However, there are cases where you may need to attach two external accessories, such as an external sensor and an encoder (to get perfect print quality). In these cases, please use the following instructions: See picture for this situation.
Page 16: Encoder Alarm
ALARM Allow users to monitor operation of Machine from a distance via the light signals from the Alarm. This below table will show what each pin on the DB15 port of the alarm beacon is used for: PIN ON DB15 PORT VALUE DESCRIPTION Printer stopped printing for...
Page 17: Input And Output
No cartridge is plugged to printer. No Cartridge Red light will turn on The value of Ink Level on smart card is lower 0.5 ml. Ink Low Yellow light will turn on The value of Ink Level and alternative volume on smart Ink Out card are empty.
Page 18: Keyboard Setup
Keyboard setup Insert the receiver of wireless keyboard to USB port (port 2) on machine, remove the protective stamp in the battery slot and turn on the button at the back of the keyboard to begin operating machine with wireless keyboard. From the main screen of the printer, use arrow keys to move the cursor to Settings and begin implementing the initial setup for the printer.
Page 19 Press “ESC” to exit. Select Press “Insert” to insert more data, “Save” and input name to variable, barcode, logo, … save your messages 2. Create Chinese message Select Select font Create Chinese Normal/Custom Input "ni". Press 1 - 5 to select Select font size and lines Press “Insert”...
Page 20: Firmware Introduction
FIRMWARE INTRODUCTION From the main screen, use arrow keys to select the desired menu: Message, Operation or Settings. Press Enter to select. Press ESC to go back to the main screen. Message Create new or open existing messages on printer memory. NOTES: While doing this, please be sure you already stop printing.
Page 21 In the input section on machine, press Insert and use arrow keys to move the cursor to Symbol and press Enter. Use the arrow keys to move your cursor to the desired object and press Enter to insert the symbols into message. Below symbols are required be inserted from your wireless keyboard: Logo Insert logo or image from printer into message.
Page 22 Example To print the following counter on each object: 001, 003, 005….101, 001, 003, 005 … Start: 1 Current: 1 Reset: 101 Step: 2 Repeat: 1 Up/Down: Up Fill zero: Enable Add counter here NOTES: User can insert up to 6 independent counters in one message. Box/Lot Is a dual counter.
Page 23 The two counters will be printed as below: NOTES: Press Enter to apply each setting. Setup Counter 1, then Counter 2. Maximum value of Reset is up to 2,000,000,000. Maximum value of Step is 250. Counter will be backup and continue in case of power failure. Date Insert current date into message.
Page 24 In the input section of Edit Messages, press Insert and use arrow keys to move the cursor to Expired and press Enter. Input format of expired date at Format (similar format with the current date). Move the cursor to Expired and input the date that your product will be expired. Press Enter to confirm settings and insert into the message.
Page 25 Text: Select Enable to display barcode value, otherwise select Disable. Value: Input value for your barcode. arrow keys to move to the cursor to your desired object and change the value. Press Enter after each value change to save and apply settings. Example after printed will be like this: First print Second print...
Page 26: Operation
Shiftcode Insert Shiftcode into the message. From the designing section, use the arrow keys to move the cursor to your desired position in the message and press Insert. Then use arrow keys to move to Shiftcode and press Enter. Code: input name of Shiftcode. Maximum 2 characters (letter or number or both). Time: input start time of each shift in hour: minute.
Page 27: Settings
ITEMS DETAIL Prints Number of prints have been printed Ink levels Current amount of ink in the cartridge (ml) Speed Current speed (m/min) Resolution Current resolution (dpi) Stop Change status of machine from start printing to stop. To stop print, press ESC to go back to the main screen. Use arrow keys to go to Operation, select Stop to stop printing.
Page 28 Resolution Set the amount of ink drops on an inch. From the Settings menu, use arrow keys to Resolution, press Enter. Select your desired resolution and press Enter. Optional resolutions with standalone mode: 300x300 dpi. 300x150 dpi. 300x100 dpi. Optional resolutions with PC mode (Coming soon) Density Set the optical density of the print.
Page 29 Update Logo Update logos or images from USB flash to the machine memory. Be sure your new logos are available on your USB flash. Logos stored on your USB flash must be processed by our application See Convert logo. Machine accepts logo with .hex format only.
Page 30 Select Enable and input time for jetting (second(s)) at Time. Select Disable to disable random jetting. NOTES: Time for jetting varies from 10 to 60.000 seconds. This function is useful for Solvent base ink. So we recommend that, any user need enable this function with time around 15-30 seconds to help printing quality always perfect.
Page 31 Update Font Update different fonts and character sizes for Machine. There is one font at a time on Machine. Machine supports the following fonts while working with wireless keyboard. Font Lines 25.4 mm 12.7 mm 8.00 mm 5.92 mm 3.89 mm 2.54 mm Steps to update different font/size: Insert USB flash into USB port 1 on Machine.
Page 32 System time Set time and date for your system clock. From the Settings menu, use arrow keys to go to System clock and press Enter. Go to Date, use arrow keys to change date value and press Enter to apply. Go to Time, use arrow keys to change time value and press Enter to apply Rotate...
Page 33 Step 1 Copy all file of machine’s firmware to ROOT FOLDER of USB flash. See table below for more information. Languages File name Index Update 00SC.txt Finnish 01SC.txt Spanish 02SC.txt German 03SC.txt French 04SC.txt Russian 05SC.txt Vietnamese 06SC.txt Chinese 07SC.txt Korean 08SC.txt Portuguese...
Page 34: Update Firmware Instructions
IO signals Select start/ stop the printer from the button. From the Settings menu, select IO signals and press Enter. Then select input to active Start/ Stop. Reset Reset the memory of Counter variable on message. The memory of Counter will help you save the current value of Counter event you stop print or machine is turned off.
Page 35: Update Firmware
Extract firmware folder (.RAR file) to ROOT folder of USB flash drive. Insert USB flash drive into USB port 1 on machine. Update firmware From the main menu, use the arrow keys to go to Settings About Update Firmware Yes. This process will take 3 minutes.
Page 36: Update Font Latin
Update Logo Logo 2. Update Logo Logo 3. …… Update Logo Logo 20. Select All to update all logo. You can skip this step if it not need to you. Update font Latin This process will take 10 - 15 minutes. Goto Settings Update Font Latin.
