UG433: BGM220S Wireless Gecko Module
Starter Kit User's Guide
A Wireless Starter Kit with the BRD4310A Radio Board is an ex-
cellent starting point to get familiar with the BGM220S Wireless
Gecko SiP Module. It also provides the necessary tools for devel-
oping a Silicon Labs wireless application.

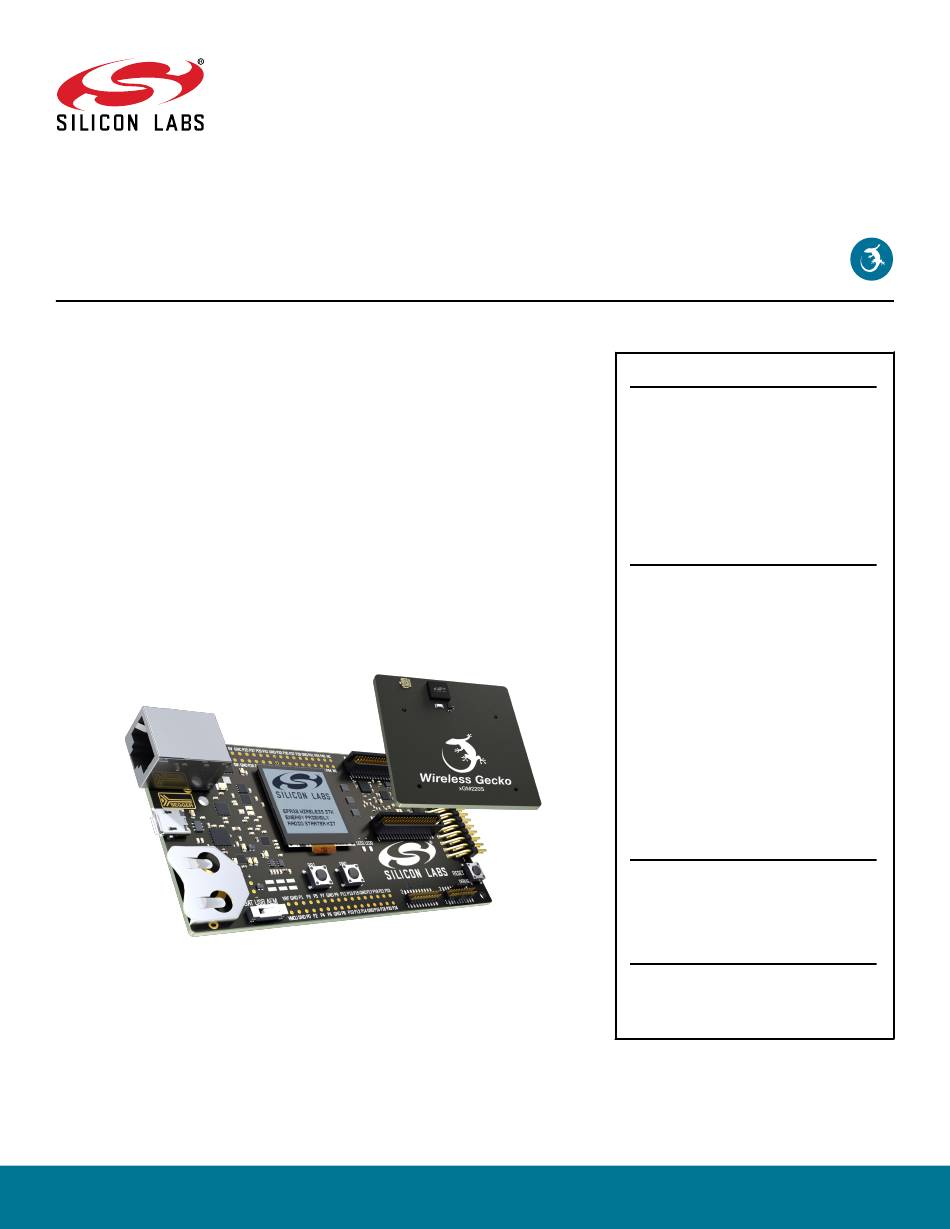

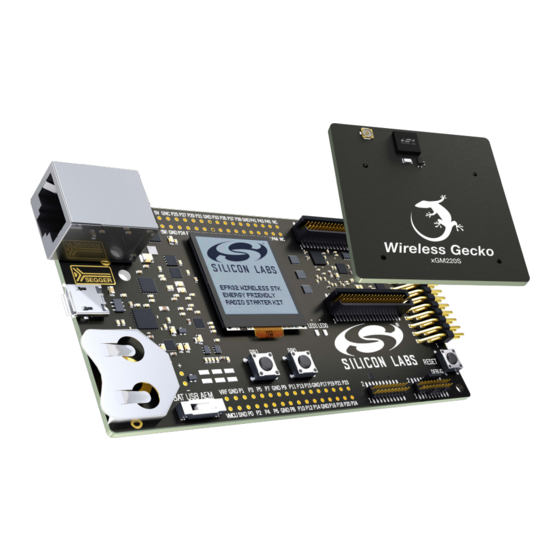

BRD4310A contains the BGM220S Module, and it is a plug-in board for the Wireless
Starter Kit Mainboard.
The Wireless Starter Kit Mainboard contains an on-board J-Link debugger with a Packet
Trace Interface and a virtual COM port, enabling application development and debugging
the attached radio board as well as external hardware. The mainboard also contains
sensors and peripherals for easy demonstration of some of the BGM220S's many capa-
bilities.
This document describes how to use the BRD4310A Radio Board together with a Wire-
less Starter Kit Mainboard.
silabs.com | Building a more connected world.
BRD4310A RADIO BOARD FEATURES
• BGM220S Wireless Gecko PCB Module
with 512 kB Flash, 32 kB RAM. Fully
integrated chip antenna, RF matching
network, RF crystal, and decoupling
capacitors (BGM220SC12WGA1).
• 32.768 kHz crystal for LFXO.
• 8 Mbit low-power serial flash for over-the-
air upgrades.
WIRELESS STK MAINBOARD FEATURES
• Advanced Energy Monitor
• Packet Trace Interface
• Virtual COM Port
• SEGGER J-Link on-board debugger
• External device debugging
• Ethernet and USB connectivity
• Silicon Labs Si7021 Relative Humidity and
Temperature sensor
• Low Power 128x128 pixel Memory LCD
• User LEDs / Pushbuttons
• 20-pin 2.54 mm EXP header
• Breakout pads for Module I/O
• CR2032 coin cell battery support
SOFTWARE SUPPORT
• Simplicity Studio™
• Energy Profiler
• Network Analyzer
ORDERING INFORMATION
• SLWSTK6103A
• SLWRB4310A
Rev. 1.0
