USER GUIDE
ver. 1.2 E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iAUDIO G3 and is the answer not in the manual?

Questions and answers

Related Manuals for Cowon iAUDIO G3

Summary of Contents for Cowon iAUDIO G3

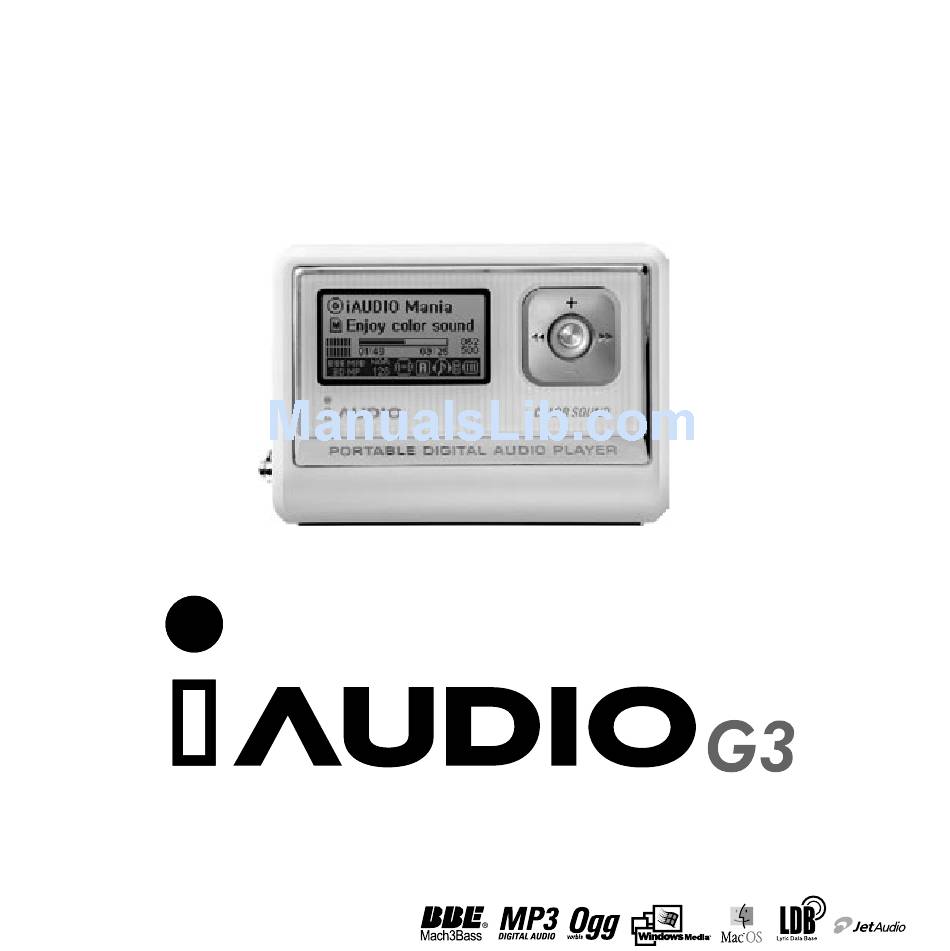

  • Page 1 USER GUIDE ver. 1.2 E...

  • Page 2: Copyright Notice

    • This product is for home use only and cannot be used for business purposes. • COWON SYSTEMS, Inc. has the exclusive copyright for this User Guide. It is prohibited to distribute this User Guide in part or in whole without permission.
  • Page 3 Our after-service center does not backup files in iAUDIO units. Please note that Cowon Systems is not responsible for any data loss from products entrusted to us for service. This product uses 1.2 – 1.5V batteries.

  • Page 4: Table Of Contents

    Getting Acquainted with JetShell Spectrum Window and Sound Effects Uploading MP3 Files to iAUDIO Deleting Files in iAUDIO Initializing Flash Memory (Formatting) iAUDIO G3 Converting Audio CD Tracks to MP3 Files and Uploading them to iAUDIO Simultaneously Other Features Installing and Using JetAudio...

  • Page 5: Iaudio

    • 3D Surround: Three-dimensional sound that gives the sound a wide sense of space. Easy Firmware Upgrades through Downloads You can easily upgrade iAUDIO G3 with the firmware download feature to always enjoy the latest features and enhancements for iAUDIO.

  • Page 6: Components In The Package

    4 Line Graphic LCD USB 2.0 Interface Long Play Time: Up to 50 hours of continuous play (Based on Cowon Systems tests with AA alkaline battery) Multi language support (Embedded common fonts that can display 40,000 characters from various languages)

  • Page 7: Specifications

    20Hz ~ 20KHz Size 64.0 x 45.0 x 17.1 mm (Width x Height x Depth) Weight 36 g (Excluding Battery) * WMA9 Professional, Lossless Codec, and Voice Codec are not supported iAUDIO G3 Left Earphone Jack – Display Names of Parts...

  • Page 8: Replacing Batteries / Connecting The Usb Cable

    Remove Hardware” before pulling out the cable. After downloading files, be sure to check that the iAUDIO LCD display is changed to READY before pulling out the cable. iAUDIO G3 Album Name Left and Right Output JetEffect (BBE, M3B, 3. Insert the – terminal of the AA...

  • Page 9: Basic Operations

    Display when USB is connected. splay when iAUDIO is reading data. Display when iAUDIO is writing data. iAUDIO G3 3. Basic Operations for Mode Change There are four modes: Digital Audio, FM Radio, Voice Recorder, and Line-in Recorder Example: When changing from Digital Audio to FM Radio Mode.
  • Page 10 • Press + or – to change to the desired values. • To select an item, press the lever. The changed value is immediately applied. • To return to the previous mode screen after setting, press the PLAY button. iAUDIO G3 Menu JetEffect...

  • Page 11: Basic Operations For Using Navigator

    To play a bookmarked file, select it and press Remove All: Delete all bookmarks. the PLAY button or move it to ▶ ▶ direction. iAUDIO G3 ■ Enter Navigator • To enter the Navigator screen, press and hold the lever.
  • Page 12 (A B). This audio block starts to play repeatedly. When you wish to release this feature, press the REC button again. 5. HOLD: Push the HOLD switch to the left. Now all iAUDIO button are locked and do not work. Simple Operations by Mode...
  • Page 13 • Save Current: Add the current radio station to Presets. • Delete Ch: Delete the current radio station. iAUDIO G3 Voice Recorder (Recording Voice with Built-In Mic) When iAUDIO is not in Voice Recorder, press the lever to enter the Mode menu and select Voice Recorder from the menu.
  • Page 14 Simple Operations by Mode Line in Recorder Mode Press the REC button to switch iAUDIO to recording standby status. (For the Autosync setting procedure, see Autosync Features in Page 38.) iAUDIO automatically monitors the LINE-IN jack and pauses recording until audio signals are received.
  • Page 15 In MP3 Player mode, briefly press the lever to enter JetEffect. When you select MP Enhance and press the lever, an On/Off menu appears. Press + or – to toggle it on or off. iAUDIO G3 5. 3D Surround: 3D Surround provides a 3D sound effect.

  • Page 16: Play Mode

    • On: Lyrics are automatically displayed when they exist. / Off: Lyrics are not displayed even if they exist. • To switch between the general play screen and the lyrics display screen in MP3 Player mode, press and hold the MODE button. (This operation works only for tracks with lyrics.)
  • Page 17 • Select Time and press the lever. Then press + or – to select 3 sec, 5 sec, 10 sec, 30 sec, 60 sec, Always ON, or Always OFF. 5 sec iAUDIO G3 iAUDIO Lyrics Auto Input Application LDB Manager This software is a lyrics auto input application used in the iAUDIO MP3 Player.

  • Page 18: Wakeup Mode

    Window. When you press the “Marking” button, the selected lyrics are added to the music source file, and when you press the “Close” button, the Lyrics Search Window is closed. iAUDIO G3 1. Set Time 2. WakeUp Mode Search window 3.
  • Page 19 • You can select Alkaline or Rechargeable. We recommend 1.2 to 1.5V NI-MH type (750mA or higher) or alkaline batteries for iAUDIO. • Select Battery Type and press the MENU button, and choose a battery type with the + and – buttons. iAUDIO G3 6. Song Order Song Order Download...
  • Page 20 • You can select between 0 and 8. 0 is Off. Higher values means longer interval between tracks. • The above numbers are not in seconds. iAUDIO G3 FM Radio 1. Stereo • Select Stereo or Mono when listening to FM Radio.

  • Page 21: Troubleshooting

    • For example, about 242MB is the normal capacity from 256MB products. Battery (Remaining Battery Capacity) • Displays the remaining capacity of the battery in iAUDIO as a V value. iAUDIO G3 Symptom Action Check if the HOLD button is in...
  • Page 22 Start or Stop Repeat A↔B Save Bookmarks MODE Mode Menu Select Mode Switch between Play and Lyrics Screen for lyrics-marked tracks means pressing briefly, and means pressing for 1 or more seconds. Using Buttons MP3 Player Mode When iAUDIO is playing...

  • Page 23: Fm Radio Mode

    Setting Menu Preset Mode Setting Volume Up Volume Down REC/A B Start or stop recording MODE Mode Menu iAUDIO G3 Voice Recorder / Line-in Recorder Mode When iAUDIO is playing Button Release Preset Mode Play/ Pause Power Off Play the next Preset...

  • Page 24: Jetshell

    Move cursor down REC/A B Change to MP3 Player mode MODE Navigator Mode Menu iAUDIO G3 What is JetShell? JetShell is the iAUDIO manager program providing the following features: • Downloading/Uploading files from/to iAUDIO. When a folder is selected • File management similar to Windows Explorer Expand the folder •...

  • Page 25: Connecting Iaudio And Installing Jetshell

    “iAUDIO” in My Computer as shown below, or “Control Panel -> System -> Hardware -> Device Manager”. 5. Now you can transfer files by using JetShell or Window Explorer. iAUDIO G3 Connecting iAUDIO and Installing JetShell For Windows 98 / 98 SE The E:\ drive shown in the illustration is an example, and it may be different from the actual drive name used by your PC.
  • Page 26 From the "Browse" window, select the [Win98] folder on the iAUDIO Installation CD, and click OK. 4. USB driver file for iAUDIO is found. Click Next. iAUDIO G3 Connecting iAUDIO and Installing JetShell 5. The driver files are copied and installed from the Installation CD.

  • Page 27: Introducing Jetshell

    • Installing iAUDIO's USB driver • Formatting iAUDIO in Windows Explorer • Upgrading iAUDIO's firmware iAUDIO G3 Player Section Double click an MP3, MP2, WAV, WMA, ASF, Audio CD track, or Playlist (m3u) file in the "File Management Window", or drag and drop files on the "Player Window" shown above. You can also select multiple files and then press the Play button.
  • Page 28 Transfer to PC Transfer the selected files or folder from iAUDIO to PC. iAUDIO G3 JetShell displays visually cool spectrums. When you click on the spectrum display area, the screen changes as follows. You can also enjoy various equalizers and sound effects.

  • Page 29: Downloading Music Files To Iaudio

    Never disconnect the USB cable while downloading. Make sure that the LCD status is READY before disconnecting USB cable. iAUDIO G3 Downloading Music files to iAUDIO 4. Another method is to put the files in the "Download List Window" first, and transfer them later.
  • Page 30 MP3 files. (The files compressed in a high bitrate have a higher sound quality and a bigger file size.) iAUDIO G3 Converting Audio CD Tracks to MP3 Files and Downloading Them to iAUDIO 2.

  • Page 31: Other Features

    When incorrect data is stored in the CD database, the texts may appear abnormally on your PC. This is not an error of JetShell but the information stored in CDDB. iAUDIO G3 iAUDIO G3...
  • Page 32 3. Editing ID3 Tag You can edit the ID3 tag of a MP3 file by selecting [Tools] – [Edit MP3 ID3 Tag] from the JetShell menu. iAUDIO G3 4. Changing MP3 Bitrate You can change the bitrate of MP3 files by selecting [MP3 Bit Rate Conversion] from the menu.

  • Page 33: Installing And Using Jetaudio

    ‘JetAudio’, run the file "CD-ROM:\JetAudio\setup.exe." For detailed information on using JetAudio, refer to the JetAudio ‘Help’ after installation, or post your question on the Q&A board at the site "http://www.JetAudio. com." iAUDIO G3 Guide to Firmware Upgrade Guide to Firmware Upgrade A.

  • Page 34: Upgrading Firmware

    If you have already installed firmware setup program before, the following window may appear. In this case, click OK to remove previous firmware setup program, then run "setup.exe" again. iAUDIO G3 Guide to Firmware Upgrade ② Read the License Agreement. To continue installation, click Yes.
  • Page 35 Guide to Firmware Upgrade ④ Specify a group name, then click Next. ⑤ The files are copied. iAUDIO G3 Guide to Firmware Upgrade ⑥ The installation is complete. ⑦ Connect the USB ports of iAUDIO to your PC using the provided USB cable.
  • Page 36 ⑨ Firmware upgrade program searches iAUDIO. Make sure that iAUDIO is properly connected to the PC. If the program cannot find iAUDIO for a long time, click Cancel, disconnect iAUDIO from PC and try again from step 7. iAUDIO G3 Guide to Firmware Upgrade ⑩ When firmware upgrade program finds iAUDIO, the following screen appears.

  • Page 37: Fcc Statement

    * Increase the separation between the equipment or device * Connect the equipment to an outlet other than the receiver’s * Consult a dealer or an experienced radio/TV technician for assistance iAUDIO G3 Warranty / Technical Support Limited Warranty JetAudio, Inc., is commited to providing you the flawless products by using the best materials and the workmanship available.
