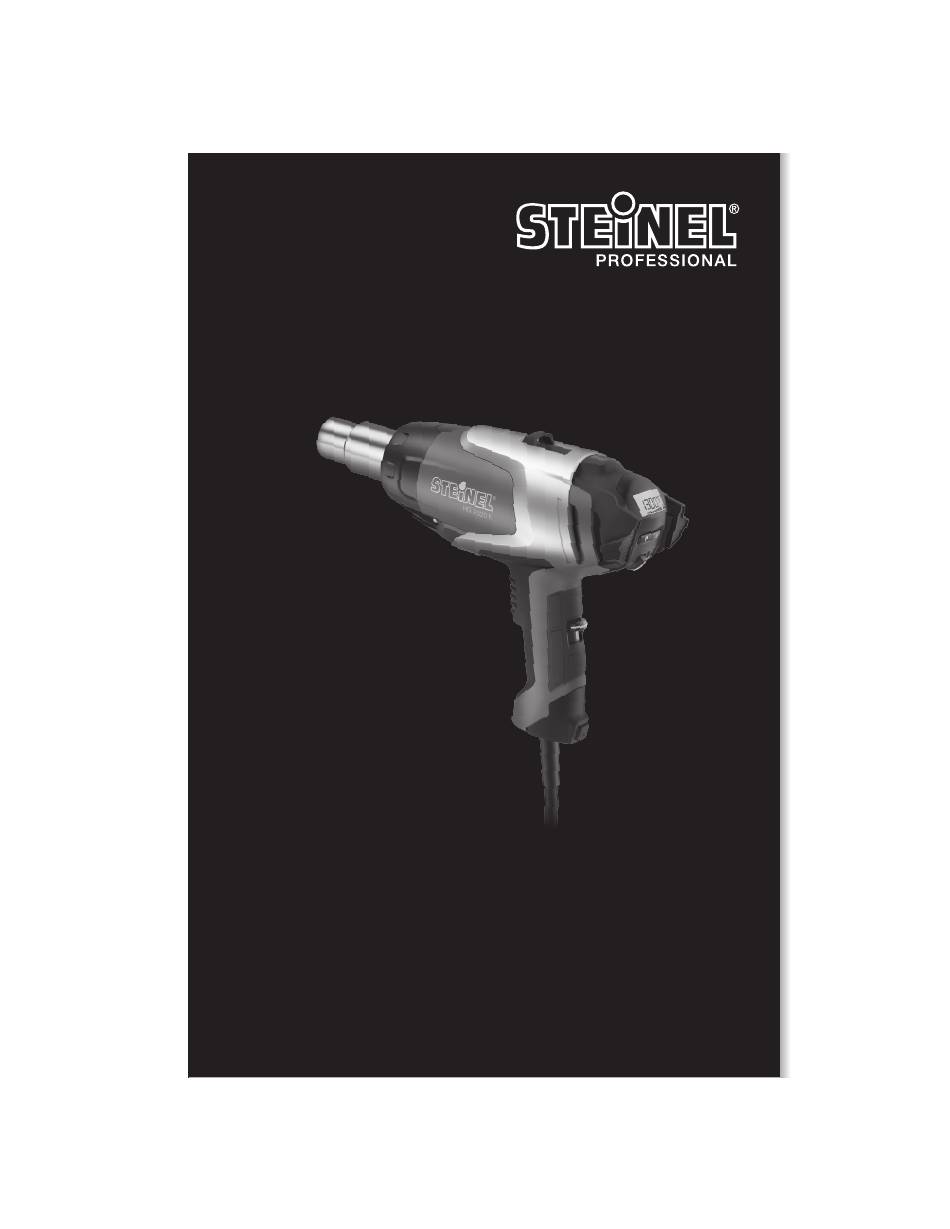

- Page 1 Information HG 2520 E 19.07.16 15:50 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 English IMPORTANT SAFETY INSTRUCTIONS READ THESE INSTRUCTIONS UL WARNING: Read this instruction book before using. To reduce risk of fire or electric shock, do not expose to rain or moisture. Store indoors. Double insulated. When servicing, use only identical replace- ment parts.
- Page 3 English 15. Do not use in bath or over water. 16. Safety glasses should be worn when using this tool. 17. It is recommended that leather gloves be worn when using a hot air tool. 18. Always unplug after use. 19.
-
Page 4: Extension Cords
English Thank you Thank you for choosing a STEINEL hot air tool. This tool can be used for completing a wide range of jobs safely and reliably, such as soldering, welding PVC, shaping, drying, shrink-fitting, stripping paint, etc. All STEINEL tools are manufactured to the highest standards and undergo a strict process of quality control. Used in the proper manner, this hot air tool will give you lasting satisfaction. -
Page 5: For Your Safety

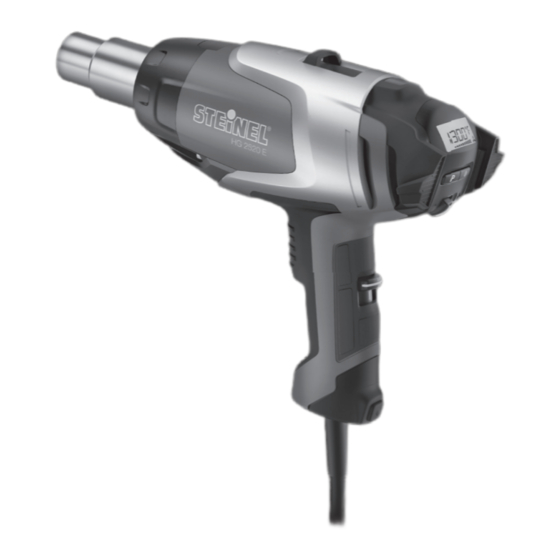

English For Your Safety First time use, a small quantity of smoke may occur when the tool is used for the first time. This smoke is caused by binding agents released from the heater’s insulating film during the first time of use. - Page 6 English HG 2520 E Tool features HG 2520 E Stainless steel outlet nozzle Button for airflow rate mode Removable guard sleeve Program selector button and memory button Removable cap for mounting HG Scan PRO Joystick (for setting temperature and airflow rate) temperature scanner...
- Page 7 English Tool description - Operation Please note: The distance from the object you are working on depends on material and intended method of working. Always try out the airflow and temperature on a test piece first. Using the attachable accessory nozzles (see accessories page 11-12) the flow of hot air can be controlled with maximum precision.
- Page 8 Heating element The HG 2520 E hot air tool can be switched off directly after use. There is no need to let the tool cool down after the work process. This does not affect the heating element's life.
-
Page 9: Changing The Heating Element
English Changing the heating element The plug-in heating element in the HG 2520 E can be changed in a matter of seconds. Important! Disconnect tool from power supply. 1. Undo guard sleeve screws and remove guard sleeve (Fig. 1). 2. Undo 4 screws at the end of the hot air outlet nozzle and detach heating element. - Page 10 HG2220E_HG2420E_DE_HG2120E_HG2320E 13.06.14 11:06 Seite 2 HG2220E_HG2420E_DE_HG2120E_HG2320E 13.06.14 11:06 Seite 2 English Applications HG 2220 E HG 2220 E Here are some of the applications you can use STEINEL hot air tools for. This selection is by no means exhaustive – no doubt you can immediately think of other examples. - Applying films in advertising and vehicle wrapping.
- Page 11 G2320E 13.06.14 11:06 Seite 2 G2220E_HG2420E_DE_HG2120E_HG2320E 13.06.14 11:06 Seite 2 English Accessories HG 2220 E Your retailer has a wide range of accessories for you to choose from. HG2220E_HG2420E_DE_HG2120E_HG2320E 13.06.14 11:06 Seite 2 HG2220E_HG2420E_DE_HG2120E_HG2320E 13.06.14 11:06 Seite 2 HG 2220 E HG 2220 E - 2 - - 2 -...
- Page 12 English Accessories 1 Round nozzle, 5 mm Prod. No. 110048652 19 Fast welding nozzle, 4 mm, with narrow air slot Prod. No. 110039076 2 Round nozzle, 10 mm Prod. No. 110048653 20 Fast welding nozzle, 5 mm, 3 Round nozzle, extended, Prod.
- Page 13 Spare Parts List HG 2520 E Pos. Prod. No. HG 2520 E, Type 3516 110051395 Spare Part Housing Set HG 2520 E US 110050703 Spare Part Protection Tube HG 2520 US 110040701 Spare Part Cover Cap HG 2520 US 110025024...
- Page 14 English Wiring Diagram HG 2520 E yellow display cable A (2:1) black white green blue yellow black blue brown blue - 14 - GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 15: Limited Warranty
English Limited Warranty STEINEL warranties its hot air tools, if properly operated and maintained, and used under normal conditions, for a period of one (1) year from the date of purchase. Warranty does not apply to wearable items such as heating elements which require periodic replacement. -
Page 16: Other Rights
English Disclaimers of warranties The warranties contained herein are expressly in lieu of any other expressed or implied warranties, or any other obligation on the part of the Company. Any implied warranty of merchantability or fitness for a particular purpose shall expire one (1) year after the date the product is purchased by the original end-user Purchaser.
