45LMA Analog Output Card
For use with Analog Q45U Ultrasonic Proximity Mode Sensors
• Analog Output Card plugs into any Q45U ultrasonic proximity mode sensor in place
of the existing output card.
• Selectable 0 to 10V dc voltage-sourcing or 4 to 20 mA current-sourcing analog
outputs
• Selectable output slope: positive or negative as target distance increases
Use the following procedure to install the 45LMA Analog Output Card:
1) Remove power from the Q45U sensor.
2) Remove the output card from the Q45U sensor (Figure 1). Use a small
screwdriver, or similar tool, to dislodge the output card from its connector.
Then, slide the card out of the sensor.
3) Slide the 45LMA card into the sensor in place of the sensor output card
(Figure 3); push it firmly into place.
4) Configure DIP switches as necessary. See programming instructions and table for
information.
5) Apply power to the sensor.
5-Segment Target
Position Indicator
(N = Near)

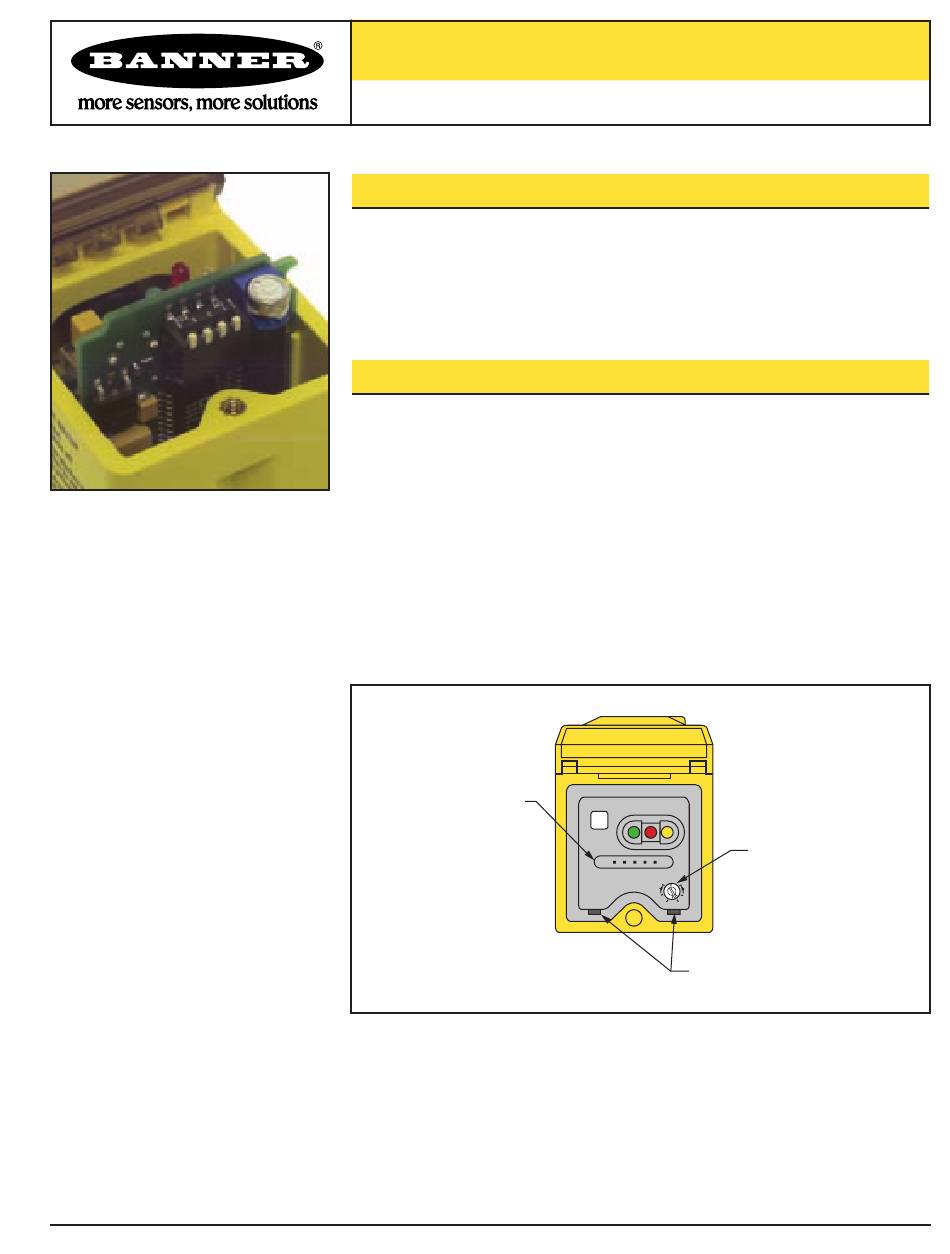

Figure 1. Analog Q45U (45LMA card) features
05/01
Features
Installing the 45LMA Card
Limits
N
Resp.
Speed
1 2 3 4 5
+
–
Slots for Inner
Cover Removal
Response
Adjustment
P/N 57539
