Lakeland PTK220 Usage Instructions

PTK220 Test Kit Replacement Parts

Part No. Description
1 RM01503 1" Air Supply Hose Assembly
2 RM01504 1/4" Test Tubing with Fittings
3 RM00483 Manual Timer
12 RM00492 Twist Lock Adapter with
13 RM01108 Twist Lock Adapter with

How to Return a Lakeland Chemical Suit for Repairs

Please contact your Lakeland Customer Service Representative at
800-645-9291 for a Return Goods Authorization Number (RGA). All
returns must accompany an RGA number obtained from Lakeland
Customer Service. There is a service charge for inspecting suits over
the warranty period of 90 days.
Do not send any suit that has been exposed to any kind of chemical,
or a dirty suit that has been improperly stored in a hazardous area!
1525 Perimeter Parkway NW, Suite 325
Huntsville, AL 35806
1-256-350-3873
Phone:
Toll-Free: 1-800-645-9291
info@lakeland.com
1/4" Male Fitting
1" Male Fitting
Notice: This document contains general use information of the products and services
described. All products should be used only by trained and qualified personnel who
have examined all relevant cautions and warnings. Always review all applicable laws and
regulations, as well as your company's procedures before use. Consult your company's
safety/health officer for more information.
Copyright © 2023 Lakeland Industries Inc
PTK220
2
3
4

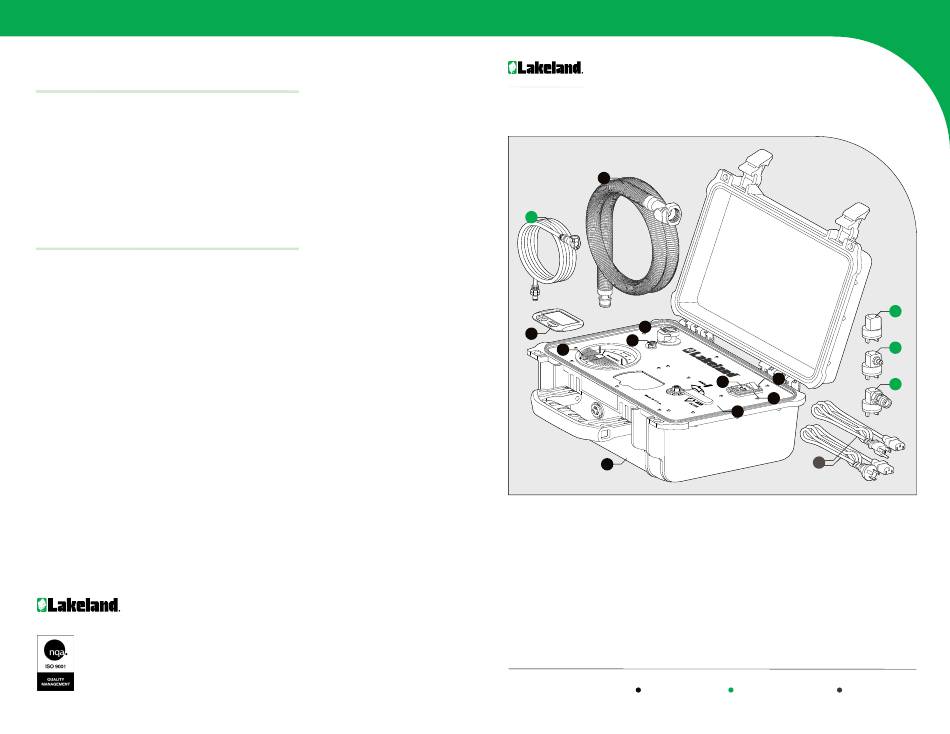

Test Kit Components

1 1" Air Supply Hose
2 1/4" Test Tubing
3 Manual Timer
4 Magnehelic Gauge 0-10"
5 1/4" Female Test Tubing Connector
6 1" Female Air Supply Hose Connector
7 10A, 250V Fuse Holder
8 Universal Power Cord Connector
v1.5 – 7.23
-
Pressure Test Kit Usage Instructions
1
6
5
10
7
8
9
16
9 Yellow "Open - Close" Air Valve
10 Blower Motor "On - Off" Switch
11 Blank Twist Lock Adapter for NFPA Suits
12 Twist Lock Adapter with 1/4" Male Fitting
13 Twist Lock Adapter with 1" Male Fitting
14 1/4" Male Quick Connect Fitting (not shown)
15 6' - 120V and 220V Power Cords
16 Complete Blower Assembly
located in test kit case located in cloth storage bag
11
12
13
15
located in shipping box
