HOYA MW 10
Instruction Manual
2020model
2021model
TAIS コード：01815-000001
We illustrate after two pages by the photograph of 2020 models.
2021 models only vary in the design of the head mount.
The basically function explanation is the same.
Please make sure to read this manual before using the product.
Advertisement
Table of Contents
Related Manuals for Hoya MW10 HIKARI
Summary of Contents for Hoya MW10 HIKARI

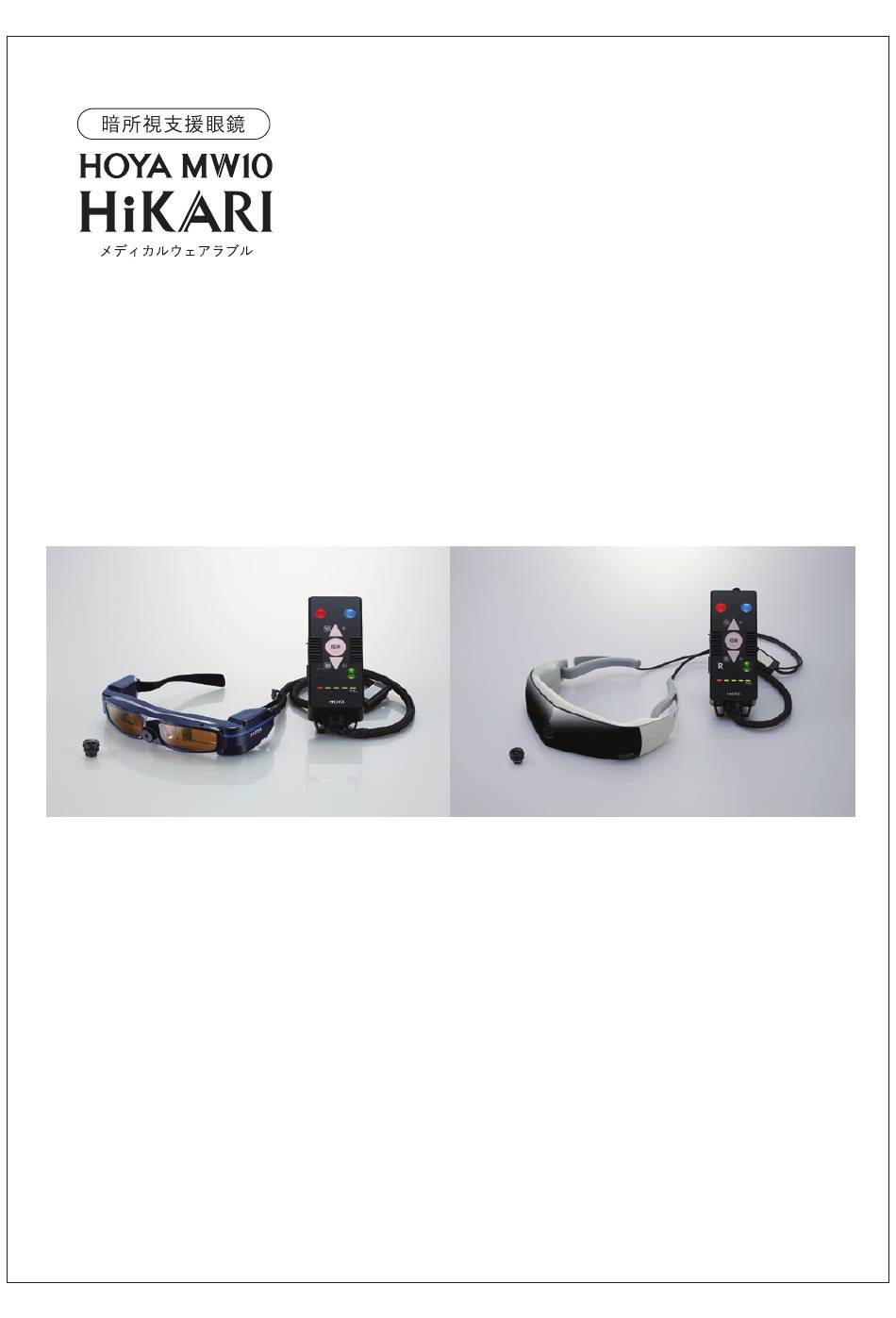

- Page 1 HOYA MW 10 Instruction Manual 2020model 2021model TAIS コード：01815-000001 We illustrate after two pages by the photograph of 2020 models. 2021 models only vary in the design of the head mount. The basically function explanation is the same. Please make sure to read this manual before using the product.
- Page 2 Introduction MW10 is a scotopic vision eyeglass-type wearable device, developed to aid the vision in low-light places. It amplifies light in dim places and shows an image as a bright pic- ture. By using MW10, wearers can see objects brightly, even in dark places. Because of the device’...
-
Page 3: Items Included In The Package
Items included in the package ② ① ③ ① Headset ② Controller (with built-in battery) * ① and ② are integrated as a unit. ③ Lens kit (standard camera lens and wide-angled camera lens) ④ ⑥ ⑤ ⑦ ⑧ ④Carrying case ⑤Carrying pouch (used when wearing the device) ⑥Lens storage case ⑦Eyeglass holder strap... -
Page 4: Name Of Each Part
Name of each part Headset Temple Nose Pad Camera Outer Lens Controller DC power jack for charging DC power jack cap Operation button *Not for use LED indicator... - Page 5 Types of camera lens The camera lens is exchangeable, and comes in two types. Please use the type to suit your purpose. The length differs for each type. It may be helpful to remember that the shorter lens is Standard “standard,”...
- Page 6 Exchanging the camera lens (preparation before starting up the device) The camera lens attached to MW10’ s headset is exchangeable. Remove the already attached lens by rotating it in a counter-clockwise direction (left) as seen from the front, as if turning a screw, and secure the new lens in place by rotating it in a clockwise direction (right).
-
Page 7: Long Press
The functions of the Operation Button Long press Short press Switching of monitor screen display Power On ⇔ Off Display ⇔ Non-display Switching of Switching of the camera angle photometric modes Average ⇔ Spot Standard ⇔ Wide-angle When the button light is turned on [Switching of color tones] [Switching of color tones] ... - Page 8 How to read the LED indicator The LED indicator lights up when power is turned on, or while the battery is being charged. The lighting or blinking of the LED lets you confirm the residual battery quantity that can be used as a reference. The battery lasts approximately for 4 hours.
-
Page 9: Using The Device
Using the device 1. Turn the power on ◆ Operation Button Power Button (red) Press the Power Button for 3 seconds or more. ■ If you turn the power on, the Power Button and the LED indicator either blink or light up. ■... -
Page 10: Wearing The Device
2. Wearing the device In a bright, light place, hold the headset’ s temples with both １ hands, and put on the device slowly from the front while fitting it along the contour of your face. ■ Be careful not to poke the eye or the face with the temple tip. ■... - Page 11 Adjust the position of the headset to make sure that the images displayed can be seen properly. ■ With a standard camera lens Adjust the headset up and down so that an object placed 1.5 meters ahead of your toes is displayed in its original size (equal magnification) and can be seen easily.
- Page 12 3. How images are seen on the monitor screen ◆ Screen 1 Real images (shown through a see-through display) Camera-captured images ◆ Screen 2 If the battery’ s remaining power falls below 40%, a red bar is displayed on the right-hand side of the camera-captured images, indicating that the battery is running low.
- Page 13 4. Select the angle-of-view mode If you long press Button A , you can select the angle-of-view modes (standard camera lens or wide-angle camera lens). If you turn on the switch once again, you’ ll find that the camera is still in the mode that was last selected.
- Page 14 5.Adjust the brightness of the monitor screen The displays on the monitor screen can be made brighter or darker. Please adjust the brightness to suit your physical condition and the surrounding environment. It is dangerous if you change the brightness while you walk. Make sure to stop walking, and change.
- Page 15 6.Change the monitor screen’ s display magnification The images displayed on the monitor screen can be enlarged or reduced. Note, however, that the range of vision differs between a standard camera lens and a wide-angle camera lens. So, even though the numerical figures (magnification) are the same, the way the images are seen differs.
- Page 16 Visual performance conversion table ＊Condition: 1.5 meters ahead ＊Magnification differs, depending on the camera. The numerical figures are for reference only. Wide-angle Camera Lens Standard Camera Lens Horizontal Horizontal maximum maximum 142 degrees 27 degrees The numerical figures displayed on the screen are common to both lens types. (dig=degrees) Magnification Horizontal...
- Page 17 7.Change the tone of color (support function) You can change the color tone of the display image. ◆ Operation Button Standard Button Press the Standard Button ”標準“ for 2 seconds or more, then release. ■ The image displayed on the monitor screen switches from color to monochrome. The display changes, each time you press the Standard Button for 2 seconds or more.
- Page 18 8. Adjust the way the images are seen ( “adjustment of the photometric mode” ) “Adjustment of the photometric mode” is a function that adjusts an object’ s quantity of light and makes corrections to realize optimal vision. By pressing Button A briefly, you can select the way things are seen from two different modes.
- Page 19 9.Turn off the display of the monitor screen ( “non-display” ) When you are in a light, bright place, please use the device by turning off the display. ◆ Operation Button Power Button (red) When the power is turned on, push the Power Button (red) briefly. ■...
-
Page 20: Turn Off Power
10. Turn off power ◆Operation Button Power Button (red) Press the Power Button until the light goes off (about 15 seconds). ■ The exit screen is displayed, and the power goes off after approximately 15 seconds. 電源を切る (Power goes down) シャットダウン中...
