LightBoy B3Q3S-CE Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
B3Q3S-CE / B3Q3H-CE
MODEL
Never attempt to operate or service the equipment before reading the entire manual.
Failure to read and understand the safety meaasages and operating instructions
could result in injury to yourself and others.
For your own safety and protection from physical injury, carefully read, understand,
and observe the safety instructions described in this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B3Q3S-CE and is the answer not in the manual?

Questions and answers

Summary of Contents for LightBoy B3Q3S-CE

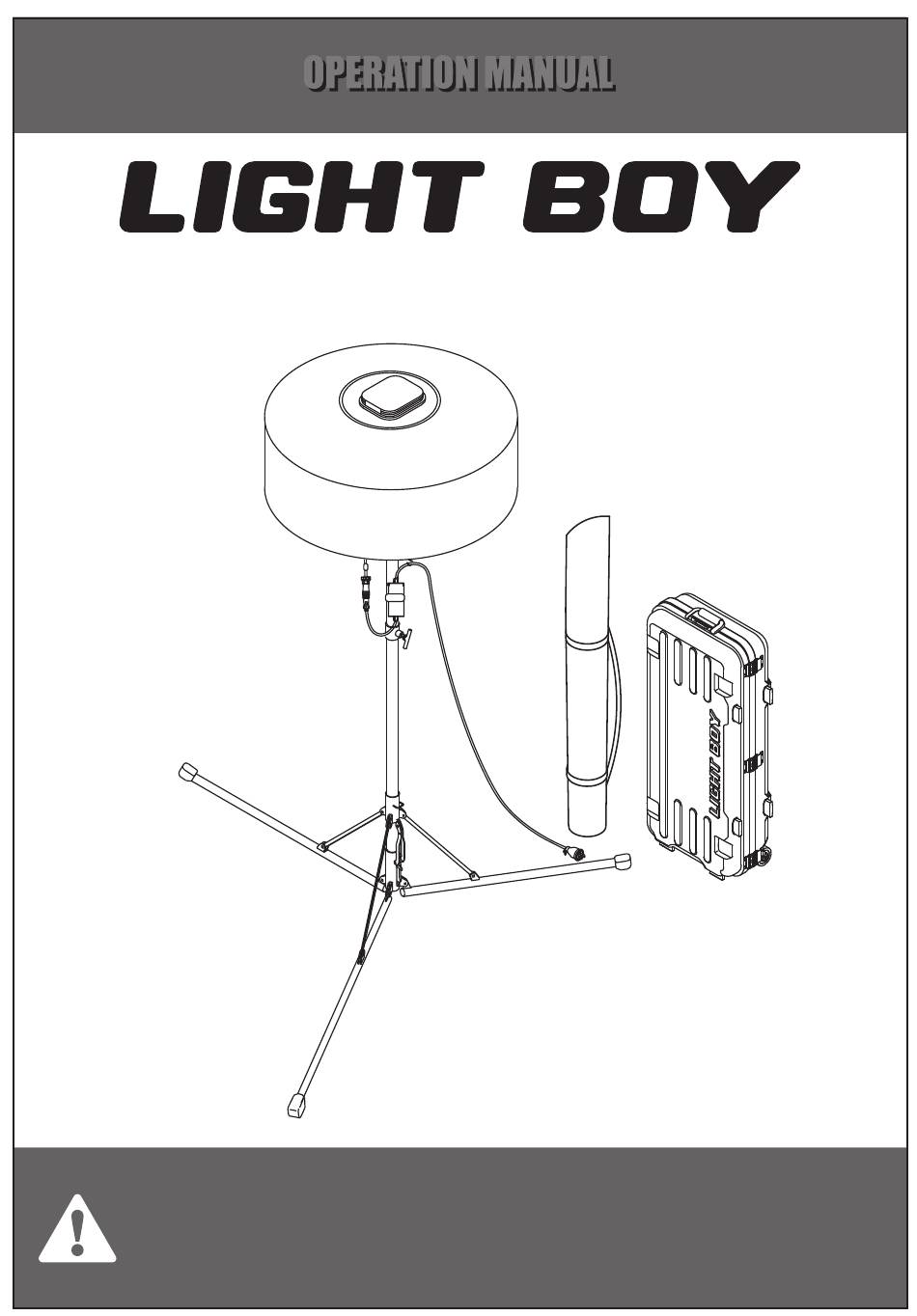

  • Page 1 B3Q3S-CE / B3Q3H-CE MODEL Never attempt to operate or service the equipment before reading the entire manual. Failure to read and understand the safety meaasages and operating instructions could result in injury to yourself and others. For your own safety and protection from physical injury, carefully read, understand,...
  • Page 2 MEMO...
  • Page 3 Thank you for purchasing LIGHT BOY B3Q3S-CE / B3Q3H-CE ●This manual provides informational and proceudures to sefely operate and maintain the LIGHT BOY Products. Before using the unit, be sure to read and understand all of the instructions. ●Keep a copy of this manual with the unit at all times.
  • Page 4 ■In order for you to use safely ●The three safety messages shown below will inform you about potential hazards that could injure you or others. The safety messages specifically address the level of exposure to the operator and are preceded by one of three words: DANGER, WARNING, CAUTION.

  • Page 5: Table Of Contents

    CONTENTS ◆ Notice for safe use ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． 4 ◆ Location of Warning Labels ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． 12 ◆...

  • Page 6: Notice For Safe Use

    ◆ Notice for Safe Use 1.Installation Please install on a flat surface. If it is installed in an unstable place, it may fall or be damaged. ●Install it on a flat surface where the legs can be fully deployed to prevent it from tipping over.
  • Page 7 Always secure the latch to prevent tipping over. Be sure to secure the latch. If unit is used without securing the latch, the unit may tip over and lead to an Upper accident. Lower ●The latch has two positions, upper and lower.
  • Page 8 Be careful during transporting. ●When transporting the lighting system,always place in stow position and place tripod in its carrying case. Please make sure that all knobs are securly tightened. 3.Balloon Do not touch the lamp when lamp is on. Do not touch the balloon part due to the high heat emitting. ●Depending on the ambient temperature, the surface temperature of the balloon could increase.
  • Page 9 4.Generator Use appropriate generators. ●If an output power of the generator is not appropriate, the life of the gener- ator will be shortened and the lamp may turn off or blink. It may not light up due to generator matching issues.
  • Page 10 Please check the capacity of the generator when using the lighting system with other equipment. ●If there are any electrical appliances connected to the generator, please ensure that there is enough electrical capacity available for the lighting sys- tem . Do not apply any strong impacts.
  • Page 11 6.Storage Equipment should be stored in a clean, dry location out of the reach of children and unauthorized personnel. ALWAYS keep the balloon away from sharp objects and exces- sive amounts of heat. Since protective covers and carrying cases are made of cloth, placing it in a hot place such as near a fi re may cause deforma- tion, kogation, or fi re.
  • Page 12 Safety maintenance. ●Before and after use, be sure to remove mud and dirt, and perform inspection and maintenance such as lubrication and grease up. Use grease for the maintenance. Do not apply parts-cleaner on the mast. Please note the ambient temperature. ●The lighting system should only be used in temperatures between -10°...
  • Page 13 MEMO...

  • Page 14: Location Of Warning Labels

    ◆ Location of Warning Labels This lighting system is equipped with a number of safety labels. These labels are provided for operator safety and maintenance information.The illustrations below and on the next page show these labels as they appear on the machine.Should any of these labels become unreadable, replacement can be obtained from your dealer.

  • Page 15: Product Overview

    ◆ Product Overview Dimmerl Switch LED Lamp Lamp Guard Indicator Lamp Protective Cover Balloon Cloth Message Strip Carrying Case Zipper Noise Filter Connector Knob Mast Power Plug Latch [ B3Q3S ] [ B3Q3H ] Tripod...

  • Page 16: How To Install

    ◆ How to Install ■ Installing the tripod ◎ Make sure there is enough space around the Lighting system solo for tri- pod to be deployed. 1.Remove tr ipod from its c ar r ying Push case. The tripod legs are secured by a strap.
  • Page 17 ■ Installing the balloon 1.Place balloon assembly onto mast and tighten the knob securely. Protective A l w ay s t i g h t e n t h e Cover k n o b s e c u r e l y.T h e balloon could possibly fall of f and damage the equipment or re-...
  • Page 18 5.Bind the power cable on the mast with cable ties at five location as shown on the right. Cable Tie...

  • Page 19: Operation

    ◆ Operation ■ Operating Raising the mast. 1.Tighten the lower knob securely and raise the 3rd mast until the stopper pops out. (B3Q3H) 3rd Mast Stopper 2.Loosen the lower knob and raise second mast to desired height. Once desired height has been achieved tighten the lower knob.

  • Page 20: On/Off Switch

    ◆ ON/OFF Switch ■ Turning Lights ON < Powering from Generator > ◎ If there are any electrical appliances connected to the generator, please ensure that there is enough electrical capacity available for the lighting system. ◎ Make suer oil, fuel and battery liquid are filled. ◎...
  • Page 21 ◎ Blue LED on the center of the switch flashes in the silent mode. ●The silent mode works in only 100W. The dimming control is only available in order of [OFF] ⇄ [100W]. ●To switch back to normal mode, press and hold the dimmer switch for 3 sec- onds.

  • Page 22: Storage

    ◆ Storage ■ Stowing the balloon 1.Unbind the cable ties and loosen the lower knob. Push down on the 2nd mast until mast is fully inserted into the 1st mast. Tighten the knob fully again. When lifting and low- Mast ering the mast, keep Knob h a n d s a n d f i n g e r s...
  • Page 23 5.Store the power cable inside the Cable pocket of the protective cover. Zip up Zipper the protective cover. Close the loop fastner at the bottom of the protective cover. Pocket Loop fastener 6.Loosen the upper knob and lift the light assembly from the mast. Knob ■...
  • Page 24 3.O n c e t h e t r i p o d l e g s a r e i n t h e stowed position, place strap around all 3 legs. Buckle Secure legs by inserting the both sides of buckle into each other.

  • Page 25: How To Replace Parts

    ◆ How to Replace Parts Replacing balloon cloth. ( Parts No.A-1001104-00 ) 1.Unzip the zippers at the top and bot- Balloon Cloth tom of the balloon cloth. Zipper 2.Slide the old or worn balloon cloth Balloon Cloth over the top of the lamp guard as- sembly.
  • Page 26 Replacing filter. ( Parts No.A-4002738-00 ) 1.Remove the balloon as described on the right. Turn the balloon assembly upside down to access the filter. Knob 2.Turn the three locking tabs outwards to release the air plate. Air Plate Locking 3.Remove the air plate and filter. Air Plate Filter 4.Install a new filter and reinstall an air...

  • Page 27: Optional Message Strip

    ◆ Optional Message Strip ●Prepare the optional message strip. ●Attach the message strips to the velcro. ◎ Message strips fit on both sides of the balloon. Always place the messages strips firmly to avoid being blown away by strong winds.

  • Page 28: Maintenance

    ◆ Maintenance ■Inspection/Maintenance For a prolonged life cycle and extended quality follow the recommended guidelines. Figure Part Check item Solution Clean / Replace △ Lamp guard Dirty, rusty or damaged? ◎ LED Unit Defective LED or broken? Replace ◎ Balloon (Envelope) Dirty, or ripped? Replace ◎...
  • Page 29 ■How to stow ●Take off the mud or dirt, and please apply the lubrication grease up the metal part. ●Avoid stowing in area that can be exposed to the rain, or high humidity. ●Take apart the components separately and stow them in each cases. ●Use grease for the maintenance.

  • Page 30: Trouble Shooting

    ◆ Trouble Shooting 1.Circuit Diagram Connection Board Connector ⑦ ⑧ ⑨ ⑩ ④ ③ ⑪ ⑫ ⑤ ⑬ ⑭ ⑥ LED Power Source ⑳ ⑲ ⑮ ⑯ ⑰ ⑱ LED Lamp ② ① Indicator Lamp Dimming Board Dimmer Switch Metal AC Cable Connector 3P Plug...
  • Page 31 2.Faulty Operation of Lamp (In this Flow Chart, the number is from circuit diagram.) Check the AC circuit breaker. Precheck to see if the unit shows If it trips again, ground fault or Check the outlet of AC230V. short circuit. some symptoms (including Indicator Do not use.
  • Page 32 Entire 1 or more boards of LED Lamps are not working. Turn off and Check the Connection Board is broken. conduction of Connecting Board. replace The board(s) of LED Lamp is/are broken. replace The chip(s) is /are broken. One or some LED chips are not working. replace the LED Lamp board(s).
  • Page 33 Dimming control trouble Dimmer Switch does not work. Press Dimmer Switch to see if Dimming Board or Dimmer switch or the Indicator Lamps switch to both of them are broken. "300W" "200W" "100W" replace "OFF" "300W"... Replace Dimming Board to see if the trouble remains.
  • Page 34 3.Lack of air in balloon Balloon is not inflating fully Zipper is open. Close the zipper completely. Balloon cloth is ripped. Repair or exchange the balloon cloth. Filter is clogged. Clean up or replace the filter. LED is operating silent mode. Press the dimmer switch and hold it for 3 sec.
  • Page 35 4.Other Lamp is not operating Solution Possible problem Is power plug plugged in properly? Plug in to the power source. Is generator’s main switch turned ON? Turn ON the switch. Are there any wire cables disconnected? Fix the relevant secttion. Are any other equipments connected to the generator? Disconnect other equipments.

  • Page 36: Specification

    ◆ Specification Model B3Q3S-CE B3Q3H-CE Voltage (V) AC : 230 *1 Frequency (Hz) 50 / 60 Current (A) 1.4 (230V, 300W) Type Dimming Control 3 dimming stage: 300W/200W/100W 40,000 (300W) Total Luminous Flux 30,000 (200W) (lm) *2 16,000 (100W) Outside Temperature (°C)

  • Page 37: Disposal

    ◆ Disposal Your LIGHT BOY mobile lighting system mainly consists of metallic materials that can be re-melted in steelworks and smelting works and that is therefore al- most infinite recyclable. LIGHT BOY mobile lighting system contains substances that may adversely affect the environment and human health.

  • Page 38: How To Get Help

    ◆ How to get help When you have questions or the towers breakdown, please take note the fol- lowings, and contact the dealer or the sales store nearby. ●Unit model and Serial number (on nameplate) B3Q3○-CE - ○○○○○○ ●Use environment How did you use? ●How long did you use? Approx hours of use.
  • Page 39 Description content and points to Description content and points to be checked be checked Ways to operate each part of the Receiving the manual machine Description of caution of safety Ways of maintenance Description of the content on alarm Treatment and cotact in case of display and labels location trouble found About warrantry and guaranteed...
  • Page 40 Manufacturer : 1-39-1 Yazaki-cho, Fuchu-shi, Tokyo Japan https://www.light-boy.eu/...
