Instruction Manual
WARNING! Please READ and UNDERSTAND
this MANUAL carefully before using the
product in order to REDUCE the RISK of
INJURY. SAVE this manual for instructions.
QUESTIONS? CALL 877-800-BAIR (2247) OR VISIT WWW.B-AIR.COM
POWERFUL
IDEAL FOR
DRYING KITCHEN & BATHROOM FLOORS
DRYING WET SURFACES
DRYING HARD-TO-REACH CRAWL SPACES
DAISY
SAFETY
SAFETY
CHAINABLE
CERTIFIED
CERTIFIED
10 FOOT
STACKABLE
CORD
5 UNITS
YEAR
WARRANTY
AIR MOVER HIGH VELOCITY FAN
VP-25
3 SPEEDS
3 ANGLES
AMPS
HOME PLUMBING PROJECTS
CIRCULATING AIR
COOLING WORK SPACES
OPERATION
SAFETY
SERVICE
WARRANTY
CONTACT
SPECIFICATIONS
TROUBLESHOOTING
4
HP
LOW
LIGHT &
COMPACT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vent VP-25 and is the answer not in the manual?

Questions and answers

Michael V
July 28, 2025

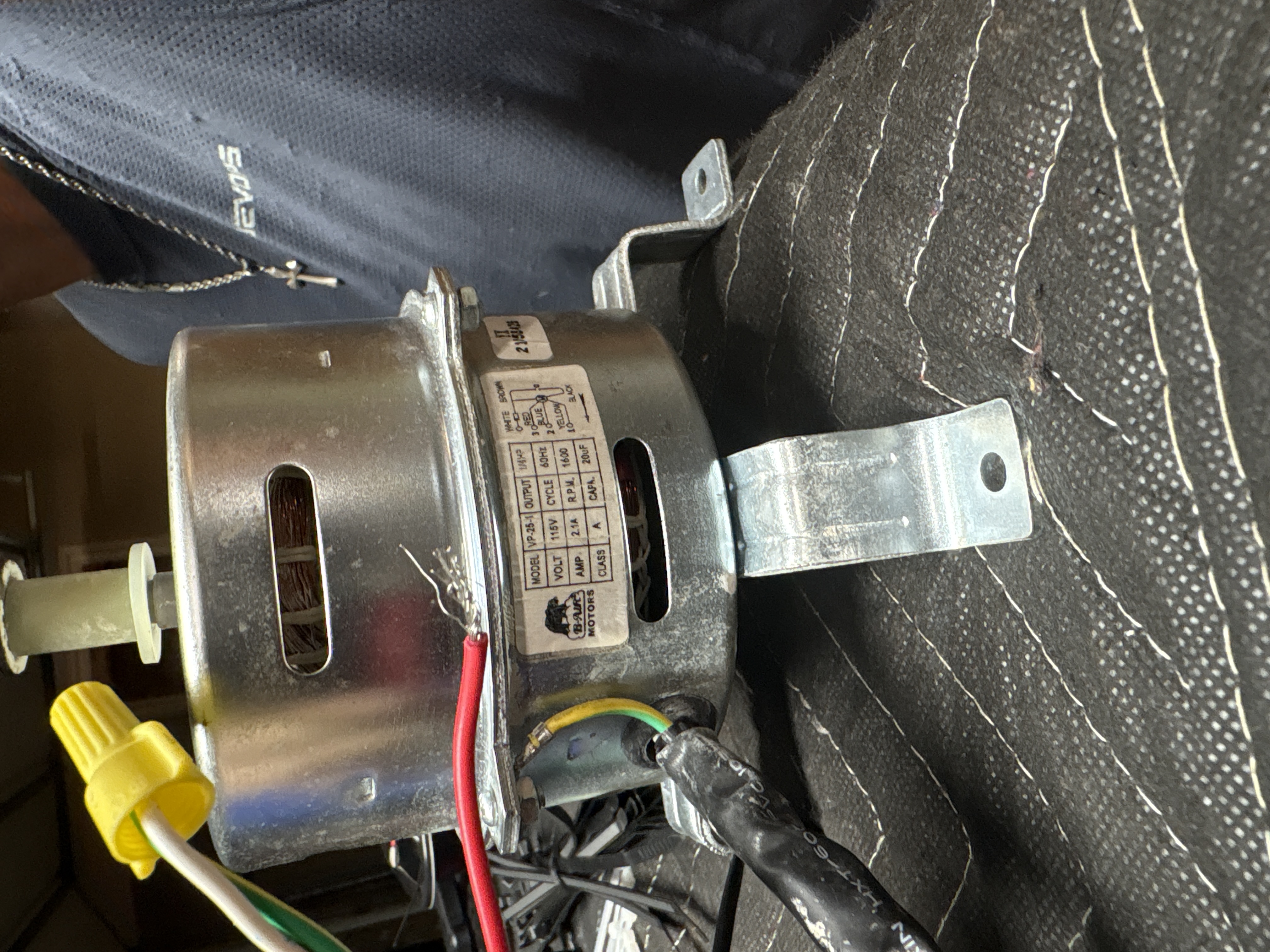

We had some damaged units we put working parts together to get one good unit. However when replacing motor we forgot to take pic first. Now we have a red wire on the motor hardness and don’t know where to connect it. Is this the power in and ties to the black wires? Please advise.

User image 6886e8e525eeb

Summary of Contents for B-Air Vent VP-25

  • Page 1 MANUAL carefully before using the CONTACT product in order to REDUCE the RISK of SPECIFICATIONS INJURY. SAVE this manual for instructions. TROUBLESHOOTING QUESTIONS? CALL 877-800-BAIR (2247) OR VISIT WWW.B-AIR.COM AIR MOVER HIGH VELOCITY FAN VP-25 POWERFUL 10 FOOT 3 SPEEDS LIGHT &...
  • Page 2: Table Of Contents

    B-AIR.COM Table Of Contents Important Safety Instructions Motor Specifications & Electrical Requirements Grounding Instructions Introduction Product Features Unpacking & Checking Of Contents Operating Instructions Maintenance Cleaning User Servicing Instructions Lubrication Storage & Transportation Servicing Limited Warranty Parts List Specifications Troubleshooting Warranty Registration DATE: 12.14.2017...
  • Page 3: Important Safety Instructions

    B-AIR.COM ATTENTION! Read all safety rules carefully before attempting to operate the Vent VP-25. Please retain this manual for future reference. NEVER operate this unit when flammable materials or vapors are present – electrical devices produce arcs or sparks which may cause a fire or an explosion.
  • Page 4: Motor Specifications & Electrical Requirements

    B-AIR.COM Motor Specifications & Electrical Requirements This B-Air Vent VP-25 has a 3-speed, 115-volt, 60 Hz induction motor with a grounding conductor. Thermally protected, it will automatically shut down if overheated. The motor will restart automatically once cooled, for as long as it is plugged into a power source.
  • Page 5: Introduction

    Since the Vent VP-25 pulls only 2.1 amps on high and has daisy chain capability, up to 5 units can be connected together using just one outlet. This allows the operation of more equipment while creating a dynamic drying vortex.
  • Page 6: Unpacking & Checking Of Contents

    B-AIR.COM Unpacking & Checking Of Contents Unpack your B-Air Vent VP-25 carefully and inspect if all parts are intact. If any of the parts are missing or damaged, please call 1-877-800-BAIR (2247) or email info@b-air.com. Operating Instructions This B-Air Vent VP-25 requires NO ASSEMBLY. The VP-25 is packaged and ready to be put to work.
  • Page 7: Lubrication

    Call B-Air for an RMA (Return Merchandise Authorization Number) b. Have your proof of purchase ready. Upon inspection, we will advise you of the repairs needed and the cost (if applicable). B-Air will issue repair or replacement parts depending on warranty.
  • Page 8: Parts List

    B-AIR.COM Parts List 1. Air Intake Grill (Fan Side) VP1-18 VP1-03 2. Fan VP1-15 3. Housing VP1-01 4. Motor VP1-17 5. Air Intake Grill (Motor Side) VP1-09 6. Capacitor VP1-07 7. Switch VP1-22 8. Power Cord VP1-13 9. Circuit Breaker VP1-06 10.
  • Page 9: Specifications

    B-AIR.COM SPECIFICATIONS Motor 1/4 HP Amps L 1.7 / M 1.8 / H 2.1 AMPS Built in Power Outlet 9.5 AMPS Speeds 3 / Positions 3, 0º, 45º, 90º Certification C-ETL-US Daisy Chain Yes / Stackable 5 units Voltage 115V Cycle 60Hz Max Static Pressure 1.3”...
  • Page 10: Troubleshooting

    B-AIR.COM TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Unit Not Running a) Switch is OFF a) Turn Switch On b) No Power b) Plug Unit In; Check Circuit Breaker c) Bad Outlet c) Check Outlet/Change To Another Outlet d) Faulty Switch d) Replace Switch*...
  • Page 11: Warranty Registration

    B-AIR.COM Thank y f y r p chase. Warranty Registration ONLINE Please fill out and submit your warranty form at: www.b-air.com/register BY MAIL Please complete, mail or fax your product registration card. For multiple units, please list serial numbers on a separate sheet.
  • Page 12 B-AIR.COM 550 South Ayon Ave. Azusa, CA 91702 1-877-800-BAIR (2247) Fax: (626) 385-3307 Email: info@b-air.com Website: www.b-air.com SENDER AFFIX ADDRESS STAMP HERE HERE MAIL TO B-Air Warranty Registration 550 South Ayon Ave Azusa, CA 91702...
  • Page 13 COMPRENDRE ce MANUEL avant utilisation de CARACTÉRISTIQUES ce produit afin de RÉDUIRE les RISQUES de BLESSURES. CONSERVER ce manuel pour les DÉPANNAGE instructions. DES QUESTIONS ? APPELER +1 877-800-BAIR (2247) OU VISITER WWW.B-AIR.COM SOUFFLEUR D'AIR HAUTE-VÉLOCITÉ VP-25 3 VITESSES LÉGER PUISSANT CORDON 5 UNITÉS...
  • Page 14 B-AIR.COM Table des matières Instructions de sécurité importantes Caractéristiques du moteur et besoins électriques Instructions de mise à la terre Introduction Fonctionnalités du produit Déballage et vérification du contenu Mode d’emploi Maintenance Nettoyage Instructions d’entretien Lubrification Stockage et transport Service après-vente Garantie limitée...
  • Page 15: Instructions De Sécurité Importantes

    B-AIR.COM ATTENTION! Lire attentivement toutes les règles de sécurité avant l’utilisation du souffleur d’air VP-25. Garder ce manuel pour vos futures références. NE JAMAIS utiliser cette unité en présence de matériaux ou vapeurs inflammables – Les appareils électriques produisent des arcs ou étincelles qui peuvent causer un incendie ou une explosion.
  • Page 16: Caractéristiques Du Moteur Et Besoins Électriques

    Caractéristiques du moteur et besoins électriques Le souffleur d’air VP-25 par B-Air est doté d’un moteur à induction avec conducteur de terre de 115 volts, 60 Hz et est muni de 3 vitesses. Avec sa protection thermique, le souffleur d’air s’arrêtera automatiquement en cas de surchauffe.
  • Page 17: Introduction

    B-AIR.COM Introduction Conçu pour déplacer de larges volumes d’air, le souffleur d’air VP-25 peut être utilisé pour sécher les moquettes, les meubles, les sols et également comme ventilation. Fonctionnalités du produit Compact mais puissant, le souffleur d’air VP-25 est léger et parfait pour une utilisation dans les zones difficiles d’accès, placards, armoires ou toute autre espace confiné...
  • Page 18: Déballage Et Vérification Du Contenu

    B-AIR.COM Déballage et vérification du contenu Déballer le souffleur d’air B-Air VP-25 délicatement et inspecter si toutes les pièces sont intactes. Si toute pièce venait à manquer ou serait abîmée, appeler 1-877-800-BAIR (2247) ou envoyer un email à info@b-air.com. Mode d’emploi Le souffleur VP-25 ne requiert AUCUN ASSEMBLAGE.
  • Page 19: Lubrification

    Appeler B-Air pour un RMA (Numéro d’autorisation pour retour de marchandise) b. Avoir la preuve d’achat. Après inspection, nous vous informerons sur les réparations nécessaires ainsi que leur coût (si applicable). B-Air prendra en charge les réparations ou le remplacement des pièces en fonction de la garantie. Garantie limitée La garantie couvre les défauts de matériel et de fabrication s’il est utilisé...
  • Page 20: Liste Des Pièces

    B-AIR.COM Liste des pièces VP1-18 1. Grille du conduit d’entrée d’air (côté ventilateur) VP1-03 2.Ventilateur VP1-15 3.Habitacle VP1-01 4. Moteur VP1-17 5. Grille du conduit d’entrée d’air (côté moteur) VP1-09 6. Condensateur VP1-07 7. Interrupteur VP1-22 8. Cordon d’alimentation VP1-13 9.
  • Page 21: Caractéristiques

    B-AIR.COM CARACTÉRISTIQUES Moteur 1/4 CH Amps B 1,7 / M 1,8 / H 2,1 AMPS Prise intégrée 9,5 AMPS 3 Vitesses / 3 Positions 0°, 45°, 90° Certification C-ETL-US Branchement en chaîne Oui / Empilable 5 Voltage 115 V Cycle 60 HZ Pression statique max 1,3”...
  • Page 22: Dépannage

    B-AIR.COM DÉPANNAGE PROBLÈME CAUSE POSSIBLE SOLUTION Moteur ne fonctionne pas a) Interrupteur sur arrêt (OFF) a) Mettre l’interrupteur sur marche (ON) b) Mauvaise prise électrique b) Brancher l’unité ; vérifier le disjoncteur c) Interrupteur/Cordon c) Vérifier la prise électrique / d’alimentation défectueux...
  • Page 23: Enregistrement De La Garantie

    B-AIR.COM M ci p r vo e achat Enregistrement De La Garantie EN LIGNE Compléter et envoyer le formulaire de garantie à : www.b-air.com/register PAR COURRIER Compléter, envoyer ou faxer la carte d'enregistrement de la garantie de votre produit. Pour plusieurs unités, lister les numéros de série sur une feuille séparée.
  • Page 24 B-AIR.COM 550 South Ayon Ave. Azusa, CA 91702 1-877-800-BAIR (2247) Fax: (626) 385-3307 Email: info@b-air.com Website: www.b-air.com ADRESSE DE METTRE L'EXPÉDITEUR TIMBRE ENVOYER À B-Air Warranty Registration 550 South Ayon Ave Azusa, CA 91702 ÉTATS-UNIS...
