Summary of Contents for DNA TOOLS-00159

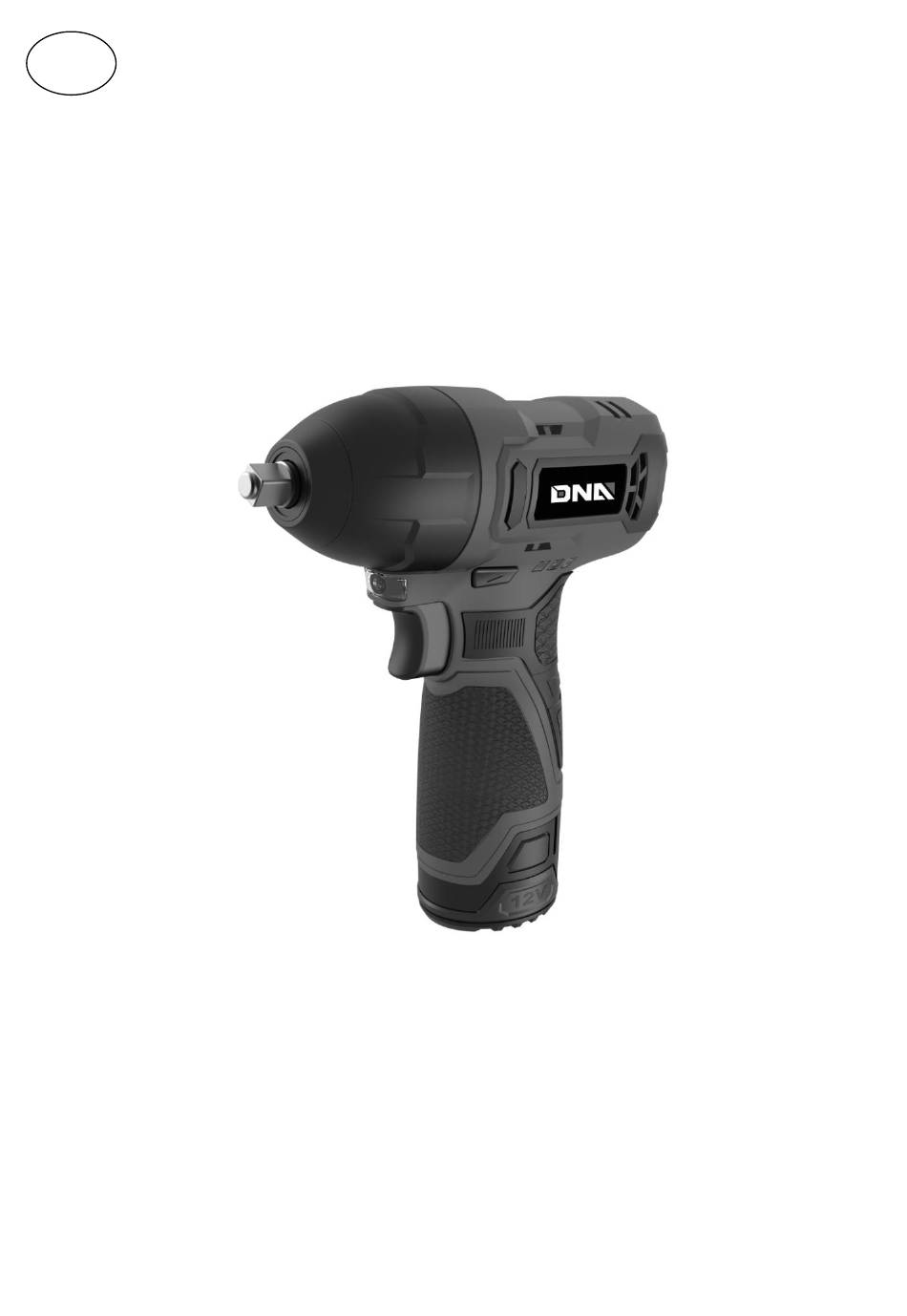

- Page 1 INSTRUCTION MANUAL Cordless Impact Wrench TOOLS-00159/00160 Power tool...
-
Page 2: Description Of The Symbols
DESCRIPTION OF THE SYMBOLS The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents. -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 5: Intended Use
eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. -
Page 6: Technical Specifiations
LIST OF MAIN PART 1. Chuck 2. LED work light 3. On-off switch 4. Battery indicator 5. Forward/ reverse rotation switch TECHNICAL SPECIFIATIONS Power 12 V Speed 0-2700/min Max. Torque 120Nm Chuck size 3/8” Noise Sound pressure level 73,2 dB(A) K=3 dB(A) Sound power level 84,2 dB(A) K=3 dB(A) Vibration level a... -
Page 7: Operation
2) Limit operating time and shorten trigger time. OPERATION Before use Remove any packing material and loose parts from unit. Check the accessories before use. It should be fit with the machine and your purpose. If the machine is new, the battery must first be charged. Attention! After long time storage, the battery capacity will be reduce. -
Page 8: Maintenance
trigger is pressed, the faster the rotation speed. To switch the machine off, release the On/Off trigger Reverse-rotation Lever Important! The machine has to come to a complete stop before the reverse rotation lever can be used; otherwise the machine may be damaged. Use the reverse-rotation lever to switch between clockwise (normal) and anticlockwise rotation or vice-versa.
