Summary of Contents for CLEAR DESIGN COVE CPOP

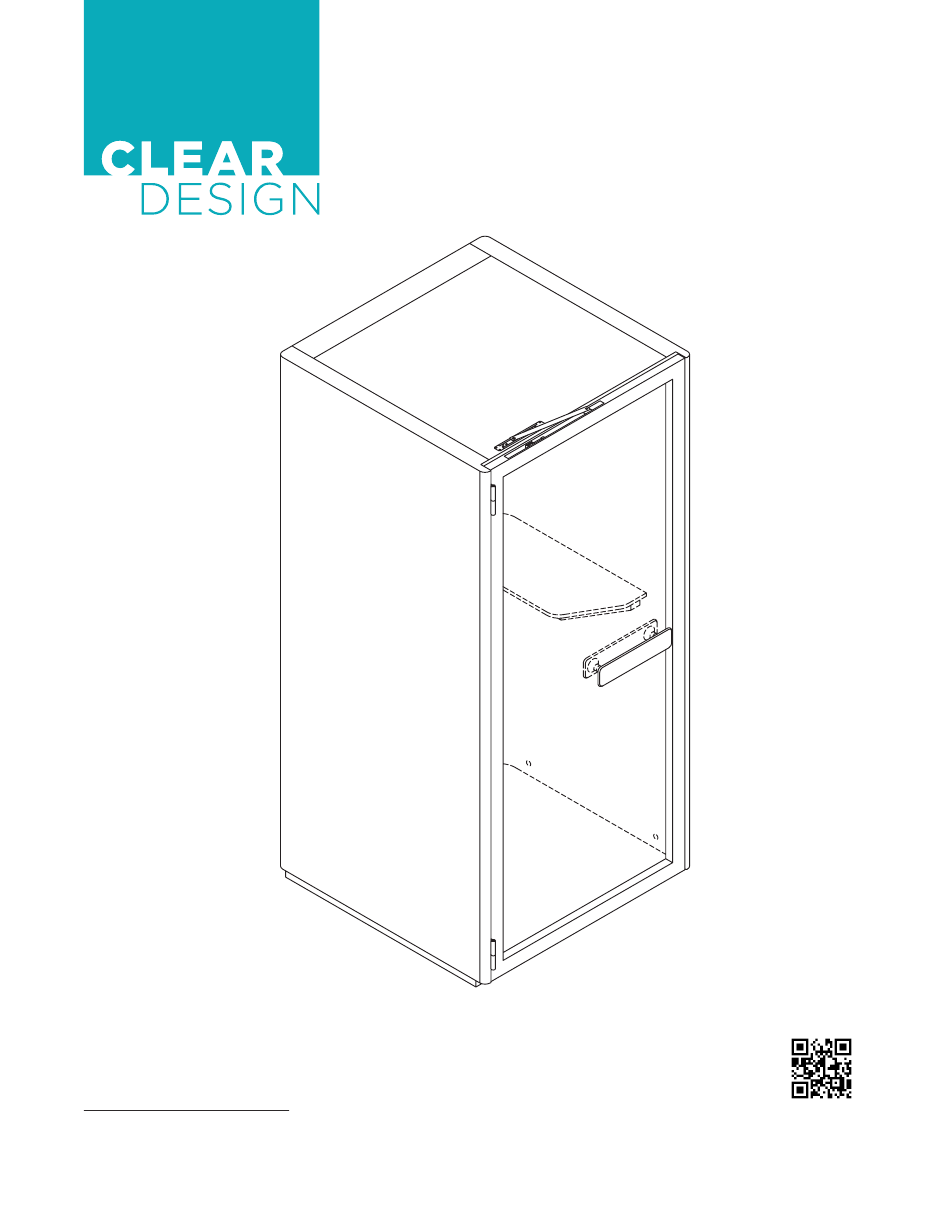

Page 1 CPOP COVE PHONE BOOTH Watch Entire General Installation Guide Install Video...
Page 3 PARTS LIST CODE DESCRIPTION Right Panels (External & Internal) Left Panels (External & Internal) Top Panels (External & Internal) Back Panels (External & Internal) CPOP Glass Swing Door Base Frame w/ Side Step Door Handle Concealed Door Closer Table Set (Top with Bracket) Reinforce "L"...
Page 4 ATTACH REINFORCE L–BRACKETS TO BASE FRAME Remove front casters and insert L–brackets into small openings on both left and right side of base. Secure L-brackets from underneath base using Scan to Watch Step cap screws. Note: Bring data and power cables out from bottom of base through backside cutout.
Page 5 2 | SET BASE FRAME TO FINAL POSITION Set base frame to final position before setting up the pod. If positioning pod next to a wall, base needs to sit 6 inches from the wall. If needing to Scan to Watch Step level pod, casters will need to be removed permanently.
Page 6 3 | SECURE EXTERNAL SIDE PANELS Remove plastic wrap from panels. Set external panels on first tier of base frame and secure using cap screws. Scan to Watch Step Left Side Right Side Front Side...
Page 7 4 | SECURE EXTERNAL BACK PANEL Remove plastic wrap from back panel. Set external back panel on first tier of base frame. Feed base wires through bottom of back panel and secure Scan to Watch Step to both side panels using cap screws. Note: Use a right-angle drill attachment to secure back panel to left side panel.
Page 8 5 | SECURE EXTERNAL TOP PANEL Separate external and internal panels. Remove plastic wrap from external top panel and set on top of all side panels and secure. Scan to Watch Step Note: Pull back insulation from inside of external panel and secure to back panel using cap screw.
Page 9 6 | CONNECT TOP INTERNAL PANEL CABLES AND SECURE Run LED light wires through top panel and connect to internal panel. Press back panel into place and make sure magnets snap into place Scan to Watch Step on all sides. LED Light Sensor Front Side...
Page 10 7 | CONNECT INTERNAL BACK PANEL CABLES AND SECURE Scan to Bring internal back panel into pod at an angle. Connect pod cables Watch Step to internal back panel, run data cable through back panel, and press back panel into place. Make sure magnets snap into place on all sides.
Page 11 8 | CONNECT INTERNAL RIGHT SIDE PANEL Bring internal right panel into pod. Press right side panel against wall and make sure magnets snap into place on all sides. Scan to Watch Step Front Side...
Page 12 9 | CONNECT INTERNAL LEFT SIDE PANEL Bring internal left panel into pod. Press left side panel against wall and make sure magnets snap into place on all sides. Scan to Watch Step Front Side...
Page 13 10 | SECURE TABLE BRACKET AND TABLE TOP Run data cable through table bracket and connect. Align table bracket to pre-drilled holes on right and back panels. Secure using screws. Once Scan to Watch Step bracket is secured, set table top on bracket and align with pre-drilled holes.
Page 14 11 | SECURE GLASS SWING DOOR Remove plastic wrap from door. Slide door hinge barrels through top and bottom hinge pins located on pod frame. Glass door hinge Scan to Watch Step barrels will sit flush with frame hinge barrels. Front Side...
Page 15 12 | INSTALL DOOR HANDLE Insert plastic caps inside each handle raiser. Align interior and exterior handle raisers to pre-drilled holes in glass door and secure using screws Scan to Watch Step on opposite corners. Using the magnet provided, place metal plates onto handles.
Page 16 13 | SECURE CONCEALED DOOR CLOSER Slide concealed door closer from top panel over to door. Secure using screw. Scan to Watch Step...
Page 17 OPTIONAL | ADJUST THE CLOSING AND LATCHING SPEED Door closer speeds have been adjusted when leaving the factory. In case of interference from external factors such as door and environment, speed of door closing device needs to be adjusted appropriately. The closing speed valve (valve 1) should be adjusted first and then the latching speed valve (valve 2).
