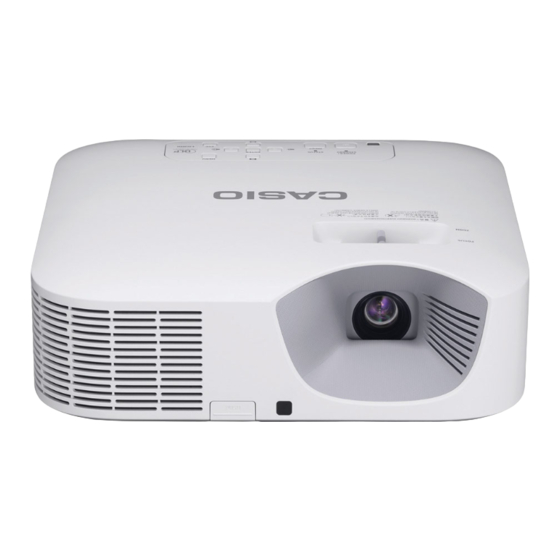

DATA PROJECTOR
DATA PROJECTOR
XJ-V Series
XJ-V Series
XJ-V10X/XJ-V100W/
XJ-V10X/XJ-V100W/
XJ-V110W
XJ-V110W
XJ-F Series
XJ-F Series
XJ-F10X/XJ-F20XN /
XJ-F10X/XJ-F20XN /
XJ-F100W/
XJ-F100W/
XJ-F200WN /
XJ-F200WN /
XJ-F210WN
XJ-F210WN
D
Network Models
Modèles réseau
Modelos de red
English
Setup Guide
z Be sure to keep all user documentation
handy for future reference.
z To obtain the latest version of this
manual visit the website at the URL
below.
https://world.casio.com/manual/projector/
Français
Guide d'installation
z Conservez la documentation à portée de
main pour toute référence future.
z Pour obtenir la toute dernière version de
ce manuel, consultez le site à l'adresse
suivante.
https://world.casio.com/manual/projector/
Español
Guía de configuración
z Asegúrese de tener a mano toda la
documentación del usuario para
futuras consultas.
z Para obtener la versión más reciente de
este manual, visite nuestro sitio web en
la siguiente URL.
https://world.casio.com/manual/projector/
EN/FR/ES
Advertisement
Related Manuals for Casio XJ-V Series
Summary of Contents for Casio XJ-V Series
- Page 1 EN/FR/ES English DATA PROJECTOR DATA PROJECTOR Setup Guide z Be sure to keep all user documentation XJ-V Series XJ-V Series handy for future reference. z To obtain the latest version of this XJ-V10X/XJ-V100W/ XJ-V10X/XJ-V100W/ manual visit the website at the URL below.
-
Page 2: Table Of Contents
CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of data caused by malfunction or maintenance of this product, or any other reason. -
Page 3: Safety Precautions
Safety Precautions Thank you for selecting this CASIO product. Be sure to read these “Safety Precautions” before trying to use it. After reading this User’s Guide, keep it in a safe place for future reference. About safety symbols Various symbols are used in this User’s Guide and on the product itself to ensure safe use, and to protect you and others against the risk of injury and against material damage. - Page 4 Make sure that you always observe the not covered by the warranty and are not following precautions. eligible for repair by CASIO. • Never place heavy objects on the power cord Be sure to leave all internal inspection, adjustment, and never expose it to heat.
- Page 5 Safety Precautions ● Disposal by burning ● Exhaust vents Never try to dispose of the projector by The exhaust vents become very hot while the burning it. Doing so can cause an projector is running. Never touch them. Doing so explosion, which creates the risk of fire creates the risk of burn injury.
- Page 6 • Insert the plug into the power outlet as far as it adjustment, and repair up to your original will go. dealer or authorized CASIO service • After using the projector, unplug it from the center. power outlet.
- Page 7 • Never mix batteries of different types. luminosity. Contact your original dealer or • Never try to charge batteries. authorized CASIO service center once a year about • Take care that batteries are oriented having the interior of the projector cleaned. Note correctly when you load them.
-
Page 8: Operating Precautions
The failure of the light source unit to light or a noticeable drop in light source unit brightness indicates the end of the light source unit’s life. Contact your original dealer or authorized CASIO service center for replacement. Note that problems caused by unauthorized projector disassembly or modification are not covered by the warranty and are not eligible for repair by CASIO. - Page 9 Operating Precautions Label Bottom Vent Outlets • Vent outlets become very hot during projection. Never touch vents or allow them to become blocked. • Do not insert foreign objects. Bottom EN-7...
- Page 10 Operating Precautions Projector Light Emission • Never block light output while the light is on. • Never look directly into the lens while the light is on. Particular care is required when children are present. Projection Lamp Caution This label is a “RISK GROUP 2” caution label required under the IEC62471 standard.
- Page 11 Operating Precautions Other Precautions This projector is made of precision components. Failure to observe the following precautions can result in inability to correctly save data and malfunction. ● Never use or store the projector in the following locations. Doing so creates the risk of malfunction of and damage to the projector.
- Page 12 Make it a habit to frequently save data on external equipment being powered by the projector. Note that CASIO COMPUTER CO., LTD. shall be held in no way liable for any loss or corruption of data.
- Page 13 Operating Precautions Precaution when Handling the Projector after Use The projector’s exhaust vents and the area around the vents become very hot during operation, and will still be hot immediately after turning off the projector. Because of this, you should hold the sides of the projector as shown in the illustration whenever moving it.
-
Page 14: General Guide
Exhaust vents Exhaust vents Intake vents Remote control signal receiver Zoom ring Projection lens Focus ring Intake vents Key and Indicator Panel XJ-V Series XJ-F Series POWER/STANDBY indicator Cursor keys ( / / ) STATUS indicator ... - Page 15 General Guide Back Terminals XJ-V Series Anti-theft lock hole* AUDIO OUT / AUDIO IN terminals SERIAL terminal SERVICE port COMPUTER terminal Remote control signal receiver HDMI terminal Power connector XJ-F Series ...
-
Page 16: Quick Guide
Quick Guide This section explains the operational flow up to the point that projection is started. For more individual operations, see the “User’s Guide” (UsersGuide.pdf). Load batteries into the remote controller. ☞ “To load remote controller batteries” (User’s Guide) Place the projector onto a table, desk, or stand that is level and firm, making sure that you allow enough room around it. -
Page 17: Specifications
Specifications After you finish projecting, press the [ ] key to turn off the projector. NOTE This product is also designed for IT power distribution system with phase-to-phase voltage 230V. If you run into problems... If you experience any problems while operating the projector or if you suspect that the projector is not operating properly, refer to the “Troubleshooting”... - Page 18 Specifications Model Name XJ-V10X XJ-V100W XJ-V110W Terminals RGB input COMPUTER terminal: RGB 15-pin mini D-Sub × 1; Used for both RGB input and component Component Input (YCbCr/YPbPr) input. Digital Video Input HDMI input terminal: HDMI type A terminal × 1 HDCP support, audio signal support Audio Input 3.5 mm stereo mini jack ×...
- Page 19 Specifications XJ-F10X Model Name XJ-F100W XJ-F200WN XJ-F210WN XJ-F20XN Projection 60 inches 1.95 to 2.87 Distance meters 1.64 to 2.42 meters (6.4 to 9.4 (5.4 to 7.9 feet) feet) 100 inches 3.33 to 4.85 meters 2.81 to 4.11 meters (10.9 to 15.9 (9.2 to 13.5 feet) feet) Minimum...
- Page 20 Specifications XJ-F10X Model Name XJ-F100W XJ-F200WN XJ-F210WN XJ-F20XN Power Consumption (100 to 240V) Light Output 7 when “Light Control” 160W 165W 140W 165W is “On” Light Output 1 when “Light Control” is “On” When “Bright” is selected for “Light 195W 205W 165W 205W...
- Page 21 Connector cable ..XJ-V10X/XJ-V100W/XJ-V110W/XJ-F10X/XJ-F100W/XJ-F20XN/XJ-F200WN/XJ-F210WN unit to PC Declaration of Conformity Model Number: XJ-V10X/XJ-V100W/XJ-V110W/XJ-F10X/XJ-F100W/XJ-F20XN/XJ-F200WN/XJ-F210WN Trade Name: CASIO COMPUTER CO., LTD. Responsible party: CASIO AMERICA, INC. Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801 Telephone number: 973-361-5400 This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 22 Manufacturer: CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan Responsible within the European Union: Casio Europe GmbH Casio-Platz 1, 22848 Norderstedt, Germany www.casio-europe.com Manufacturer: CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan Responsible within the United Kingdom: Casio Electronics Co.
- Page 23 MA2107-H...
