Reeva IH60SV Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IH60SV
GB
IE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IH60SV and is the answer not in the manual?

Questions and answers

Related Manuals for Reeva IH60SV

Summary of Contents for Reeva IH60SV

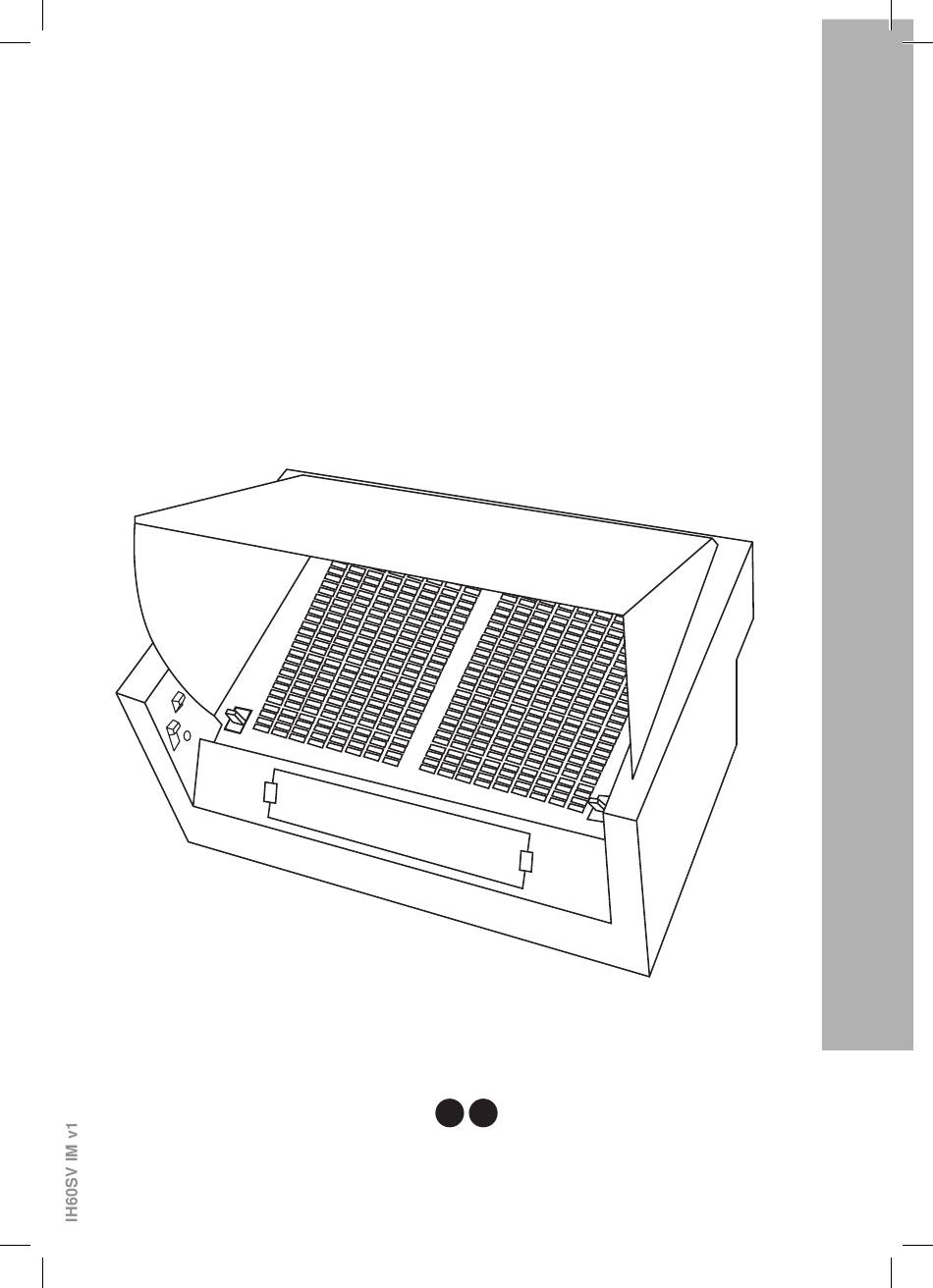

  • Page 1 IH60SV...
  • Page 2 [01] x 1 [03] x 2 [02] x 1 TEMPLATE [05] x 1 [04] x 1 [06] x 1...

  • Page 3: Table Of Contents

    Let's get started... Getting started... Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information CE Declaration of conformity Appendix Installation Information for EU66...

  • Page 4: Getting Started

    Getting Started... Before you start Safety...

  • Page 5: Before You Start

    Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners.
  • Page 6 Before you start Tools required Ø6mm Accessories not supplied Recirculation Extraction Ø125mm or Ø150mm CARBFILT1 (UK &IE) VENT PACK 2 (UK & IE) 3.9 x 32 mm SELF ADHESIVE Short Screw for cabinet & door ALUMINIUM TAPE Wall Plug Ø6mm CARBON FILTER ORDERING HOTLINE 0344 800 1128 (UK) 01 4475261 (IE)
  • Page 7 Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried electrician. • This appliance must be installed correctly following the manufacturer’s instructions. This appliance complies with all current European safety legislation, however, the Manufacturer must emphasise that this compliance does not prevent...
  • Page 8 Safety Keep the appliance and its cord out of reach of children less than 8 years. Means for disconnection must be incorporated rules. An all-pole disconnection switch having a contact separation of at least 3 mm in all poles Regularly check the power plug and power cord for damage.
  • Page 9 Safety We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system.
  • Page 10 Safety Warning: The hood may stop working during an electrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute. regularly and closely watch and regulate pans containing hot oil. Do not use the hood if it shows signs of damage or imperfection.

  • Page 11: In More Detail

    more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information CE Declaration of conformity...

  • Page 12: Product Functions

    Product Functions Product functions This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of air quality inside the room, it also allows you to illuminate the cooking area. Operation Operation Using Your Cooker Hood. The light and the fan motor will not operate if the outer cover is in the closed position.
  • Page 13 Operation Lighting OFF Lighting ON Extractor fan OFF Extractor fan speed – button: speed 1 Extractor fan speed – button: speed 2 Extractor fan speed – button: speed 3 Extractor fan operating control pilot light Position 1, should be selected when simmering or using only one pan.

  • Page 14: Care And Maintenance

    Care and maintenance Care and maintenance Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact customer services. Bulb replacement FUSE 10’ The Bulb may be hot, leave it 10 minutes before removing it. Turn the lamp to remove.
  • Page 15 Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. 1 x ACTIVE CHARCOAL FILTER (NOT SUPPLIED). MODEL NUMBER CARBFILT1 (UK & IE) Clean using non-corrosive, liquid detergent or a special stainless steel cleaner and avoid the use of abrasive cleaning products.

  • Page 16: Troubleshooting

    Troubleshooting Troubleshooting Fault Cause Solution Excessive The Appliance is not hung Take down the appliance Vibration properly on the brackets. and check it is properly The fan blade is damaged. Switch off the appliance. Repair to be carried out by tightly.

  • Page 17: Recycling And Disposal

    Recycling and disposal Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste.
  • Page 18 Technical and legal information All installation work must be carried out by a Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. WARNING : THIS APPLIANCE MUST NOT BE EARTHED.
  • Page 19 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation. Electrical Connection Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.

  • Page 20: Ce Declaration Of Conformity

    We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. MACHINE APPLICATION: IH60SV Integrated Cooker Hood TYPE: Comply with the European Directives 2006/95/EC: LVD...

  • Page 21: Appendix

    Appendix... Installation...
  • Page 22 Installation CARBFIL (UK & IE) VENT PACK 2 (UK & IE) You can choose two type of installation: - Extraction option - Recirculation option. Installation for Recirculation. extra) to remove any odours and the air is then re-circulated.
  • Page 23 Unscrew the bracket from the hood. (Do not dispose of screws and washers as you will require them later) MIN.750mm (GAS) TEMPLATE MIN.750mm MIN 650mm [5] x 1 (GAS) (Electric) TEMPLATE MIN 650mm (Electric) TEMPLATE Mounting the Integrated Hood on the Wall. Position the template [05] between the 2 kitchen cabinets making sure you align the top of the template with the top of the units.
  • Page 24 Drill the 4 marked holes, insert wall plugs and fix 2 top screws, leaving the screw head protruding 2mm. Ensure wall plugs (not supplied) used are suitable for wall type. Position hood over 2 wall screws, and use keyhole slots on adjustment bracket to support the weight.
  • Page 25 Position furniture door on the unit and use a pencil to mark a line Open the front panel and push the two catches (A) upwards and remove the grille and grease filter. Pull the locking pin B, on both sides of the front panel, until they stop, and pull the front panel forward until it is released from its guide rails and seperated from the hood.
  • Page 26 Reverse furniture door face down and line up furniture door to pencil mark Mark 6 holes with a pencil Screw into place Remounting the hood front panel. Remount the hood front panel onto the hood with decor panel now attached.
  • Page 27 Positioning the hood using the ajustable brackets. Use the 2 adjustment screws on the top on the hood to adjust the hood - front to back - to line up the hood flush with your cabinet doors. Tighten the 2 screws in desired position. 0 - 50mm [06] x 1 55 - 85mm...
  • Page 28 Fix the bracket to the wall. Remount the hood using the 2 wall screws and then fix the bottom 2 screws and washers (supplied) through the bottom of the bracket into the hood.
  • Page 29 Fig 1 Fig 2 Remove the grill (Fig 1 ) Fix the cabinet screws on the side. Make sure the screw length is compatible with the kitchen cabinet thickness (Fig 2)
  • Page 30 [02] x 1 Vent Pack 2 is unpacked), into the aperture on the top of the cooker hood and secure the pipe to the collar. Note: For electrical connection see Technical and legal information section...

  • Page 31: Information For Eu66

    Appendix... Information for EU66 (A)Information of the cooker Hood Symbol Value Unit Model identification IH60SV Annual Energy Consumption 92.9 kWh/a hood Time increase factor Fluid Dynamic Efficiency hood Energy Efficiency Index 88.2 hood Measured air flow rate at best 163.2...
  • Page 32 Apelson Appliances UK Limited Unit 3 Normandy Landings Pope St Castleford WF6 2AG...
