Summary of Contents for Coustic XM6

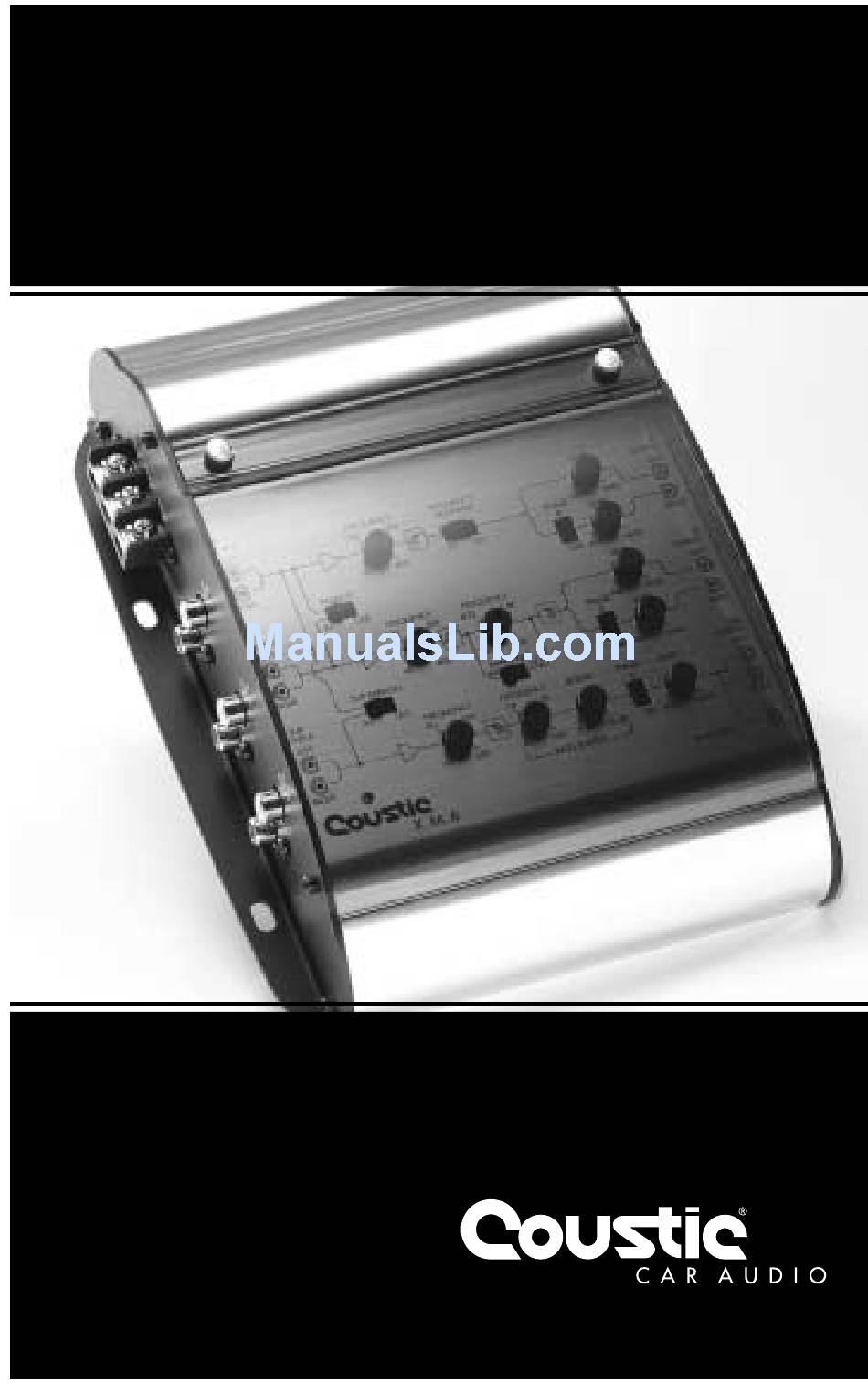

  • Page 1 XM6 OWNER’S MANUAL 877 COUSTIC WWW.COUSTIC.COM...
  • Page 2 Besides its sleek, contoured design, the new XM6 offers the latest comple- mentary audio features. This booklet offers you a guided tour of all these exciting benefits.
  • Page 3 6-channel input configuration. An adapter is not needed to split the source signal to the “A”, “B”, and sub inputs when the XM6 is used with a source unit that only has a single or dual pair of RCA or line level outputs.
  • Page 4 XM6 INPUT PANEL XM6 OUTPUT PANEL XM6: TERMINALS Power Input Terminal (B+) – Connects to the positive terminal of your vehicle battery or other constant +12V source Ground Input Terminal (GND) – Connects to the vehicle’s chassis ground Remote Turn-on Input Terminal (REMOTE) – Connects to the remote control wire or antenna lead of the source unit for remote ON/OFF “A”...
  • Page 5 XM6 CONTROL PANEL XM6: CONTROLS & INDICATORS 11 Parallel Input Switches – “IN”: Each appropriate switch must be set to the “IN” position when the source unit does not supply rear or subwoofer channel outputs. “OUT”: If the source unit has independent front, rear and/or sub channel outputs, set each switch to the “OUT”...
  • Page 6: Installation

    • Leave at least 6" clearance above the unit to allow easy adjustment. MOUNTING • Place the XM6 crossover at the desired location and use it as a template to determine the exact position of the mounting holes. • Mark the mounting holes with a felt pen, and put the crossover aside.
  • Page 7 WWW.COUSTIC.COM See Page 20 XM6 Phase Adjustment See Page 20 XM6 Phase Adjustment...
  • Page 8 WWW.COUSTIC.COM See Page 20 XM6 Phase Adjustment...
  • Page 9: Audio Input Connections

    “OUT” position. AUDIO OUTPUT AND POWER CONNECTIONS • Connect the “A”, “B” and sub channel outputs of the XM6 crossover to the inputs of their respective amplifiers. • Connect the crossovers’ B+ terminals to the positive terminal of the vehicle’s battery.
  • Page 10 With the XM series Bass-Drive™ remote sub gain control port and the R S remote control, the subwoofer output level can be adjusted as and when necessary from the driver’s seat. WWW.COUSTIC.COM ⁄ of its maximum...
  • Page 11 WWW.COUSTIC.COM XM6 PHASE ADJUSTMENT An acoustical time delay might exist in a mobile audio system between the time the subwoofer, midrange and tweeter signals are received by the listener. This is caused by different distances between the listening position and the left, right and subwoofer speaker placements.
  • Page 12: Noise Check

    “Boost” control upward or downward. NOISE CHECK • Before mounting the XM6 crossover and the other audio components permanently, please conduct the following noise check: • Start the engine and turn on the power of the source unit.
  • Page 13: Troubleshooting Guide

    Important Notice to Consumer: Coustic offers the following warranty to the ORIGINAL PURCHASER of COUSTIC products within the period stated herein: Coustic warrants the XM2, XM4 and XM6 against defects in material and workmanship for a period of ONE (1) YEAR from date of original purchase.
  • Page 14 WWW.COUSTIC.COM NOTES:...
  • Page 15 7676 SOUTH 46 STREET, SUITE 2020, PHOENIX, AZ 85042 TOLL FREE 877 COUSTIC TELEPHONE 602 438 2020 FACSIMILE 602 438 7313 www.coustic.com © 2 0 0 1 . C O U S T I C I S A R E G I S T E R E D T R A D E M A R K O F M I T E K C O R P O R AT I O N . A L L R I G H T S R E S E R V E D .
