Huvitz HFC-1 Manual
  1. Manuals
  2. Brands
  3. Huvitz Manuals
  4. Digital Camera
  5. HFC-1
  6. Manual

Huvitz HFC-1 Manual

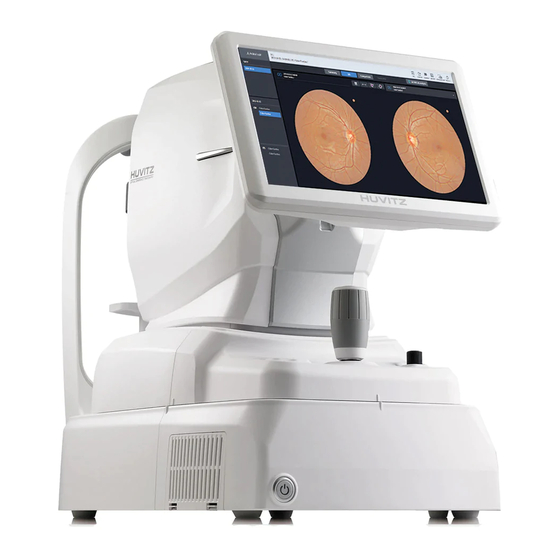

Fundus camera
