Summary of Contents for Emax Aeris Link TX 2.4G/915M

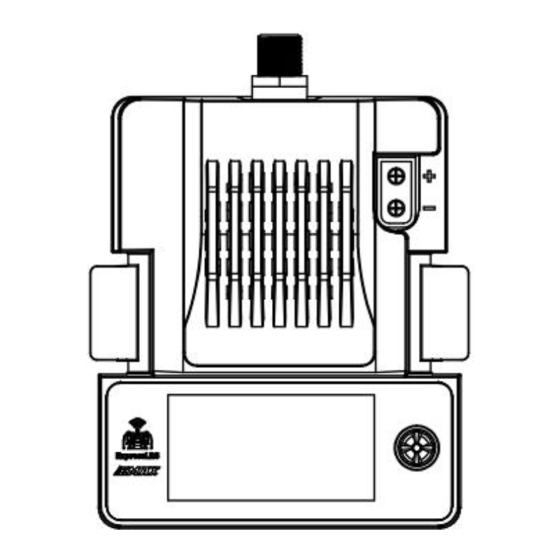

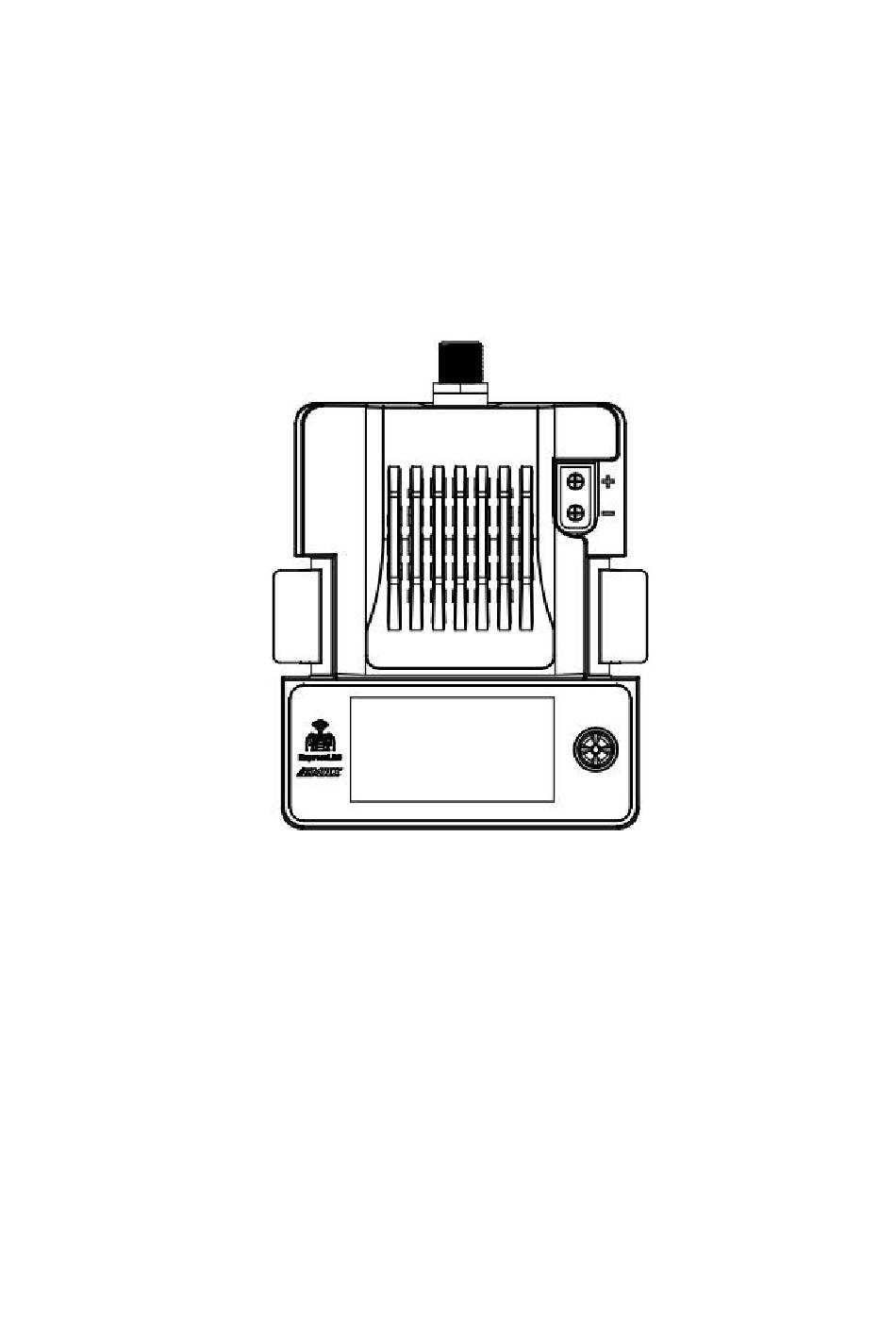

- Page 1 Aeris Link TX 2.4G/915M www.emaxmodel.com www.emax-usa.com Thanks for purchasing Aeris Link TX 2.4G/915M . Please follow the instruction manual to assemble and configure your product.
- Page 2 This product is not suitable for individuals under the age of 18. Aeris Link TX 2.4G/915M high-frequency module is a new generation remote control wireless system based on the open-source project ExpressLRS. The ExpressLRS system features long control distance, stable connection, low latency, high refresh rate, and flexible configuration.
- Page 3 1.Description 1. 915M-Typed Antenna 2. 2.4G-Typed Antenna 3. Antenna Interfaces: 915M: SMA-KY external thread, internal socket 2.4G: RP-SMA-KY external thread, internal pin 4. Power (XT30) Interface 5. Mounting Slots 6. Five-Way Buttons 7. Display Screen 8. Type-C Interface 9. Near: FLASH Button Far: Reset Button 10.
- Page 4 2. Operation Instructions: Five-Way Buttons (Left, Right, Up, Down, Center): Left (Press to exit the current menu). Right (Short press to enter the next level menu, long press to access menu options in the information display screen). Up (Select options upward). Down (Select options downward).
- Page 5 100Hz Full (Yellow-green light) 50Hz (Blue light). 200Hz (Red light) 2.4G Default： Max 1W, Default 10mW(Default) 25mW 50mW 100mW MAX POWER 10mW， supports 250mW 500mW 1000mW the adjustment of power levels 915M Version： Max 2W，Default 10mW(Default) 25mW 50mW 100mW MAX POWER 10mW，...
- Page 6 WIFI http://10.0.0.1 VRX WIFI CHANNEL 1 2 3 4 5 6 7 8 Default 1 BAND OFF A B E F R L Default OFF POWER - 1 2 3 4 5 6 7 8 Default - OFF On AUX1↑ AUX1↓ AUX2↑ AUX2↓ Default OFF ADMIN AUX3↑...
-
Page 7: Product Specifications
Product Specifications: Weight Approximately 59g (excluding antenna) Dimensions 72 x 63 x 35mm (excluding antenna) Screen Size 1.29 inches Screen Resolution 64*128 Operating Frequency 2.4G Version: 2.4GHz ISM 915M/868M Version: 915MHz FCC/868MHz EU Output Power 10mW (default) 2.4G Version: Adjustable power levels 25mW/50mW/100mW/250mW/500mW/1000mW... -
Page 8: Product List
When you need to dispose of this product (plastic shell containing printed circuit board), please follow the local residential waste disposal regulations for proper disposal. Thanks for choosing EMAX products！ Warning: 1.Once again, we remind you to avoid using this product for an extended period to prevent discomfort. If you experience any discomfort during use, please stop using it immediately and resume use only after obtaining permission from a doctor.
