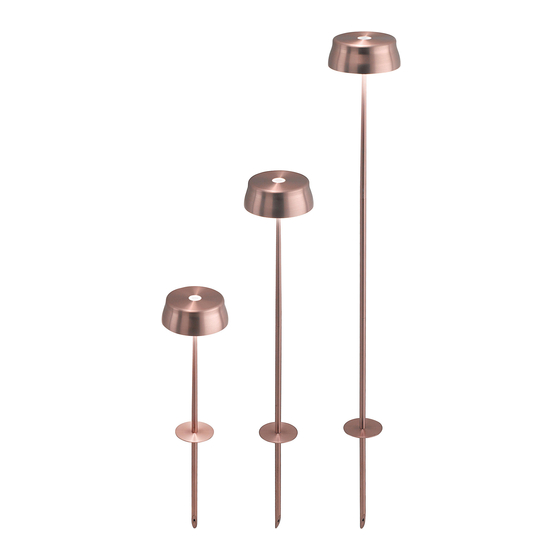

Zafferano sister light LD0302R3 Instructions For Use Manual

sister light
Rechargeable floor lamp
1. Tips for use:
This product is exclusively for lighting purposes and:
A) It must not be exposed to heavy mechanical loads or contamination; B) It can be installed and used only after checking the state of the product;
check that is not dirty and has not been damaged during storage; C) Installation and maintenance must be carried out when the appliance is
switched off; D) Any alterations to the product, any tampering and any failure to comply with the instructions provided may make the appliance
hazardous; E) Products with IP65 protection are suitable for outdoor use; F) All metal and plastic surfaces should be cleaned with a soft dry cloth;
G) The company Zafferano shall not be held liable for any damage caused due to its products being assembled in any manner that does not com-
ply with the instructions provided.
2. Technical data:
- Power: 3 W
- Volt: DC 5 V
- Lumen lamp: 2700K 250 lm - 3150K 260 lm - 4000K 270 lm
- LED: HONGLITRONIC 2835 /(8+42 pz) 3 STEP MAC ADAM
- Lithium battery pack included (see section accessories included); for instructions about how to replace the battery pack, please consult the
website: www.zafferanoitalia.com. We recommend using an original battery pack as a replacement.
- Standard charge: 1A - 2A (max 2A)
- Charge: 2A 5 h - 1A 10 h
- Battery life: 100% 8 h - 60% 13 h - 30% 28 h - 6% 58 h
- Class: III
- Protection rating: IP65
- CRI≥90
- With reference to the UNI EN ISO 9227 standard, the lamp is guaranteed to resist exposure to neutral salt spray (NSS) for 1,500 hours.
3. Charger:
- You can use a charger with Standard-A USB to charge this product.
- Dual USB port power charger NOT INCLUDED: INPUT 100-240 V AC - 50/60Hz; OUTPUT DC 5V - 2.1 A.
- To correctly charge the lamp, we recommend that you: 1- Connect the USB cable to the adaptor; 2- Connect the USB cable to the lamp; 3- Put the
plug into the electrical socket; 4- When fully charged, disconnect the plug from the electrical socket and remove the USB cable.
- The lamp also operates properly when connected to the mains power supply.
- We recommend using an optional charger and the original cable provided. Alternatively, use a certified cable and a 2A charger.
4. Manufacturer's configuration:
100% LUMINOSITY - 2700K - DIMMER ON - MECHANICAL FIXING
5. Important!
- The support surface for the lamp must not exceed a 15° tilt or it will fall.
- The battery is provided with the following protection functions: short circuit, over discharge, over charge, over current, over voltage.
- To preserve the integrity of the battery, we recommend keeping the charge between minimum 20% and maximum 80%; if the lamp is not used for
long periods, it is advisable to regularly charge/discharge the product.
- Please refer to local laws for the proper disposal and recycling of the battery.
DESIGNED BY ZAFFERANO SRL IN ITALY, MADE IN PRC • Zafferano srl, Viale dell'Industria, 26 - 31055 Quinto di Treviso - TV - Italia • For more
information and updates visit our website • www.zafferanoitalia.com
LD0302R3 anodized copper
LD0302V3 anodized green
INCLUDED
Charging cable
with USB Type C input
Magnetic fixing kit
x 2
This product contains a class F light source
LED DIMMER
3W • 250lm - 260lm - 270lm
2700K - 3150K - 4000K
• CRI>90 • 5Vdc max 2A
IP65
Ø 13,2 x h 108-83-58 x Ø 1,2 cm
Ø 5,2 x h 42,5-32,6-22,8 x Ø 0,4 in
NOT INCLUDED
LD0300UC
Dual USB port power
charger
LD0340RA
Multi-socket USB charger
(8xUSB)
BAT04705506701900
Replacement battery pack
KIT00012007000200
Replacement LED board
4
