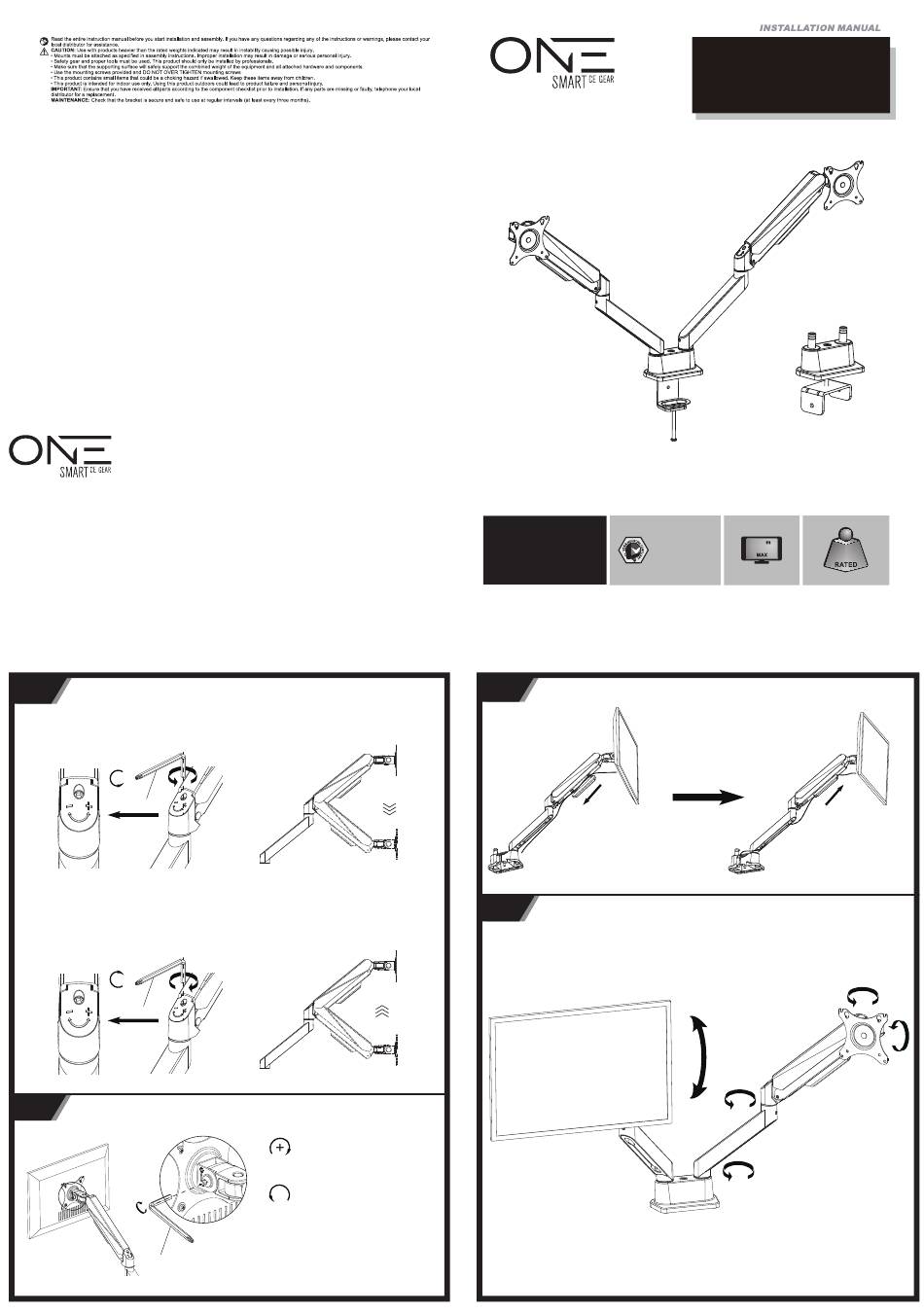

ARISIT ONE PPMM2-AL Installation Manual

Arisit Pty Limited Australia,
40-50 Mark Anthony Drive, Dandenong South,
VIC 3175 Australia Tel: 1300 762 219
Arisit Pty Limited NZ,
1a Howe Street, Newton, Auckland,
1145 NZ, Tel: (+64) 9 306 1020
Made in China
4
Case 1：Monitor/Arm fall down (after install your monitor)
Press the arm to make it keep it in horizontal position and then use the Allen Key to adjust the screw on the arm.
Turn counter-clockwise("+ " direction) to increase gas spring tension till can hold the weight of your monitor.
Note: You may need to turn the screw by many times to tighten the arm.
+
E
6
Case 2：Monitor/Arm pops up (after install your monitor)
Press the arm to make it keep it in horizontal position and then use the Allen Key to adjust the screw on the arm.
Turn clockwise("- " direction) to reduce gas spring tension till can stay the position needed.
Note: You may need to turn the screw by many times to tighten the arm.
-
E
5
Adjust flexiblity
E
fall down
pop up
Turn clockwise to tighten
-
Turn counterclockwise to loose
If you feel the pitching angle too tight or too loose
when adjusting the mount, please adjust the Screw
PPMM2-AL
75x75/100x100
6

Cable management

7

Adjustable instruction

Aluminium
Monitor Arm
30
9kg
(19.8lbs)
+90°
-45°
360°
360°
180°
360°
