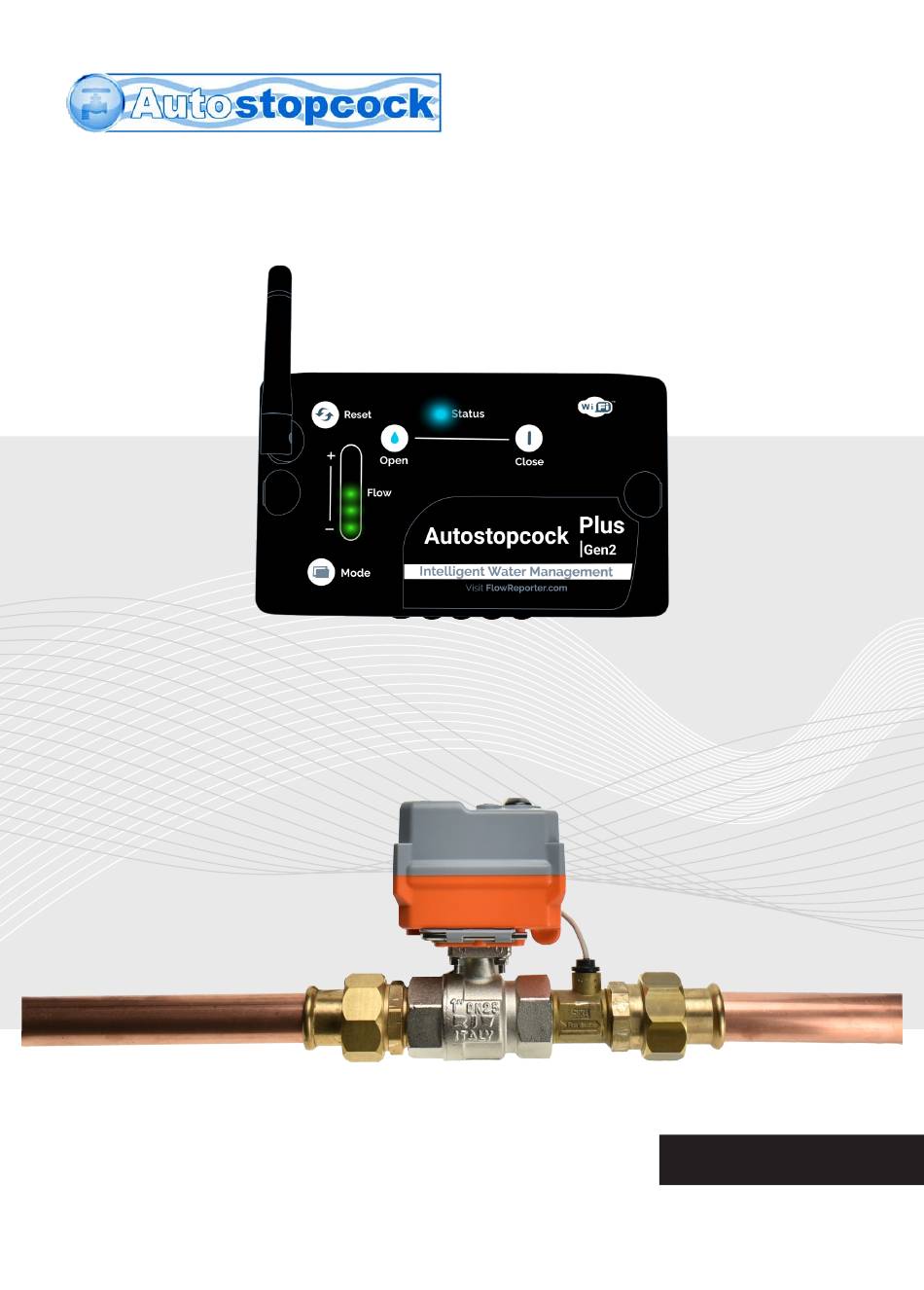

- Page 1 Autostopcock Plus User Manual English Ver 9c © Autostopcock 2023...
- Page 2 QUICK START GUIDE See p12 www.FlowReporter.com Or search FlowReporter...
-
Page 3: Table Of Contents
Before you begin ......................7 Plumbing instructions ....................8 Wall-mounting instructions ..................10 Wiring instructions ....................11 Connecting to the internet ..................14 User manual Autostopcock Plus Base ..................17 Using the buttons and LEDs ..................18 Offline mode ......................19 Overview of software ....................21 Dashboard ........................22 Configure Base ......................23 Graphs ........................24... -
Page 4: Introduction
Using Autostopcock Plus, water consumption can be visualised anytime from anywhere in the world. If a leak is detected, an alert is immediately sent to the user via email. If desired, Autostopcock Plus can automatically shut off the water supply, so no water damage is caused in the event of a leak. -
Page 5: Installation Guide
INSTALLATION GUIDE Overview Find the stopcock Decide where the Autostopcock Plus will be placed - this will normally be just after the stopcock, where the water enters the building. This will usually be coming up from the ground. Install valve and meter... -
Page 6: Item Checklist
INSTALLATION GUIDE Item checklist Autostopcock Plus Base back Autostopcock Plus Base front Cable grip, screws and inserts With integrated circuit board. To fasten cables, battery and Wall mountable. enclosure, and increase the visual appeal. Power adaptor Water meter Valve Standard mains DC power To measure water flow. -
Page 7: Before You Begin
Before you begin The Base uses WiFi to communicate over the internet, and requires mains power. Before installing, decide where the Autostopcock Plus Base will be located: ● Within 3 meters of plumbed fittings, ● Within 1 meter of a 100-240V 50/60 Hz mains socket, ●... -
Page 8: Plumbing Instructions
INSTALLATION GUIDE Plumbing instructions 1. Choose location for meter and valve. They will usually be installed together, but try to place the meter as far upstream as possible. The optimum conditions for placement of a meter are as follows: a) Straight length of 10 pipe diameters upstream b) Straight length of 5 pipe diameters downstream... - Page 9 INSTALLATION GUIDE Plumbing instructions (continued) 3. Turn the water supply off and drain the system (or up until the next stopcock downstream). 4. Remove any dried paint on the pipes where the connections will be fitted. 5. Plumb in the fittings, making sure the arrows on the fittings match the direction of water flow.
-
Page 10: Wall-Mounting Instructions
If these need to be removed, use a small flathead screwdriver to lift out. The Autostopcock Plus Base and its power supply are not waterproof and should be installed in an appropriately safe place. The plug socket should remain accessible after installation in case of... -
Page 11: Wiring Instructions
3. Plug the power in, then if using a battery, plug the battery in. 4. Thread all the cables through the cable grip. 5. Finally, place the Autostopcock Plus front onto the wall-mounted back box, screw into place and use the plastic inserts to hide the screws. - Page 12 5V: White SIG: Red 5V: White SIG: Red Wiring guide for water valves 1” motorised valve 2” motorised valve Solenoid valve 2”-4” flanged motorised valve Autostopcock Plus connection OSIG CSIG OPEN CLOSE Solenoid valve (DC) Black 1” motorised valve (DC) Black...
- Page 13 INSTALLATION GUIDE Wiring instructions Wiring guide for optional inputs Valve bypass Leak Cable To override the valve and keep it open With leader cable, use red and black. during a sprinkler event, feed a volt-free Without leader cable, use the 2 black cables. closed circuit to this input.
-
Page 14: Connecting To The Internet
INSTALLATION GUIDE Connecting to the internet These steps are to be performed by a computer or smartphone with WiFi capability. The entire process uses an internet browser. Login online Install the app or browse to www.FlowReporter.com. Once you have registered for an an account, log in. Register new Base Connect the Base to WiFi by clicking “Register Base”... - Page 15 Once you have an account, log in and click “Register Base”. Plug in the Autostopcock Plus base and make sure the “Status” light is blinking dark blue. If it isn’t, press and hold the “Mode” button until it does.
- Page 16 INSTALLATION GUIDE Connecting to the internet - in detail (continued) Return to the app and click “Next”. The screen should change to show the device scanning the area for nearby WiFi (if not, refer to the previous page). A few seconds later, a list of available WiFi will appear.
-
Page 17: User Manual
USER MANUAL Autostopcock Plus Base DC connector On the front of the Base, you will see LEDs (lights), buttons and connections. Antenna Close button /LED Status Reset Open button button /LED Flow level Screws indicator inserts Mode button (change WiFi) -
Page 18: Using The Buttons And Leds
USER MANUAL Using the buttons and LEDs Status To connect the Base to a new WiFi access point, hold down the Mode button for around 5 seconds until the “Status” LED flashes dark blue. Open To open the valve, hold the “Open” button until the “Open” LED shows green and you hear water flowing. -
Page 19: Offline Mode
SD card and reset. Factory default configurations The following offline mode thresholds will close the valve when exceeded. For flow sensor (default 1”) For fittings 2” plus valve : and above: Commissioning Configuration Time threshold: 10 minutes... - Page 20 USER MANUAL Offline mode Maximum flow calibration This setting is to protect from a sudden spike in flow as could happen from a burst pipe. As soon as the maximum flow is exceeded, the valve will shut off the water immediately to prevent damages. The default maximum flow value is specified in the default configurations.
-
Page 21: Overview Of Software
USER MANUAL Overview of software When online, Autostopcock Plus works in conjunction with an app and/or web application, which can be found at: www.FlowReporter.com. The software is constantly being updated, so some of the following screens may change. For the most up-to-date documentation, please click the “help”... -
Page 22: Dashboard
USER MANUAL Dashboard After logging in, you will see a list of Base devices which you have access to (either owned or shared): User settings Help Click to change settings Click to go to the online related to you as a user such documentation, contact, as email, phone, and email FAQ and forums... -
Page 23: Configure Base
USER MANUAL Configure Base Clicking a Base device from the dashboard will bring you to Configure Base, which allows you to modify inputs, their names and connected valve: Unique ID for Base (auto-filled) Location of the Base Input type Unique name for input Valve type Advanced settings... -
Page 24: Graphs
USER MANUAL Graphs After selecting a flow input, you will see a graph of the consumption for the current month: View Choose to view graph of real-time, day, month or year consumption Options Click to expand further viewing options such as units, events view, and custom time frame Daily view Back 1... -
Page 25: Device Settings
USER MANUAL Device settings After clicking device settings, you will see the following screen. Depending on your permissions, some sections and buttons may not be visible: Alerts Orange text shows minor alerts, red text show major alerts (where the water was shut off) - click to view detailed graph of event Archive Remove alerts from this page by... - Page 26 USER MANUAL Sharing access To send access to another user, you must know their email address: Device name Recipient’s email Descriptive name so the recipient knows what they’re accessing The recipient will receive an email with a link to accept access to the device (if not, make sure to check the spam folder).
-
Page 27: Thresholds And Alerts
USER MANUAL Thresholds and alerts An alert is sent if either of the thresholds have been exceeded. Exceeding the “alert” threshold sends a minor alert, and exceeding the “shut off” threshold sends a major alert and shuts off the water. Here is an example situation where the flow of water begins at 17:30 and the thresholds are Alert threshold = 30 minutes or 60 litres Shut off threshold = 2 hours or 240 litres... -
Page 28: Sharing Access
USER MANUAL Thresholds and alerts Leak cable One leak cable input will take in 2 wires. The theory is that the resistance of these wires will decrease when water is presented anywhere along the wire length. The lower the resistance, the worse the leak. -
Page 29: Troubleshooting
SOS signal (3 short Flashing red Hardware problem flashes – 3 long flashes – 3 short flashes) which will help us determine the exact fault. If the problem persists, contact Autostopcock using the contact details on the back page of this manual. -
Page 30: Specifications
Connectivity WiFi IEEE 802.11 b/g/n Power 12V DC 1.6A max Battery (optional) Lithium-ion rechargable 7.2V Water Meters Maximum number of meters supported per Autostopcock Plus Base = 4. Thread Nominal Nominal flowrate diameter (DN) 3/4” BSP male 11mm 1.8 m3/h 1”... -
Page 31: Maintenance
MAINTENANCE The Autostopcock Plus Base has been designed to be maintenance-free, however the sensors and valves may naturally wear after time. Should the sensors or valves fail, contact Autostopcock for a replacement. Cleaning A damp cloth is recommended for cleaning the Autostopcock Plus Base. -
Page 32: Technical Support
TECHNICAL SUPPORT Please contact Autostopcock if you require any technical assistance using the details below. Autostopcock Second Floor Oakview house Bryants Avenue Romford Essex RM3 0AP Phone: 033 33 66 04 21 Email: sales@AutoStopcock.co.uk Web: www.AutoStopcock.co.uk © Autostopcock 2023...
