Permacon Orion Assembly Instructions Manual

Hide thumbs

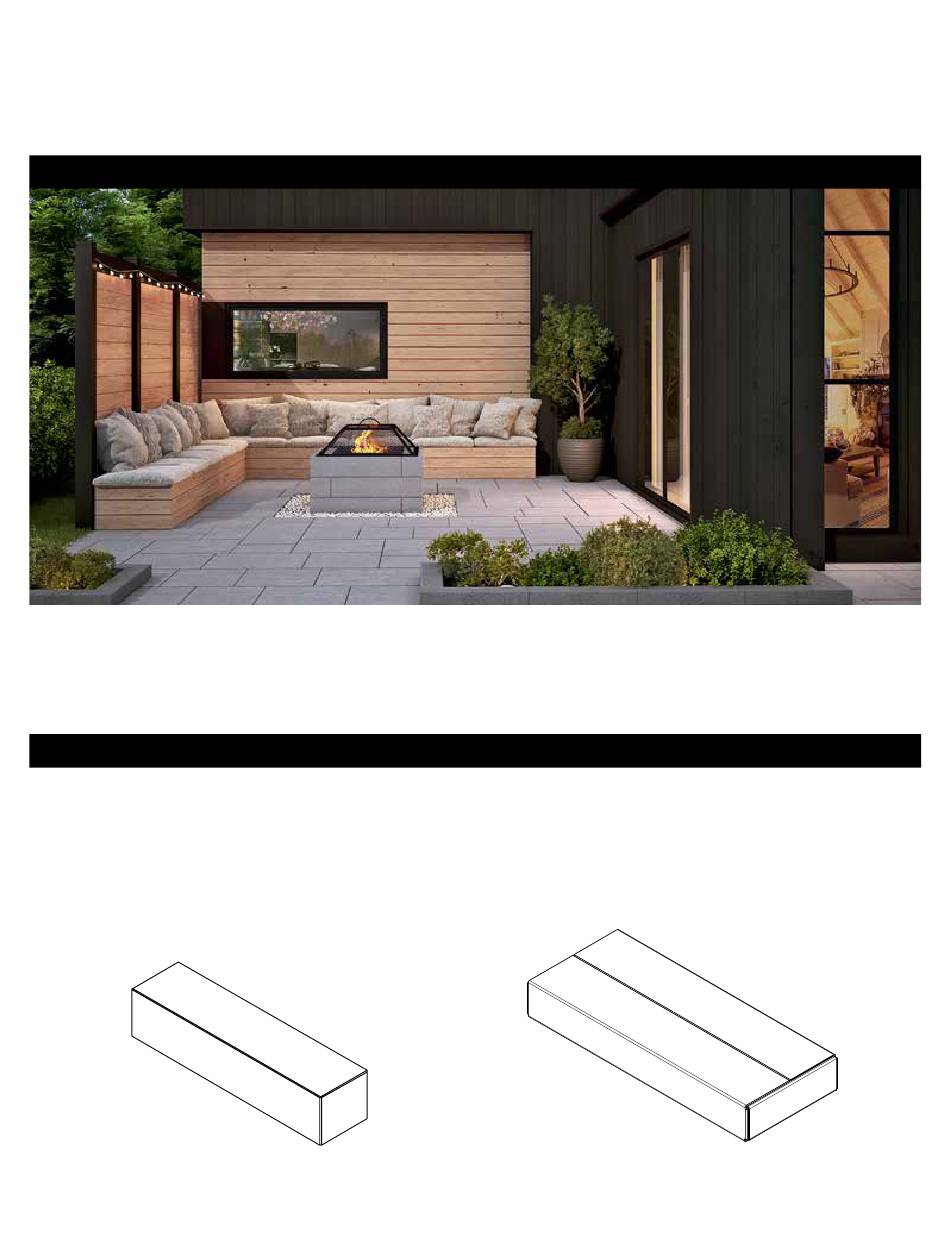

Create a cozy atmosphere with the Orion Firepit. With its sleek and elegant look, it will certainly become the gathering spot of your

landscape design. This easy-to-assemble product includes the necessary number of concrete units, a black galvanized metal insert,

and hardware. The spark arrestor which can be added to the order, is simply inserted in the centre of the firepit.

CONTENT

ORION FIREPIT KIT INCLUDES:

> 12 Orion concrete units in Range Scandina Grey (12051110) or Range Amber Beige (12051111)

> 1 black galvanized metal insert including necessary hardware (in a box)

The spark arrestor (205500004) is sold separately.

12 x Orion

concrete units

236

Installation Guide

Orion Firepit

DESCRIPTION

ASSEMBLY

1 x metal

insert box

Table of Contents

Need help?

Do you have a question about the Orion and is the answer not in the manual?

Questions and answers

Summary of Contents for Permacon Orion

Page 1 DESCRIPTION Create a cozy atmosphere with the Orion Firepit. With its sleek and elegant look, it will certainly become the gathering spot of your landscape design. This easy-to-assemble product includes the necessary number of concrete units, a black galvanized metal insert, and hardware.
Page 2 ORION FIREPIT ASSEMBLY IN THE BOX: 4 x corners 4 x panels 32 x bolts 32 x nuts SPARK ARRESTOR IN THE BOX: 1 x frame 2 x doors 2 x handles 2 x metal rods 4 x bolts 4 x nuts...
Page 3 The spacers should face the ground. > Ensure the base is level prior to installation > Install the Orion concrete units in desired location - Install the units on the ground in a square shape. Make sure every unit is used once...
Page 4 Repeat step #1 to attach all four panels of the metal insert. Slide the metal insert in between the assembled Orion Firepit. It is not necessary to use concrete adhesive to glue the insert to the Orion Firepit. Put 0-3/4 in. clean stone at the bottom of the firepit till it meets the edge of the metal insert (depth of the stone: 290 mm or 11 3/8 in.).
Page 5 All the necessary tools for the following steps, such as a hex key and a flat key, are provided in the nuts-and-bolts bag. Screw the handles to the doors with the supplied Position the frame over the Orion Firepit metal insert. nuts-and-bolts. The bolts should point to the inside of the firepit.
Page 6 ORION FIREPIT ORION FIREPIT AND SPARK ARRESTOR The Orion Firepit is now assembled. Make sure to follow any municipal by-laws regarding outdoor fires. Installation Guide...
